ISSN 2079-3537






Scientific Visualization, 2018, volume 10, number 3, pages 72 - 84, DOI: 10.26583/sv.10.3.05

Visualization of the quality (state) of the psychological climate in the team based on the speech interaction acoustic information processing

Author: V.M. Alyushin

National Research Nuclear University MEPhI (Moscow Engineering Physics Institute), Russia

ORCID: 0000-0002-3816-6239, VMAlyushin@mephi.ru



Abstract

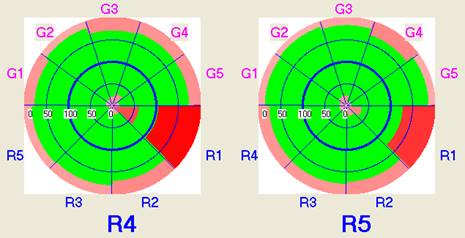

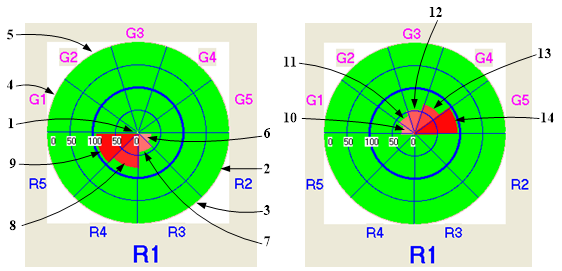

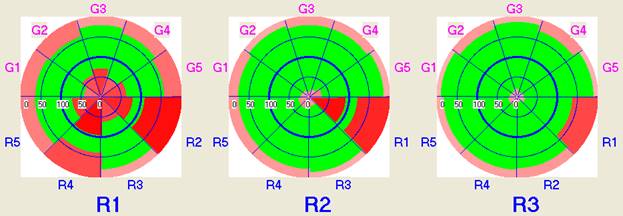

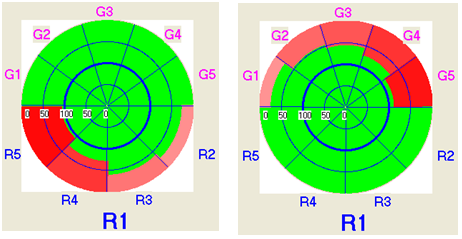

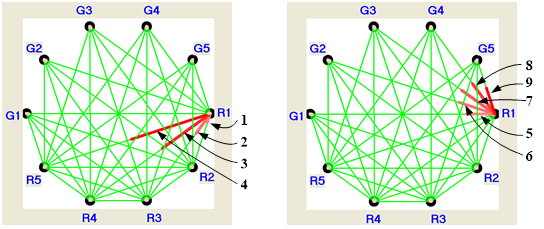

Methods for visualizing the state of the psychological climate in a team based on the speech interaction acoustic information processing are proposed. The speakers psycho-emotional stress level is used as the initial data for assessing the state of the psychological climate in the team. Two main approaches have been identified, aimed at visualizing the personal level of conflict in each member of the team and visualizing the overall psychological climate in the team. To visualize the personal level of conflict, it is suggested to use pie charts that show the level of interpersonal relations of the employee with the rest of the team. To visualize the state of the psychological climate in the team, it is suggested to use a circular graph that allows to display all interpersonal relationships existing in the team. To display the level of personal conflict, different forms of information are used. The quantitative form allows you to display a numerical estimate of the level of conflict in the form of a sector area in the case of using pie charts, or as the length of a segment of the chord of the graph. The qualitative form of information presentation makes it possible to display data on the conflict in the form of a shade of red. The use of two forms of data mapping makes the visualization of information more visual and structured, which increases the efficiency of its operational use. Conducted laboratory testing of the proposed methods of visualization confirmed their effectiveness in solving problems of human factor management.



Keywords: psychological climate, human factor, acoustic technologies, personnel management.
