The
oil & gas industry worldwide is rapidly evolving and searching for more
efficient and economical exploration and extraction methods, which increases
the need for extensive reservoir studies [1,2]. Standard core plugs play a
pivotal role in this domain, serving as representative models of subsurface
geological formations where petroleum and gas deposits are found [3,4]. These
reservoir samples serve as invaluable tools for scientists and engineers, providing
critical insights into the physical and chemical properties of rocks and fluids
deep beneath the Earth's surface. Understanding these properties is essential
for predicting oil and gas reservoir behavior, optimizing extraction
techniques, and ensuring efficient and sustainable resource exploitation [5].
Extracting
core samples is a costly and time-consuming process, often requiring advanced
drilling techniques and specialized equipment. Moreover, accessing certain
reservoirs, especially those located in remote or environmentally sensitive areas,
can be logistically challenging. These factors limit the quantity and variety
of core samples available for analysis, constraining the scope of research and
potentially hindering comprehensive understanding of reservoir characteristics
[3].
In
addition, a significant limitation arises from the inability to reuse samples
after a series of tests due to contamination and sample destruction. Each
experimental procedure, particularly those involving chemical interaction or
mechanical testing, can alter the composition and physical integrity of the
core samples, rendering them unsuitable for subsequent tests. This restriction
poses a challenge in conducting a diverse range of experiments on a limited set
of core samples, necessitating an ongoing need for fresh samples from drilling
operations [6].
Moreover,
an often-underestimated limitation in core analysis stems from the inherent
variability in the pore structure of core samples, even when they share similar
compositions and properties. Despite their similar geological origins, these
samples exhibit diverse pore network architectures, impacting the results of
experiments. The influence of pore structure on fluid flow, mechanical
behaviour, and chemical interactions is substantial but frequently overlooked. This
variation becomes particularly critical when testing methods aimed at enhancing
oil recovery or studying the effects of different chemical compositions.
Variations in the pore structure can significantly skew experimental outcomes,
leading to inaccurate interpretations and potentially flawed conclusions [6].
In
the face of these limitations in core analysis, the prospect of creating clones
of standard core plugs replicating the pore space structure through 3D printing
technology sparks significant interest within the scientific community [7,8].
All 3D printers operate on a fundamental principle – the layer-by-layer
construction of objects using thin horizontal slices of material.
These methods are broadly categorized based on the type
of material used and the way the material is layered or solidified to create
objects [9] (Fig. 1).

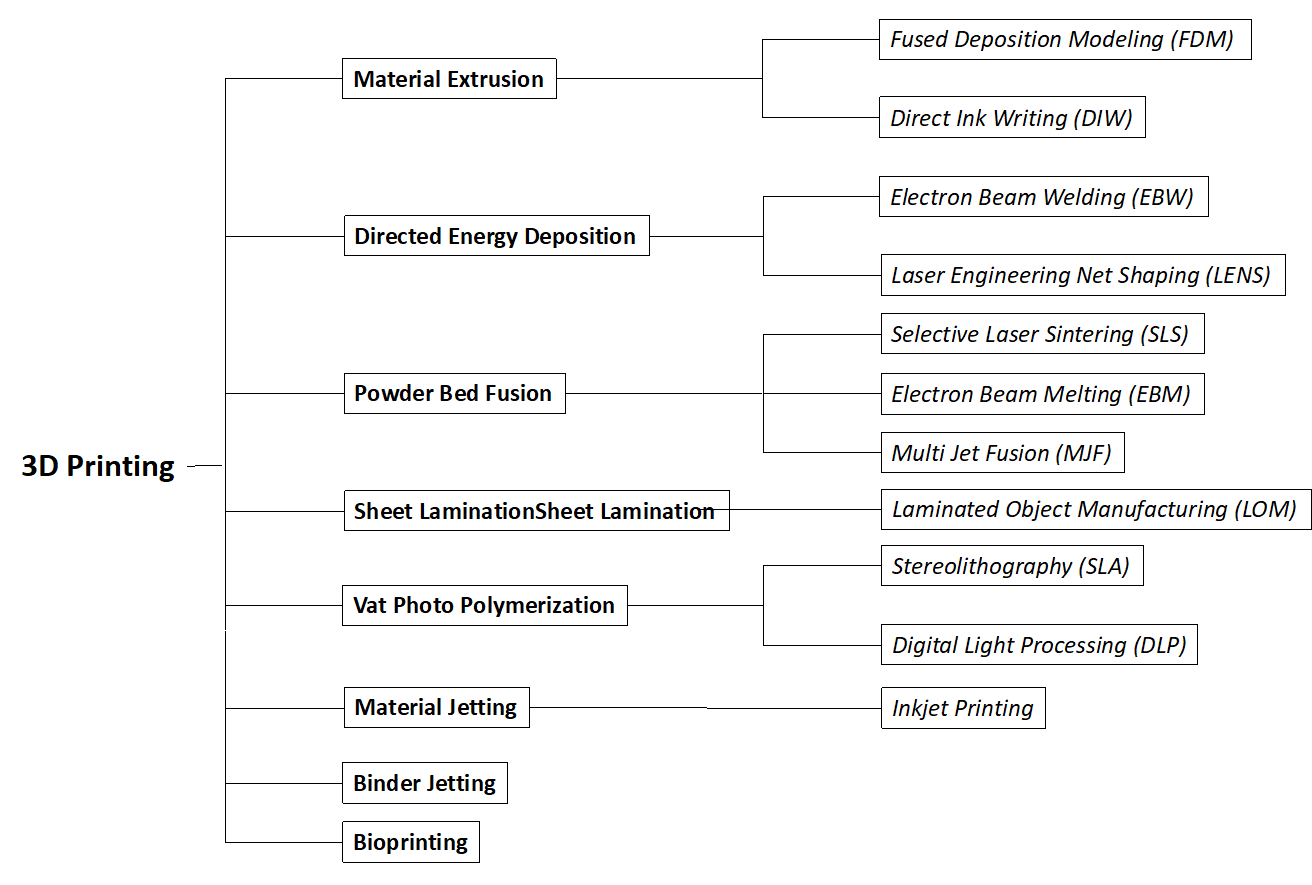

Fig. 1. Classification of 3D
printing methods
Material Extrusion
involves extruding material through a nozzle to build
objects layer by layer. The two main techniques are
Fused Deposition
Modeling (FDM),
which uses thermoplastic filaments, and
Direct Ink
Writing (DIW),
which can use a variety of materials, including pastes and
gels.
Directed Energy Deposition (DED)
uses focused thermal energy to
fuse materials as they are being deposited. Techniques under this category
include
Electron Beam Welding (EBW),
which uses an electron beam, and
Laser
Engineering Net Shaping (LENS),
which uses a laser to melt metal powder or
wire.
Powder Bed Fusion (PBF)
involves using a heat source to fuse powder particles
together layer by layer.
Selective Laser Sintering (SLS)
uses a laser to
sinter polymer powder, while
Electron Beam Melting (EBM)
uses an
electron beam to melt metal powder, creating dense metal parts.
Multi Jet
Fusion (MJF)
is another method within this category that uses an inkjet
array to apply fusing agents on a powder bed, followed by a thermal process to
fuse the powder.
Sheet Lamination
builds objects by stacking and bonding sheets of
material.
Laminated Object Manufacturing (LOM)
is a key technique, where
layers of adhesive-coated paper, plastic, or metal laminates are bonded
together and cut to shape.
Vat Photo Polymerization
uses a vat of liquid photopolymer resin cured by a
light source to form solid objects layer by layer.
Stereolithography (SLA)
is a well-known method that employs a UV laser to cure the resin.
Digital
Light Processing (DLP)
is similar but uses a digital light projector to
cure the resin, allowing for faster curing times and higher efficiency in some
applications.
Material Jetting
deposits droplets of material onto a build platform
and cures them to form objects.
Inkjet Printing
is a technique within
this category, known for its ability to create high-resolution and
multi-material objects.
Binder Jetting
involves the deposition of a liquid binding agent
onto a powder bed. The binder selectively joins the powder particles to form
each layer of the object. This technique can be used with a variety of
materials, including metals, ceramics, and sand.
Bioprinting
is a specialized type of 3D printing used to create structures that
mimic the natural tissues found in the body. This technique typically involves
the use of bio-inks made from living cells and biocompatible materials to print
complex tissue structures for medical applications, such as tissue engineering
and regenerative medicine.
Each 3D printing technology has its unique advantages and limitations,
making them suitable for different applications across various industries.
Among these, FDM and SLA/DLP are the
most widespread and popular due to their cheapness and accessibility.
With
the development and reduction in cost of 3D printing technology, the production
of artificial reservoir rock structures has received a new boost. The
widespread availability and affordability of 3D printers have democratized the
production of complex structures, allowing researchers and institutions to use
them in a variety of scientific projects.
A
plethora of scientific studies have delved into the realm of 3D printing of
reservoir pore structures, exploring various aspects such as replicating
natural formations, understanding fluid dynamics, and developing synthetic
cores for experimental studies. This synthesis of research highlights the
technological advancements and applications of 3D printing in geoscience.
3D
printing has significantly advanced the study of pore structures in composite
materials and reservoir rocks by allowing researchers to replicate and examine
complex geological features with precision. Ishutov et al. [10] were early
adopters of this technology for replicating sandstone porosity models, which
demonstrated the potential of 3D printing in visualizing pore connectivity and
geometry at the microscale. Their work established a foundation for further
studies into the application of additive manufacturing in petrophysical
research.
Subsequently,
Ishutov et al. [11] replicated carbonate reservoir pores at their original
size, achieving a detailed representation of pore structures that were accurate
to 20 mm in scale. This development facilitated a deeper understanding of the
influence of pore geometry on reservoir properties and fluid flow dynamics. Ma
et al. [12] have also contributed to this field by exploring the systematic use
of 3D-printed rocks for petrophysical studies, emphasizing the technology’s
potential to replicate intricate pore networks for detailed analysis.
Mukhametrakhimov et al. [13] expanded this research by employing X-ray computed
tomography to analyze the structure of 3D-printed concrete, demonstrating the
precision with which additive manufacturing can capture fine-scale details of
composites. Their work contributes to our understanding of the mechanical and
structural properties of construction materials.
Studies
have also highlighted the use of 3D printing to enhance experimental
methodologies in petrophysics and rock mechanics. Kong et al. [14] provided a
comprehensive review of the applications of 3D printing in these fields,
discussing the technology’s ability to create accurate models for testing and
analysis. Almetwally and Jabbari [8,15] conducted experiments on 3D-printed
rock samples, examining their mechanical properties and establishing methods to
replicate natural geological materials in lab settings. These studies have
underscored the potential for 3D printing to innovate experimental approaches,
allowing researchers to explore various scenarios and optimize recovery
techniques in reservoir engineering.
In
terms of fluid dynamics, Song et al. [16] investigated the flow properties in
3D-printed natural sandstone at the pore scale, providing insights into single
and multiphase flow behaviors. Similarly, Wang et al. [17] designed rock-based
microfluidics using 3D printing to validate pore-scale flow experiments,
demonstrating the technology’s ability to replicate intricate pore structures
for detailed fluid dynamics studies. Goral and Deo [18] further advanced this
area by fabricating synthetic nanoporous geomaterials, bridging nanoscale
imaging with 3D printing to explore digital rock technologies and enhance the
accuracy of petrophysical analyses.
The
adaptation of 3D printing in experimental setups has also led to significant
advancements in synthetic core plug development. Cruz-Maya et al. [6,19]
explored the use of synthetic core plugs as alternatives to natural ones for
core flooding tests, enabling researchers to conduct controlled experiments to
assess reservoir scenarios. These studies demonstrated that synthetic cores can
provide valuable insights into fluid flow and reservoir behavior under various
conditions. Stoporev et al. [20] also leveraged 3D-printed polymeric cores to
study enhanced methane hydrate growth, illustrating how 3D printing can simulate
complex chemical interactions within porous media. This work complements other
studies focused on fluid dynamics within printed structures, highlighting the
potential of 3D printing to innovate experimental methodologies in reservoir
engineering and geosciences.
Additionally,
the use of 3D printing for microfluidic applications has been explored by Li et
al. [21], who integrated micro-3D printing with mineral coatings to enhance
device capabilities for studying fluid behaviors in tight reservoirs. This approach
underscores the potential for 3D printing to innovate experimental
methodologies in rock mechanics and petrophysics. Furthermore, Wang et al. [22]
analyzed the effect of porosity on the mechanical properties of 3D-printed
polymers using X-ray computed tomography, demonstrating how this technology can
be used to optimize material properties and structural designs.
The
ability to precisely reproduce the intricate pore network of authentic samples
offers a promising solution to the challenge of varying pore structures among
core samples. By employing advanced 3D printing techniques, scientists can
generate replicated samples that mimic the exact pore space characteristics of
the original cores. These replicated samples can serve as valuable tools for mitigating
the diversity influence of pore structures in different experiments, ensuring a
more uniform testing ground.
Furthermore,
these 3D-printed clones hold potential beyond standardizing pore structures.
They could be utilized as reference materials, acting as benchmarks for the
calibration and cross-verification of measurement instruments. By comparing
measurements obtained from identical 3D-printed replicas, researchers can
assess the accuracy and reliability of their analytical tools. This approach not
only enhances the precision of measurements but also instills confidence in the
experimental results, addressing the uncertainties stemming from the inherent
variations in natural core samples.
Additionally,
the application of 3D-printed standard clones can extend to educational and
training purposes. These replicas can serve as invaluable teaching aids,
providing students with hands-on experience in core analysis without the
constraints of limited and irreplaceable natural samples. Through interactive experiments
with these cloned specimens, future scientists and engineers can hone their
skills, deepen their understanding, and explore innovative techniques,
fostering the growth of expertise in the field.
With
the advancement of 3D printing technology, the production of artificial core
samples has become significantly more economically viable than traditional core
sampling methods. The widespread availability and affordability of 3D printers
have democratized the production of complex structures, enabling researchers
and institutions use it in different scientific projects.
The objective of this study is to
explore the potential of 3D cloning for replicating the reservoir structure of
standard core plugs. It includes μCT scanning, digital processing, and 3D
printing using cost-effective methods like FDM and DLP. By performing repeated
μCT scans of the printed 3D clones and comparing their structural and
filtration characteristics with those of the original core plugs, the study
assesses the effectiveness and accuracy of the cloning process. The study
focuses on detailing effective methodologies for creating 3D-printed replicas,
highlight process nuances, and critically analyze technological constraints to
identify areas for improvement and innovation. This research seeks to deepen
understanding of the 3D structure cloning process in core plug scale and
support future advancements in the field.
To assess the feasibility of replicating the effective pore structure of a standard sample, a carbonate core plug with a diameter of 30 mm and a height of 30 mm was selected from the Vereyian deposits of one of the oil fields in the Republic of Tatarstan.
The sample's oolitic structure features
relatively large filtration pores, which is important due to the resolution
limitations of modern FDM and SLA/DLP printers.
Using
μCT, a 3D image of the core plug was obtained. Imaging was performed using
the General Electric Phoenix V|tome|X S 240 [23], a micro- and nanofocus X-ray
system. The system operated with a nanofocus tube at 130 kV and 140 mA,
capturing a total of 1200 projections with 3 projections averaged, and 200 ms
exposure time per projection. The imaging resolution of the sample was 18 µm.
Voxel model reconstruction was carried out using Phoenix Datos|x reconstruction
software [24]. The resulting volumetric image is a voxel array saved in vol
format with a metadata file in vgi format. Subsequent digital processing and
calculations of the volumetric model characteristics were performed using Avizo
software [25].
At
the first stage, a digital model of the sample surface was obtained, followed
by segmentation of the effective porosity structure. This segmentation was
carried out by connecting the selected voxels from one end of the cylindrical
sample to the other along the z-axis, allowing for the identification of
effective porosity. Then, the distribution of the equivalent pore diameters for
this pore structure was determined. The pore distribution analysis by equivalent
diameters involved several steps. First, pore chambers within the volume of
connected porosity were separated by the throats [26]. Next, the equivalent
diameters of these pores were measured as the diameter of a sphere that has the
same volume as the pore (Vp):
|
(1)
|
These measured diameters
were then grouped into distinct diameter intervals. A distribution diagram was
subsequently plotted to show the equivalent pore diameters across these
intervals, illustrating their percentage share (%) of the total connected
porosity volume.
The maximum printing resolution of
most FDM and SLA/DLP printers (50-100 µm) is significantly lower than the
resolution of the obtained digital model (18 µm). Pore size analysis showed
that the effective porosity structure of the sample contains pores smaller than
the printing resolution, which would lead to breaks in the narrowed areas of
the effective porosity pore channels during printing, resulting in a lack of
permeability. Additionally, the real pore structure surface obtained from µCT
has an extremely complex shape. Therefore, a special method of digital
processing were proposed to simplify the pore structure shape and maintain the
sample's filtration capacity after 3D printing.
Although the
carbonate core plug structure contains many large pores, the effective porosity
structure is characterized by numerous channel constrictions and complex
morphology, which poses challenges for 3D printing. The first issue leads to
the filament filling narrow channels during 3D printing due to the resolution
limitations of the printers used, resulting in breaks in the filtration
channels within the pore structure. The second issue causes excessive meshing
time (up to several days), often ending in errors and difficulties in slicing
the model. Therefore, we developed a method to process the 3D structure of
effective porosity, which slightly enlarges pore sizes and simplifies their
morphology. However, it allows for reliable printing of the core plug model
with a permeable structure using popular FDM printers with standard 0.4-0.2 mm
nozzles and SLA/DLP printers. This approach to creating a unified 3D printing
model aligns well with the research goals and facilitates comparing different
3D printing techniques based on the evaluation of the pore structure parameters
of printed clones.
The digital
processing method was implemented using Avizo software and involved expanding
the boundaries of the effective pore space (the “Dilation” operation) by 2
voxels in 3D space (or by 4 voxels in pore diameter) and smoothing the surface
of the effective pore structure. The expansion parameters included a
connectivity value set to 6, where voxels with a shared face were considered
connected. Subsequently, the resulting volume was smoothed using the “Binary
Smoothing” operation, with smoothing parameters including a voxel size of 2
along the X, Y, and Z axes. Then, a procedure was carried out to remove
excessive small, unconnected pores using the “Erosion” operation with
parameters set to a ball type and size of 1 voxel. Since the erosion operation
significantly reduces the volume of effective pores, the “Dilation” operation
was reapplied with the same parameters.
After
processing the volume of effective porosity, its volume was subtracted from the
three-dimensional volume of the sample model, which was solid (without pores.
The resulting voxel model of the sample matrix was converted into surface
models (meshes) and saved in the stl format.
The generated
sample matrix model was used for 3D printing using FDM technology with 0.4 mm
and 0.2 mm nozzles and DLP technology. In total, three core plug samples were
printed.
FDM printing
was performed using the Raise3D Pro 2 [27], a 3D printer designed for
high-precision printing. Slicing was performed using Ideamaker 5.0.6 software
[28]. ABS plastic with a diameter of 1.75 mm was used as the printing material.
For Sample 1, the printing parameters were: nozzle diameter of 0.4 mm, layer
height of 0.2 mm, 100% infill, printing speed of 60 mm/sec, nozzle temperature
of 250 °C, and bed temperature of 100 °C. The printing parameters for Sample 2
included a nozzle diameter of 0.2 mm, a layer height of 0.1 mm, 100% infill, a
printing speed of 60 mm/sec, a nozzle temperature of 250 °C, and a bed
temperature of 100 °C.
DLP
printing was performed using an Anycubic Photon Mono X photopolymer printer
with an 8.9’ LCD 4K display and a printing resolution of 50 µm [29]. Slicing
was conducted using the Anycubic Photon Workshop application [30]. Anycubic
Photon photopolymer resin was used, which has the following properties:
hardness of 79D on the Shore scale, viscosity (at 25 °C) of 552 mPa*s, liquid
density of 1.1 g/cm³, solid density of 1.184 g/cm³, shrinkage of
7.1%, tensile strength of 23.4 MPa, and elongation at break of 14.2%. After
printing, the sample was cleaned of excess resin using an alcohol washing
procedure with a Hassler-type core holder from the Wille Geotechnik filtration
unit [31]. After printing, the model underwent curing under a UV lamp.
To evaluate
the pore structure of the printed samples, μCT was used again. The
scanning parameters for evaluating the printed plugs were similar to those used
for the original sample, except that the tube voltage was reduced to 130 kV.
The microtomography resolution for all plastic plugs was 18.8 µm. In the
resulting digital models of the printed plugs, segmentation of the effective
porosity was performed, and the porosity coefficient (for pores larger than
18.8 µm), pore surface area, and pore volume were determined. The specific
surface area was calculated based on the ratio of these measurements.
Additionally, for each printed sample, the pore size distribution was
constructed using equivalent diameter based on the methodology described in
section 2.1.
Furthermore,
measurements of the filtration properties and pore volume were conducted for
both printed and original samples. Open porosity was measured using nitrogen
with a PIK-PP gas porosimeter-permeameter [32]. Water permeability was
determined using a Wille Geotechnik filtration setup. The method involves
placing the sample in a core holder with a sleeve that ensures sealing at a
confining pressure of 1.5 MPa. Filtration of deionized water was carried out at
a constant flow rate, with monitoring of steady flow established by the
stability of the pressure drop. The flow is considered stable when three
consecutive measurements differ by no more than 2%.

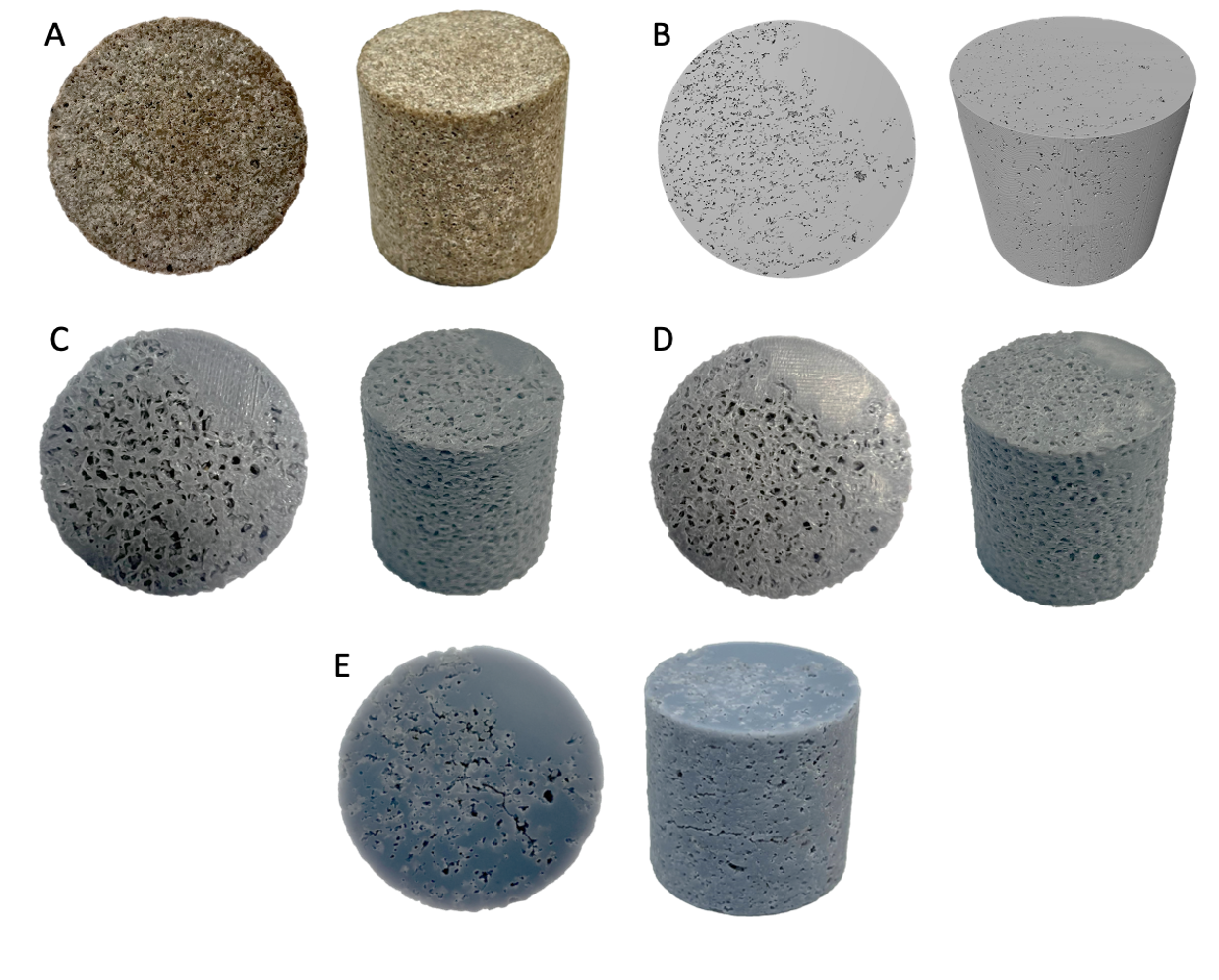

As a
result of the study, three clones of standard core plug (Fig. 2A) were
successfully produced from its digital model after processing the pore space
structure (Fig. 2B) the using 3D printing techniques. Two samples were
fabricated using the FDM method, utilizing nozzle sizes of 0.4 mm (Fig. 2C) and
0.2 mm (Fig. 2D), respectively, and one sample was produced using DLP printing
(Fig. 2E). The surfaces of the original core plug and the printed clones
exhibit similar structural characteristics. Large pores and dense regions are
distributed in a comparable manner across both the original sample and the
3D-printed replicas.
On the surface of the FDM 0.4 mm
sample, larger pores and a rougher texture are noted, with pronounced
striations formed by the printing lines in the denser regions of the sample.
The pores on the surface of the FDM 0.2 mm sample are noticeably smaller, and
the surface is smoother. The DLP sample exhibits the smallest pores among all
samples; however, its surface also displays numerous micro-cracks that
interconnect various pore clusters.
Fig. 2. Results of standard core
plug 3D-cloning: A – reference carbonate core plug, B – digital model after
processing the pore space structure, C – FDM-printed clone with nozzle of 0.4
mm, D – FDM-printed clone with nozzle of 0.2 mm, E – DLP-printed clone

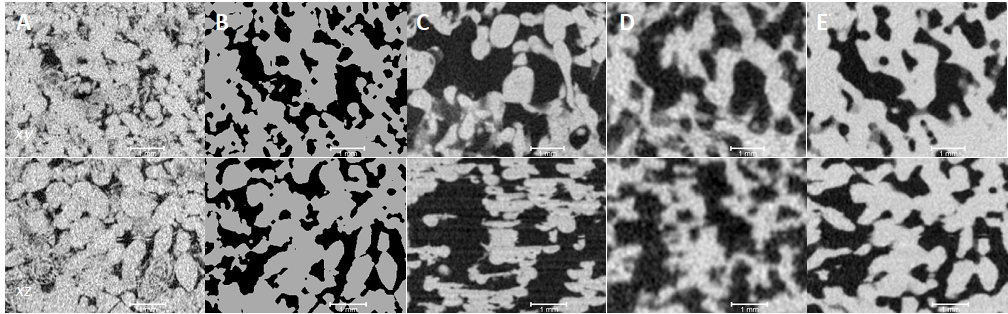

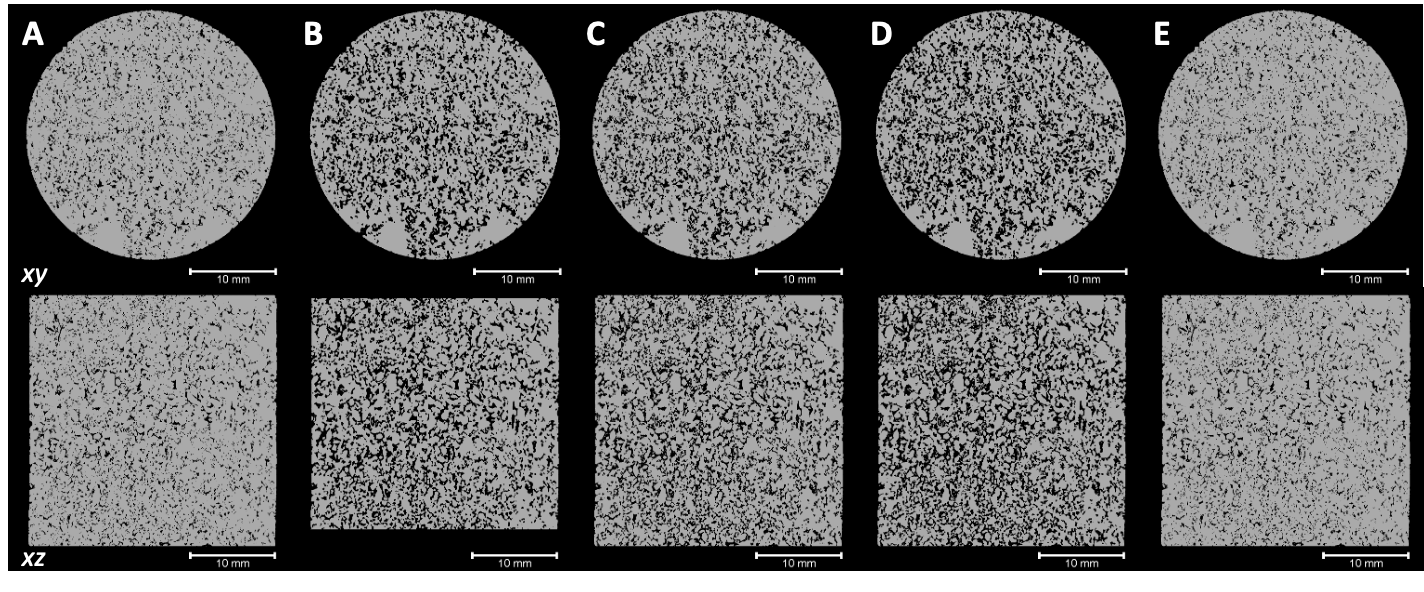

The
visualization of the structural differences on orthoslices among the original
carbonate core plug, processed digital model and 3D-printed clones presented in
Fig. 3. The reference sample (A) displays a uniformly distributed tiny pore
structure, highlighting the challenge faced by the 3D printing techniques. The
digital model (B), developed based on the methodology described in part 2.2 and
utilized for the 3D printing of all subsequent samples, shows slightly expanded
pores with a smoothed pore surface structure. When examining the FDM-printed
clones, significant differences in pore structure emerge: the clone printed
with a 0.4 mm nozzle (C) exhibits coarser texture and larger voids, reflecting
the limitations in resolution inherent to this printing method. In contrast,
the 0.2 mm nozzle FDM clone (D) demonstrates finer pore replication, achieving
a smoother surface finish, though some loss of detail compared to the original
is evident. The DLP-printed clone (E) provides the most intricate replication
of pore structures, capturing finer details and closely resembling the digital
model. However, it also reveals a network of micro-cracks that could
potentially influence pore connectivity.
Fig. 3. Orthoslices of the samples
in the xy (top row) and xz (bottom row) projections: A – reference carbonate
core plug, B – digital model after processing the pore space structure used for
3D printing all clones, C – FDM-printed clone with a nozzle of 0.4 mm, D –
FDM-printed clone with a nozzle of 0.2 mm, E – DLP-printed clone.
Zoomed
pore structures reveal intricate pore channels nestled between rounded mineral
matrix elements in the original core sample (Fig. 4A). In the digitally
processed model, the thin pore channels are significantly expanded, and the
overall pore structure is smoothed out (Fig. 4B). The FDM-printed clone with a
0.4 mm nozzle shows extensive voids within and a pore morphology that is
distinctly different from the original model, with the structure being
difficult to correlate across both the xy and xz planes (Fig. 4C). Additionally,
there is noticeable flattening of the matrix structure in the vertical (Z)
direction, forming horizontal patterns likely due to layer thickness reduction
during printing to 0.2 mm. In the FDM-printed clone with a 0.2 mm nozzle, the
pore structure is closer to the original model, although it is still
significantly expanded, sometimes merging fine pore channels into larger single
voids (Fig. 4D). The DLP-printed clone most accurately replicates the original
morphology of the digital model, both in horizontal and vertical planes (Fig.
4E). However, even in this model, the pore structure is slightly expanded
compared to the original digital model, albeit less than in the other clones.
Fig. 4. Zoomed pore structure orthoslices
of the samples in the xy (top row) and xz (bottom row): A – reference carbonate
core plug, B – digital model after processing the pore space structure used for
3D printing all clones, C – FDM-printed clone with a nozzle of 0.4 mm, D –
FDM-printed clone with a nozzle of 0.2 mm, E – DLP-printed clone.
The
analysis of the μCT and experimental data reveals significant differences
between the original carbonate core plug, its digital model, and the 3D-printed
clones. The original sample (A) demonstrates a total porosity of 10.22% and an
effective porosity of 9.5%, with a high specific surface area of 43.67 mm⁻¹.
Experimental measurements indicate an open porosity of 14.25% and permeability
values of 617.89 mD for gas and 308.27 mD for water, which is indicative of a
moderately permeable rock with interconnected pore spaces.
The
digital model (B), derived from image processing and used as a reference for 3D
printing, shows a slight increase in both total and effective porosity to
11.59%. However, the specific surface area decreases to 38.73 mm⁻¹,
suggesting some smoothing of the pore structure during digital processing. This
model serves as a benchmark for comparing the 3D-printed clones, though it does
not have associated experimental permeability data.
Among
the 3D-printed clones, the FDM-printed samples with 0.4 mm (C) and 0.2 mm
nozzles (D) demonstrate significantly higher total and effective porosities,
both around 36%, compared to the original sample. The open porosities are
closely aligned with the μCT-derived porosities, confirming that under the
applied confining pressure, the plastic pore spaces and cracks slightly
compress, leading to porosity values close to those obtained via
μCT-imaging. These elevated porosity values are accompanied by lower specific
surface areas (9.75 mm⁻¹ and 8.82 mm⁻¹ respectively),
suggesting that the FDM printing process introduces more extensive but less
intricate pore structures. This structural alteration results in much higher
gas and water permeability values, with gas permeability exceeding 15,000 mD
and water permeability ranging from 1,700 to 1,750 mD, which are significantly
higher than those of the original sample.
The DLP-printed clone (E) presents a
more moderate increase in total (16.52%) and effective porosity (16.14%)
compared to the original. The specific surface area of 12.01 mm⁻¹ is
higher than that of the FDM clones, indicating better retention of fine pore
structures. The open porosity of 14.88% is slightly higher than the original,
suggesting that the DLP method produces a more accurate replication of the pore
structure under confining pressure. Despite the more detailed pore network, the
gas permeability is markedly lower at 1,582.1 mD, and the water permeability is
also lower at 1,265.23 mD, reflecting a more restricted fluid flow through the
finer pore channels of the DLP-printed clone.
Table 1. A comparison between the
original carbonate core plug and its 3D-printed clones based on μCT data
and experimental measurements
Sample
|
μCT data
|
Experimental
data
|
Total
porosity, %
|
Effective
porosity, %
|
Specific
surface, mm-1
|
Open
porosity, %
|
Gas
permeability,
mD
|
Water
permeability,
mD
|
Original
(A)
|
10.22
|
9.5
|
43.6
7
|
14.25
|
617.89
|
308.27
|
Digital
model (B)
|
11.59
|
11.59
|
38.7
3
|
-
|
-
|
-
|
FDM
0.4 mm (C)
|
36.61
|
36.3
|
9.75
|
36.53
|
15860.7
|
1746.76
|
FDM
0.2 mm (D)
|
36.44
|
36.09
|
8.82
|
36.36
|
17014.4
|
1711.61
|
DLP
(E)
|
16.52
|
16.14
|
12.0
1
|
14.88
|
1582.1
|
1265.23
|
The
pore size distribution analysis presented in the graphs (Fig. 5) reveals
significant differences between the original carbonate core plug (A), the
digital model (B), and the 3D-printed clones (C, D, E). The original sample (A)
exhibits a narrow pore size distribution, with the majority of pores
concentrated around smaller diameters, indicating a tight pore network. The
digital model (B), although based on the original structure, shows a slight
shift towards larger pores due to the smoothing and processing involved in
model preparation. In contrast, the FDM-printed clones (C, D) display much
broader pore size distributions with peaks at larger diameters, particularly in
the clone printed with a 0.4 mm nozzle (C). This shift indicates the presence
of larger interlayer spaces between the printed lines, which inflate the
effective porosity and alter the pore network morphology. The DLP-printed clone
(E) achieves a more precise replication of the original pore size distribution,
with most pores concentrated around smaller diameters, closer to the original
core plug. However, some slight expansion of the pore sizes is still
observable, likely due to the inherent limitations of the DLP printing process.

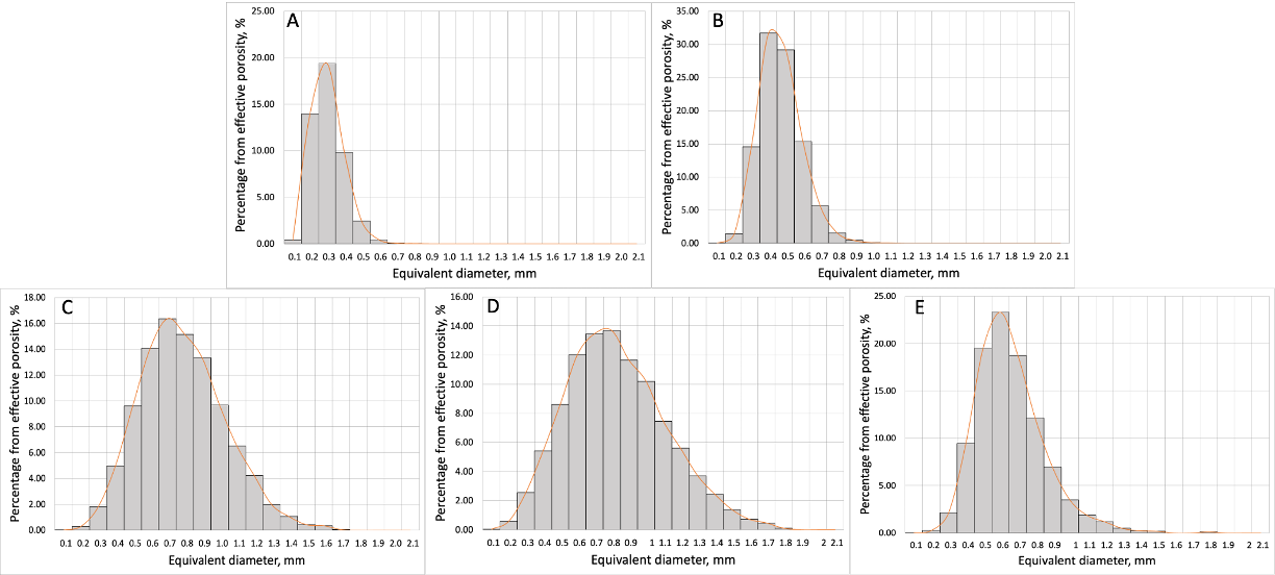

Fig. 5.
Distribution of equivalent diameters versus effective porosity (in %) for the
original carbonate core plug (A), digital model (B), and 3D-printed clones (C:
FDM 0.4 mm, D: FDM 0.2 mm, E: DLP
Various structural anomalies have
been observed in the 3D-printed core samples produced by FDM and DLP techniques
(Fig. 6). In the FDM-printed clone with a 0.4 mm nozzle (Fig. 6A), clear
interlayer gaps are visible, which contribute significantly to the artificially
elevated porosity and permeability values. These gaps distort the true pore
structure of the original carbonate rock, creating voids that are not
representative of natural pores. Similarly, in the FDM-printed clone with a 0.2
mm nozzle (Fig. 6B), although the interlayer gaps are somewhat finer, they
still result in exaggerated porosity and permeability readings. Further
examination of the 0.2mm FDM clone (Figure 6C) reveals the presence of a fiber
component in the pore space, which, together with the interlayer gaps, are
unintentional artifacts of the printing process. These fibers further alter the
flow paths within the pore network, potentially obstructing or redirecting
fluid movement, thereby complicating the interpretation of permeability
measurements. Finally, the DLP-printed clone (Fig. 6D) shows the presence of
residual resin within the pores, which can occlude the pore throats and reduce
effective porosity and permeability. This residual material might also suggest
incomplete curing during the DLP printing process, which could impact the
mechanical properties and the accuracy of the pore structure replication.

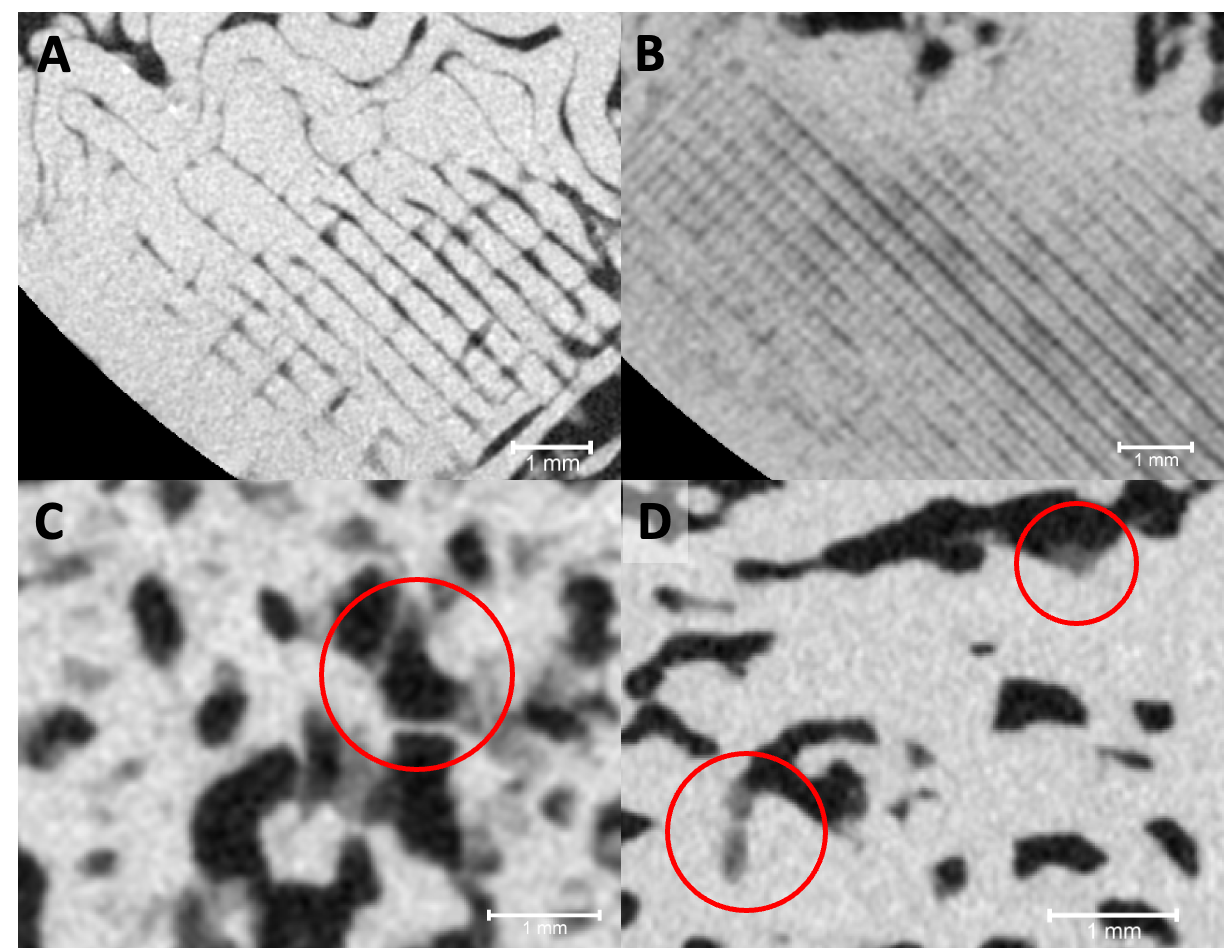

Fig. 6.
Structural artifacts observed in 3D-printed core samples: A - FDM (0.4 mm)
showing interlayer gaps that lead to inflated porosity and permeability values;
B - FDM (0.2 mm) with smaller interlayer gaps still affecting measured
properties; C - FDM (0.2 mm) highlighting extraneous fibers within pore spaces;
D - DLP revealing residual resin obstructing pores
To
assess the stability and repeatability of the pore structure in 3D-printed core
clones, we printed three samples using the FDM method with a 0.2 mm nozzle and
three samples using the DLP method. For the FDM prints, the same G-code file
was used, ensuring that each print was based on an identical STL model and
consistent printing parameters. For the DLP prints, we utilized the equivalent
*photon format files specific to the Anycubic Photon Mono X printer, which were
generated from the same STL model but with parameters optimized for DLP
printing.
Following
the 3D printing process, each clone was subjected to repeat μCT-scanning
to analyze the internal structure of the pore space. Additionally, wherever
possible, we measured the filtration and reservoir properties of these clones,
using methods analogous to those presented in section 3.1. This approach ensures
that any variations observed in the printed samples can be attributed to the
inherent stability and precision of each 3D printing technique, rather than
differences in the input files or settings. Consequently, this method allows
for a rigorous comparison of the reliability of FDM and DLP printing in
consistently replicating the desired pore structures across multiple prints.
The results of 3D printing three
clones using the FDM method with a 0.2 mm nozzle are presented in Fig. 7. It is
observed that the pore structures on the surface of all three 3D clones exhibit
similar pore distribution and sizes. When examining the pore structures in the
μCT slices of the 3D-printed clones (Fig. 8), it becomes evident that
while most of the larger pores are consistently present across all samples, a
significant number of pores appear in some clones but are entirely absent in
others. Upon closer examination of the
μCT slices for the three FDM 0.2 mm nozzle
clones (Fig. 9), it is apparent that while the general morphology of larger
pores is consistent across all samples, there are notable discrepancies in the
presence of smaller pore elements. These smaller features are sometimes
entirely missing in one or more of the clones, even though they are present in
others. This observation suggests that despite the general similarity in pore
distribution and size on the surface, there are notable inconsistencies in the
replication of the pore space across different clones. These inconsistencies
could be attributed to slight variations in the printing process, such as minor
fluctuations in layer adhesion or material deposition, which can lead to the
presence or absence of certain pore features in the final printed structures.
This variability highlights the challenges in achieving perfect reproducibility
of complex pore structures using the FDM method, even when the same G-code is
used.

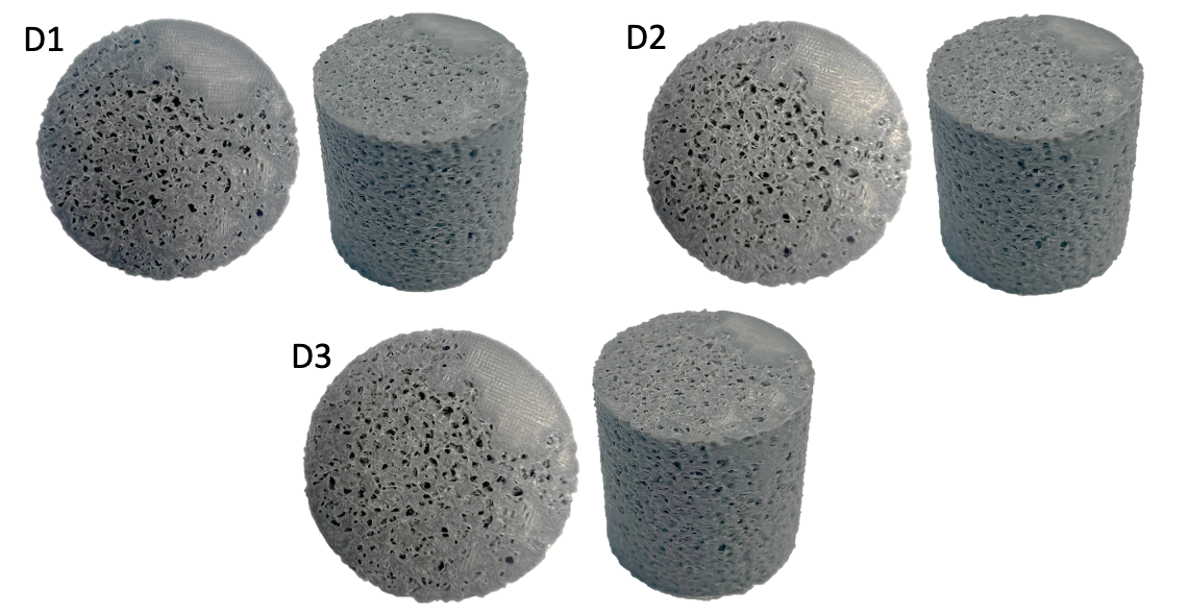

Fig. 7. Three clones printed using
the FDM method with a 0.2 mm nozzle from the same G-code file. Sample D1
corresponds to the sample labeled D in Fig. 2.

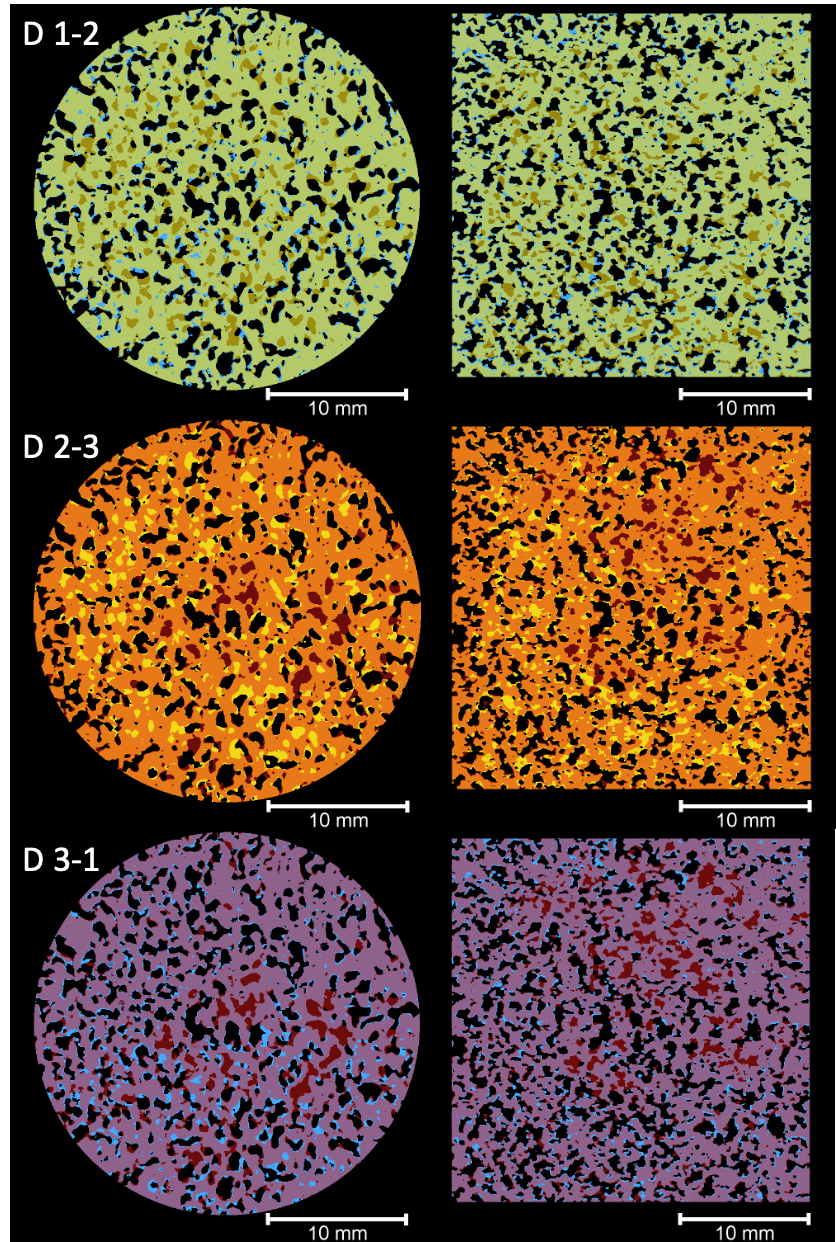

Fig. 8. Overlapping slices in XY
(left) and XZ (right) projections for three FDM-printed clones using the 0.2 mm
nozzle: D1 - blue, D2 - yellow, D3 - red. Areas where colors mix indicate
regions successfully printed in both 3D clones, while regions where one color
remains indicate a lack of print in that area in the other clone.

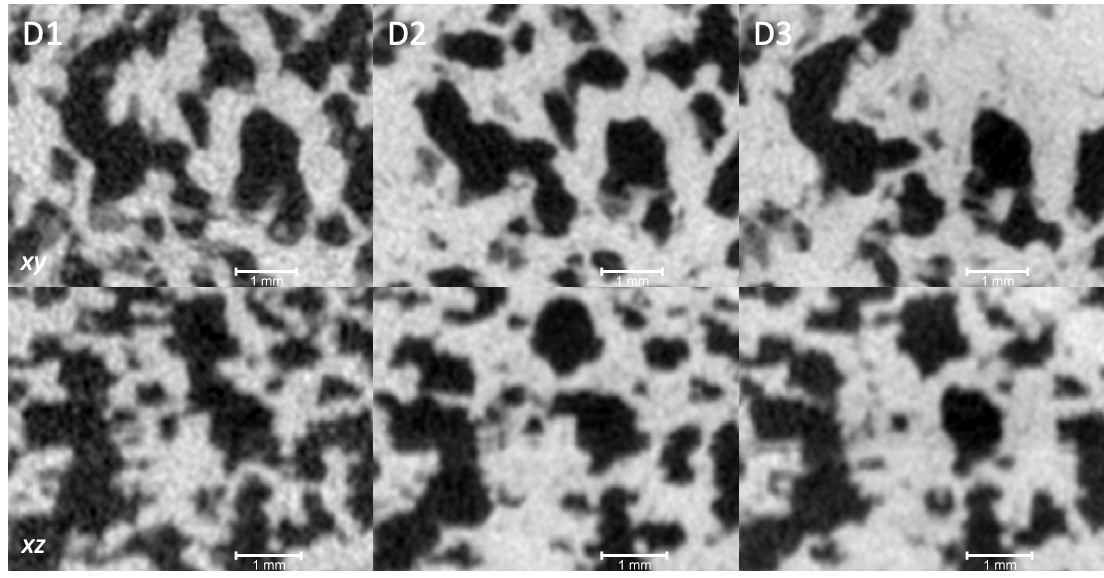

Fig. 9. Zoomed pore structure
orthoslices of the samples in the xy (top row) and xz (bottom row) for three
FDM-printed clones using the 0.2 mm nozzle
The analysis of
μCT images for the 3D-printed clones
using FDM with a 0.2 mm nozzle (table 2) reveals significant variations in
total and effective porosity across the different samples, with values ranging
from 28.09% to 36.44% for total porosity and 27.06% to 36.09% for effective
porosity. These differences highlight the variability inherent in the 3D
printing process, particularly in replicating the fine details of pore structures
in each clone. Such variations can be attributed to the challenges in
consistently reproducing small pore features across multiple prints, which
impacts the overall porosity measurements. Despite these variations in
porosity, the specific surface area, as determined by μCT data, remains
relatively consistent among the three clones, ranging from 8.46 mm-1
to 8.82 mm-1.
This consistency suggests that the main pore
structure, including the overall morphology and volume, is largely preserved
across the different 3D-printed samples. The close similarity in specific
surface area indicates that the bulk of the pore network is effectively
replicated, even if minor details vary between prints.
The experimentally
measured open porosity also shows close agreement across the clones, with
values clustering around 36%. Interestingly, in some cases, the open porosity
measured experimentally is slightly higher than the total porosity determined
by μCT. This discrepancy could be due to the presence of interlayer porosity,
which is not fully captured by the resolution of the μCT imaging. The high
similarity in open porosity values confirms the replicability of the porosity
characteristics across the clones, while the slight excess suggests that
sub-resolution pores, possibly formed between printed layers, contribute to the
overall porosity but are not detected by μCT.
Table 2. A comparison among three
FDM clones printed with the 0.2 mm nozzle based on μCT data and
experimental measurements
Sample
|
μCT data
|
Experimental
data
|
Total
porosity, %
|
Effective
porosity, %
|
Specific
surface, mm-1
|
Open
porosity, %
|
Gas
permeability,
mD
|
Water
permeability,
mD
|
FDM
0.2 mm (D1)
|
36.44
|
36.09
|
8.82
|
36.36
|
17014.4
|
1711.61
|
FDM
0.2 mm (D2)
|
28.09
|
27.06
|
8.67
|
36.6
7
|
20584.5
|
1878.1
|
FDM
0.2 mm (D3)
|
33.24
|
32.67
|
8.46
|
36.7
9
|
18540.2
|
1854.2
|
Finally,
the differences in gas and water permeability across the samples underscore the
significant impact that small pore features can have on the flow properties of
the materials. The variation in permeability values indicates that even minor
differences in pore geometry and connectivity can lead to substantial changes
in the flow behavior of the printed materials. This highlights the importance
of accurately reproducing pore structures to achieve consistent filtration
properties in 3D-printed materials.
The pore size
distribution analysis for the 3D-printed clones using FDM with a 0.2 mm nozzle
(Fig. 10) confirms that the primary pore structure is well preserved across the
samples. In all cases, the distribution diagrams exhibit a similar pattern,
with a prominent peak in the 0.6-0.8 mm range. This consistency indicates that
the main framework of the pore network remains intact, ensuring that the
overall porosity characteristics are effectively replicated in the printed
clones. Noticeable variations in the distribution are only observed for pores
with equivalent diameters smaller than 0.6 mm. These differences suggest that
while the larger pore structures are faithfully reproduced, the finer details
of the smaller pores are more susceptible to discrepancies during the 3D
printing process.
The results of the DLP
printing of three clones are shown in Fig. 11. After printing, each sample was
subjected to an isopropyl alcohol wash to remove any uncured photopolymer
resin, followed by curing under UV light. During this curing process, cracks
formed in all samples. Notably, while the cracks in sample E1 are relatively
small, samples E2 and E3 exhibited larger cracks that split the samples into multiple
segments.
The
occurrence of these cracks during DLP printing is primarily due to the internal
stresses that develop as the resin cures and solidifies. DLP printing involves
the layer-by-layer photopolymerization of resin, and each layer undergoes shrinkage
as it hardens. The accumulated stress from this shrinkage, particularly in
areas with significant differences in thickness or unsupported regions, can
lead to cracking. Moreover, the presence of pores in the samples likely
exacerbated the stress concentration, leading to more severe cracking in E2 and
E3.

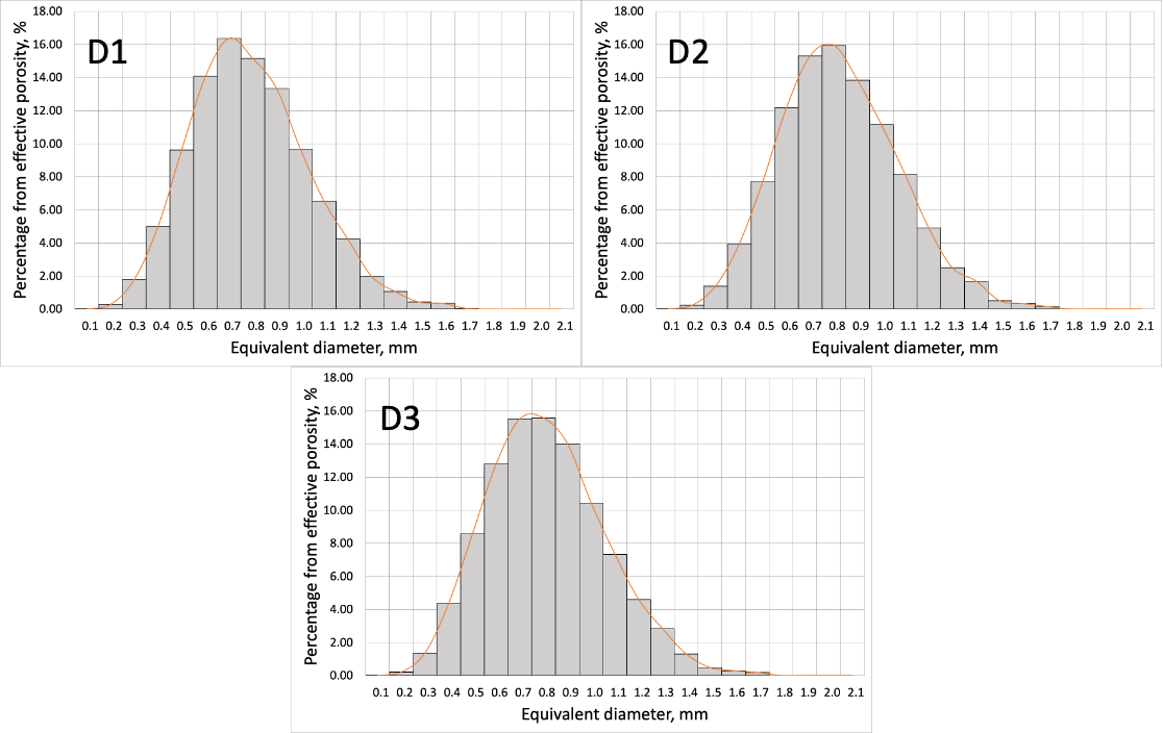

Fig. 10.
Distribution of equivalent diameters versus effective porosity (in %) for three
FDM-printed clones using the 0.2 mm nozzle

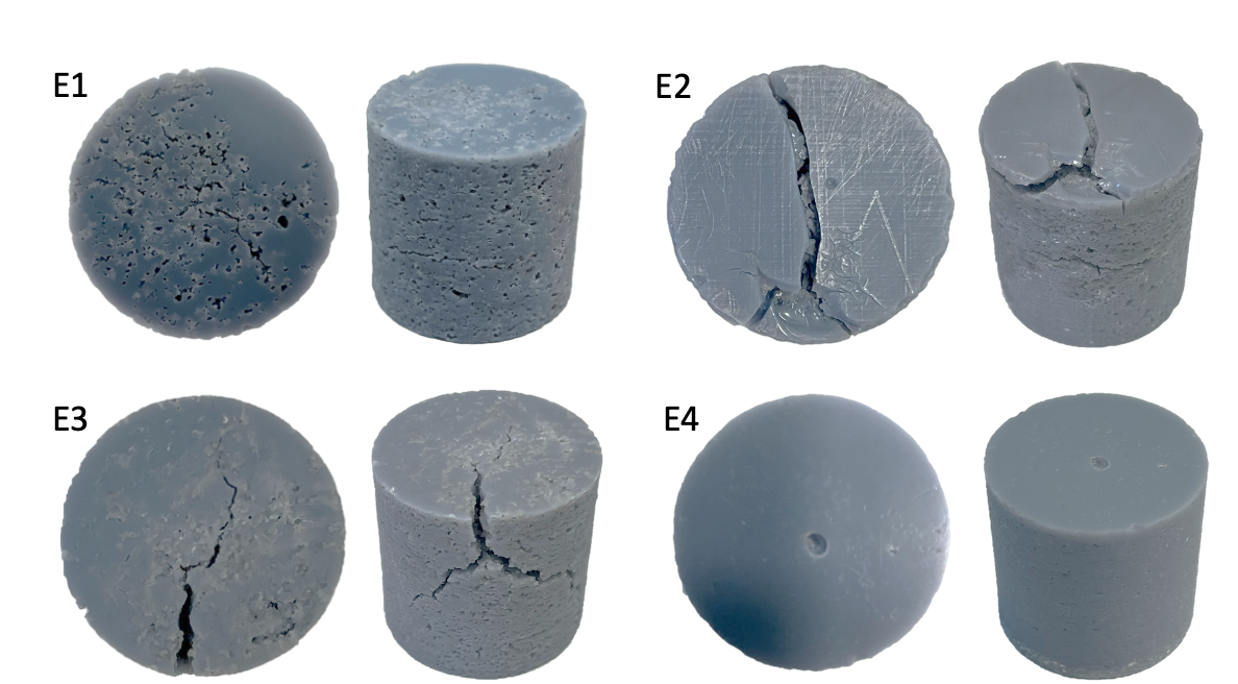

Fig. 11.
Three clones (E1-E3) printed using the DLP method from the same file (.photon
format). Sample E1 corresponds to the sample labeled E in Fig. 2. Sample E4 is
a solid specimen that lacks internal pores, which contributes to its resistance
to crack formation during the solidification process.
Interestingly,
when a solid sample without internal pore structures was printed (sample E4),
no cracking was observed (Fig. 11E4). This suggests that the absence of
internal pores minimizes stress concentration during curing, thereby preventing
the formation of cracks. The reduced crack formation in E1 may be more closely
related to the specifics of the curing process, particularly the duration and
uniformity of UV exposure. Variations in the curing process, such as the
duration or intensity of UV light, could result in differing levels of internal
stress within the samples, influencing the extent and severity of crack
formation. Understanding and optimizing the curing process is crucial for
minimizing defects like cracks in DLP-printed structures. Therefore, a more
in-depth study is necessary to fully comprehend the impact of curing conditions
on the structural integrity of 3D-printed samples.
Despite the formation of cracks in
the samples, it was still possible to select intact areas near the pores for
analysis using μCT imaging (Fig. 12). The analysis revealed that while the
morphology of basic pores is well-preserved across all samples, smaller pore
elements or even entire small pores are sometimes entirely absent. This
suggests that although DLP printing offers higher accuracy and fidelity in
maintaining the morphology of large pores, it encounters similar challenges to
FDM printing when it comes to accurately replicating fine pore structures. This
limitation underscores the difficulties in capturing small-scale details during
the 3D printing process, regardless of the printing method used.

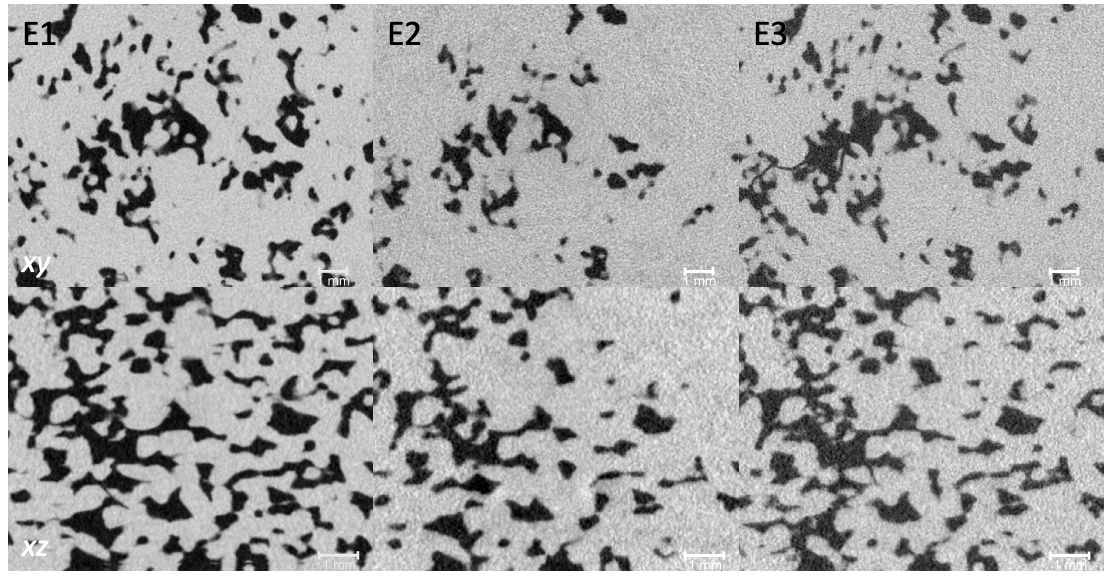

Fig. 12.
Zoomed pore structure orthoslices of the samples in the xy (top row) and xz
(bottom row) for three DLP-printed clones
In
this study, we primarily investigated the feasibility of using the most
accessible 3D printing methods, FDM (Fused Deposition Modeling) and DLP
(Digital Light Processing), for 3D cloning core plugs. Our focus was on
assessing the stability and reproducibility of the pore structures in the
3D-printed core clones. We systematically analyzed the printed samples using
μCT scanning and performed experimental measurements of porosity and
permeability to evaluate the fidelity of pore replication across multiple
prints.
We
came to the following key points in the course of our work:
-
Both FDM and DLP printing
methods exhibit a resolution limit below 50 µm, which is lower than the
resolution of μCT models (18 µm) and far below the scale of transport
pores in reservoir rocks. This resolution gap highlights the inherent
challenges in accurately reproducing the fine-scale features of reservoir pore
structures. Additionally, the 3D pore structure derived from μCT data
possesses highly complex morphology, necessitating significant optimization in
the form of surface expansion and smoothing to make it suitable for 3D
printing. This optimization process can compromise the accuracy of the
reproduced structures, emphasizing the need for further advancements in 3D
printing technologies.
-
FDM printing is
cost-effective, widely accessible, and capable of producing core clones with
relatively consistent macroscopic pore distributions. It is particularly useful
for creating larger pore structures and can be readily adapted for various
materials. However, FDM faces significant issues, such as the presence of
interlayer gaps that lead to inflated porosity and permeability values,
regardless of nozzle size. The μCT analysis revealed that these gaps
contribute to the overestimation of both porosity and permeability, as they
introduce additional voids not present in the original digital model. Additionally,
the experimental data indicate that the permeability measurements vary
significantly, underscoring the challenges of using FDM for applications
requiring precise control over flow properties.
-
DLP printing offers higher
accuracy and fidelity in replicating complex pore structures compared to FDM.
It is particularly effective at reproducing smaller pore sizes, which are
crucial for accurately simulating the behavior of reservoir rocks. The
layer-by-layer photopolymerization process inherent to DLP is closer to natural
sedimentation processes, potentially making it a more suitable technique for
creating geological models. Despite its higher precision, DLP printing faces
challenges such as the retention of uncured photopolymer resin within the pore
structures, which cannot be fully removed through simple solvent filtration.
This residual resin alters the porosity and permeability of the printed
samples, affecting their suitability for accurate geological modeling.
Additionally, the formation of cracks during the curing process due to internal
stresses is another significant drawback that must be addressed.
-
The results of the study show
that both FDM and DLP methods encounter challenges in the reproducibility of
pore structures, particularly when it comes to fine details. In FDM printing
using a 0.2 mm nozzle, the surface pore distribution and sizes across multiple
3D-printed clones appear similar. However, a closer examination of the μCT
slices reveals inconsistencies in the replication of smaller pores. While
larger pores are generally consistent, smaller pores are frequently absent in
some clones but present in others. This suggests that minor variations in the
printing process can lead to discrepancies in pore replication, even when using
the same G-code. Similarly, in DLP printing, despite achieving better accuracy
in preserving the morphology of large pores, the method also struggles with
reproducing small pore elements. Even though DLP maintains the overall
structure of larger pores, smaller pores are often missing or incomplete.
-
To advance the application of
3D printing in replicating reservoir core plugs, several challenges must be
addressed:
a)
Resolution enhancement:
further improvements in printing resolution are essential to bridge the gap
between current 3D printing capabilities and the fine-scale features of
reservoir rocks.
b)
Material optimization:
developing new materials with properties more closely aligned with those of
reservoir rocks could improve the accuracy of the printed models.
c)
Process optimization: refining
the printing and curing processes to reduce defects, such as cracks in DLP
prints, will enhance the reliability and applicability of these techniques in
geological modeling.
d)
Data processing: advanced
algorithms for optimizing μCT data, including more accurate methods for
surface smoothing and pore structure expansion, will help preserve the
integrity of complex pore morphologies during 3D printing.
This work was funded by the subsidy
allocated to Kazan Federal University for the state assignment in the sphere of
scientific activities, project ¹ FZSM-2023-0014.
1.
Kadyrov R.I. et al.
Structural Transformation of the Void-Pore Space of a Lime Reservoir During HCl
Treatment // Chem. Technol. Fuels Oils. 2018. Vol. 54, ¹ 3. P. 307–318.
2.
Kadyrov R., Statsenko
E., Galiullin B. The porous space structure of domanik shales in the east of
Russian plate // International Multidisciplinary Scientific GeoConference
Surveying Geology and Mining Ecology Management, SGEM. International
Multidisciplinary Scientific Geoconference, 2018. Vol. 18, ¹ 1.4. P. 907–914 (10.5593/sgem2018/1.4/S06.118)
(https://sgemworld.at/sgemlib/spip.php?article12347).
3.
McPhee C., Reed J.,
Zubizarreta I. Core Analysis: A Best Practice Guide (Developments in Petroleum
Science): Volume 64. 1st Editio. Elsevier Science Ltd, 2015. 852 p.
4.
Physics of Petroleum
Reservoirs / ed. Hu X. et al. Berlin, Heidelberg: Springer Berlin Heidelberg,
2017.
5.
Gaafar G.R., Tewari
R.D., Zain Z.M. Overview of Advancement in Core Analysis and Its Importance in
Reservoir Characterisation for Maximising Recovery. 2015. Vol. Day 1 Tue,. P.
D011S003R009.
6.
Cruz-Maya J.A. et al.
Three-Dimensional Printing of Synthetic Core Plugs as an Alternative to Natural
Core Plugs: Experimental and Numerical Study // Processes. 2023. Vol. 11, ¹ 9.
P. 2530.
7.
Almetwally A.G.,
Jabbari H. Experimental investigation of 3D printed rock samples replicas // J.
Nat. Gas Sci. Eng. 2020. Vol. 76. P. 103192.
8.
Almetwally A.G.,
Jabbari H. 3D-Printing Replication of Porous Media for Lab-Scale
Characterization Research // ACS Omega. American Chemical Society, 2021. Vol.
6, ¹ 4. P. 2655–2664.
9.
Wajahat M. et al. A
review on extrusion-based 3D-printed nanogenerators for energy harvesting // J.
Mater. Sci. 2022. Vol. 57, ¹ 1. P. 140–169.
10.
Ishutov S. et al. 3D
printing sandstone porosity models // Interpretation. Society of Exploration
Geophysicists, 2015. Vol. 3, ¹ 3. P. SX49–SX61.
11.
Ishutov S. et al.
Replication of Carbonate Reservoir Pores at the Original Size Using 3D Printing
// Petrophysics – SPWLA J. Form. Eval. Reserv. Descr. 2021. Vol. 62, ¹ 5. P.
477–485.
12.
Ma S. et al. 3D Printed
Rocks - An Emerging Technology for Systematic Petrophysical Studies // Day 2
Mon, February 20, 2023. SPE, 2023.
13.
Mukhametrakhimov R. et
al. Structure of 3D-Printed Concrete by X-ray Computed Tomography // Lecture
Notes in Civil Engineering. Springer International Publishing Cham, 2023. Vol.
291. P. 425–436.
14.
Kong L. et al. 3D
Printing for Experiments in Petrophysics, Rock Physics, and Rock Mechanics: A
Review // SPE Reserv. Eval. Eng. 2021. Vol. 24, ¹ 04. P. 721–732.
15.
Almetwally A.G.,
Jabbari H. Experimental investigation of 3D printed rock samples replicas // J.
Nat. Gas Sci. Eng. 2020. Vol. 76. P. 103192.
16.
Song R. et al. 3D
Printing of natural sandstone at pore scale and comparative analysis on
micro-structure and single/two-phase flow properties // Energy. 2022. Vol. 261.
P. 125226.
17.
Wang X. et al. Effect
of Porosity on Mechanical Properties of 3D Printed Polymers: Experiments and
Micromechanical Modeling Based on X-ray Computed Tomography Analysis //
Polymers (Basel). 2019. Vol. 11, ¹ 7. P. 1154.
18.
Goral J., Deo M.
Nanofabrication of synthetic nanoporous geomaterials: from nanoscale-resolution
3D imaging to nano-3D-printed digital (shale) rock // Sci. Rep. 2020. Vol. 10,
¹ 1. P. 21596.
19.
Cruz-Maya J.A. et al.
Three-Dimensional Additive Manufacturing of Artificial Oil Reservoir Rock Core
Plugs for Core Flooding Experimental Tests // 3D Print. Addit. Manuf. 2022.
Vol. 9, ¹ 4. P. 233–244.
20.
Stoporev A. et al.
Three-Dimensional-Printed Polymeric Cores for Methane Hydrate Enhanced Growth
// Polymers (Basel). 2023. Vol. 15, ¹ 10.
21.
Li H. et al. Empowering
microfluidics by micro-3D printing and solution-based mineral coating // Soft
Matter. 2020. Vol. 16, ¹ 29. P. 6841–6849.
22.
Wang Y. et al. Design
and fabrication of rock-based microfluidics by 3D printing: the structure
characterization and pore-scale flow experiment validation // J. Porous Media.
2021. Vol. 24, ¹ 12. P. 77–92.
23.
Phoenix V|tome|x S240
[Electronic resource]. URL:
https://www.bakerhughes.com/waygate-technologies/industrial-radiography-and-ct/ct-inspection-systems/vtomex-s
(accessed: 05.01.2025).
24.
Phoenix datos|x - CT
Data Acquisition Software [Electronic resource]. URL:
https://www.bakerhughes.com/waygate-technologies/ndt-software/phoenix-datosx-industrial-ct-acquisition-reconstruction-software
(accessed: 05.01.2025).
25.
Avizo Software [Electronic
resource]. URL:
https://www.thermofisher.com/de/en/home/electron-microscopy/products/software-em-3d-vis/avizo-software.html
(accessed: 05.01.2025).
26.
Youssef S. et al. High
resolution CT and pore-network models to assess petrophysical properties of
homogeneous and heterogeneous carbonates // Society of Petroleum Engineers -
SPE/EAGE Reservoir Characterization and Simulation Conference 2007. Society of
Petroleum Engineers, 2007. P. 280–291 (doi: 10.2523/111427-ms) (http://www.spe.org/elibrary/servlet/spepreview?id=SPE-111427-MS).
27.
Meet the Pro2 Series
[Electronic resource]. URL: https://www.raise3d.com/pro2-series/ (accessed:
05.01.2025).
28.
ideaMaker [Electronic
resource]. URL: https://www.ideamaker.io/download.html (accessed: 05.01.2025).
29.
Anycubic Photon Mono X
[Electronic resource]. URL:
https://store.anycubic.com/products/photon-mono-x-resin-printer (accessed:
05.01.2025).
30.
Anycubic Photon
Workshop 3D Slicer Software [Electronic resource]. URL: https://store.anycubic.com/pages/anycubic-photon-workshop-3d-slicer-software
(accessed: 05.01.2025).
31.
Rock Permeability
Testing System [Electronic resource]. URL:
https://www.wille-geotechnik.com/en/rock/rock-permeability-test-system.html
(accessed: 05.01.2025).
32.
The “PIK-PP” automated
device for measuring porosity and permeability [Electronic resource]. URL:
https://en.geologika.ru/product/the-pik-pp-automated-device-for-measuring-porosity-and-permeability/
(accessed: 05.01.2025).
