In the process of manufacturing of
semiconductor parts, it is necessary to track the focus the laser beam accurately
on surface of wafer. To adjust the position of laser focus directly during the wafer
laser process, an optical tracking system was developed [1] (Figure 1), which
consists of a laser diode, a linear camera, and a controller. The laser diode
beam shines at an angle onto the surface of the workpiece and is reflected from
it. Reflected beam of the laser diode returns to the linear camera, thus
forming a peak with its position on the camera sensor.
The frame from the camera transfers to the
controller of the optical tracking system, where received frame is processed by
moving average filter, after which the filtered frame is processed to find a
peak position according to the specified parameters, by the formula for finding
the center of mass.

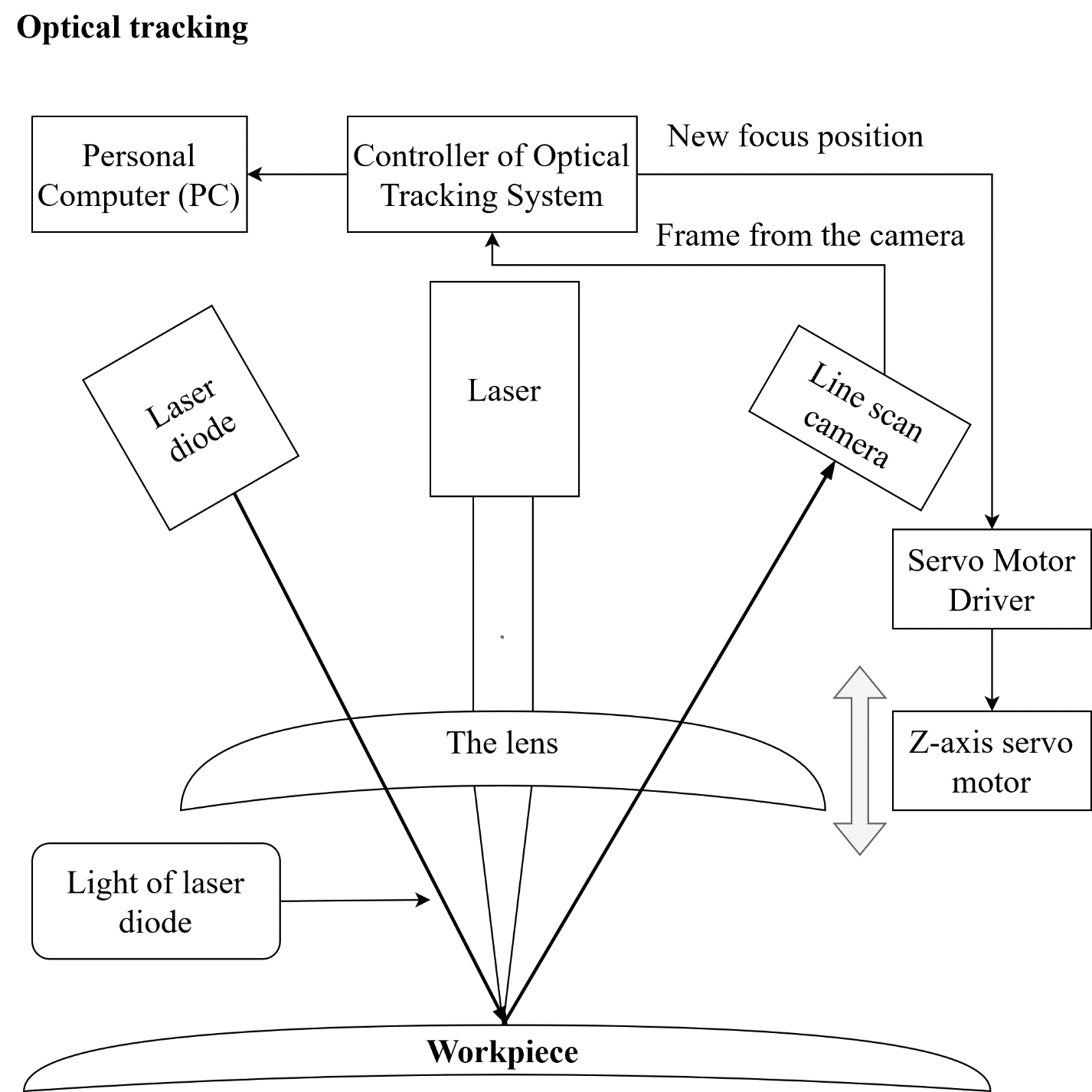

Figure
1: Schematic diagram of the optical setup of tracking system.
Since the focus adjustment of the laser is
performed directly during the laser processing process, the optical tracking
system (OTS) controller needs to quickly receive and process the incoming video
stream, so all machine vision algorithms and the servo motor control algorithm
were implemented on FPGA. Implementing algorithms on FPGA allows to achieve
higher performance compared to conventional computing architectures (such as
x86, ARM or RISC-V). Thus, it becomes highly specialized architecture for
specific tasks because algorithms are implemented on FPGA.
A system-on-chip (SOC) from Xilinx, the AMD
Zynq 7000 SoC ZC702 debug board, was taken to implement the OTS controller.
This board is redundant for SOC controller realization. Meantime it has all
necessary interfaces and allows developing the controller without limiting the
number of logic gates.
To register the position of the reflected
laser beam, a linear monochrome camera transmitting video via camera link
protocol [2] was taken. To receive the video stream, a special interface board
for FPGA with a camera link connector was purchased.
The vitis-HLS high-level synthesis tool [3]
was used in the development of the OTS controller. High-level synthesis tools
allow developing individual functional units by writing code in high-level
languages (C++, Python, etc.) rather than in hardware description languages
(Verilog, HDL, etc.). These tools allow the functional module developer to
abstract from the register transfer level (RTL) and develop code at the data
handling level.
Vitis-HLS has an adapted Open-CV library,
so the development of functional blocks related to video processing becomes
much easier due to the availability of ready and adapted solutions. In this
development the open-CV functions were not used due to the features of the OTS controller
operation.
As mentioned above, the OTS controller must
quickly receive and process the incoming video stream. Before searching for a
peak on the frame, the frame should be filtered. A modified moving average
algorithm [4] was developed to filter the frame. This algorithm was chosen due
to the fact that the peak on the frame is clearly expressed and it is necessary
to filter out unnecessary noise to correctly determine peak position.
The filter input is an image of 2*2048
pixels resolution, the frame is monochrome, each pixel is encoded with 8 bits.
The first line of the frame is written to the frame buffer without changes.
From the beginning of the arrival of the second frame line, filtering starts
using a sliding window, the width of the window is set by the user, and the
height of the window is fixed - 2 pixels. From the beginning of filtering the
window is filled with zeros, because of this some information at the beginning
of the image is lost, which is not critical for this project. The filtered
second line of the image is written to the frame buffer, thus in one frame
there are both "raw" data and filtered data, due to this it is
possible to display both graphs at once in the visualizing program. When
visualizing data in the form of a graph, the X-axis shows the index of the
pixel in the frame and the Y-axis shows the brightness of the pixel. Figure 2
shows the algorithm of moving average filter operation.

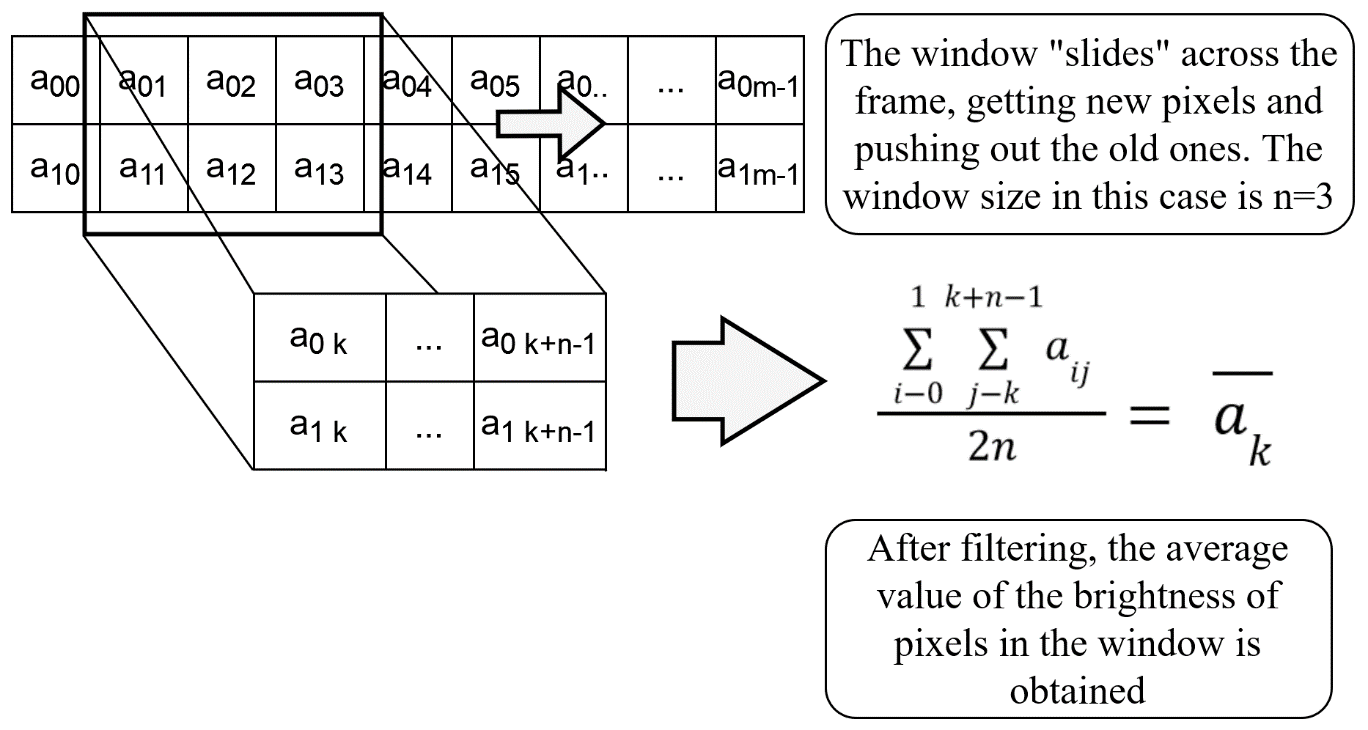

Figure
2: Filtering algorithm and formula.
Streamed video comes to the filter, two
pixels are transmitted at each clock pulse, thus, when the second line of the
image is received and the filtering of the frame begins, two pixels from each
line are written to the window at once.
Due to the fact that this memory is a
two-port memory, it is impossible to perform read or write operations with more
than two memory cells at one moment of time. This imposes serious limitations
on the work with memory, because in a clock comes data about two pixels of the
frame at once, and if it is already the second line of the frame, then in the
same clock it is necessary to read data from the buffer, to put them in the
averaging window.
The vitis vision library class
"xf::cv::LineBuffer" is used to create and work with memory. This
class allows us to fine-tune the size and type of memory of the frame buffer. When
creating the buffer, it needs to specify the size of elements to be stored in
it. To meet the limitation on the number of one-time operations on the buffer
it was decided to store two pixels in one buffer cell at a time. Due to this
solution, only two operations on the frame buffer are performed at one time:
the operation of writing new pixels and the operation of reading pixels of the
first line of the frame.
When filtering a frame, two pixels from
both frame lines are written into the filter window at once,
"displacing" old pixels. Window averaging algorithm performs reading all
cells of the window, summed up of values and obtain average calculated. Thus, usage
of conventional block two-port memory for the averaging algorithm is
impossible, because it will spend too much time to obtain data from all cells
of the window. The averaging window is a set of shift registers. Shift
registers allows obtaining data from all memory cells in a single clock cycle. It
allows the operation of shifting the data in any direction. Amount of registers
in FPGA are much smaller than block memory, so the realization of the frame
buffer by means of registers does not make much sense.
The shift register window is implemented
using the "xf::cv::Window" class, which is also part of the vitis
vision library. When a window is created, its height and width are set, as well
as the size of the data stored in the window.

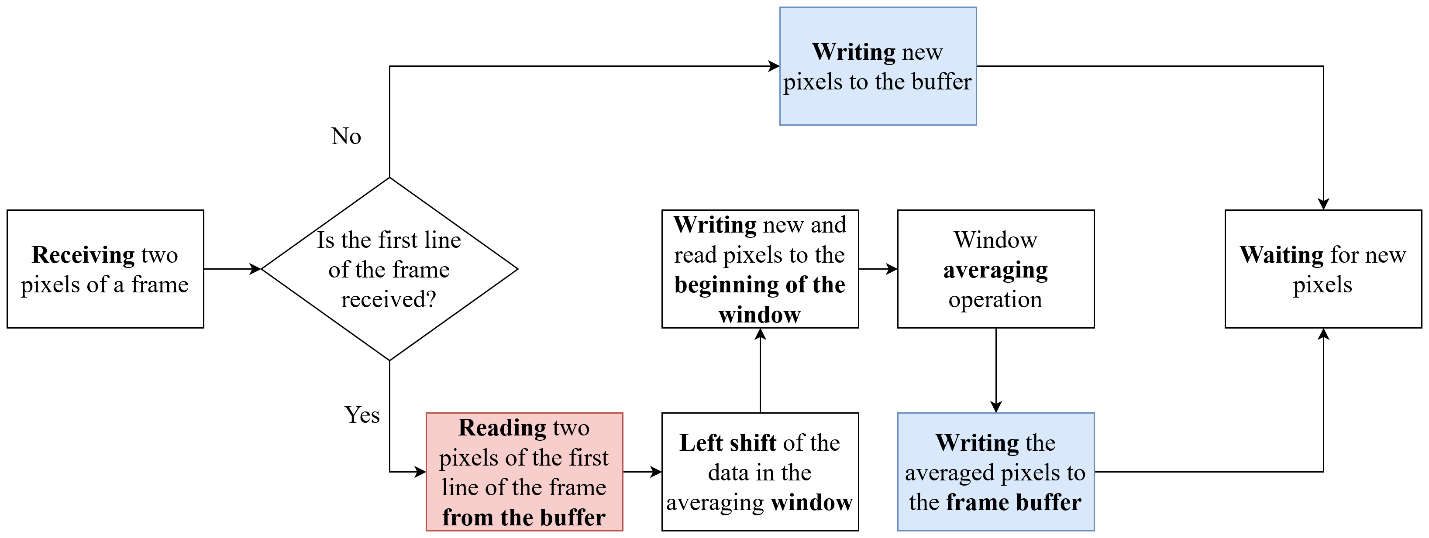

The overall filtering algorithm is shown in
Figure 3, in the figure red color indicates read operation from frame buffer
and blue color indicates write operations.
Figure
3. Algorithm of frame filtering.
During
configuring the system, it is important to be able to set different sizes of
the smoothing window. It allows fine-tuning of the controller. But when
implementing any algorithms on FPGA it is impossible to change the size of
already defined arrays, this is due to the fact that during synthesis and
placement and routing all necessary resources are reserved and there is no
possibility to add or release them in the future [5]. Therefore, to realize
variable window size, it was decided to initially create a window of the
maximum size to be able to vary the window size from 0 (no filtering occurs) to
the maximum size.
During window averaging operation,
iteration over the window is performed using loop “for”, vitis HLS has a
special pragma for "unroll loops" (pragma HLS unroll, i.e. performing
an operation in a loop over all iterated objects at once). This pragma allows us
to perform the entire cycle in one clock cycle, which significantly speed up
data processing. To "unroll" the loop, a constant number of
iterations must be specified in the loop declaration, otherwise the pragma will

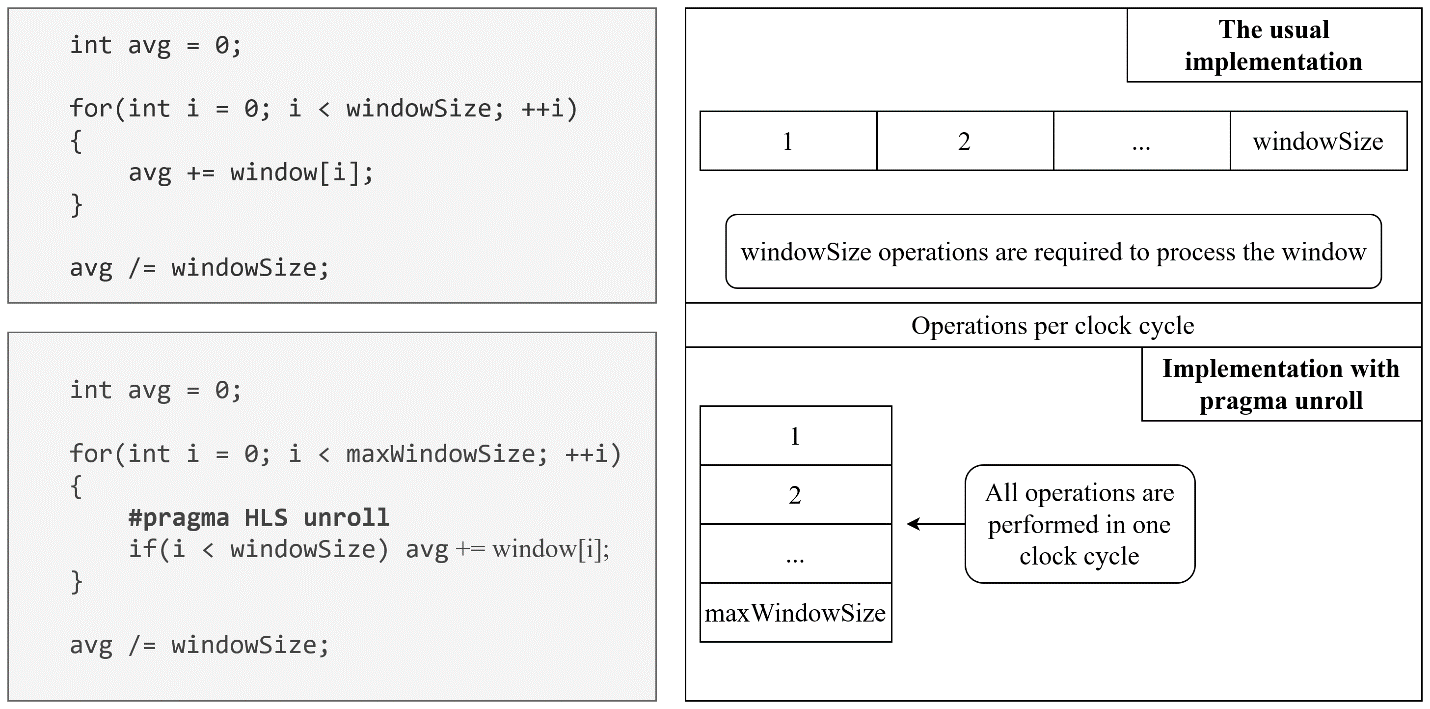

not apply to the loop. Figure 4 shows an example of the unroll pragma, where
maxWindowSize is a constant variable and windowSize can be changed by the user
at runtime. It is possible to create loops with a variable number of iterations
by accepting if(i < …) in the loop body, which will be executed in one clock
cycle.
Figure
4: Description of unroll pragma operation.
As a result, we managed to develop an
optimized rapid algorithm for filtering the incoming video stream. The filter outputs
the result as soon as a full frame is received, thus the speed of data
processing is mostly limited by the speed of video stream transmission by the
camera.
In order to maintain the controller
performance, it was decided to implement the peak search algorithm together
with the video stream filtering algorithm. Thus, two algorithms working one
after the other are realized in one functional block. After the window
filtering operation, the peak data is updated, and immediately after receiving
the whole frame the new peak position is calculated. The delay between
receiving the full frame and calculating the new peak position is the minimum as
possible.

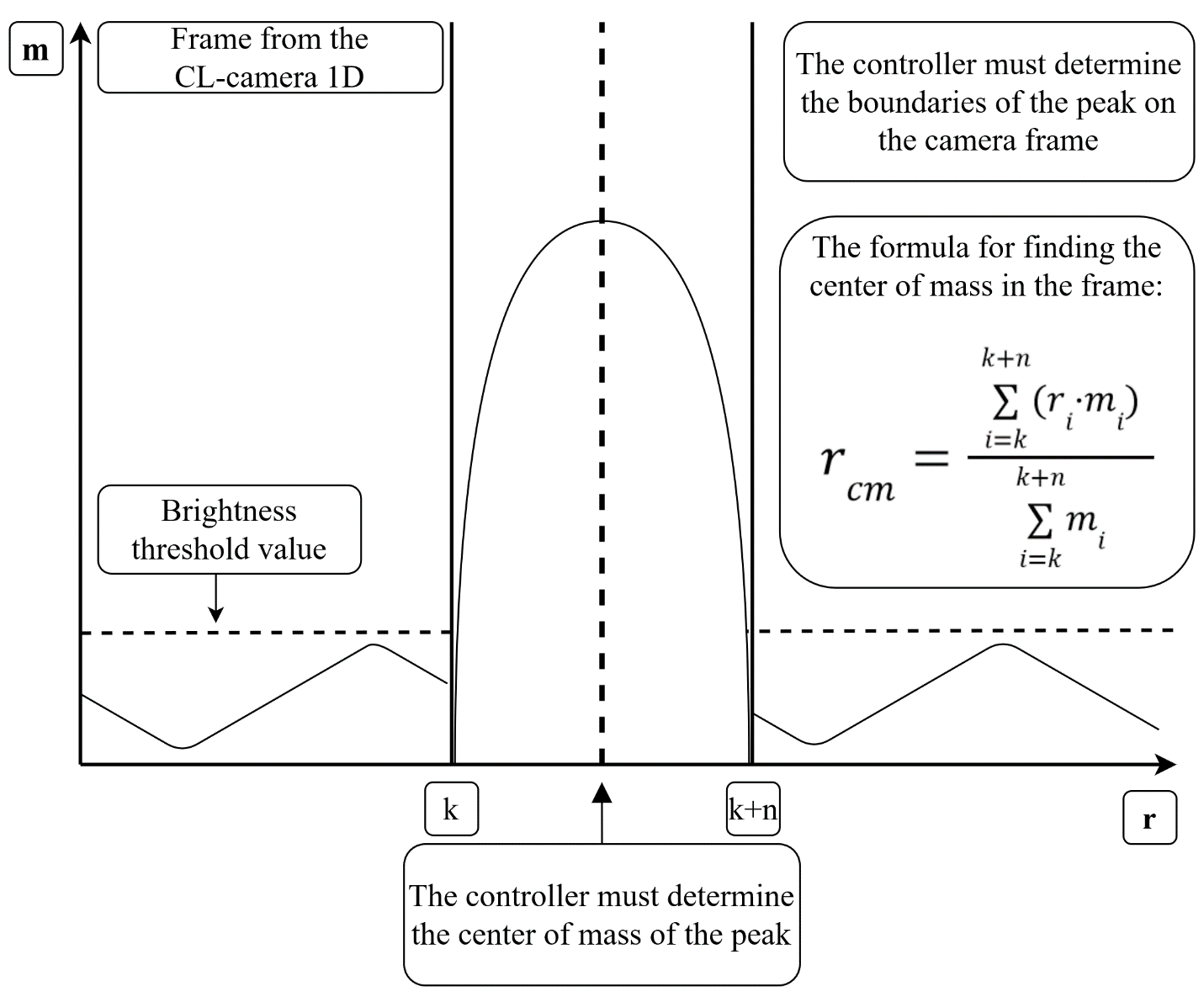

The algorithm to search center mass of peak
itself is a center mass search formula, where the brightness of a particular
pixel (mi)
was taken instead of the mass, and the pixel index (ri)
was taken instead of the point coordinates. The algorithm for finding the
center mass is presented in Figure 5.
Figure
5: Algorithm for finding the mass center.
Peak search is performed on all non-zero
filtered pixels of the frame. For peak search the user sets parameters such as:
maximum and minimum peak width, peak pixel brightness threshold, maximum peak
brightness, etc.. Immediately after obtaining the average value from the
averaging window, the data is updated. If the brightness of a pixel is zero,
but the pixels before it was not zero, the calculation of the peak center
masses is performed and the obtained peak data is checked with the set
parameters. The first peak satisfying the set parameters is considered suitable
and the algorithm finishes its work. The output of the functional block
receives data on the peak position and size.
When implementing the peak search algorithm,
it is necessary to compare the current peak value with the set parameters, this
is done using the if operator with a large number of comparisons (i.e. if (a
< b && b == c && ...)). Using the logical AND (&& in
C++) in one if operator in a large number leads to a long critical path, it is
due to the fact that in C++ when using the && operator it is guaranteed
that the condition to the left of the operator will be checked first and if it
is not true, the second condition will not be checked. When the critical path
increases, the speed of data processing decreases greatly due to the reduced
frequency of the whole controller. In this connection, all operators of logical
AND have been replaced by bitwise AND (&) operators, while calculating bitwise
AND allows to check all conditions at once and only after calculating the
result of bitwise AND.
As a result of the peak search algorithm
development, it was possible to implement an optimized and high-performance
algorithm that produces results almost immediately after a full frame is
acquired. As with the implementation of the filtering algorithm, the
performance of the algorithm is also limited by the speed of data transmission
from the camera.
As a result of algorithms realization, a functional
block of filtering and peak search on video stream was developed. This block
processes the incoming frame with a minimum time of 42 µs, this time includes
the time of receiving the frame. The function block has flexible settings for
filtering and peak search on the frame.
The authors express their gratitude to the management
of the "Lasers and Equipment TM" group of companies for their
assistance in providing material and technical support for conducting
experimental research and modeling the considered process.
1. Kondratenko, V.S.; Saprykin, D.L.; Tretyakova, O.N.; Tuzhilin, D.N. Development of the automatic control system of the focus adjustment for the technology of laser micromachining of materials (in Russian) // Instrumentation. 2022. ¹ 4. Ñ.26-31.
2. Camera Link standard [Electronic resource] // Imagelabs URL: https://www.imagelabs.com/wp-content/uploads/2010/10/CameraLink5.pdf (date of address: 07.07.2024)
3. Ryan Kastner, Janarbek Matai, and Stephen Neuendorffer. Parallel Programming for FPGAs [Electronic resource] // Kastner Research Group URL: https://kastner.ucsd.edu/wp-ontent/uploads/2018/03/admin/pp4fpgas.pdf (date of address: 07.07.2024)
4. Orlova Irina Anatolievna, Ustyukov Dmitry Igorevich, Efimov Alexey Igorevich Features of realization of spatial image filters on FPGA // Izvestiya TulSU. Technical Sciences. 2018. ¹2. 195-206.
5. Digital synthesis: a practical course // Antonov A. A., Barabanov A. V., et al. V., Barabanov A., et al. / Edited by A. Y. Romanov, Y. V. Panchul. - Moscow: DMK Press, 2020. 111.
