Optical components made of crystalline
materials are widely in use in optical instrumentation [1, 2]. The key parts of
acousto-optical devices include anisotropic crystalline materials. Quality and
performance of these components affect the accuracy, reliability and operation
cycle duration of the entire complex instruments. This paper addresses the
development of nondestructive testing methods for detection of the mechanically
stressed zones appearing in crystalline materials under external mechanical
loads. Formation of the zones of mechanical stress localization may lead to the
defect growth or the fatigue failures. Stress concentration zones are caused by
the crystal growth technology violations and excessive or cyclic mechanical
loads typical for onboard optoelectronic devices installed in aircrafts and
space vehicles. The former case involves the post-production quality control
via state-of-art crystallographic techniques [3, 4] but the latter implies
simulations and bench tests to assess the crystalline component performance [5,
6]. We propose to apply Mueller-matrix polarization-sensitive imaging [7]
technique for nondestructive visualization of stress concentration zones during
the bench tests of crystalline optical components.
Experimental setup for crystalline
optical components mechanical bench tests includes universal testing machine
(Instron 5982) and Mueller-matrix imaging system. The testing machine provides
the controlled uniaxial compression of a crystalline specimen installed between
press plates with a specialized floating hinge. To demonstrate feasibility of
the proposed technique we chose an anisotropic material widely utilized in
spectral imaging devices and laser instrumentation [8-12], tetragonal form of
tellurium dioxide α-TeO2. Layout of the experimental setup is
shown in figure 1.

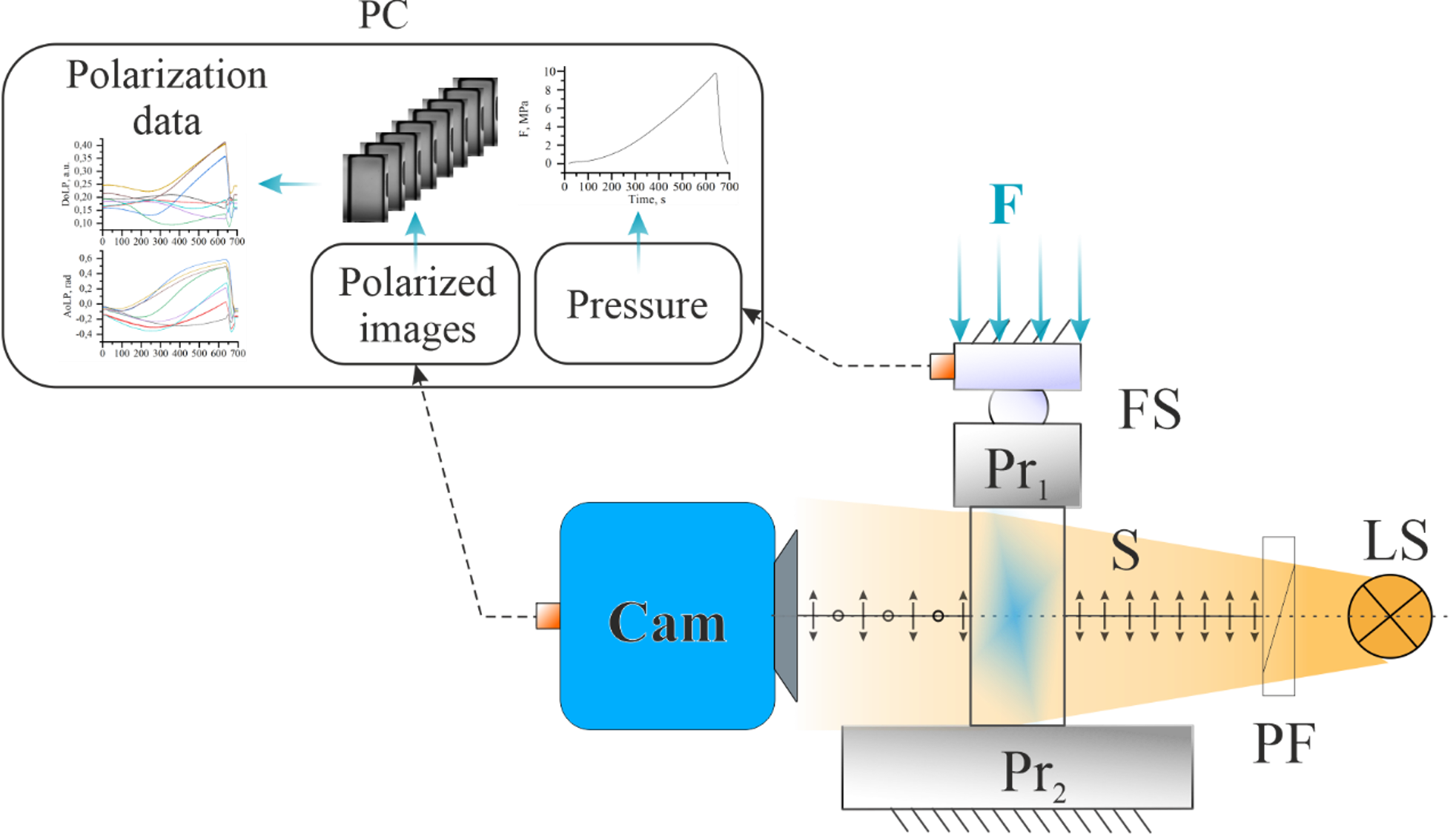

Figure 1.
Experimental setup. Cam - camera, Pr1
and Pr2
- press
plates, FS - floating hinge, PF - polarizing filter, LS - light
source, F - compression force applied to press plate, S – sample
The Mueller-matrix imaging system consists of LED-based broadband
light source, polarizing filter and polarization-sensitive camera (The Imaging
Source DZK 33UX250). Specimen installed in the universal testing machine is
illuminated by the linearly polarized light. The camera image sensor is
equipped with a specific polarization filter array. Four types of filters with
the plane of polarization turned at an angle of 0°, 45°, 90° è 135° to the
direction of image sensor pixel rows are arranged at 2×2 pixel blocks.
According to Malus’s law, during image acquisition each pixel block exposed by
the linearly polarized light with arbitrary orientation of polarization
direction will provide four different intensity values (I0,
I45,
I90,
I135). Thus, the camera allows
simultaneous image acquisition in four polarization directions. Using the
acquired intensity values one can evaluate the parameters of Stokes vector
for
each 2×2 pixel block as follows:
Taking into account the linear polarization of the illumination,
the parameter
S3
describing circular polarization can be
excluded from consideration. For quantitative analysis of the light passing
through the specimen we calculated the spatial distributions of two values:
Degree of Linear Polarization (DoLP) showing the ability of the specimen
material to conserve the linear polarization of light and Angle of Linear
Polarization (AoLP) associated with the polarization direction. DoLP and AoLP
may be defined using the Stokes vector parameters:
Without
the specimen the polarization-sensitive camera illuminated with collimated
linearly polarized light delivers spatially homogeneous DoLP and AoLP maps.
During the external mechanical load increases, local deviations of the
mentioned values appearing and developing in the investigated anisotropic
specimen zone indicate the stress localization as the excessive stress leads to
the additional retardation introduced according to the stress-optic law [13,
14]. Stress localization zones are associated with the structural
inhomogeneities (defects) in crystalline material [15]. Therefore, analysis of
DoLP and AoLP spatial distributions may provide the defect detection during
bench tests.

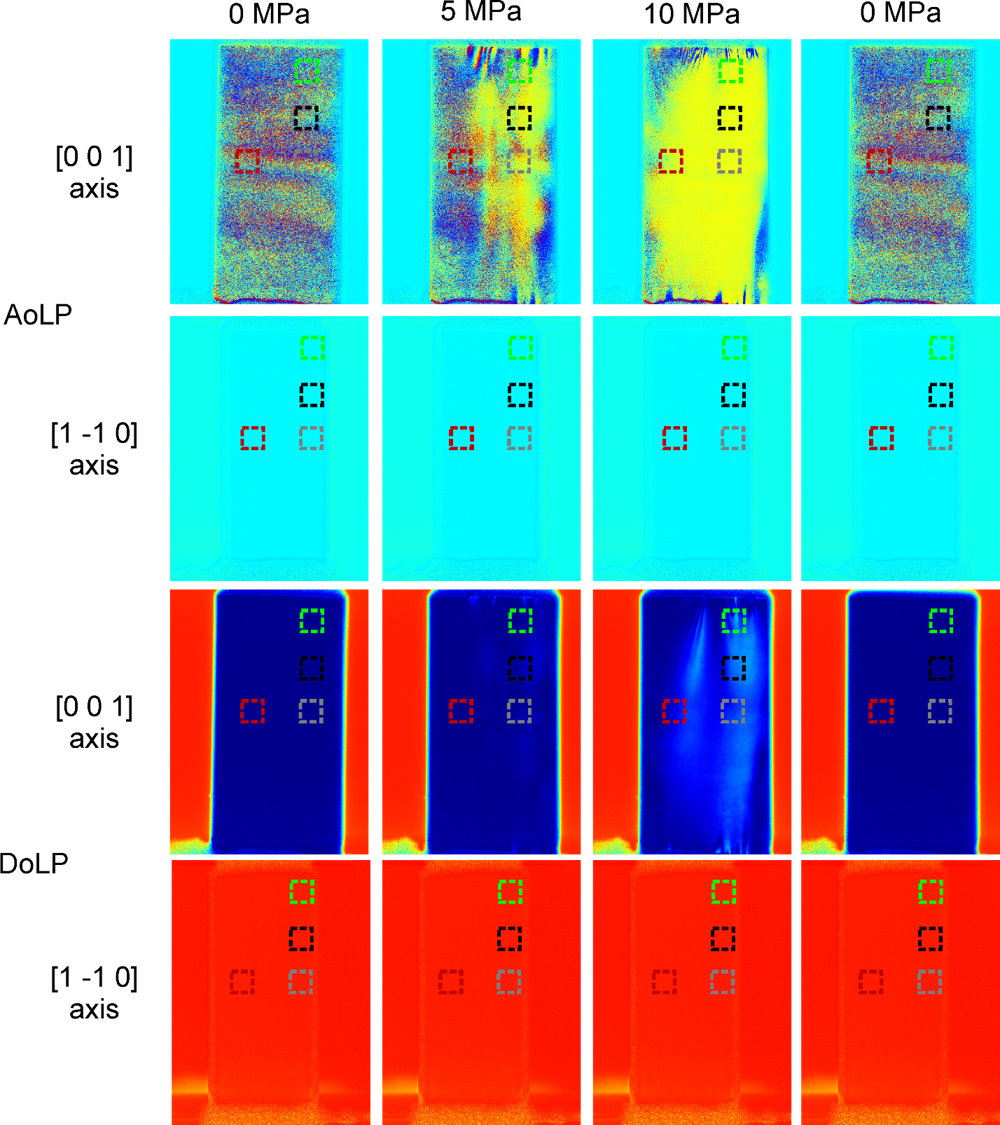

Figure 2.
Calculated AoLP and DoLP maps acquired for the observation direction coincident
to the crystallographic axis [0 0 1] (two upper rows) and [1 -1 0] (two lower
rows)
Experimental
testing involved TeO2
specimen with dimensions of
20,1×8,9×9,6 mm. The compression force direction coincided with the
direction of the crystallographic axis [1 1 0]. The external mechanical load
monotonically increased from 0 to 10 MPa and afterwards decreased 0 MPa. The
observation direction was aligned coincident to [0 0 1] and [1 -1 0]
crystallographic axes in two independent tests. During the entire experimental
tests, the Mueller-matrix imaging system continuously performed image
acquisition at 40 fps frame rate.
At
the image processing stage, we calculated the timed stacks of DoLP and AoLP
maps. Examples of the calculated maps are shown in figure 2. To demonstrate
quantitative time dependencies of DoLP and AoLP in particular spatial zones the
images were splitted into separate regions 0f 40×40 pixels. Time
dependencies of DoLP and AoLP mean values for the most remarkable regions are
demonstrated in figure 3.
Spatial
maps acquired for [0 0 1] axis demonstrate significant difference between the
unloaded specimen and the background. Low values of DoLP and speckle pattern at
AoLP map are associated with gyrotropy, which manifests in rotation of the
polarization plane of light propagating along the optical axis [0 0 1] of TeO2
[17]. The angle of rotation considerably depends on the light wavelength.
Therefore, the linearly polarized broadband light transforms into the
unpolarized after passing the specimen. Increasing external mechanical load and
resulting uneven stress distribution lead to the rise of the stress-induced
birefringence which causes the appearance of spatial zones with higher DoLP and
explicit AoLP values. Spatial maps for [1 -1 0] axis demonstrate no notable
changes.

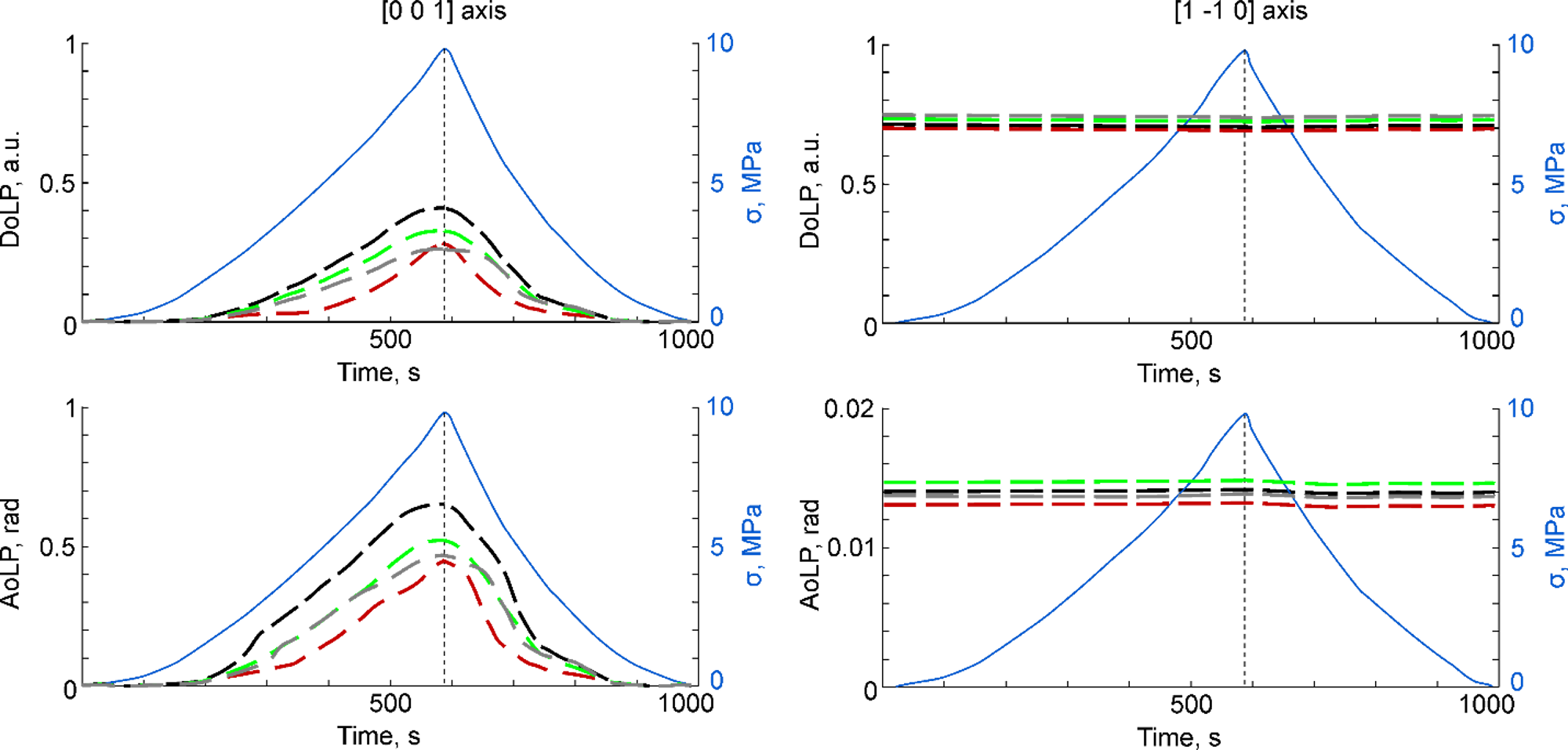

Figure 3.
Temporal DoLP (top) and AoLP (bottom) dependencies. Colours of the curves
correspond to the frame colours in Figure 2.
The similarity of DoLP and AoLP maps
and equal levels of DoLP and AoLP values in the beginning and in the end of the
experiment highlight the absence of irreversible structural failures in the
specimen. For [0 0 1] axis, extrema locations of DoLP and AoLP curves
correspond to the maximum of the external mechanical load. Stress concentration
zones demonstrate earlier and more intensive gain of the measured values.
Curves obtained for [1 -1 0] axis confirm the ability of the specimen material
to conserve the polarization state of the light propagating in this direction,
as it may be also noticed from the corresponding spatial maps. Thus,
observation in this direction do not provide enough sensitivity for stress
localization mapping.
Broadband
illumination increases the contrast of DoLP spatial distributions for image
series obtained during observation along TeO2
optical axis and
simultaneously hinder accurate tracking the changes in AoLP values. Using the
narrow-band illumination instead of broadband may lower the visible DoLP
contrast but allow measurement of polarization plane rotation angle and
evaluation of stress values in accordance with the stress-optic law. Current
experimental setup configuration ensure sufficient time resolution, thus the
inevitable decrease of radiant flux associated with narrowing the illumination
spectral range is to be compensated by gaining the exposure time.
The
proposed technique and experimental setup provide high-contrast and real-time
stress mapping in TeO2 crystal in the case of its observation along the optic
axis. High specificity to the observation direction with respect to the
crystallographic axes orientation reduces the scope of the technique but simplifies
the optical alignment. The described Mueller-matrix imaging setup may be
combined with various testing machines to implement the desired test scenario.
Experimental setup with broadband illumination provides considerable DoLP maps
contrast that may be an informative stress indicator. More accurate
quantitative research requires improving the AoLP mapping. Thus, the
perspective research may be devoted to narrow-band Mueller-matrix imaging.
This work was
performed within the State Assignment of FSRC "Crystallography and
Photonics" RAS in the part of samples preparation and was supported by
Ministry of Science and Higher Education (grant ¹ 075-15-2021-1362) in the
experimental and data processing part.
