The growing role of video content in all
fields of research, from social science to science, is increasingly driving the
need to turn to quantitative methods for video content analysis. Researchers
in various fields, such as media sociology and digital humanities, are faced
with the need to analyze vast volumes of video material to identify patterns of
representation of a given phenomenon, study character screen time, analyze
gender balance, and other aspects of media content [1, 2].
However, traditional methods of searching for
and analyzing the appearance of specific objects in video footage remain
extremely labor-intensive. Researchers are forced to review hours of video
footage, manually recording the time intervals of the appearances of the
characters of interest. This approach not only requires significant time
resources but is also prone to subjective errors, especially when working with
long-form video or large media collections [3].
Existing commercial solutions for video
analysis are either focused on professional video production (Adobe Premiere
Pro [4], Final Cut Pro [5]) and are not aimed at video analysis tasks, or
require significant financial investments and technical expertise (cloud
services AWS Rekognition [5], Google Video Intelligence API [6]). Currently,
there is a very limited range of tools that can enable researchers to analyze
significant amounts of material according to their needs. Often, research tasks
are so highly specialized that widely available software packages do not functionally
meet the requirements of the tasks. This poses an additional challenge for
researchers immediately prior to conducting scientific research: first
selecting a suitable search or analysis tool, and if one does not exist,
creating one themselves.
This paper examines the problem of targeted
search for specific objects in a video stream on request and recording the
timestamps of their appearance. Since the solutions currently available on the
market were inadequate for the task, it was decided to implement such a tool
independently as part of an ongoing research project conducted at the Keldysh
Institute of Applied Mathematics of the Russian Academy of Sciences.
The aim of this study is to develop and
describe a practical tool for automated object search in video content.
accessible for use by researchers without special technical skills.
The tasks set include:
1. Analysis of existing solutions for
character search in videos and identification of their limitations for research
applications;
2. Description of the architecture of the
developed tool;
3. Development of software implementation
4. Identification of development prospects and
possibilities for integrating the tool into various areas of research.
The modern software market offers a number of
solutions for working with video content. but their applicability for research
tasks is limited by a number of nuances that have a narrowly targeted
application.
Professional video editors such as Adobe
Premiere Pro and Final Cut Pro versions include automatic facial recognition
features, but they are primarily aimed at video production. The main
limitations of these solutions for research applications include: high
licensing costs, difficulty learning for users without a technical background.
and the lack of the ability to export structured data for subsequent
statistical analysis [8].
Cloud services (AWS Rekognition Video. Google
Video Intelligence API, Microsoft Azure Video Indexer) provide powerful
capabilities for video content analysis. including facial recognition and
tracking. However, their use in academic research can be challenging for a
number of reasons, ranging from the high cost of processing large volumes of
video materials to the complex political situation, which creates a number of
restrictions for Russian scientists. It should also be taken into account that
cloud technologies are not suitable for all scientific tasks, as some data
requires exclusively local processing due to its specific nature and confidentiality
requirements when uploading research materials to external servers [9, 10].
In the academic community, there are a number
of specialized tools for video content analysis. For example, ELAN (EUDICO
Linguistic Annotator is widely used by linguists for video annotation; however,
it requires manual tagging and does not include automatic recognition of faces
or objects [11]. OpenCV-based solutions provide a powerful technical foundation
for creating video analysis systems; however, their use requires significant
programming skills. Most ready-made implementations are aimed at technical
specialists and do not provide a simple interface for humanities researchers
[12].
VideoANT Project (Video Annotation Tool)
from the University of Minnesota offers a web interface for video annotation,
but also requires manual work and does not include automatic recognition
features [13]. In the field of digital humanities, separate tools for media
content analysis have been developed. The Cinemetrics project focuses on the
analysis of film editing characteristics, but does not include features for
finding objects or specific characters [14]. CLARIAH Media Suite provides
researchers with access to large collections of media content with search and
analysis capabilities, but its automatic object recognition features are also
limited [15].
Among the existing software solutions
presented in open Internet sources. several key gaps can be identified, in
particular:
1.
Lack of simple solutions for solving the problem of searching for
specific objects/characters in a video stream;
2.
Lack of technical means to launch a search based on a sample of
specific video material provided by the user;
3.
Unavailability of tools for researchers without technical expertise
background - most solutions require programming skills or significant financial
resources;
4.
Limited ability to export structured data for subsequent statistical
analysis and visualization;
These aspects confirm the need and relevance
of developing a simple, accessible tool for automated search of specific
objects in video content. aimed at the needs of researchers in various fields
from experimental physics to media studies and digital humanities.
The developed system is a tool for automated
character search in video content. consisting of five main stages:
pre-processing of the reference image, decomposition of the video material,
detection of the object (in our case, the face) in the frames, comparison with
the reference and generation of output data in the following form:
• directory with cut video fragments
• a file with timestamps of the appearance of the
sought object in the frame.
To operate the program, an organized directory
structure is created where the necessary materials are grouped.
After launching the executable file, the
program automatically downloads the reference faces added by the user, then
searches the user-uploaded video files, analyzing the frames for the target
object and comparing the detected faces with the reference sample. Finally, it
creates a directory with the results. This directory contains:
• video files with found fragments containing
specified faces;
• span lang="EN">
A JSON file with scene timecodes. describing the
start and end times of each fragment;
• log file with information about the processing
process;
• settings file (for possible adjustment of
parameters).
The user simply prepares the data (photos and
videos) and launches the program. After that, the program automatically
searches for faces and creates the results in the specified folder.
The system is a modular application designed
to automatically extract video fragments containing specific faces. The basic
principle is to compare faces detected in the video stream with reference
images submitted by the user as photographs.

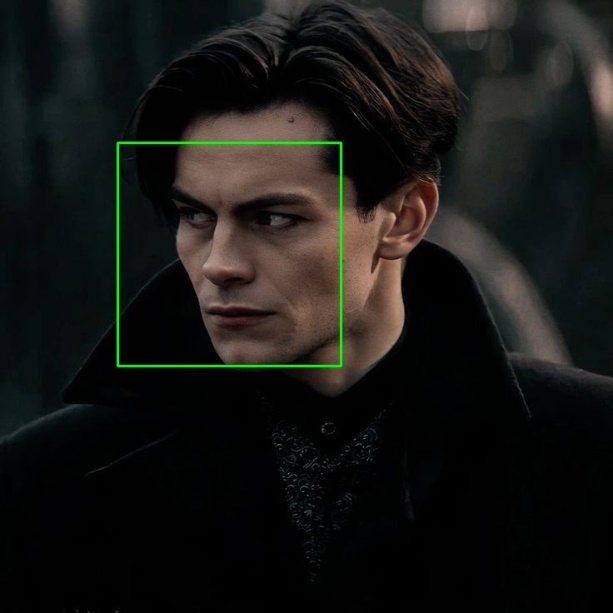

Figure 1. Example of a recognized face

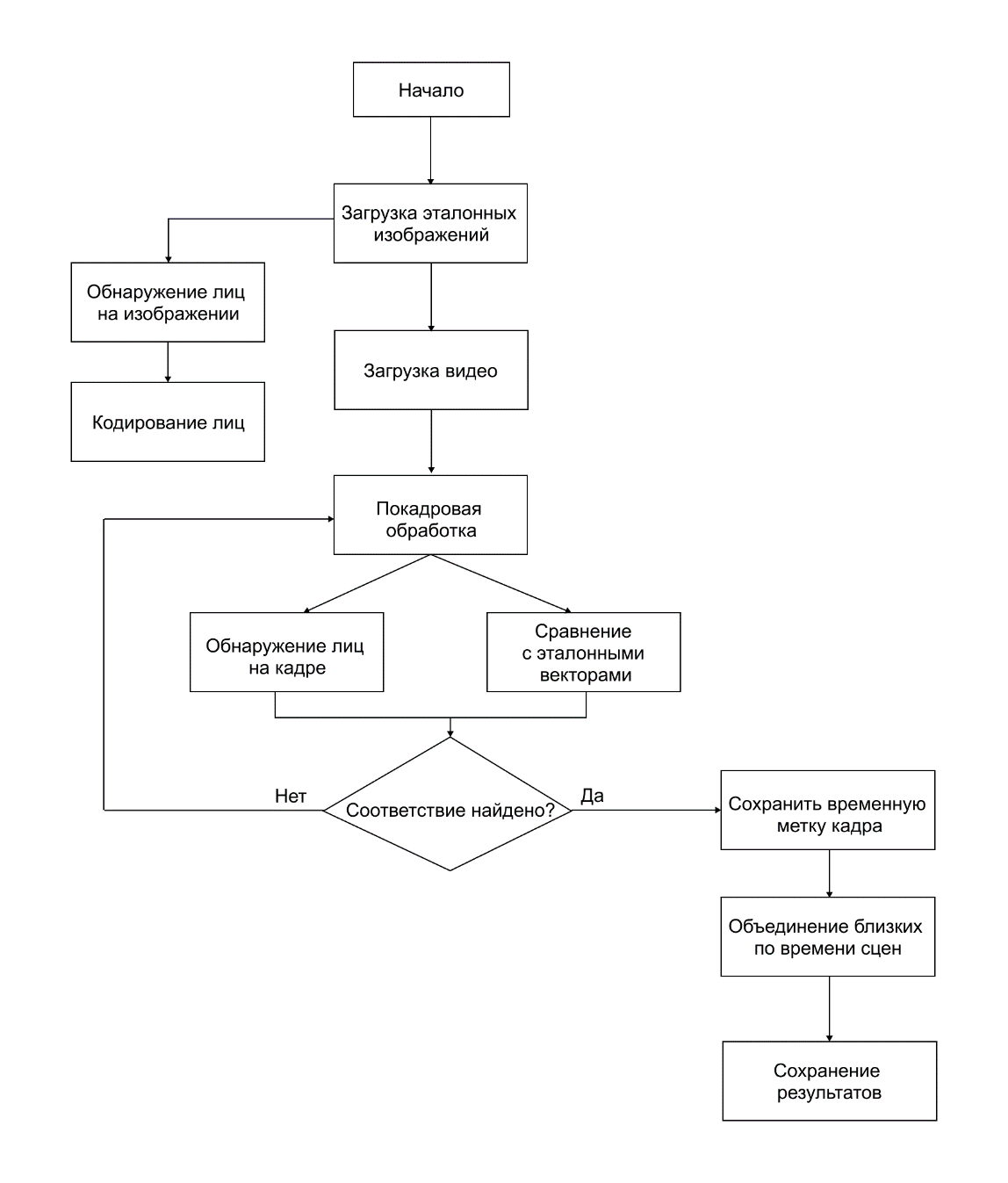

The program's operating algorithm is presented
in the diagram (Fig. 2):
Figure 2. Algorithm diagram
The core component of the system is the
FaceExtractor class. which encapsulates all video processing and face
recognition logic. The key methods of the FaceExtractor class are:
• load_reference_faces (): Loads reference face
images from the specified directory and encodes them into feature vectors.
• process_video (): Processes a video file frame by
frame, detects faces in each frame, encodes them and compares them with
reference vectors.
• _ merge_scenes (): Merge scenes with detected faces
that are close in time into single fragments.
• _ save_results (): Saves video clips with detected
faces and metadata to the specified directory.
The system is developed in Python 3.9. The
face_recognition library [16], a Python wrapper over the dlib library [17], is
used for face recognition and matching. The algorithm is based on the FaceNet
approach [18], which creates 128-dimensional feature vectors (embeddings) for
each detected face using a deep neural network based on the ResNet architecture.
The following libraries were used to implement
the main functions of the program:
• opencv-python (cv2) (version 4.8.1.78) - for
working with video and images, used for loading, decoding and frame-by-frame
processing of video.
• moviepy (version 1.0.3): - a video editing program
used to combine scenes and save video fragments.
• numpy (version 1.24.3) - for working with arrays,
used to store and process face feature vectors.
The choice of these software tools was due to
their ease of use, wide availability of libraries for machine learning and
video processing, and good performance.
To ensure high accuracy and speed of face
recognition, a series of preprocessing steps are applied to the input data.
Reference face images must be submitted in
JPG, JPEG, or PNG format with a resolution sufficient to clearly display the
face. The process of loading reference images involves reading the files,
detecting faces in the images, and encoding the faces into 128-dimensional feature
vectors using the face_recognition library.
Figure 3. Reference facial samples
The system supports MP4, AVI, and MKV video
files. Video processing involves loading the video file, decoding frames, and
processing them frame by frame. To reduce the processing load, the frame size
is adjusted to max_image_size pixels (this parameter is configured in the
configuration file). To speed up processing, the frame_interval parameter is
used. which determines how often frames are processed (for example, frame_interval
= 5 means every fifth frame will be processed).
The results of the system's work are presented
in the form of video fragments containing scenes with detected faces, and
metadata describing these fragments.
Video fragments are saved in MP4 format using
the H.264 codec. Metadata is saved in JSON format and contains the following
information: video_name (the name of the original video file); fragments (a
list of fragments with detected faces and timestamps); settings (processing parameters),

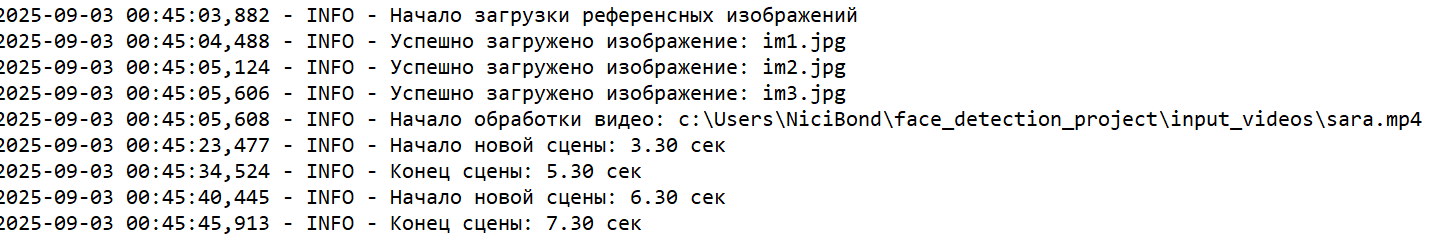

etc. Log files are also recorded (Figure 4).
Figure 4 – Example of a program report
The system was tested on the following
equipment:
• CPU: Intel Core i7-8700K (6 cores, 12 threads).
• RAM: 16 GB DDR4.
• GPU: NVIDIA GeForce GTX 1070 (8 GB)
• Drive type: SSD.
• Software:
• Operating system: Windows 10 (64-bit).
• Python : 3.9.
The following tests were performed to evaluate
the system performance:
1.
Image Size Test: The purpose of this test is to
determine the impact of image size on processing speed. During the test, the
image size was varied (from 500 to 2000 pixels) and the processing time for one
frame was measured.
2.
Parallel Processing Test: The purpose of this test
is to determine the optimal packet size for parallel processing. During the
test, the packet size was varied (from 1 to 16) and the processing time for one
frame was measured.
3.
Video Processing Test: The purpose of this test is
to determine the impact of frame interval on processing speed. During the test,
the frame interval was varied (from 1 to 30) and the video processing speed
(frames per second) was measured.
The following metrics were used to evaluate
the test results:
• Processing time (in seconds).
• Processing speed (frames per second).
• Memory usage (in MB).
• CPU load (in percent).
The test results showed that the system
successfully detects specified characters in a video stream, generates video
fragments with their participation, and saves metadata describing these
fragments.
In particular, the tests confirmed:
• Efficiency of using the face_recognition library
for face recognition.
• Positive impact of data preprocessing (image
resizing, frame skipping) on video processing speed.
• Ability to customize system parameters (e.g.
max_image_size. frame_interval. recognition_threshold) to adapt to different
performance and accuracy requirements.
Thus, it can be concluded that the first
version of the software has been successfully implemented and fulfills its
intended purposes. The system demonstrates stable operation and allows for the
effective detection of specified characters in a video stream.
The obtained results open up broad prospects
for further development and application of the system in various fields, such
as:
• Automatic marking of video archives;
• Security and video surveillance systems.
• Analysis of media content and identification of key
characters.
• Creating personalized video collections.
The developed system has a number of
advantages that make it effective for use in various tasks:
• Ease of use: The system is based on widely known
and available Python libraries. which makes it easy to configure.
• Efficiency: Thanks to the use of a pre-trained
neural network and optimized video processing algorithms, the system ensures
high speed and accuracy of facial recognition.
• Flexibility: The system allows you to customize
video processing parameters (e.g. image size, frame interval, recognition
threshold) to adapt to different performance and accuracy requirements.
• Modularity: The modular architecture of the system
simplifies its expansion and modification to solve new problems.
However, it's worth
noting that the system's first version has narrowly focused functionality and
is designed solely for searching for faces in a video stream. It also has some
limitations that must be taken into account when using it:
• Dependence on the quality of reference images: Face
recognition accuracy is directly dependent on the quality of the reference
photos. Blurry, poorly lit, or rotated photos can reduce recognition accuracy.
• Limitations of the pre-trained model: The system
uses a pre-trained neural network, which may not be optimal for face
recognition under certain conditions (e.g., low lighting, strong changes in
perspective, or the presence of occlusions).
• Computational complexity: Video processing requires
significant computing resources, which can be a problem when using the system
on low-power devices.
As we work to improve the system's performance
and expand its functionality, the following areas of development can be
identified:
• using more modern neural network
architectures. Replacing a pre-trained model with a more modern architecture
(e.g., ResNet. EfficientNet) can improve recognition accuracy and expand its
areas of application, allowing it to recognize not only faces, but also more
specific objects, such as certain phenomena in physics experiments.
• Development of adaptive
algorithms. The development of algorithms that automatically adjust system
parameters (e.g. image size, frame interval, recognition threshold) depending
on the characteristics of the video stream will increase its efficiency and
flexibility.
• GPU optimization. Using a GPU to accelerate
computations can significantly improve video processing speed, especially when
using complex neural networks.
• integration with other systems. Integration
of the system with other systems (for example, video surveillance systems, face
databases) will expand its functionality and scope of application.
• Development of a graphical user interface
(GUI). Creating a user-friendly graphical interface will make it easier for
users who do not have experience working with the command line to use the
system.
The developed system has the potential for
application both to applied tasks in the field of media analysis and in various
fields of science: from experimental setups to social research.
This paper presents a system for automatic
face detection in a video stream, based on the use of the face_recognition
library and optimized to achieve high performance.
The developed system is a tool for searching
faces in video streams, which can be used in various fields of science and
engineering. Proposed development directions for the system, such as the use of
more modern neural network architectures, the development of adaptive
algorithms, and optimization for GPU operation, will expand its functionality
and improve its efficiency, opening up new possibilities for its application in
solving a wide range of problems in various fields of science and engineering.
The contribution of this work is to
demonstrate the practical applicability of existing libraries and optimization
methods for solving the real-world problem of face detection in video streams.
The developed system can be used as a basis for creating more complex and
functional applications in the field of video data analysis.
1. Moretti F. Distant Reading. - London: Verso, 2013. - 298 p.
2. Manovich L. Cultural Analytics: Analyzing Cultural Patterns in the Era of “More Media” // Domus. 2009. - No. 923. - P. 1-7.
3. Salt B. Film Style and Technology: History and Analysis. - London: Starword. 2009. - 398 p.
4. Adobe Premiere Pro - URL: https://www.adobe.com/products/premiere.html
5. Final Cut Pro - URL: https://www.apple.com/final-cut-pro/
6. Amazon Rekognition - URL: https://aws.amazon.com/rekognition/
7. Video Intelligence API documentation - URL: https://cloud.google.com/video-intelligence/docs
8. Adobe Systems Inc. Adobe Premiere Pro User Guide // Adobe Documentation. - 2023. - URL: https://helpx.adobe.com/premiere-pro/user-guide.html
9. Amazon Web Services. Amazon Rekognition Video Developer Guide. - 2023. - URL: https://docs.aws.amazon.com/rekognition/
10. Google Cloud. Video Intelligence API Documentation. - 2023. - URL: https://cloud.google.com/video-intelligence/docs
11. Wittenburg P., Brugman H., Russel A. ELAN: a Professional Framework for Multimodality Research // Proceedings of the 5th International Conference on Language Resources and Evaluation. - 2006. - P. 1556-1559.
12. Bradski G., Kaehler A. Learning OpenCV 3: Computer Vision in C++ with the OpenCV Library. - Sebastopol: O'Reilly Media, 2016. - 1024 p.
13. VideoANT Project. Video Annotation Tool // University of Minnesota. - URL: https://ant.umn.edu/
14. Cinemetrics. Film Measurement and Analysis // Cinemetrics Database. - URL: http://www.cinemetrics.lv/
15. CLARIAH Media Suite. Research Platform for Media Studies // CLARIAH Consortium. - URL: https://mediasuite.clariah.nl/
16. Geitgey A. Machine Learning is Fun! Part 4: Modern Face Recognition with Deep Learning // Medium. - 2016. - URL: https://medium.com/@ageitgey/machine-learning-is-fun-part-4-modern-face-recognition-with-deep-learning-c3cffc121d78
17. He K., Zhang X., Ren S., Sun J. Deep Residual Learning for Image Recognition // Proceedings of the IEEE Conference on Computer Vision and Pattern Recognition (CVPR). - 2016. - P. 770-778.
18. Schroff F., Kalenichenko D., Philbin J. FaceNet : A Unified Embedding for Face Recognition and Clustering // Proceedings of the IEEE Conference on Computer Vision and Pattern Recognition (CVPR). - 2015. - P. 815-823
