Problem Statement

The idea of analytical modeling of complex geometric objects by implicit functions (as an inverse problem of analytical geometry) has existed for a long time [1-5] and has a number of significant advantages over surface models described by a parametric form for obtaining the coordinates of boundary points.

First of all, in implicit modeling a geometric object is defined by a zero boundary range of values, which adds to the applicability of such approach in engineering calculations. Secondly, it can be noted that there is no limit for the specified dimensionality of space.

However, further application possibilities in computer technologies require an analytical function given by a complicated expression to be additionally simplified by discretization on a given domain. First of all, computer information is discrete and requires a transition from functional continuity to discrete continuity. Discrete continuity should provide properties and identity retention of functional continuity, i.e. it should also be represented by a local function of an implicit form at a specified point.

Research papers [6-10] reflect the basic principles of Functional Voxel modeling method (FV-method), which is based on constructing a local function with an angular metric at each point () on a given domain:

The computer storage of angular metrics, referred to in the FV-method as “local geometric characteristics”, is carried out through converting the colour palette into numerical values, which enables to obtain special images of local geometric characteristics (M-images) on a given domain, as well as to reassemble them by inverse transformation into cosines to obtain a local function at the considered point of the M-image.

For example, M-images for a circle:

could be represented by a local function

.

M-images describing the region are shown in Figure 1.

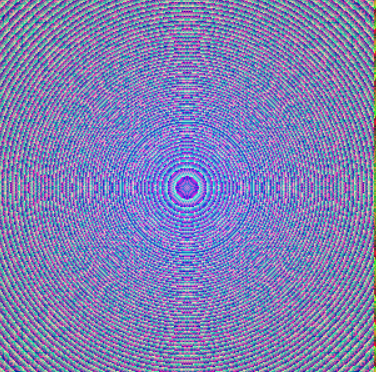

Fig 1. M-images of a circle in RGB colour format, which displays 16777215 shades of colour

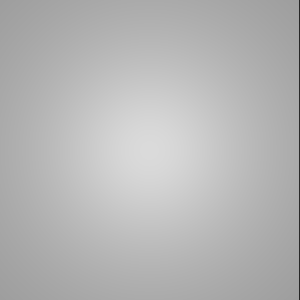

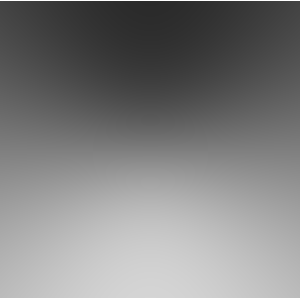

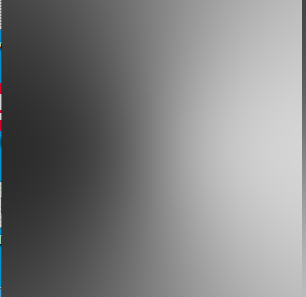

Figure 2 shows semi-tone images of local geometric characteristics for convenient visual assessment, but with a limited accuracy of representation up to 255 shades of gray.



Fig 2. M-images of a circle. Monochromatic colour palette displaying 256 shades of gray colour



The main advantage of a local function is that it can be quite simply represented as a sum of arguments multiplied by local geometric characteristics, which makes it easy to express the desired variable through the remaining arguments of a function, providing simple calculations for a point selected on a given domain. For example:

Figure 3 illustrates in monochrome the region representing values calculated for variable . Figure 3. a) shows the normalized values of variable , and Figure 3.b) highlights in blue color the negative values of outside the object, and positive values inside the object in white.



Fig. 3. Values of distributed over a given region for the function (2): a) values are normalized from white to black b) region separation



Many computer applications based on the Functional-Voxel modelling method (FV-method) have been implemented to solve problems in various areas of mathematical modeling [3-7], resulting in a visual solution that is unlimited in dimension.

At the same time, the proposed FV-method is based on a discrete representation of data, referred to as M-images, obtained by a linear approximation of three nearest neighbour vertices in a regular mesh, which obviously leads to limitations in the accuracy of data representation, as well as to a limited area for calculations.

1. Differential representation of a local function

In order to overcome these limitations, we apply the differential principles of constructing a local function.

Let us consider again an example of a local function defined by an implicit equation and describing a two-dimensional domain of the function on the plane, and representing its value:

Let's reduce equation (4) to the differential form:

In essence, formula (5) leads to the following expression:

which implies that , , – analytically defined surfaces of partial derivative functions, where equals one.

Let's look at an example with an analytical description of a circle, describing how a discrete local function defined for each point of a given domain can be expanded to a general analytical form.

We consider equation (2) as the initial equation for describing a circle. Taking first order partial derivatives with respect to three arguments, we obtain:

Based on the equality (6), the fourth derivative can be expressed:

We obtain local geometric characteristics by multiplying all four differential components (derivatives) by the third component

and then, normalizing by the length of the homogeneous normal vector, we get the cosine values for the components:

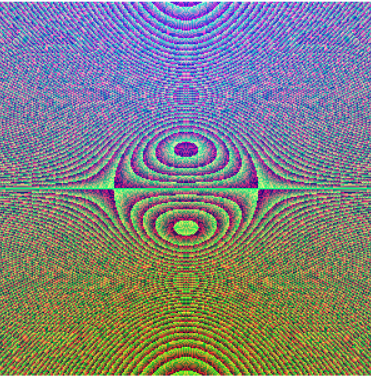

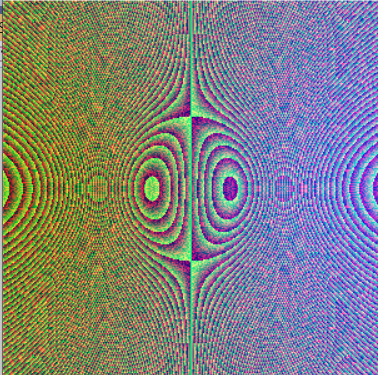

Figure 4 represents M-images displaying local geometric characteristics distributed over the same region for the equation of a circle as those shown in Figure 1, but obtained without linear approximation [6-10].

If we compare both images, we see some similarities but with the obvious difference in color patterns. This is due to the increased accuracy of the obtained representation compared to the mesh approximation.

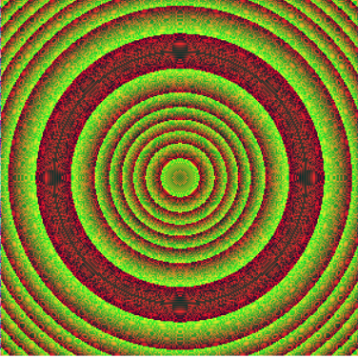

Fig. 4. M-images of a circle in RGB colour format, which displays 16777215 shades of colour



Note that Figure 5 is quite comparable to Figure 2, since a black-and-white palette and only 256 tone gradations were used to construct the image, i.e. a lower colour resolution.



Fig. 5. M-images of a circle equation in monochrome format, displaying 256 shades of colour



Given the fact that most analytical functions describing objects of analytical geometry can be differentiable at all points of the domain and along each axis, we can say with confidence that the proposed approach is fully consistent.

This representation significantly expands the scope of application of the local function with all its remarkable properties.

First, we can unequivocally assert an increase in the accuracy of local geometric characteristics. Second, here we have the advantage of the most compact description of local geometric characteristics by analytical expressions, which eliminates the problem of limitations arising from a predefined domain of arguments and the number of gradations of the color palette, which expands its applicability in multi-object modeling.

Of course, it can be argued that, for example, the R-function is difficult to differentiate and the transition to representing a geometry by a local function may, on the contrary, further complicate calculations. Let's try to solve this problem using the developed tools of local geometry, where R-function is adapted to the calculation of local characteristics [10].

2. Example of geometrization of a region for a cylinder

To begin with, using the experience gained in modeling a local function for a circle, let's R-functionally model a three-dimensional cylinder figure with a height of as a local function in a three-dimensional region:

To do this, we use the intersection of the regions of functions describing two spatial figures and : an infinite horizontal line with a height equal to and an infinite vertical cylinder with the radius .

To obtain an analytically described implicit function for a cylinder, an R-intersection is usually used:

Using partial derivatives, the figure of an infinite cylinder is described by analogy with the equation of a circle, where there is no influence of the -coordinate:

Figures 6 and 7 demonstrate M-images for the region .



Fig.6. M-images of an infinite cylinder in RGB colour format, which displays 16777215 shades of colour



Fig.7. M-images of an infinite cylinder in monochrome format, displaying 256 shades of colour



Restrictions along the -axis with the height of :

Figures 8 and 9 demonstrate M-images for this example, the region: .



Fig.8. M-images of a horizontal line function in RGB colour format, which displays 16777215 shades of colour



Fig.9. M-images of a horizontal line function in monochrome format, displaying 256 shades of colour



Let us apply the formula given in [8] for the R-intersection of differentials. For convenience, we will apply the previously defined notations, shortening the differential equation, and transmit it into local geometric characteristics:

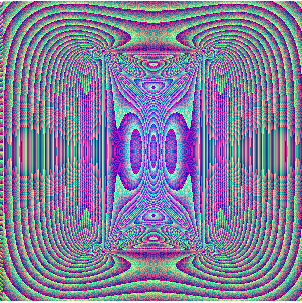

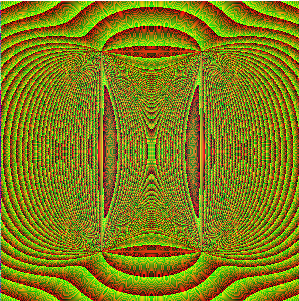

M-images representing a plane section of a cylinder in the -plane in RGB color format for computer storage are shown in Figure 10.

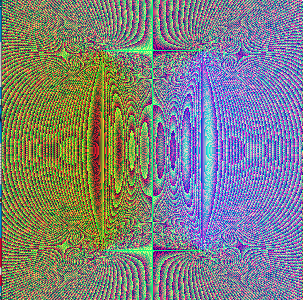

Fig.10. M-images of a cylindric section in RGB colour format, which displays 16777215 shades of colour



For convenient visual evaluation by a person, Figure 11 shows these M-images in monochrome format.

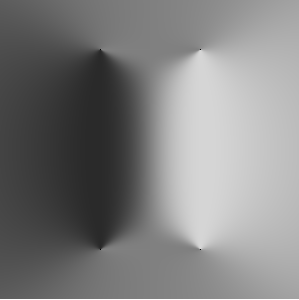

Fig.11. M-images of a cylindric section in monochrome format, displaying 256 shades of colour

Conclusions

The presented principle of discretization of continuous space by continuous local functions allows us to formulate further problems related to the analytical description of the geometry of a complex technogenic environment by implicit functions. The idea is to identify a group of basic differentials that at the local level enables description of the geometry of the function space of any dimension and complexity of the formulated object, which allows us to think about expanding the tools of the modern graphics kernel, leading them to a multidimensional representation for the implementation of design and control tasks.

Acknowledgements

The research was carried out within the framework of the scientific program of the National Center for Physics and Mathematics, direction No. 9 "Artificial intelligence and big data in technical, industrial, natural and social systems".

References

1. Kaledin V.O., Reshetnikova E.V., Gridchina V.B. Theory of R-functions: study guide for Higher Education Institutions in the field of Applied Mathematics and Computer Science. Kemerovo State University, Novokuznetsk Institute. 2017. - 119 pp.

2. Kolyada R.Ђ., Maximenko-Sheiko K.V., Sheiko ’.I. R-Functions Method in the Mathematical Modeling of Convective Heat Exchange in an Octahedral Fuel Assembly with 37 Fuel Elements // Journal of Mathematical Sciences 238, 2019. Р P.154 -164.

3. Uspensky B., Avramov K., Derevianko I., Maksymenko-Sheiko K. Vibrations of cylindrical sandwich shell with fused deposition processed honeycomb core and carbon nanotubes reinforced composite faces sheets // Journal of Vibration Engineering & Technologies 12 (2), 2024. Р P. 2003-2023.

4. Maximenko-Sheiko K.V., Sheiko T.I. Mathematical modeling of geometric fractals using R-functions // Cybernetics and Systems Analysis 48, 2012. Р P. 614-620.

5. Litvinova J.S., Maximenko-Sheiko K.V., Sheiko T.I. Mathematical and computer modeling of construction structures based on R-functions [In Russian]. Problems of mechanical engineering, Ь17 (3), 2014. Р P. 12-18.

6. Tolok, A.V. Functional-voxel method in computer modeling [In Russian]. Moscow: Fizmatlit. 2016. 112 p.

7. Tolok, A.V. and Tolok, N.B. Local computer geometry [In Russian]. Moscow: IPR Media, 2025. 228 p.

8. Tolok, A.V. and Tolok, N.B. Functional-Voxel Modeling of The Cauchy Problem // Scientific Visualization, 2024, volume 16, number 1, pages 105 - 111, DOI: 10.26583/sv.16.1.09.

9. Tolok, A.V. and Tolok, N.B., Modeling the Solution of an Ordinary Differential Equation by the Functional Voxel Method // Scientific Visualization, 2024, volume 16, number 3, pages 37 - 47, DOI: 10.26583/sv.16.3.04.

10. Tolok, A.V. and Tolok, N.B., Functional Voxel Modeling of a Path Planning Algorithm to a Target Based on R-Functions. Control Sciences 5, 41Р47 (2024).
