1. Introduction

Research into combustion processes is relevant in many areas of industry and technology [1, 2]. Optical diagnostics of thermodynamic and structural parameters of flames is the most significant. Non-contact use and the ability to take measurements in high-temperature zones are its main advantages. Optical diagnostic methods can be conditionally divided into two groups: approaches based on the scattering phenomena, absorption and fluorescence during the light radiation passage through the medium under study constitute the first [3–5]; methods that consist of recording changes in the refractive index (phase density) of a gas mixture belong to the second [6, 7].

Optical Hilbert diagnostics allows for highly sensitive visualization of phase structures of the media being studied in a space limited by a probing light field [8]. The results of polychromatic Hilbert diagnostics of hydrogen-air diffusion flame with reconstruction from the obtained phase function of the temperature field and determination of the combustion products concentrations were presented earlier in [9]. However, the issue of phase fields automatic calculation based on Hilbert measurement data remains unresolved.

The use of the iterative Gauss-Newton algorithm, which is applied to find the minimum of the objective function [11, 12], was proposed in [10] using the example of numerical models for optimizing the phase function reconstruction in Hilbert diagnostics. The adaptation of Gauss-Newton optimization to the solution of the inverse Hilbert-optics problem using experimental data on the temperature and main compounds of the laminar methane-air Bunsen flame described in [13] is performed in the present work.

2. Optimization problem

A mathematical model of Hilbert visualization of phase disturbances in a certain section of the diagnosed object (the axis coincides with the light beam direction) can be given by the relation [10]:

The function in turn depends on the geometric path length and the refractive index :

where is the wavelength, is the refractive index of the medium surrounding the flame, and are the initial and final points of light beam propagation in the object. Expression (2) can be represented through the Abel integral [9] in the case of axial symmetry:

is the radius of the flame axisymmetric cross-section; is the dependence of the refractive index on the radius within the cross-section.

The relationship between the refractive index and the burning mixture parameters is determined by the ratio:

where is the pressure in the flame spatial structure; is the pressure under normal conditions; is the flame temperature; is the temperature under normal conditions; is the mole fraction of the k - th component of the burning mixture; and are the dispersion coefficients of the k - th component of the burning mixture (reference data). The phase function from the hilbertogram must be reconstructed to find the flame parameters under study and .

Using numerical models as an example, the authors proposed in [10] a method based on the iterative Gauss-Newton algorithm for automatically performing this operation. The method consists of selecting a phase profile specified by the sum of third-degree Bezier curves [14], then calculating the hilbertogram and comparing it with experimental data. The structures coincidence of the experimental and model hilbertograms serves as a criterion for the reconstruction reliability of .

If we set some phase function initial approximation through a sections set, each of which is modeled by a Bezier curve:

where and are the vectors components of the Bezier curve support vertices with the number , and calculate from it, then the optimization problem is reduced to determining and , at which the objective function minimum is achieved:

Iterative approximations are performed to find :

where is the iteration step adjustment coefficient, is the Jacobian matrix of first-order derivatives of the function . As a result, optimization consists of specifying a vector that determines the initial distribution , and then applying the Gauss-Newton algorithm (5) until the distances squares sum between the coordinates of the experimental and optimized hilbertograms becomes less than the specified value.

3. Experimental data processing

Let us turn to Fig. 1. a and 1. b, which show the radial distribution of temperature and molar concentrations of fuel combustion products , , , , , and in some sections and of a laminar methane-air Bunsen flame. The data are taken from the work [13], in which they were obtained using Raman-Rayleigh scattering and laser-induced fluorescence methods.

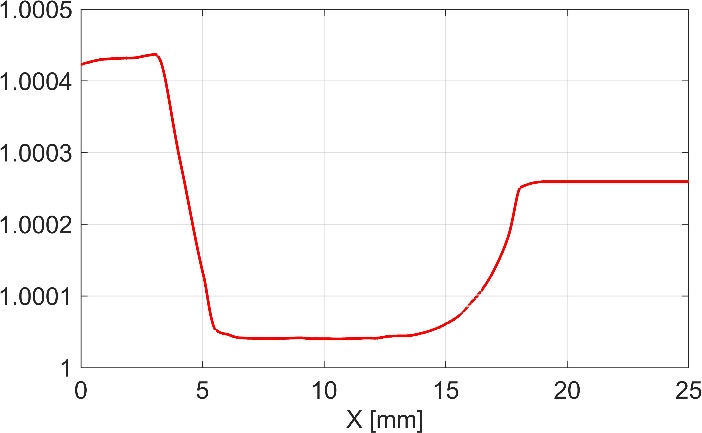

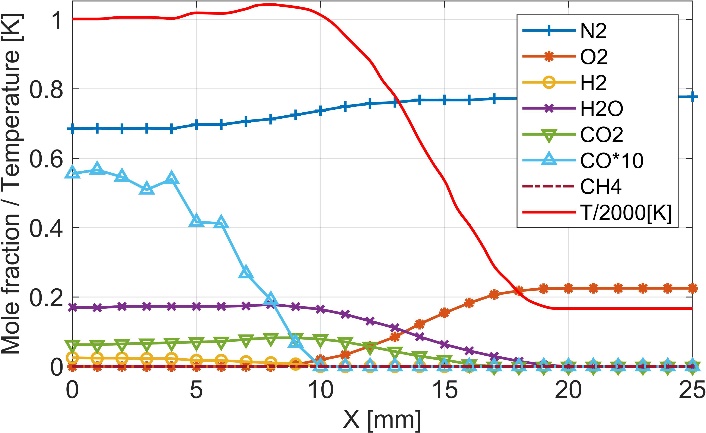

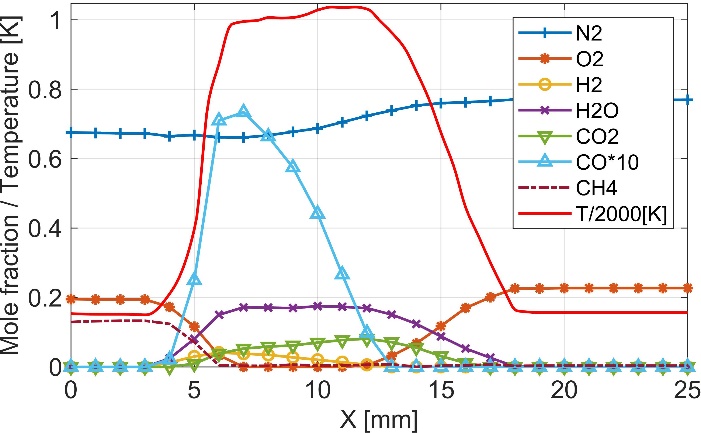

Fig. 1. (a, b) Radial distribution of temperature and molar concentrations of fuel combustion products; (c, d) radial distribution of refractive index.



The value of is defined as follows:

Using the obtained data, we calculate the refractive index in the flame sections under consideration according to (4) at = 532 nm and = (Fig. 1. c and 1. d). Then, applying formulas (3) and (1), we find the phase function and the corresponding hilbertogram (Fig. 2).

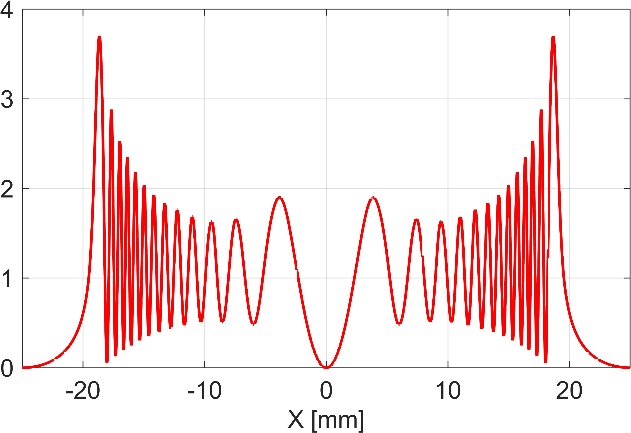

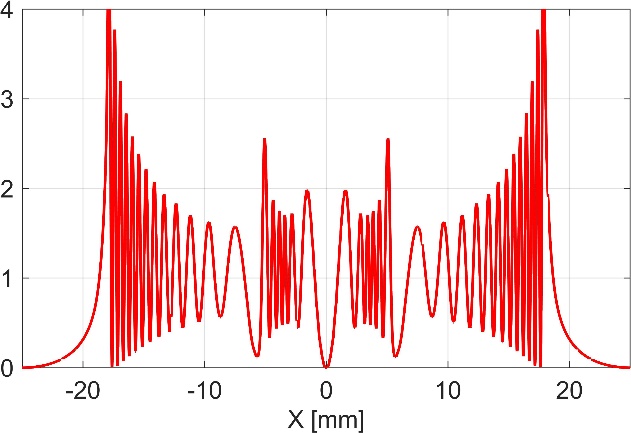

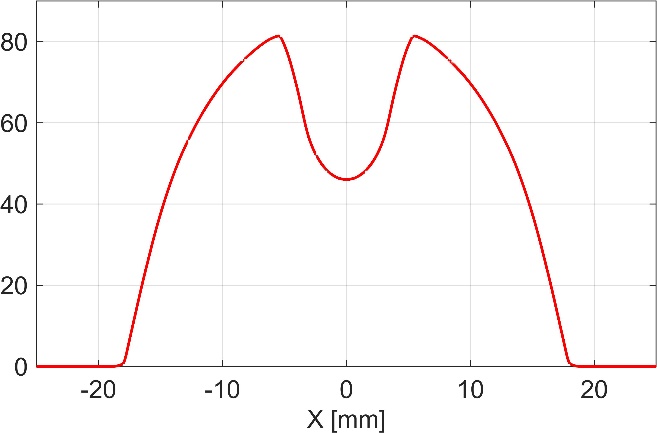

Fig. 2. Reference data: (a, b) phase function; (c, d) hilbertogram.

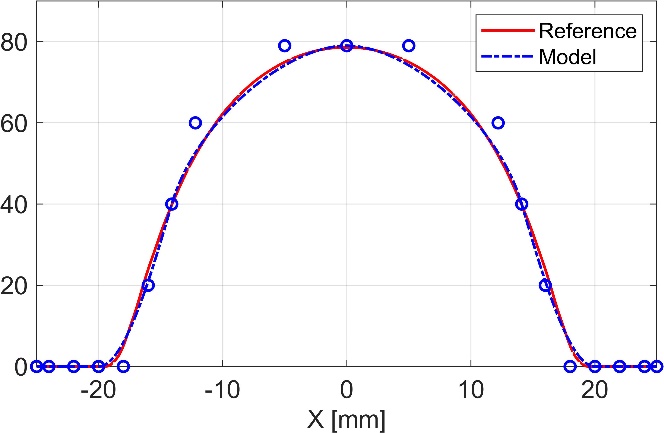

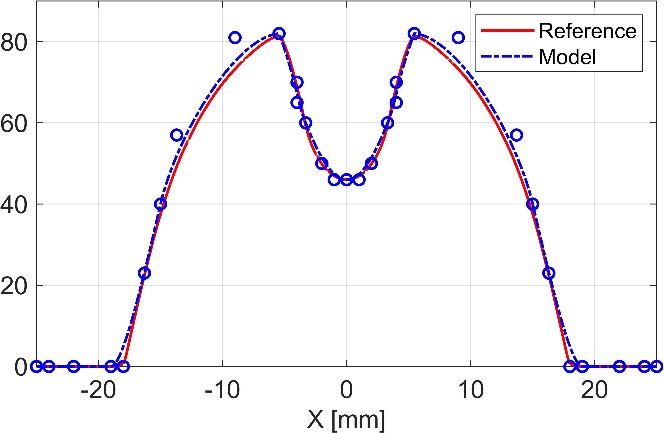

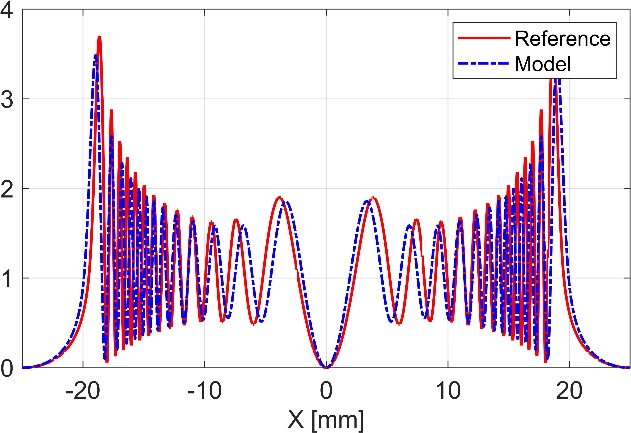

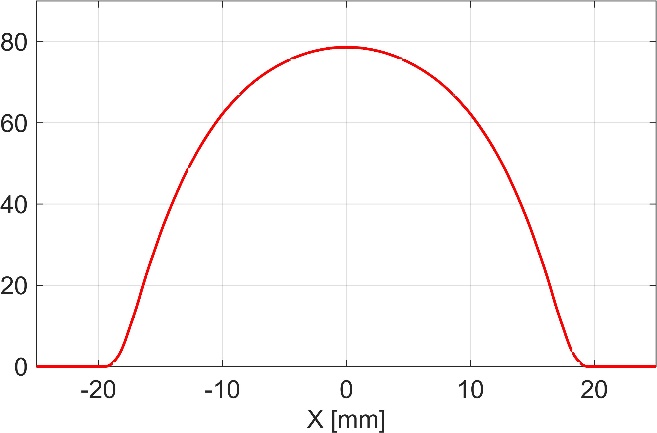

Fig. 3. Initial approximation: (a, b) phase function represented by the Bezier curves sum (with specified reference vertices); (c, d) hilbertogram.



The inverse problem of Hilbert diagnostics is to reconstruct from the recorded hilbertogram in experimental measurements. The Hilbert transform allows visualization of the extremes and gradients of the phase optical density of the studied medium, which are transformed into Hilbert band structures, with “wide” bands being formed in the region of extremes [8]. We use this information to specify some initial approximation and , which must be optimized to the “reference” values (Fig. 3). Since the flame is axisymmetric, for the first section it was necessary to use three Bezier curves and display their copies relative to the central axis, for the second section – 5 curves.

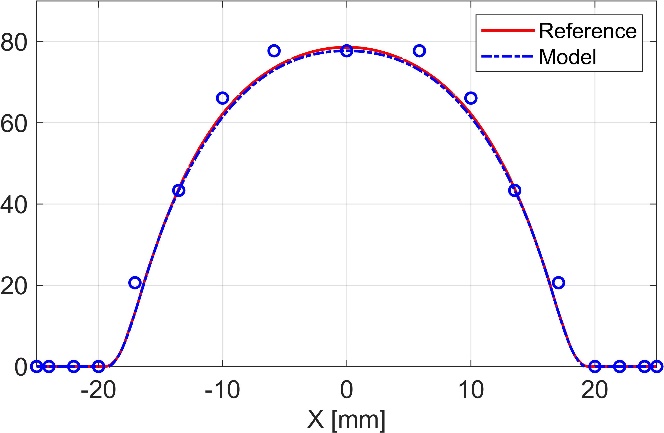

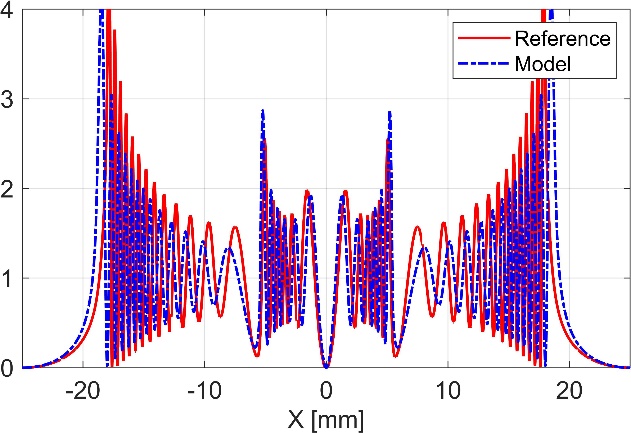

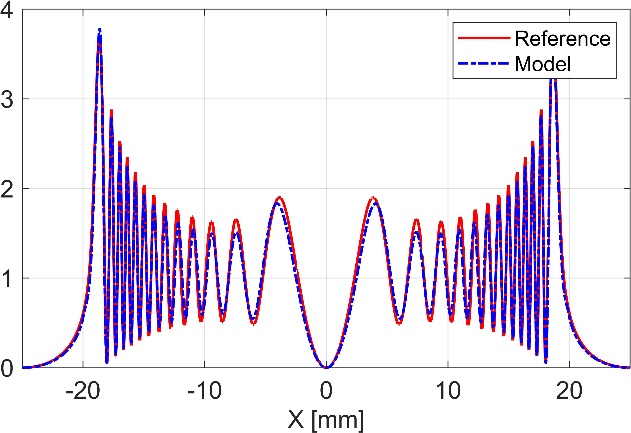

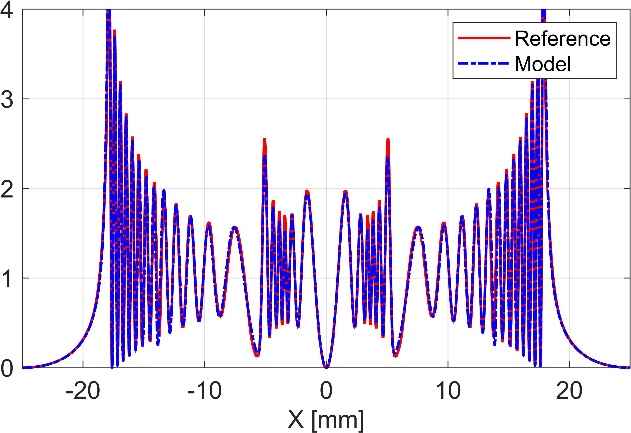

Fig. 4. Optimization result: (a, b) phase function; (c, d) hilbertogram.

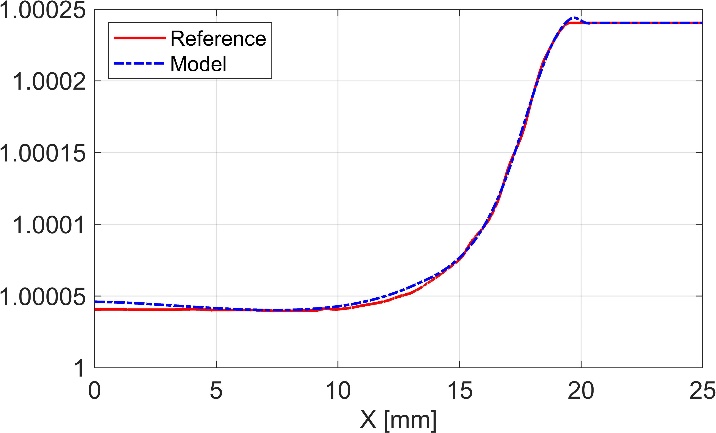

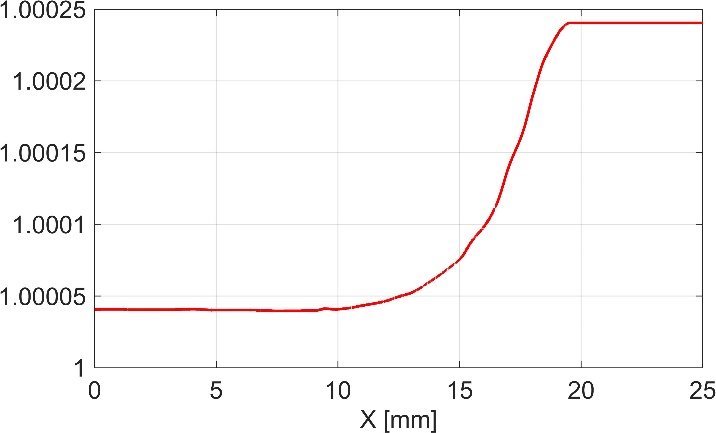

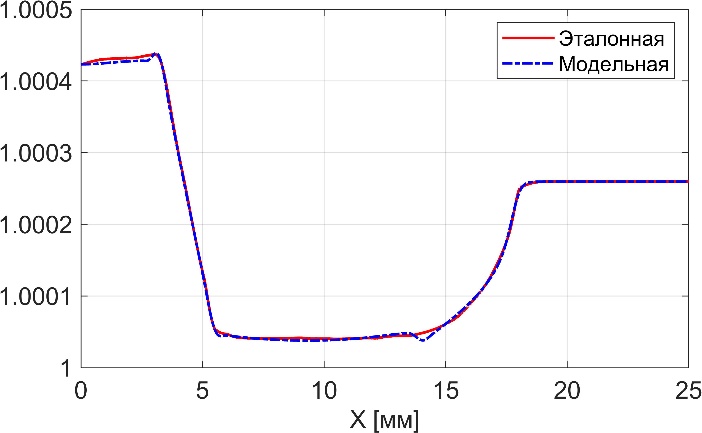

Fig. 5. Comparison of the refractive index initial distribution (Fig. 1. c and 1. d) in the flame sections and with that reconstructed as a result of solving the inverse Hilbert optics problem.



Let us fix the known coordinates of the polynomials reference vertices: the phase value at the studied region edges and the function extrema location. The result of applying the Gauss-Newton optimization algorithm (5) is shown in Fig. 4. From the phase function reconstructed profile, we calculate the refractive index (Fig. 5) and compare the result with the initial data shown in Fig. 1. c and 1. d.

4. Discussion of results

The Gauss-Newton optimization algorithm through 52 iterations in the section and 31 iterations in the section made it possible to bring the optimized data closer to the reference values with a root-mean-square error

while the maximum deviation of the reconstructed phase function from the reference one turned out to be localized in the sections central part and amounted to

which is also observed in the refractive index resulting distribution:

As can be seen in Fig. 5, small "spikes" that reflect insufficiently smooth connections between the regions modeled by the Bezier curves are present in the reconstructed data. Therefore, the issue of a more accurate and smooth connection of polynomials when setting the initial approximation and the optimization algorithm operation will be resolved in the future. In addition, an increasing possibility analysis of the reconstruction accuracy in the studied sections central part is necessary, which is associated with the Hilbert transform property. The introduction of additional a priori information, which allows the Gauss-Newton algorithm to more accurately find the objective function minimum, may be required for this.

5. Conclusion

Using the data example on the temperature and main molar concentrations of combustion products of a methane-air Bunsen flame, the automatic reconstruction method of phase structures based on Hilbert diagnostics data using the Gauss-Newton optimization algorithm was tested in the work. An iterative selection of the phase function profile, adapted through the third-degree Bezier curves sum, was performed in axisymmetric sections of the flame under study, followed by calculation of the refractive index spatial structure. It has been established that the criterion for the phase reconstruction reliability is the structures coincidence of the reference and model hilbertograms. The optimization accuracy increasing problem, as well as expanding the scope of obtained results applications to the experimental data processing, will be the further research subject.

Acknowledgments

The work was carried out within the framework of the state assignment of IM SB RAS (No. FWNF-2022-0009) and state assignment of IT SB RAS (No. 121031800217-8).
