Many modern
computational methods are grid-based. A regular or irregular mesh is introduced
in the space of function arguments to construct the function numerically. The
grid nodes contain some values that approximate the value of the function to be
computed. This raises the problem of presenting the results of computations to
study the properties of the resultant function or to debug computational
procedures. The representation obtained as the output of the computer program
is a large volume of numbers (especially large in the case of usage of fine
grids, which is typical when obtaining a good approximation of the desired
function), which is poorly suited for perception by the researcher. The
traditional way is to use visualization, that is, to transform the computed
collection of numbers to some geometric objects that reflect the properties of
the function being studied, and further show them to the researcher. However,
of course, only two- or three-dimensional objects are available for effective
visualization.
For the case of a
two-dimensional argument, a natural representation of a function is its graph. Constructing
the graph in this case is a very simple procedure. Each grid cell is
triangulated (if the grid cells are not simplices), and linear interpolation is
performed on each resultant simplex. This is what the most commonly used
scientific visualization tools do (Matlab, MathCAD, GNUPlot, etc). However, this
approach produces a continuous graph, which does not correspond to the nature
of the function if it has discontinuities. In addition, often, according to the
essence of the problem, the function to be visualized can be improper,
that is, it can have infinite values at some grid nodes, which is also not
taken into account by standard procedures. (In numerical constructions,
infinite values are replaced by very large values.) The authors are not aware
of computer libraries containing algorithms for visualizing discontinuous
graphs of improper functions. Traditional recommendations in such cases suggest
identify manually continuous branches of the function with finite values and
plotting each continuous branch independently. However, such proposals are inconvenient
because they require manual processing of each graph, including situations when
the graph is a single surface that has a discontinuity only at some its part.
If the function
argument is three-dimensional, then the previous approach no longer works since
the graph in this case is a four-dimensional object. Four-dimensional objects
cannot be effectively visualized unless they have a regular structure (e.g.,
spheres, ellipsoids, regular polyhedra). Numerically constructed functions, as
a rule, do not have regularity and, therefore, cannot be directly visualized.
The traditional approach in this case is to visualize level sets of the
function, that is, the regions of the space, in which the function does not exceed
a certain value. Having level sets for different values, one can imagine the
structure of the function as a whole. However, this also raises the problem of
constructing the surface in the three-dimensional space as in the case of dealing
with the graph of a function of two variables. The nice property here is that
the surface of a level set is continuous, but the downside is that there is no
structure on the given set of points. In fact, one has a cloud of points, which
is a part of the grid nodes collection, on which the computations are
performed. At best, this is a set of nodes of a parallelepipedal grid; at the worst
case, the grid is irregular.
Showing a cloud of
points in its natural form is relatively meaningless since this approach does
not reveal the three-dimensional structure of the visualized set. Another
traditional approach in the case of a parallelepipedal grid is to attach a
parallelepiped of the corresponding grid cell to each point of the cloud.
However, if the grid is not very fine, then the surface of the set turns out to
be too “creased” and requires smoothing. The classic algorithm for smoothing
such “voxel” surfaces is Marching Cubes [1]. Nevertheless, it often does not
achieve sufficient visual smoothness of the surface, especially, if the mesh is
not too fine and parallelepipeds of the grid cells are visually large enough.
Another smoothing method involves a series of “Laplacian” algorithms [2,3,4,5].
The nature of these algorithms is that the curvature of the surface is reduced:
convex parts are retracted, concave parts are squeezed out. These algorithms
are iterative, and by choosing the number of iterations, a greater or lesser
degree of smoothing can be achieved.
In recent years,
the authors dealt with, in particular, formulation and theoretical
justification of a numerical algorithm for constructing the value function of
time-optimal differential games with lifeline [6,7]. The proposed numerical
algorithm is namely grid-based and produces approximate values of the value
function on a parallelepipedal grid. The primary evaluation of the quality of computations
is associated exactly with a visual comparison of the graphs of the resultant
functions with examples computed by other researchers by means of other
methods. Such a comparison requires visualization. Visualization of the object
being studied is burdened just by the circumstances mentioned above: the
discontinuity and improper nature of the resultant function and, in the
three-dimensional case, relatively large grid cells, which leads to large
“bricks” and “creased” surfaces. As a result, the authors decided to develop
their own algorithms for constructing a three-dimensional graph of a
discontinuous function of two variables and to study the quality of smoothing
of the resultant voxel surfaces using the Marching Cubes algorithm, Laplace
algorithms, and their combined application.
In the case of
visualization of level sets of functions of three variables, a combination of
Marching Cubes and the Laplacian HC algorithm [5] is used. Primary smoothing is
carried out using Marching Cubes, finer refinement is performed by means of the
Laplacian algorithm. However, when using this procedure for constructing level
set surfaces, some problems arise: from a cloud of points that is symmetrical
with respect to one or more coordinate planes, a surface is constructed that
did not have the corresponding symmetry. The main problem here is that Marching

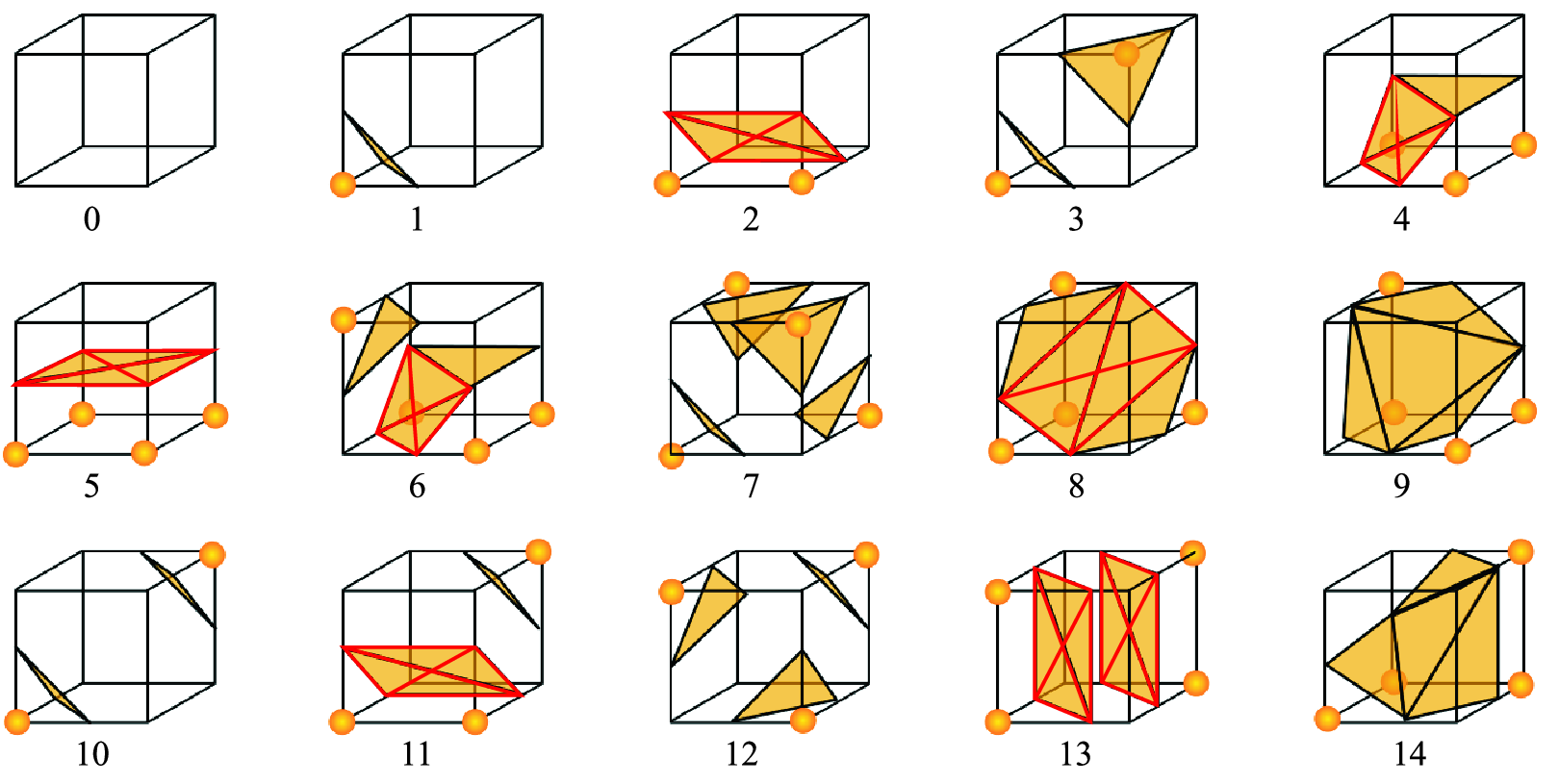

Cubes, when processing some configurations of points, produces quadrangular
surface elements that are triangulated in an asymmetrical manner. To overcome
this problem, a modification of this algorithm is proposed that preserves the
symmetry of the triangulated surface with an accuracy of individual triangles.
This article
describes the proposed modifications of the algorithms. Examples of their work
are given and a comparison of the resultant surfaces with those obtained by
classical versions of the algorithms is shown. The paper is organized as follows.
The second section discusses the visualization of a three-dimensional graph of
a function of two arguments, describes the procedure for visualizing a graph
that correctly represents discontinuities of the function, and provides several
examples of graphs of discontinuous functions. The third section examines the
visualization of three-dimensional sets, proposes a modification of the
Marching Cubes algorithm that preserves the symmetry of the set, and provides some
examples of three-dimensional sets. The article ends with a conclusion and a
list of references.
In popular
scientific visualization systems (e.g., Matlab and GNUPlot), essentially the
same procedure is used to reconstruct a three-dimensional graph of a function
of two arguments. Its input information is a set of points in three-dimensional
space specified at some nodes of a rectangular grid of the arguments. Also,
some systems (for example, Matlab) additionally require that the set of nodes
fill a rectangle:
The surface to be drawn is generated using the following procedure.
Each rectangular
grid cell with vertices at points
,
,
,
is divided by a diagonal into two
triangular cells with vertices at the points
and
.
Further, triangles are constructed in the three-dimensional space with the
vertices at the points corresponding to the vertices of the resultant cells:
and
.
The drawbacks of
this algorithm are obvious. First, it implies that the reconstructed graph is
continuous. If there are abrupt changes of the function value at neighboring
grid nodes, then instead of the desired rupture of the graph, almost vertical
“walls” appear in such places. Secondly, in the problems under consideration,
the function to be visualized could be improper taking infinite values in some
regions. In this case, infinite values are represented as some very large
value. This structure of the function also gives breaks along the lines
separating areas with finite and infinite function values. In addition, due to
large values, a too wide range appears, in which the surface of the graph is
constructed, while the most interesting parts of the graph are “squashed” and become
small. Third, existing procedures imply that the grid nodes of the provided set
fill a rectangle. Generally speaking, this
may not be the case; for example, the function is computed on a circle, that
is, the set of grid nodes fills not a rectangle, but a circle.
These shortcomings
lead to the need to create a new algorithm for constructing the graph surface:
1.
The points are being
read. During reading, the internal memory storage of the procedure does not
include points, at which the function takes infinite (large) values. Filtering
is carried out based on the value of the function at a point exceeding a
certain threshold
. The threshold is selected visually or
using knowledge about the computational algorithm (what value is used to
replace infinity).
2.
The points
remaining after filtering are run through.
If for the current point all three nodes
,
,
are present in the set, then, same
as in the classical procedure, two triangular cells are formed. If only two of
these three nodes are present in the set, then one corresponding cell is
formed. If only one node or none is present, no triangular cells are formed and
the current point is skipped.
3.
If, when processing a
point, one or two triangular cells are formed, then these cells are processed. The
processing consists of checking the absence of a “gap” in this cell, that is,
it is checked that the function values at the vertices of the cell differ in
pairs by no more than a given value
.
If this is the case, then it is considered that there is no gap, and a
triangle with the vertices at the corresponding points is added to the formed
surface. If at least one pair of values differs by more than some threshold
,
then a discontinuity is detected and the cell does
not produce a triangle into the formed surface.
The generated
surface is written to an output file in the
.obj
format and further viewed in one or another 3D viewer
that works with this format. The authors use the free MeshLab system. The
parameters
and
are the input data of the construction
procedure and are selected individually for each visualized graph by means of
visual control of the quality of the resultant surface.
Note that due to
the filtering of points performed at the step 1 of the above algorithm, the
area, in which the graph is plotted, may be significantly non-rectangular,
non-simple-connected, or even disconnected. However, this fact does not prevent
the described procedure from constructing and displaying the required graph on
the argument area of any shape.
Example 2.1. The controlled system «Dubins’ car».
It is said above that the authors are
researching numerical procedures aimed at finding the value function of
time-optimal differential games. However, the same procedures can also be
applied to construct the optimal result function in control problems. To do
this, a fictitious control of the second player is introduced into the
description of the system, which is not included into the dynamics and is
constrained by a one-point set (to reduce the enumeration of possible controls).
In this way, the
classical controlled system “Dubins' car” (see, e.g., [8,9,10,11]) has been
numerically studied. It describes the simplest version of the movement of a car
(airplane, ship) in a horizontal plane with a constant linear speed and a turn
radius bounded from below. The original system has a three-dimensional phase
vector
where,
are the geometric coordinates of the
object’s position on the plane,
is the current heading angle of motion
(counted counterclockwise from the positive direction of the
axis). The dynamics of the system is
described by the relations\
The linear speed magnitude is considered equal to 1. The restrictions
for the control
define the minimum turning radius (the
maximum possible angular velocity of the linear speed vector turn). At the
initial instant, the object is located at the origin and moving to the positive
direction of the
axis:
,
,
. The aim of the control is to bring the
object to a given point
as quickly as possible with any
direction of speed at the instant of reaching the target point.
Three-dimensional
dynamics (1) can be reduced to a two-dimensional one by introducing a new
moving coordinate system [15,16]. The origin of the system is aligned with the
current position of the object, the
-axis
is directed along the current
direction of the object’s velocity, and the
-axis
is introduced to obtain a right-handed coordinate
system. This eliminates the
coordinate (the heading angle). The
dynamics of the system in new coordinates has the form
Here, the coordinates
,
have the meaning of the current relative
position of the target point. This moving point must be brought to the origin
as quickly as possible from the initial position
,
,
that is, aligned with the current
position of the object.
So far, this
problem has been quite well studied both by analytical methods [8,12,13] and
using numerical approaches [14]. Traditionally, the optimal result function in
this case is represented as a set of level lines for various magnitudes (see
Fig. 1). The inconvenience of this method of presentation is that it is
impossible to consider the discontinuities of the function, but one can only suspect
their presence at the places where the level lines are dense.
Fig. 2 shows a
graph of the optimal result function of the “Dubins’ car” problem for the
situation of point reaching the origin (to a small neighborhood of the origin).
On the left, a surface is shown, which is constructed using a procedure built
into the GNUPlot system. On the right, one can see a surface constructed by
means of the procedure proposed by the authors. As mentioned above,
visualization of the graph surface in this case is made in the MeshLab system.
The coloring of the graph denotes different levels of function value from zero
(magenta) to the maximum available (red). Similar coloring of graphs is used
for other figures in this section.

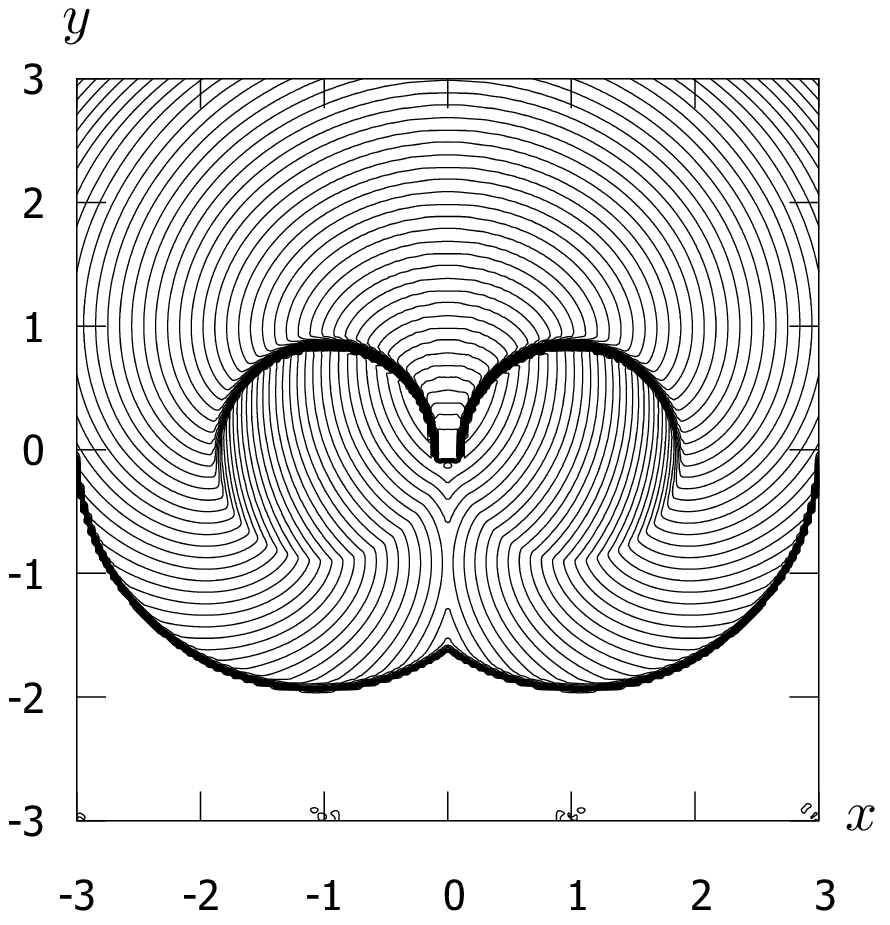

Fig.
1. One of the traditional representations of the optimal result function in the
case of a two-dimensional phase vector in the form of a set of level lines (for
some version of the “Dubins’ car” problem)

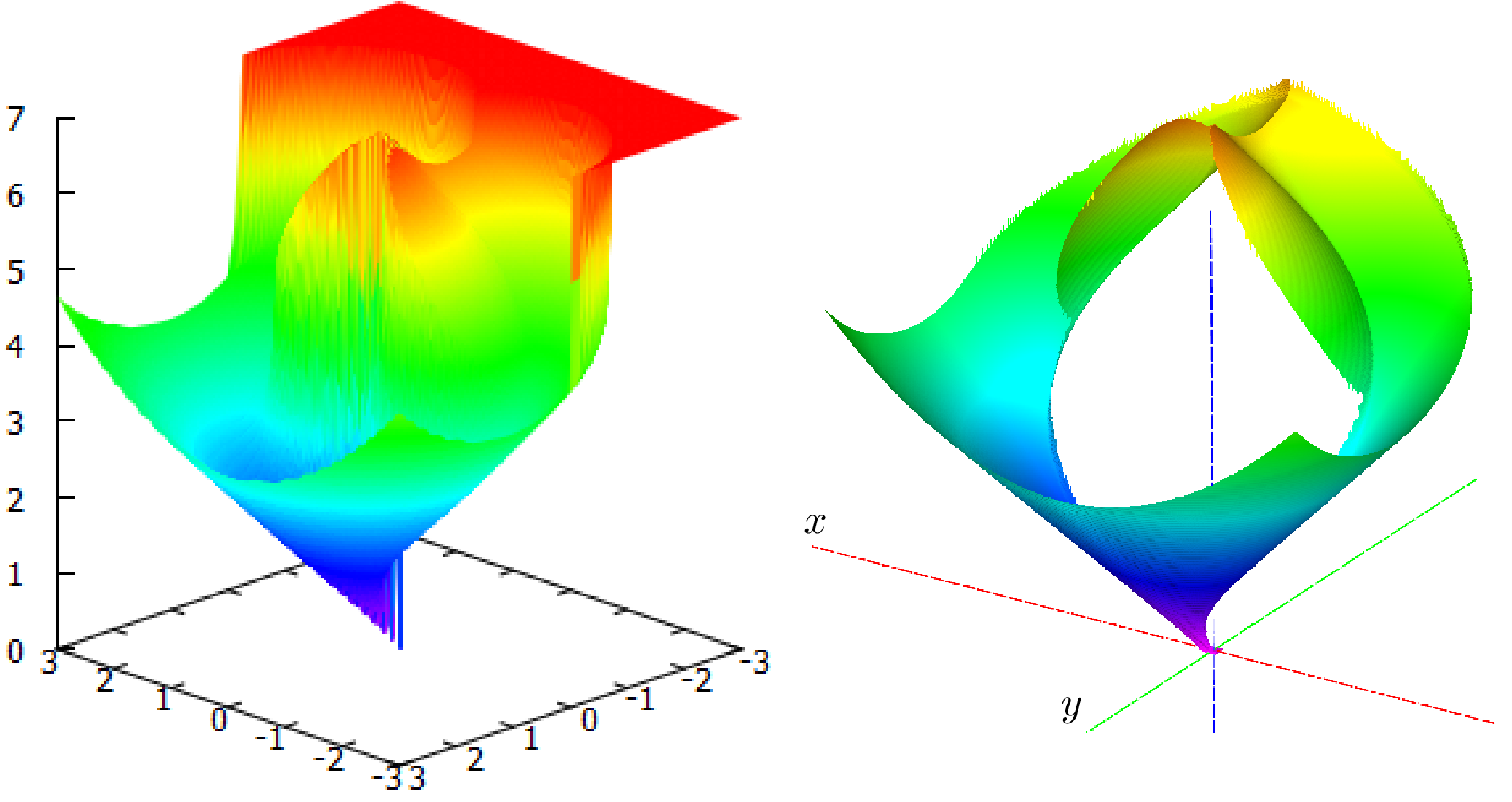

Fig.
2. Graph of the optimal result function for the “Dubins’ car” problem with
reduced dynamics. On the left: a graph of the value function visualized
using GNUPlot system algorithms; on the right: the graph visualized
using the MeshLab system after creating the surface using the authors’
algorithm. The coloring of the graph highlights different levels of the function
magnitude from zero (magenta) to the available maximum (red)
One can see the absence of a “plateau” in the region of infinite
function values, which in the left subfigure are cut off at level 7. There is
no additional processing of the surface borders at the discontinuity lines of the
green, yellow and orange parts of the surface on the right edge of the graph,
as well as of the line between two continuous parts of the surface on the blue
and the green parts of the surface to the right in the “hole”. As a result,
there is some “fringe” at the edges of the gap. It appears because the break
line is located quite arbitrarily relatively to the grid nodes and the values
at the “border” nodes correlate with each other quite arbitrarily
(in the sense of which of them are larger and which are smaller, and by how
much).
Despite the
artifacts arise, the right image conveys the structure of the graph more
adequately, and, therefore, of the function itself than the left one.
Example 2.2. Visualization of a graph on a
non-rectangular set.
The second
example is also related to the Dubins' car problem with dynamics (2). However,
now the graph of the optimal result function is computed for grid nodes belonging
to a circle of radius 3 centered at the origin. The graph of the optimal result
function is shown in Fig. 3.
It should be noted
that GNUPlot is able to visualize a graph on a non-rectangular set. However,
due to the complex nature of the function discontinuity, the resultant
representation does not reflect the features of the graph at all. The surface
reconstructed using the procedure proposed by the authors reproduces the nature
of the discontinuities of the function much better. There is still a small
“fringe” on the break lines.

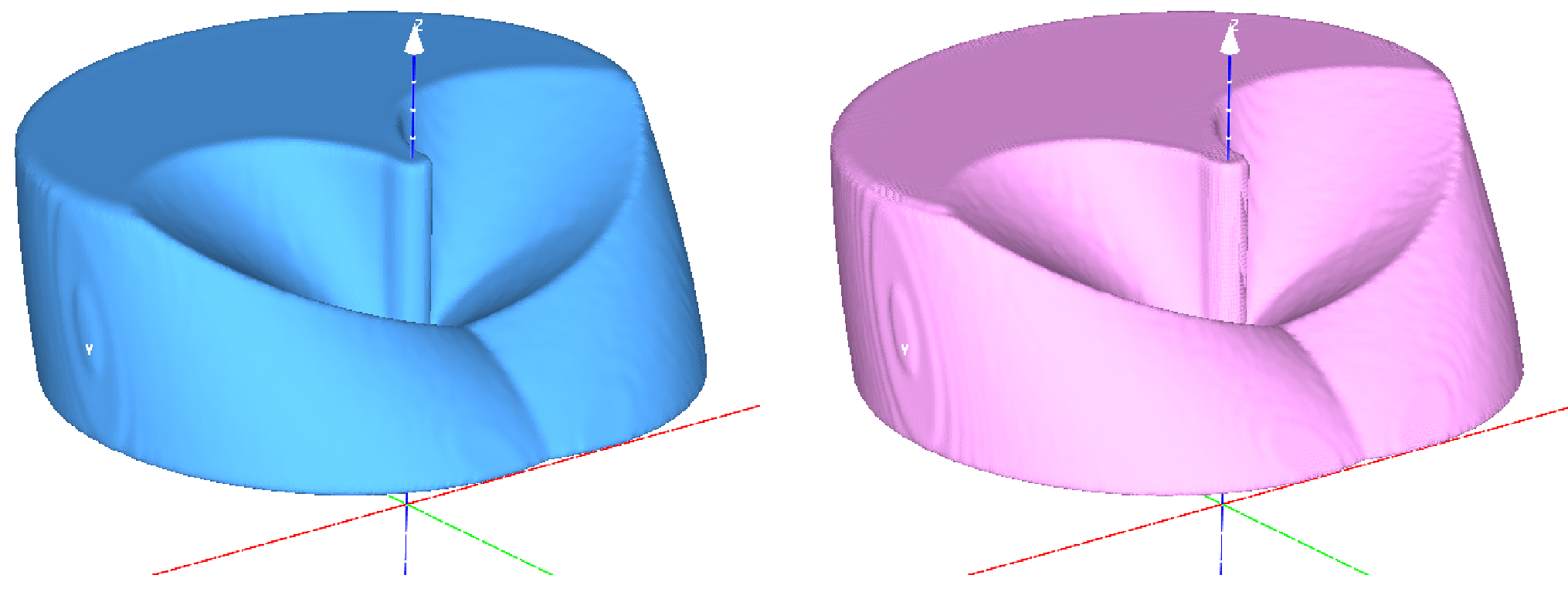

Fig. 3. Graph of the optimal result
function for some version of the “Dubins’ car” problem computed on a circular
set; drawn by the GNUPlot system on the left, drawn by the MeshLab system on
the right. The surface is constructed using the authors’ algorithm. The
coloring of the graph highlights different levels of the function value from
zero (magenta) to the maximum available (red)
Example 2.3. The «homicidal chauffeur» game.
Additional processing of the graph.
At the step 1 of the algorithm, when reading and
filtering points with finite values, or before it, additional processing of the
graph is possible: filtering by additional criteria, recalculation of graph
points (for example, scaling along the axis of function values), etc. Since the
input data file is simply a list of three-dimensional points (x, y,
function value), then filtering can be done (and is done) by executing a script
that processes the original list of points into a new one. Procedures for any
special filtering (except for cutting off large values) are not built into the
converter created by the authors and used now. Additional filtering or data
processing can be implemented by additional scripts that process the point
cloud file before submitting it to the graph surface generation procedure.
The third example
is related to the classic “homicidal chauffeur” differential game proposed by
R. Isaacs [15,16]. In this game, the pursuer (car), which has the dynamics of Dubins’
car, pursues the evader (pedestrian) having the dynamics of simple motions,
that is, it can choose the direction and magnitude of its speed at any given
moment:
Here,
,
are the positions of the pursuer and
the evader on the plane;
is the heading angle, the direction of the
speed of the pursuer;
is the minimum turning radius of the pursuer;
is the linear speed of the pursuer;
is the maximum speed value of the pedestrian.
The aim of the
pursuer is to bring the evader to some given neighborhood as quickly as
possible, that is, to fulfill the inequality
for a given
at the earliest possible instant.
The evader tries to avoid the capture or,
if this is not possible, to delay it as much as possible.
It can be observed
that the original game has a five-dimensional phase vector with components
,
,
,
,
.
However, using the introduction of a moving
coordinate system described above, it can be reduced to a game with a
two-dimensional vector and dynamics
The graph of the value
function for some variant of this game computed by the authors is shown in Fig.
4. The subfigure on the left shows a visualization in the GNUPlot system of
data directly obtained from the program. Again, walls are visible at the breaks
and red plateau in the region of infinite values. In addition, the output is
produced equally scaled, which flattens the graph too much along the value
axis. On the right, the surface constructed by the algorithm proposed by the
authors is shown. In addition, the graph is additionally cropped along a
certain circle centered at the origin through additional filtering at the first
step of the algorithm.

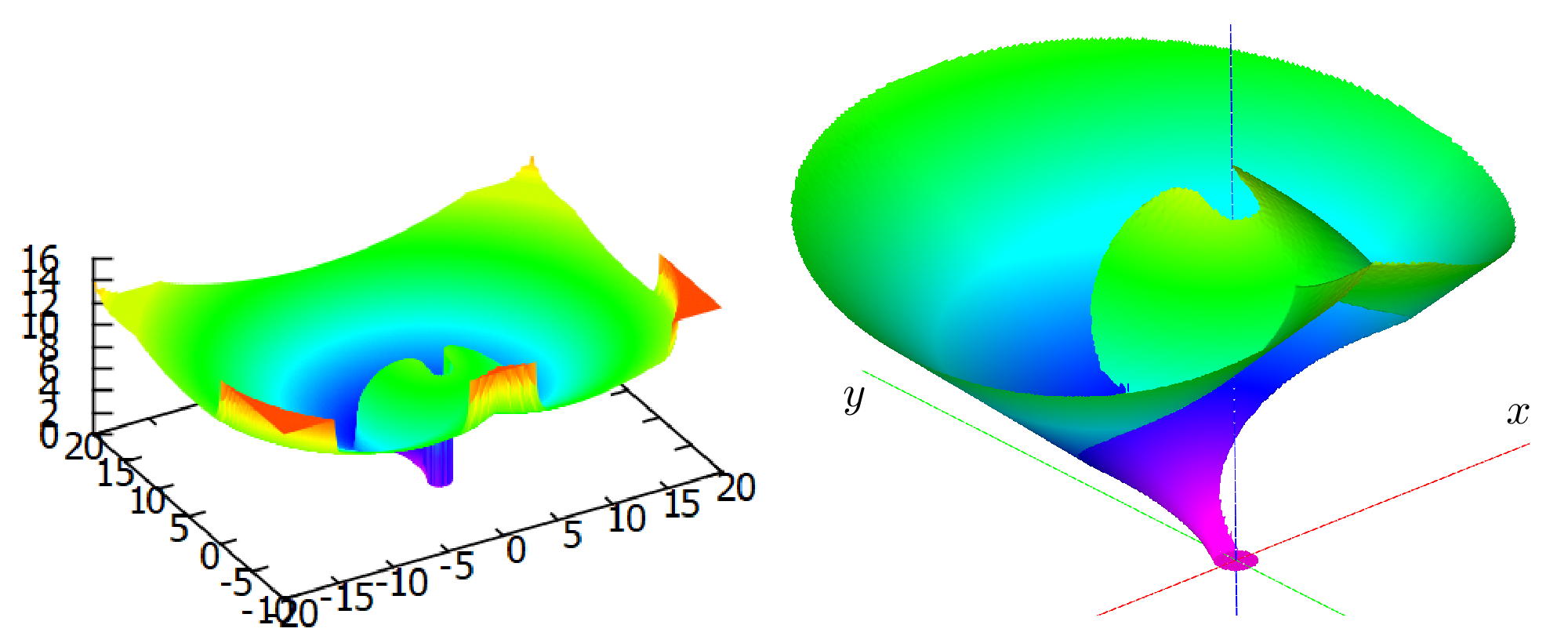

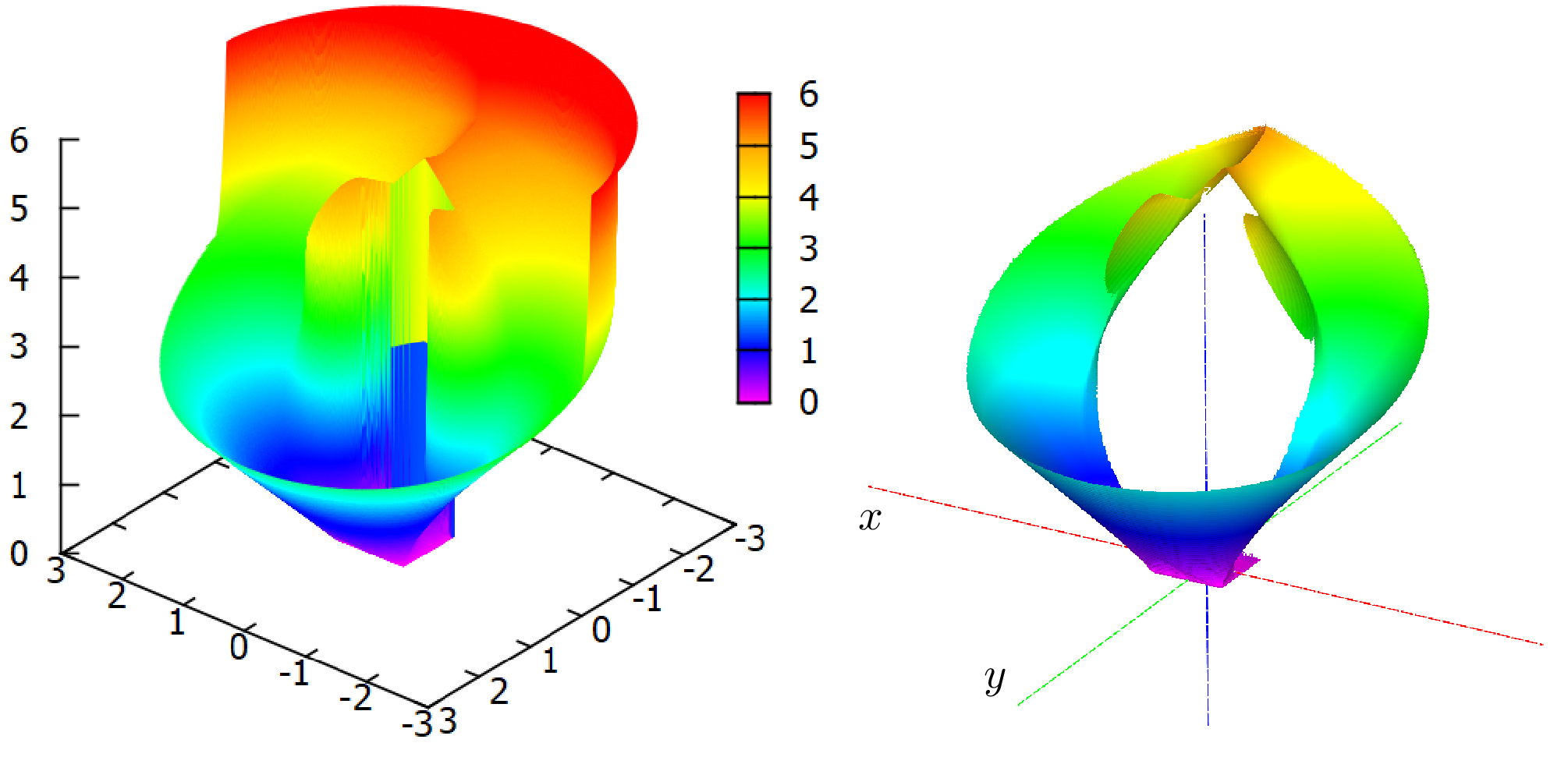

Fig.
4. Graph of the value function of some variant of the “homicidal chauffeur”
game. On the left: the entire graph visualized in the GNUPlot system; on
the right: the graph cropped to a circle and scaled along the axis of the
function values constructed by the authors’ procedure and visualized in the
MeshLab system. The coloring of the graph emphasizes the different levels of the
function magnitude from zero (magenta) to the existing maximum (red and
yellow-green colors in the left and right sub-figures)
The input data for
this procedure is a cloud of points obtained by filtering the entire set of
nodes of the original mesh under the condition that the magnitude of the
function at the node does not exceed a given value. It is required to visualize
the set “filled” with this point cloud.
As it is discussed
in the introduction, the direct output of a point cloud does not represent the
three-dimensional structure of the set. “Bricks” equal in size to a grid cell
and attached to existing points result in an overly “creased” surface.
Traditionally,
they use the Marching Cubes algorithm [1], which actually forms a “brick”
surface and then slightly smoothens it inflating the set a bit. A nice property
of this algorithm is that, in fact, when it works, the stage of creating the
“bricks” is skipped: it immediately forms the resultant surface in each grid
cell. To do this, the algorithm requires an information, which vertices of each
cell belong to the set to be visualized and which do not. That is, for correct
working of the algorithm, one also need to pass the grid parameters: the pivot
point and steps along the axes. The algorithm is organized in such a way that
surface fragments being constructed in neighboring cells automatically join
each other for any configuration of the vertices of these cells. Fig. 5 shows
the main configurations of the cell vertices. The remaining configurations are
formed symmetrically. Note that there are no configurations describing cells
that have five or more vertices belonging to the visualized cloud. In such
cases, the cell is considered "internal", too surrounded by the set
to contain elements of the generated surface.

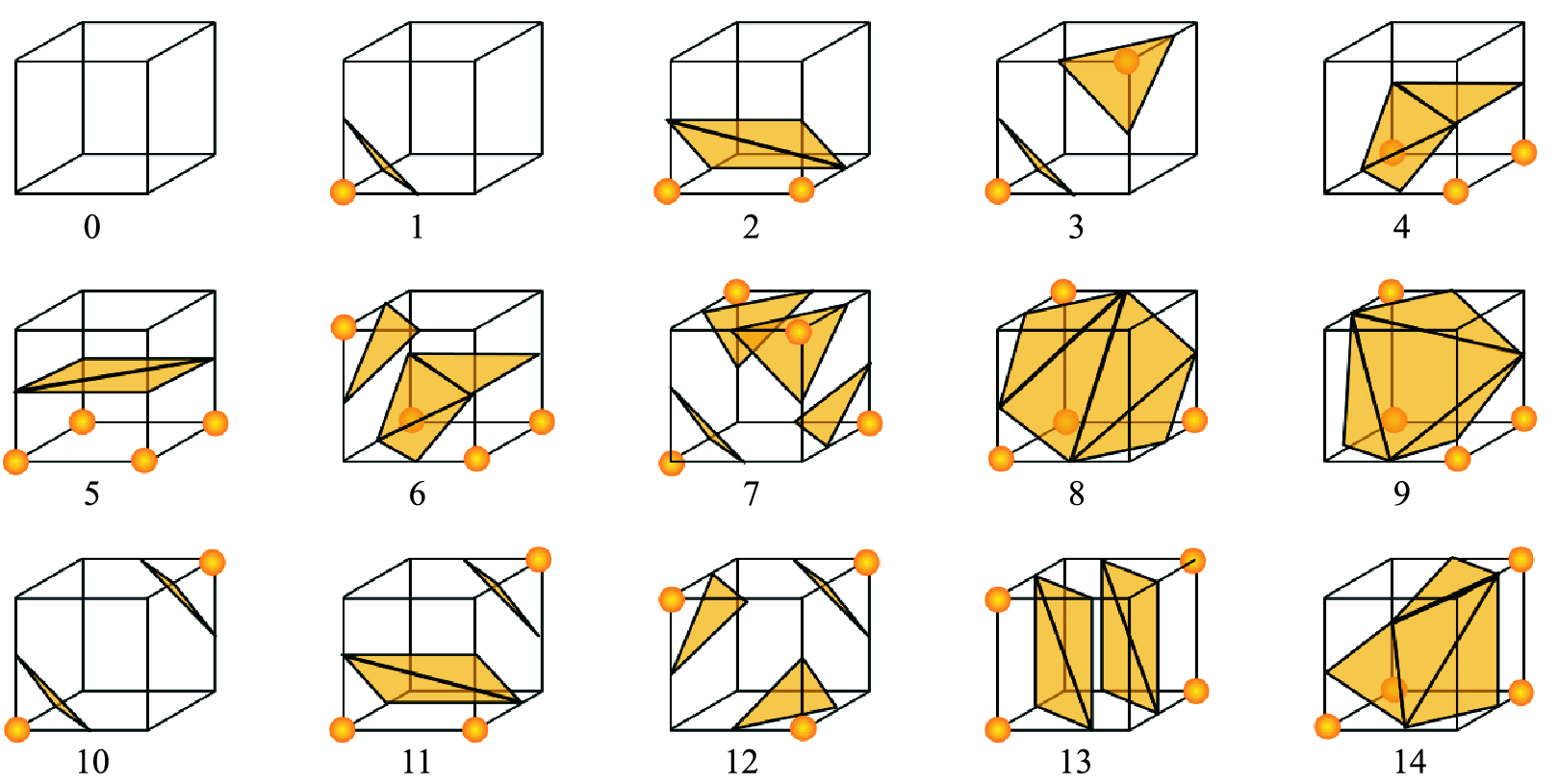

Fig. 5. Basic configurations of sets of
cell vertices and elements of the surface to be constructed in the Marching
Cubes algorithm. Orange dots mark nodes belonging to the input cloud (the figure
is taken from
https://ru.wikipedia.org/wiki/Marching_cubes)
Fig. 6b shows the
result of the Marching Cubes algorithm when reconstructing the surface of a
ball defined by a cloud of points. For comparison, Fig. 6a shows an image of
the surface of a “voxel” set obtained by attaching a cube of the appropriate
size to each point from the given cloud. Fig. 6c is discussed below.

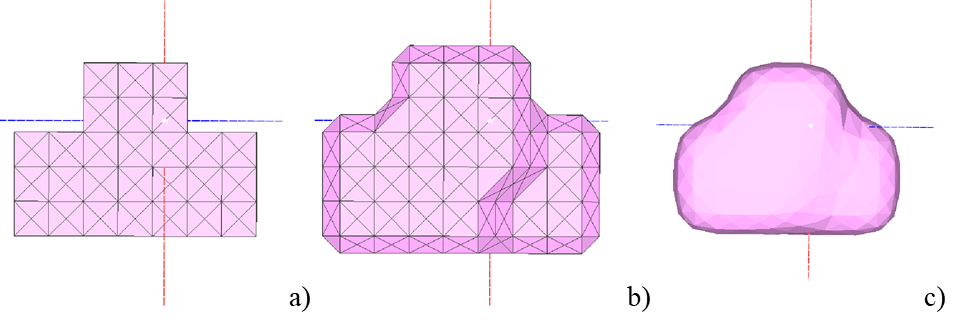

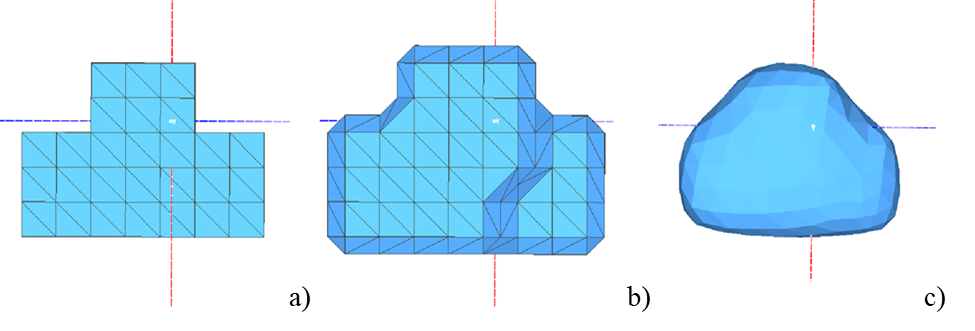

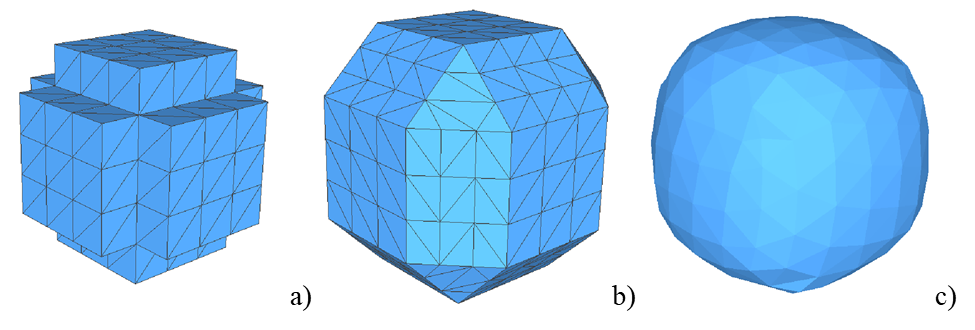

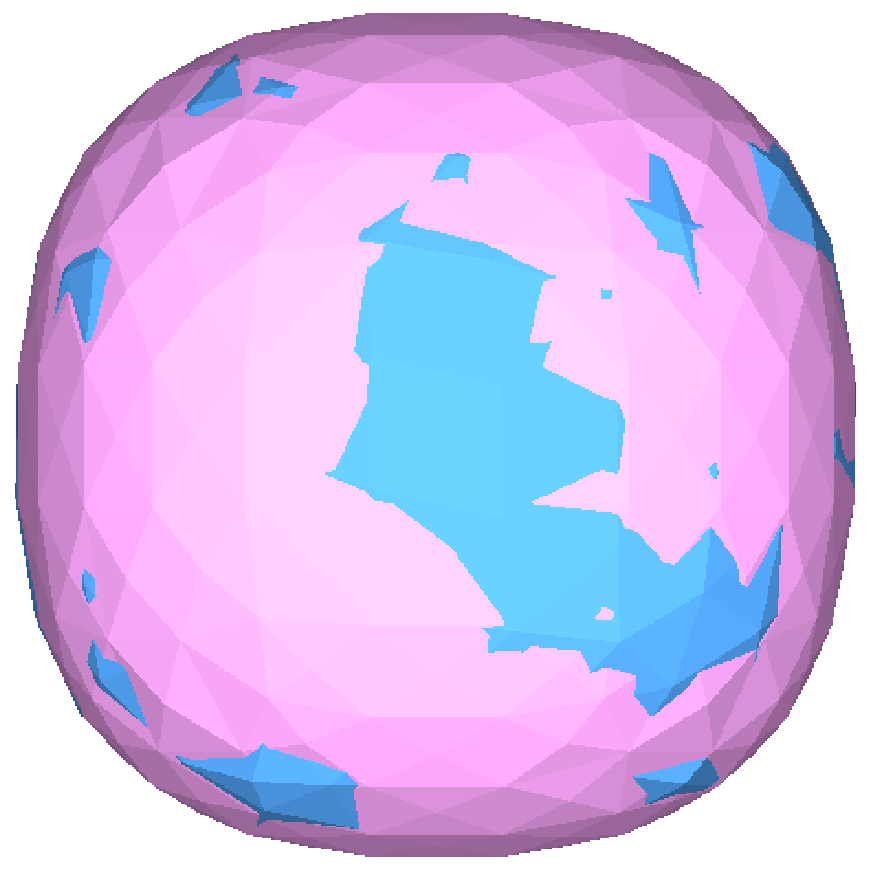

Fig. 6. Visualization of a
three-dimensional ball defined by a cloud of points: a) a “voxel” set; b) the
result of the Marching Cubes algorithm on the original cloud of points; c) the
result of applying the Laplace algorithm to the surface obtained by the
Marching Cubes algorithm
It can be seen that due to the small size of the point
cloud, the size of one cube is relatively large in comparison with the size of
the entire set, so the voxel set has a very “creased” surface. For the same
reason, the result of the Marching Cubes algorithm also does not look smooth
enough. Note that the consideration of sets defined by a small number of points
is also important when studying control problems. This is due to the fact that
the evolution of reachability sets at instants close to zero (the evolution of
the value function level sets corresponding to near-zero values) is often
especially interesting for researchers.
Further smoothing
of the surface is possible by one or another Laplace algorithm [2,3,4,5]. The
basic idea of this family of algorithms is as follows. For every vertex
of the surface, its “fan”
is collected, that is, the set of
vertices adjacent to
in a triangle of the surface. Then
the vertex
is replaced by the arithmetic mean
of the vertices from the fan:
All surface
vertices are replaced simultaneously. In fact, when this procedure works, the
surface is “flattened”: the convex parts are retracted, the concave parts are
squeezed out. To obtain one or another degree of smoothing, the algorithm is
applied iteratively several times. Some changes in the computational formula in
one way or another are related to, in general, maintaining the volume of the
visualized body. If such changes are not made, then repeated application of the
procedure to the convex body deflates.
In this case,
obviously, if the original surface itself is symmetrical with respect to any
plane, line or point, and its triangulation is also symmetrical, then the
result of the Laplace algorithm gives a result that preserves this symmetry.
Otherwise, the symmetry may be broken, as it can be seen in Fig. 6c. Due to the
asymmetry of surface triangulation in Fig. 6b, the result is asymmetrical. As a
result, after applying the Laplace algorithm, the result in Fig. 6c is
noticeably asymmetrical.
In connection
with this, a desire appeared to modify the Marching Cubes algorithm in such a
way that if the input cloud of points is distributed symmetrically with respect
to certain directions associated with the mesh directions, then the
triangulation of the resultant surface would have the same symmetry. The
asymmetry of the triangulation produced by Marching Cubes is essentially due to
the fact that in some situations an element that is not a triangle is actually
added to the surface: the patterns 2, 4, 5, 6, 8, 11, 13 in Fig. 5. However, a non-triangular
element itself cannot be added and must be triangulated at first. In Fig. 5,
one can see that quadrilaterals, symmetrical in symmetrical configurations, are
divided by the diagonal into two triangles, which, generally speaking, are
asymmetrical. This leads to the asymmetry of triangulation, which is visible in
Fig. 6b, where the surface triangles are highlighted with thin lines.
The natural
solution is to change the triangulation of the quadrangular elements, dividing
each of them into four triangles by both diagonals (see Fig. 7). In this case,
symmetrical quadrilaterals are be triangulated symmetrically.
With this change
in the algorithm, a special attention should be paid to the correct processing
of pattern 8 and the ones symmetric to it. The remaining marked patterns add a
quadrilateral element that is uniquely divided into four triangles.
Triangulation of the hexagon, which is added in pattern 8 and in those
symmetrical to it, can be done ambiguously.
Now, the same ball
example as above is processed by the “symmetrical” algorithm. Fig. 8b
shows that the surface triangulation is now symmetrical. As a consequence, the
result of applying the Laplace algorithm to it gives a symmetric result (see
Fig. 8c).
Fig. 9 shows
surfaces from Figs. 6c and 8c, which are imposed over each other. The camera is
located on one of the coordinate axes, and the direction of view is parallel to
this axis. One can see how the blue surface obtained using the classic (asymmetrical)
version of the Marching Cubes algorithm extends beyond the pink surface
obtained using the symmetrical version. Moreover, the protrusion places are
also located asymmetrically. The symmetry of the pink surface is more clearly
visible in this figure than in Fig. 8.
Fig. 7. Corrected Marching Cubes algorithm
templates
Fig. 8. Symmetric visualization of a
three-dimensional ball defined by a cloud of points: a) a “voxel” set; b) the
result of the modified Marching Cubes algorithm on the original cloud of
points; c) the result of applying the Laplace algorithm to the surface obtained
by the modified Marching Cubes algorithm
Fig. 9. Comparison of the surfaces from Figs.
6c (the blue surface) and 8c (the pink surface)
Below, examples of
the proposed procedure for construction of the surface of three-dimensional
voxel sets are given. Results are shown for the classic and “symmetrical”
versions of the Marching Cubes algorithm. Same as in Figs. 6 and 8, the results
of the classic version of the algorithm are depicted in blue and of the
symmetric version in pink.
Example 3.1. The Dubins’ car in the original
coordinates.
In Section 2,
in Examples 2.1 and 2.2, the visualization of the graph of the optimal result
function for the Dubins’ car controlled system with reduced dynamics (2) is
examined. However, it is also of interest to study the problem in its original
form with a three-dimensional phase vector and dynamics (1). As mentioned, in
this case the structure of the optimal result function can be studied by
considering a collection of its level sets for various values. In terms of
control theory, such sets are reachability sets up to instant, that is, sets of
points in the phase space, in which the system can end up no later than a given
instant starting from the initial position or from the initial set.
Regarding the
visualization of the reachability sets of the Dubins’ car, the question arises
regarding the angular coordinate
.
By its meaning, its values are in the
range
rad (that is, in the range
).
However, in this case, the set has a
very strange appearance, not too convenient for analysis. Therefore, it is supposed
that the values of the coordinate
can take any value from
to
.
Figs. 10, 11 and
12 show the level sets of the value function for the magnitude 0.2 (the
reachability set from the origin up to the instant 0.2 sec). The set is
relatively small, and the size of the grid cells is quite large compared to the
size of the entire set, and therefore the results of applying the classic and
modified Marching Cubes algorithms have significant differences.

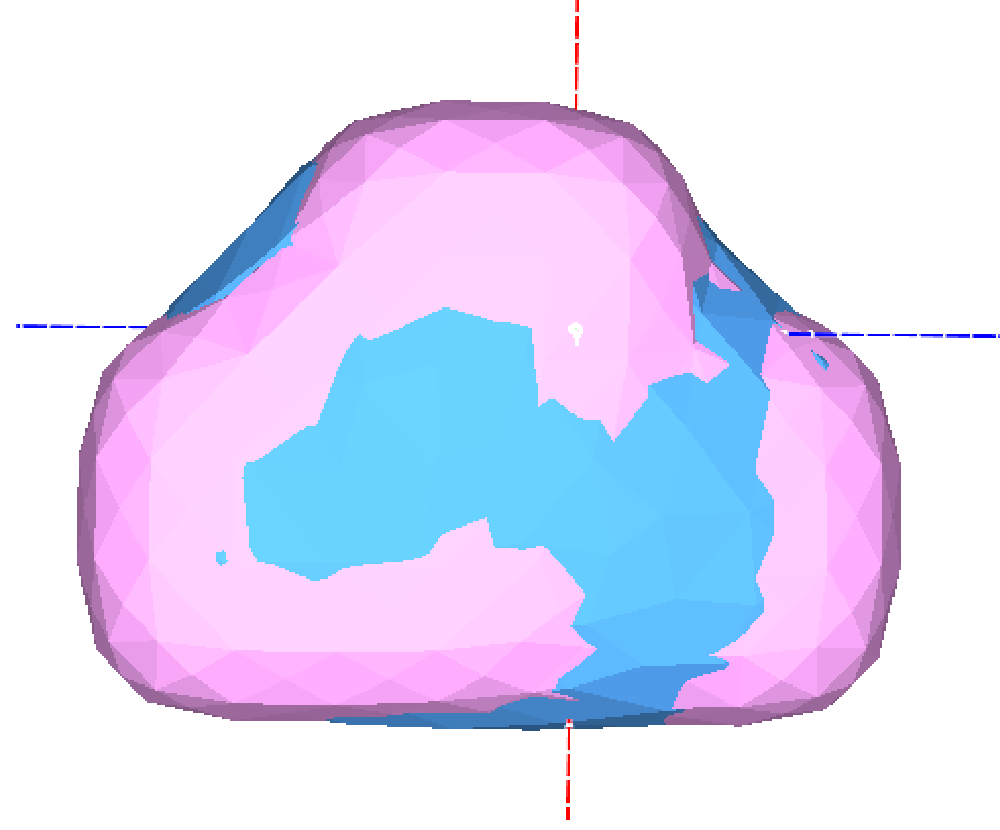

Fig.
10. “Dubins’ car”, reachability sets up to the instant 0.2: a) a “voxel” set;
b) the result of the classic Marching Cubes algorithm on the original cloud of
points; c) the result of applying the Laplace algorithm to the surface obtained
by the classical Marching Cubes algorithm
Fig. 11. “Dubins’ car”, reachability sets
up to the instant 0.2: a) a “voxel” set; b) the result of the modified Marching
Cubes algorithm on the original cloud of points; c) the result of applying the
Laplace algorithm to the surface obtained by the modified Marching Cubes
algorithm
Fig.

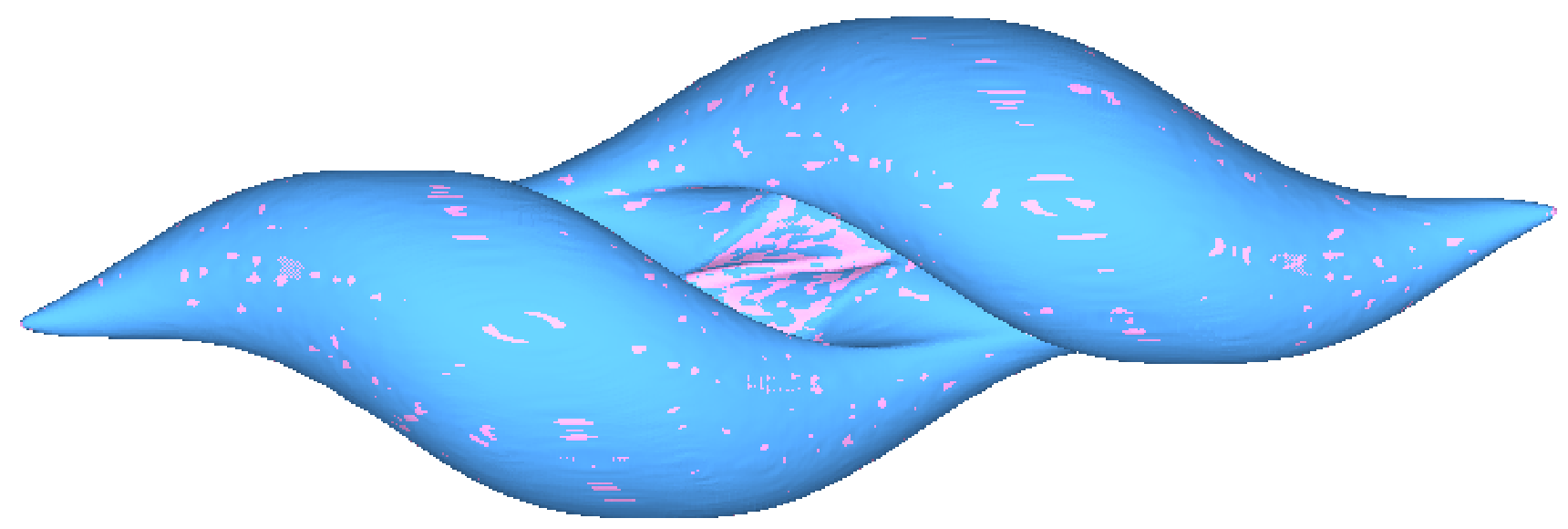

12. “Dubins’ car”, comparison of surfaces from Figs. 10c and 11c
Fig. 13 shows the
surfaces of the level set of the value function for the magnitude
,
constructed by Laplace smoothing of the
result of applying the classical and modified versions of the Marching Cubes
algorithm.
Fig. 13. “Dubins' car”, the reachability
sets up to the instant 3
π:
comparison of the surfaces obtained using
the classic Marching Cubes algorithm (the blue surface) and the modified one (the
pink surface)
Example 3.2. “Isotropic rockets” game.
In his book [15,16], R. Isaacs considered
also a game similar to the “homicidal chauffeur”, but in which the pursuer
controls his acceleration. The evader still has the dynamics of simple motions.
He called this game “isotropic rockets”. The dynamics in the original
coordinates is described by the relations
Here, as in the case of dynamics (3),
and
are the positions of the pursuer and the
evader on the plane. The vector
is the speed of the pursuer. The maximum
value of the speed of the evader is
,
the vector
is the control action of the evader, the
instantaneous direction of its movement. The pursuer's control, the
acceleration acting on it, is described by two parameters:
is the magnitude of the acceleration belonging to a
given interval
;
is the angle between the positive
direction of the x-axis and the instantaneous direction of the control
acceleration counted counterclockwise and selected from the range
.
This problem has a phase vector of dimension 6.
However, by the same coordinates substitution that is used in the examples in
the previous section (we superpose the origin with the pursuer and the ordinate
axis with the direction of its instantaneous velocity), we can reduce the
dimension of the phase vector to 3. Dynamics in new coordinates has the
following form [15, p. 244], [16, p. 302]:
Here,
are the relative coordinates of the
evader with respect to the pursuer,
is the instantaneous value of the
pursuer’s speed,
is the maximum value of the evader’s
velocity,
is the vector of the instantaneous
direction of the evader’s speed, a is the magnitude of the control
acceleration of the pursuer,
is the angle describing the direction of
acceleration of the pursuer. However, now it is convenient to count it from the
direction of the pursuer’s speed, that is, from the ordinate axis, and clockwise,
not counterclockwise.
In paper [17], a variant of this problem is
considered, in which the magnitude of the acceleration is constant
,
and the acceleration itself can be
directed in such a way only to accelerate the pursuer, but not to slow it down:
.
At the same time, to prevent the
occurrence of a too high linear speed, a limitation
is imposed on the speed magnitude
. In other words, when the linear speed
reaches the limit
only the controls
become valid, which no longer affect the
value of the linear speed increasing it, but only change its direction.
Figs. 14, 15 show
the level sets of the value function for the magnitude 5.7. In Fig. 14 on the
left, there is a surface obtained using the asymmetrical Marching Cubes
algorithm and on the right, a surface constructed by the modified one. Due to
the small size of the grid cells, the differences are almost not visible. Fig.
15 compares surfaces obtained using the classical (blue surfaces) and symmetric
(pink surfaces) Marching Cubes algorithms.
Fig. 14. “Isotropic rockets”, the value
function level set corresponding to the constant 5.7. On the left: a
surface obtained using the asymmetric Marching Cubes algorithm; on the right: a symmetric algorithm is used
Fig. 15. “Isotropic rockets”,
the value function level set corresponding
to the constant

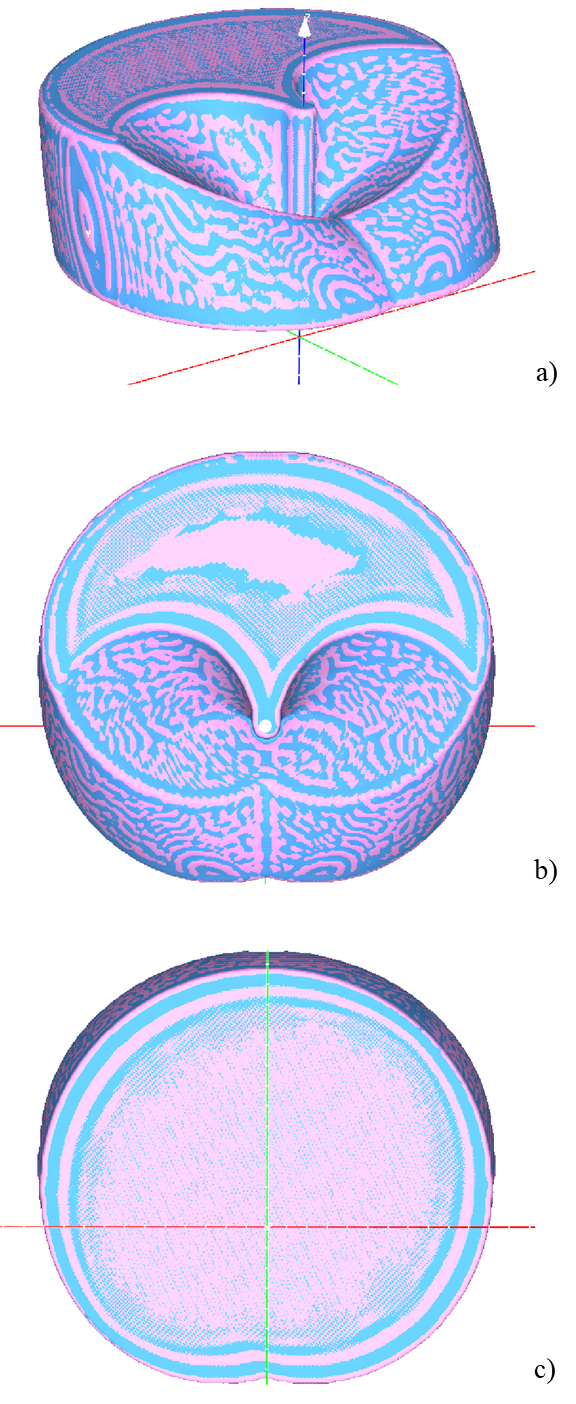

5.7. Comparison
of surfaces obtained using the classic Marching Cubes algorithm (the blue
surface) and the modified one (the pink surface): a) a side view, b) a
top view (from the positive direction of the Oz axis), c) a bottom view
(from the negative direction of the Oz axis)
The computer
program is implemented in C# for the .NET Framework 4.8 software platform under
the Microsoft Windows operating system. However, it should be noted that over
the two years passed after the program had been written, Microsoft has released
a cross-platform .NET Core version of this environment. Because the program
uses only standard language capabilities, it can, if necessary, be launched
under other operating systems, for which there is a .NET Core implementation, for
example, Linux or macOS.
The described
algorithms are implemented as a set of libraries and console applications.
Console applications take as input a file with data in the
.txt
format (a set of points and values at
them). As output they generate a new file in the
.obj
format containing a set of points, triangles with
vertices at these points, and normal vectors to these triangles. Files of this
format can be opened and viewed, in particular, using the MeshLab program.
The algorithm for
constructing a graph of a two-argument discontinuous function is implemented as
described in Section 2.1. The implementation of the HC-algorithm repeats the
description from article [5]. It is interesting to note some features of implementation
of the symmetric version of the Marching Cubes algorithm.
The classic
algorithm goes through the grid cells and looks for each cell, which of its
vertices belong to the cloud of points to be visualized. In Fig. 5, it can be
seen that the vertices of the added triangles can only be at the following
points, the coordinates of which are specified in the local coordinate system
of the parallelepipedal grid cell being processed:
Point[] vertices = new Point[]
{
new Point(0.5, 0, 0),
new Point(1, 0.5, 0),
new Point(0.5, 1, 0),
new Point(0, 0.5, 0),
new Point(0.5, 0, 1),
new Point(1, 0.5, 1),
new Point(0.5, 1, 1),
new Point(0, 0.5, 1),
new Point(0, 0, 0.5),
new Point(1, 0, 0.5),
new Point(1, 1, 0.5),
new Point(0, 1, 0.5)
};
Whether or not
each of the eight vertices belongs to the visualized cloud can be determined
using a byte variable. If a vertex belongs to the cloud, then the byte variable
contains 1 in the corresponding bit; if it does not belong, then 0. Thus,
each possible configuration of cloud of points at the vertices of the cell
corresponds to some integer value from 0 to 255. This value is used as an
index in the
faces
array, each element of which is also an
array of indices of points from the
vertices
array, which contain the vertices of the triangles
added with this configuration of the cloud. Each triple of indices defines its
own triangle. The maximum number of triangles (four) in the added surface
element determines the size of the array row. The last three elements on each
line are entered to indicate the end of the line. The index
-1
means “no triangle”:
int[,] faces = new int[256, 15]
{
{-1, -1, -1, -1, -1, -1, -1, -1, -1, -1,
-1, -1, -1, -1, -1},
{0, 8, 3, -1, -1, -1, -1, -1, -1, -1, -1,
-1, -1, -1, -1},
..........................
{9, 5, 7, 9, 7, 2, 9, 2, 0, 2, 7, 11, -1,
-1, -1},
..........................
{6, 5, 9, 6, 9, 11, 11, 9, 8, -1, -1, -1,
-1, -1, -1},
..........................
{0, 3, 8, -1, -1, -1, -1, -1, -1, -1, -1,
-1, -1, -1, -1},
{-1, -1, -1, -1, -1, -1, -1, -1, -1, -1,
-1, -1, -1, -1, -1}
};
The sequence of
indices in each triple corresponds to a counterclockwise traversal of the
corresponding triangle when viewed from the end of the normal external to the
set described by the given cloud.
The modified
scheme (Fig. 7) uses a similar idea for its implementation. In this case, an
extended list of possible vertices of added triangles is used:
Point[] vertices = new Point[]
{
new Point(0.5, 0, 0),
new Point(1, 0.5, 0),
new Point(0.5, 1, 0),
new Point(0, 0.5, 0),
new Point(0.5, 0, 1),
new Point(1, 0.5, 1),
new Point(0.5, 1, 1),
new Point(0, 0.5, 1),
new Point(0, 0, 0.5),
new Point(1, 0, 0.5),
new Point(1, 1, 0.5),
new Point(0, 1, 0.5),
new Point(0.5, 0.25, 0.25),
new Point(0.75, 0.5, 0.25),
new Point(0.334, 0.667, 0.167),
new Point(0.5, 0.5, 0.5),
new Point(0.25, 0.5, 0.25),
new Point(0.667, 0.667, 0.167),
new Point(0.5, 0.75, 0.25),
new Point(0.667, 0.334, 0.167),
new Point(0.334, 0.334, 0.167),
new Point(0.25, 0.25, 0.5),
new Point(0.25, 0.5, 0.5),
new Point(0.167, 0.667, 0.667),
new Point(0.334, 0.334, 0.834),
new Point(0.75, 0.25, 0.5),
new Point(0.334, 0.167, 0.667),
new Point(0.834, 0.667, 0.667),
new Point(0.667, 0.334, 0.834),
new Point(0.5, 0.25, 0.75),
new Point(0.667, 0.167, 0.334),
new Point(0.334, 0.167, 0.334),
new Point(0.667, 0.834, 0.334),
new Point(0.334, 0.834, 0.334),
new Point(0.5, 0.75, 0.75),
new Point(0.75, 0.75, 0.5),
new Point(0.834, 0.334, 0.667),
new Point(0.334, 0.834, 0.667),
new Point(0.667, 0.667, 0.834),
new Point(0.667, 0.167, 0.667),
new Point(0.834, 0.334, 0.667),
new Point(0.75, 0.5, 0.75),
new Point(0.834, 0.667, 0.334),
new Point(0.834, 0.334, 0.334),
new Point(0.167, 0.334, 0.334),
new Point(0.167, 0.667, 0.334),
new Point(0.25, 0.5, 0.75),
new Point(0.334, 0.667, 0.834),
new Point(0.667, 0.834, 0.667),
new Point(0.167, 0.334, 0.667),
new Point(0.25, 0.75, 0.5)
};
The array of faces
is modified accordingly, which now has size of
since the maximum number of triangles in the added
surface element is eight (the pattern 13 in Fig. 7).
The paper presents
modifications of two classical algorithms for constructing surfaces in
three-dimensional space. The input data for the algorithms is values of a real-valued
function computed on a rectangular or parallelepipedal grid in a two- or
three-dimensional space. The grid, possibly, fills a set of an arbitrary shape
(not necessarily a rectangle or parallelepiped).
The first
algorithm deals with constructing the surface of the graph of a discontinuous function
of two arguments. Another feature of the function to be visualized is that it
can take infinite values. During computations, infinite values are replaced by
some very large constant. Algorithms presented in popular scientific systems,
e.g. MatLab, MathCAD, GNUPlot, etc., construct the surface of the graph simply
by connecting existing points at the grid nodes with triangles. This leads to appearance
of vertical “walls” in places where the function is discontinuous, as well as
to appearance of “plateaus” at large values where the function is infinite.
This deforms the graph and makes poorly distinguishable parts of it, which are
interesting to the researcher. To display adequately discontinuities, in the
proposed algorithm, a triangular element is not added to the formed surface if
the absolute value of the difference between the applicates of at least two of
its vertices is greater than a given threshold. To remove high “plateaus,” the
algorithm removes from the set those nodes, in which the function magnitude is
greater than a specified value. Due to this filtering, the algorithm is adapted
to a situation when the shape of the set, on which the graph is visualized, may
be significantly non-rectangular. This helps to visualize also functions
computed on non-rectangular sets.
If the grid cell
sizes are not too small, a “fringe” may appear along the edges of breaks and
transitions to plateaus. The break lines are located quite arbitrary with
respect to grid nodes, somewhere closer, somewhere further, so the values
at the nodes can differ from each other, and the corresponding
points are located at different heights. Additional smoothing of the edge of
the surface may be required, although with sufficiently fine grid steps this
fringe is not too large.
The second
algorithm deals with visualization of level sets of a function of three
arguments, which are regions of the three-dimensional space where the function
does not exceed a given value. A straightforward way of visualizing this kind
of objects is associated with formation of “voxel” sets when a rectangular
“brick” of the corresponding grid cell is attached to each point of the cloud.
However, in this case, the surface of the set turns out to be too “creased”,
especially if the size of the cells is not too small in comparison with the
size of the set itself. Traditionally, the Marching Cubes algorithm, algorithms
of the Laplacian family, or their combinations are used for smoothing such a
surface. However, even if the original set had symmetry with respect to
coordinate planes, axes, or some point, the classic Marching Cubes algorithm
generates an asymmetrical triangulation of the surface. Therefore, with further
processing of such a surface, the asymmetry may increase and become obvious. A
modification of the Marching Cubes algorithm is proposed, which triangulates
the surface preserving the original symmetries if some present. However, the resultant
symmetry violations, when applying the classic Marching Cubes algorithm, have
the size of a grid cell and are not visible if the size of the grid cell is
small compared to the size of the set. The proposed modification is useful
primarily for visualizing small sets.
1.
W.E. Lorensen, H.E.
Cline, Marching Cubes: A high resolution 3D surface construction algorithm //
ACM SIGGRAPH Computer Graphics, Vol. 21, No. 4, 1987, pp. 163–169.
2.
S. Canann, M.
Stephenson, T. Blacker, Optismoothing: An optimization-driven approach to mesh
smoothing // Finite Elements in Analysis and Design, Vol. 13, No. 2–3, 1993,
pp. 185–190.
3.
L. Freitag, On
combining Laplacian and optimization based mesh smoothing techniques //
Proceedings of the 1997 Joint Summer Meeting of American Society of Mechanical
Engineers (ASME) American Society of Civil Engineers (ASCE) and Society of
Engineers Science (SES), 1997, pp. 37–44.
4.
N. Amenta, M. Bern, D.
Eppstein, Optimal point placement for mesh smoothing // Journal of Algorithms,
Vol. 30, No. 2, 1999, pp. 302–322.
5.
J. Vollmer, R. Mencl,
H. Muller, Improved Laplacian Smoothing of Noisy Surface Meshes // Computer
Graphics Forum, Vol. 18, No. 3, 1999, pp. 131–138.
6.
N.V. Munts, S.S.
Kumkov, Chislennyj metod resheniya differencial’nyh igr bystrodejstviya s
liniej zhizni // Matematicheskaya teoriya igr i ee prilozheniya, V. 10, ¹ 3,
2018, pp. 48–75. (in Russian)
7.
N.V. Munts, S.S.
Kumkov, Convergence of Numerical Method for Time-Optimal Differential Games
with Lifeline // Annals of the International Society of Dynamic Games, Vol. 17,
Games of Conflict, Evolutionary Games, Economic Games, and Games Involving
Common Interest.
Basel: Birkhäuser,
2020. pp. 103–132.
8.
L.E. Dubins, On curves
of minimal length with a constraint on average curvature and with prescribed
initial and terminal positions and tangents // American Journal of Mathematics,
Vol. 79, No. 3, 1957, pp. 497–516.
9.
J.-P. Laumond (ed.),
Robot Motion Planning and Control, Lecture Notes in Control and Information
Sciences, Vol. 229.
Springer-Verlag,
Berlin Heidelberg, 1998. 354 p.
10.
Y. Meyer, T. Shima, P.
Isaiah, On Dubins paths to intercept a moving target // Automatica, Vol. 59,
2015, pp. 256–263.
11.
E. Bakolas, P.
Tsiotras, Optimal synthesis of the asymmetric sinistral/dextral Markov-Dubins
problem // Journal of Optimization Theory and Applications, Vol. 150, No. 2,
2011, pp. 233–250.
12.
E.J. Cockayne, G.W.C.
Hall, Plane Motion of a Particle Subject to Curvature Constraints // SIAM
Journal on Control, Vol. 13, 1975, pp. 197–220.
13.
Y.I. Berdyshev,
Nelinejnye zadachi posledovatel’nogo upravleniya i ih prilozhenie [Nonlinear
problems of sequential control and their application]. Ekaterinburg: IMM UrO
RAN, 2015. 193 p. (in Russian)
14.
A.A. Fedotov, V.S.
Patsko, Investigation of Reachable Set at Instant for the Dubins’ Car //
Proceedings of the 58th Israel Annual Conference on Aerospace Sciences,
Tel-Aviv & Haifa, Israel, March 14–15, 2018, ThL2T1.4, pp. 1655–1669.
15.
R. Isaacs, Differential Games. John Wiley
and Sons, New York, 1965.
384 p.
16.
R. Ajzeks,
Differencial'nye igry [Differential games]. M.: Mir, 1967. 479 p. (in Russian)
17.
N. Botkin, K.-H.
Hoffmann, N. Mayer, V. Turova, Computation of value functions in nonlinear
differential games with state constraints // D. Hömberg, F. Tröltzsch
(eds.), System Modeling and Optimization. CSMO 2011. IFIP Advances in
Information and Communication Technology, Vol. 391, 2013, pp. 235–244.
