Visualization
technologies are most commonly applied in tasks involving numerical modeling of
complex, multi-component models when teraflop-level computational resources are
required. Due to the high complexity of the objects under investigation,
constructing computational grids can pose significant challenges. Determining
the optimal sizes and structures of computational grids required to achieve
acceptable accuracy implies the need to adjust model parameters. This process
becomes iterative and interactive, as visualization results help analyze and
adjust grid parameters. To achieve desired results when analyzing raw data
using scientific visualization, the calculation and visualization algorithm
must be repeatedly executed, with changes made to various parameters and
real-time visual assessment of intermediate results.
A special role in
visualizing modeling results is played in low-temperature plasma research. In
recent years, there has been a rapid increase in work related to
self-consistent modeling of complex gas discharge plasma systems, especially
[1-3]. This is due to two reasons. Firstly, it involves accumulating reliable
databases of various constants used in modeling (cross-sections of various
processes, transport coefficients, reactions, etc.). Secondly, it involves an
increase in the computing power used for calculations, allowing for more
complex problem-solving closer to experimental descriptions and obtaining
results in a short time. Furthermore, while one-dimensional and two-dimensional
problems were previously solved, the development of three-dimensional models
has become relevant with the advent of powerful computing resources.
The process of
visualizing data in low-temperature gas discharge plasma radiation modeling is
a task that involves considering the unique characteristics of this state of
matter and requires careful adjustment of the visual representation of the
obtained results. Unlike similar tasks associated with higher-temperature
plasma states, such as plasma in the solar corona or tokamak-type devices,
where thermal motion of particles plays a more significant role,
low-temperature gas discharge plasma exhibits more pronounced chemical activity
and interaction with neutral atoms and molecules.
Therefore,
successful data visualization of this process requires the use of specialized
methods capable of taking into account the unique characteristics of
low-temperature plasma and conveying information about molecular and chemical
interactions, which play a significant role in this context:
1.

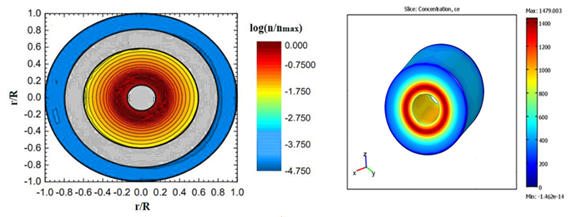

Colorimetry and
contour diagrams:
This
approach relies on the use of various colors and color scales to demonstrate
plasma parameters. This allows for the visualization of, for example, radiation
intensity or particle density. The use of contour diagrams helps highlight
lines representing constant parameter values, facilitating the detection of
structures and patterns.
2.
Isolines and
isosurfaces:
In this
method, isolines are used, which are curves connecting points with the same
parameter values. Isosurfaces, in turn, represent shaded areas between
isolines, colored depending on the parameter level. This method allows for the
detection of gradients and changes in plasma parameters.
3.
Volume visualization
(3D visualization):
To
gain a deeper understanding of plasma structure, volume visualization is used.
It provides the opportunity to observe structures in three-dimensional space
and interact with them.
4.
Animation and
temporal visualization:
In
cases where plasma modeling involves temporal dynamics, animations become
informative. This approach allows for tracking changes in plasma parameters
over time and identifying dynamic processes.
However, when
using the above-mentioned methods, researchers face several difficulties and
limitations:
➢
Modeling complexity: Gas discharge plasma is a complex
system with many interacting particles, energy processes, and chemical
reactions. Modeling such plasma requires taking into account all these factors,
which is a computationally intensive task. The need to consider numerous
transitions and interactions between plasma components complicates modeling and
requires significant computational resources.
➢
Database limitations: Modeling radiation requires
databases of emission spectra for various elements and molecules in plasma.
However, some data may be incomplete or unavailable for certain elements or
plasma conditions, reducing modeling accuracy.
➢
Three-dimensional geometry consideration:
Low-temperature plasma often has complex three-dimensional geometry, such as
discharge chambers or electrodes. Accounting for such geometry in modeling and
visualization can be a challenging task and requires the use of appropriate 3D
computer graphics algorithms.
➢
Computational resource constraints: Modeling and
visualizing radiation processes in gas discharge plasma require significant
computing power. Calculations can be time-consuming, especially when using
high-resolution 3D models and complex ray tracing algorithms. Limited resources
can affect modeling accuracy and result retrieval time.
➢
Model validation:
Ensuring model accuracy requires validation. This can be a challenging task
since experimental data may be limited or unavailable. It is essential to
perform model adequacy checks and compare results with available experimental
data.
Considering all
these aspects, the specificity of data visualization in modeling
low-temperature gas discharge plasma radiation requires the development of
specialized methods and tools capable of accounting for the unique
characteristics of this type of plasma. These methods and tools provide
researchers with the ability to conduct a comprehensive analysis and
interaction with computational results. Given the ongoing development of
computer technologies and the refinement of physical models, the mentioned difficulties
can be overcome, ultimately allowing for more accurate and realistic
visualizations of plasma processes [4, 5].

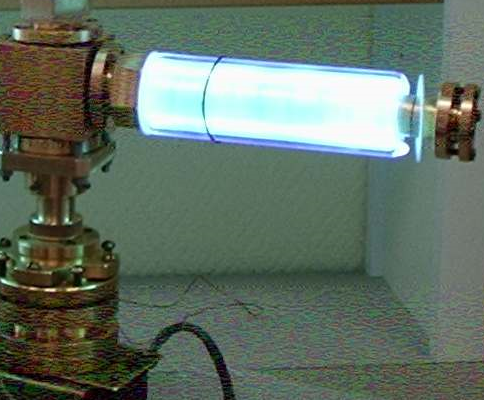

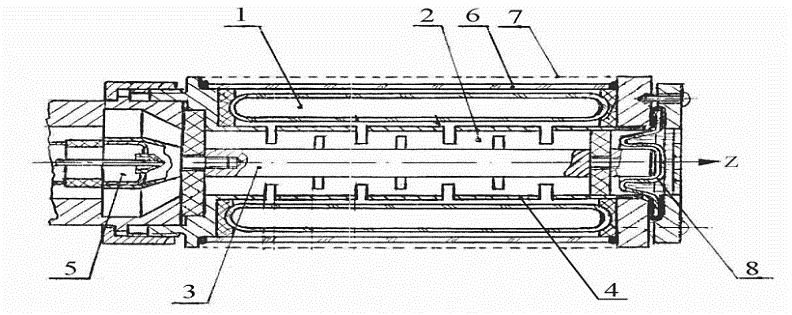

As the subject of study, let's
consider an example of visualizing a coaxial mercury-argon discharge excited by
the microwave electromagnetic field of a magnetron [6].
Given that, under the studied
conditions and the geometry of the discharge system, the electron energy
relaxation length significantly exceeds the radius of the discharge tube, a
self-consistent model is used to describe the discharge in the approximation of
local thermodynamic equilibrium (LTE). This condition is applicable in the
region of mercury pressures on the order of 0.05 Torr, argon pressures around
0.10.7 Torr, and a discharge tube radius of 13 cm.
Thus, in the case of cylindrical
geometry of the discharge tube, the boundary conditions for the equation of
balance between the formation and destruction of charged particles can be
expressed as follows [7]:
|
(1)
|
Here, R is the
radius of the tube, k is the Boltzmann constant, and
Da
is
the coefficient of ambipolar diffusion.
the ion sound velocity,
Mi
is the velocity of an
ion that has passed through an accelerating potential difference
,
e
elementary charge.
In this case,
there is no local connection of the parameters of the electronic component with
the microwave field, and it is replaced by the balance equation for the
electron energy flux density.

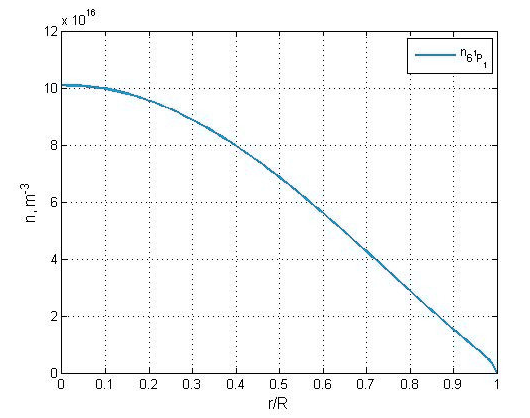

The concentration
of electrons in the discharge will be approximated using the zero-order Bessel
function:
,
|
(2)
|
where
a coefficient that takes into account the
difference in the electron concentration near the walls from zero, determined
from the boundary condition:
,
|
(3)
|
where
and
mobility and mass of mercury ion.
The mobility of
mercury ions in mercury and argon is not difficult to determine, according to
[8]:
,
|
(4)
|
.
|
(5)
|
Here
&
pressure in Torr,
T
- gas temperature in
Kelvin. Then the final mobility of mercury ions in a mixture of mercury and
argon will be determined as:
,
|
(6)
|
Assume that the
distribution of the electron concentration along the radius is stationary. It
is easy to prove this by comparing the relaxation time of the electron
concentration
,
due to ambipolar diffusion, with the
oscillation period of the supply voltage. In this case, the condition must be
met:
|
(7)
|
where
f
frequency
of supply voltage fluctuations, and
can be calculated [9] using the following relation:
.
|
(8)
|
In this case, the
criterion of stationarity:
.
|
(9)
|
Let's determine the diffusion coefficient of mercury
atoms
.
So, for a mercury-argon mixture [10]:
,
.
|
(10)
|
where
Å characteristic interaction distance of mercury and argon,
collision integral for diffusion.
In turn, the mobility of electrons can be
determined using the concept of the electron energy distribution function:
,
|
(11)
|
where
transport frequency of
elastic electron scattering on mercury and argon atoms,
f(U) the
unit-normalized electron energy distribution function (EEDF):
.
|
(12)
|
The
relative permittivity of the dispersion medium was calculated using the Drude
model [11]. In this model, the collision frequency
νm,
the plasma electron frequency
ωpe
and the breakdown field
Ec
are the
three key parameters. The plasma frequency of the electron
ωpe
was determined using the equation:
,
|
(13)
|
here
me
electron mass.
At the
same time, the frequency of collisions of vm
electrons with neutral
atoms:
,
|
(14)
|
where
Te
electron temperature,
λe
the free path length between neutral atoms and electrons.
The
electric field strength of the breakdown
Ec
was expressed by
the equation:
,
|
(15)
|
where
vi
is the ionization potential of a
neutral particle,
ω
is the circular frequency of microwaves),
s
is the elastic collision crosssection,
T
is the temperature of the
working mercuryargon mixture,
Λ
is the characteristic length of electron diffusion in the
cylinder:
,
|
(16)
|
where
l
is the length of the tube,
R
is the
inner diameter of the cylinder.
Now it is
necessary to evaluate the interaction of radiation with plasma components. To
do this, imagine the radiation transfer in a two-level system. Let
n1,
n2
be the concentrations of atoms at levels 1 and 2. We formulate
the kinetic equation for the concentration of particles at the second level:
.
|
(17)
|
Then, taking into account
the above, the defining system of equations will represent nothing else:
|
(18)
|
where
P(ν)
is a function of the contour of the
spectral line of radiation,
A21,
B12
&
B21
are the Einstein coefficients,
eν(r)
and
kν(r)
are the
emission and absorption coefficients, respectively. Using the equations of
state of an ideal gas (Boltzmann's and Saha's laws), we can calculate the
composition of the discharge plasma.
It is not difficult to prove that the
integral expression of the system of equations
is:
,
where
- spatial irradiance, which is calculated:
|
(19)
|
Lets define an
auxiliary function the radiation transfer operator:
.
|
(20)
|
Then, taking into
account all substitutions, we obtain the resulting equation characterizing the
excitation transfer in a low-temperature gas-discharge plasma:
.
|
(21)
|
To effectively
solve this problem, it is necessary to use special databases containing
information about the emission spectra of various elements and particles [12].

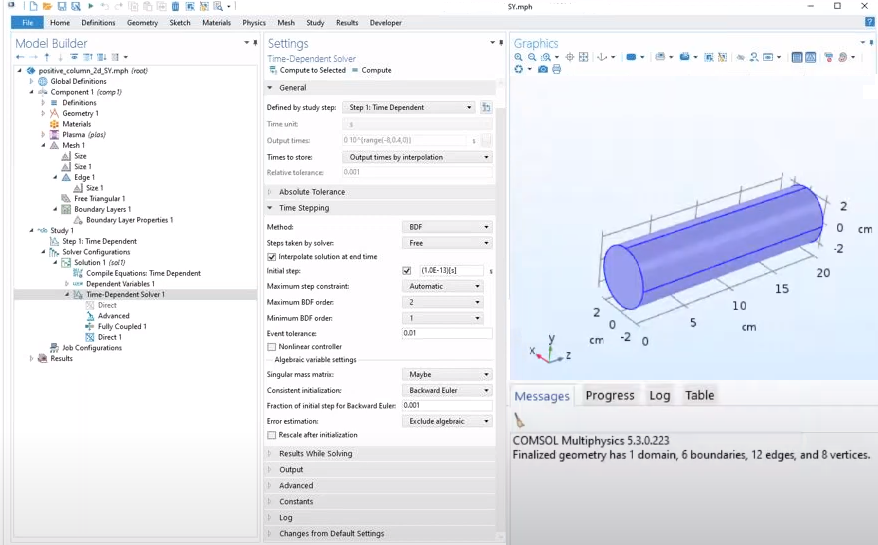

There
are several types of software tools for modeling and visualization of
low-temperature gas-discharge plasma.
Table 1 shows their main features.
Table 1
Comparison of software tools
Software tools
|
Advantages
|
Limitations and disadvantages
|
ANSYS Plasma Simulation
|
Provides high simulation accuracy, allowing you to
analyze a variety of plasma parameters
|
Requires significant computing power, especially for
complex models
|
CST Studio Suite
|
Provides tools for visualization and analysis of
electromagnetic and plasma phenomena
|
The initial specialization in electromagnetic
modeling limits the analysis of radiation phenomena
|
PlasmaLab
|
It is effective for narrowly focused tasks in the
field of plasma
|
It is not universal and may be limited in the
possibilities for modeling other physical processes
|
OpenFOAM
|
Open source software with flexible capabilities for
flow modeling and heat transfer
|
Requires additional adaptation and configuration for
plasma modeling
|
COMSOL Multiphysics
|
It has multitasking and flexibility: it allows you
to integrate various physical phenomena into a single model, provides a wide
selection of various physical models
|
It will take some time to master due to the richness
of functionality and complexity
|
Based on the conducted analysis (Table 1), it is recommended to
give preference to COMSOL Multiphysics [13].
It is important to note that this software suite utilizes the
Finite Element Method (FEM) to solve the system of equations (1-13). This
method is based on decomposing complex domains or systems into simpler
subdomains with unique geometric and mathematical characteristics. In other
words, the problem is divided into a finite number of sub-problems, which are
then solved using numerical methods. This approach allows for obtaining more
detailed and accurate results for complex systems, considering various physical
interactions. The main interface of the program provides a graphical
environment where the user can create the model's geometry, specify boundary
conditions, material properties, and other parameters.
Let's outline the main steps that can be taken when modeling in
COMSOL:
1.
Geometry
Creation: COMSOL tools allow the creation of complex three-dimensional
geometries using an intuitive user interface or importing models from other CAD
programs.
2.
Definition
of Material Properties: Define the physical properties of the materials used in
the model.
3.
Introduction
of Boundary Conditions: Specify boundary conditions for various surfaces in the
model.
4.
Setting up
the Core System of Equations.
5.
Solving the
Model: As mentioned earlier, the COMSOL Plasma Module uses numerical methods to
solve the system of equations describing the physical processes in the model.
6.
Results
Analysis: After completing the calculation, it is necessary to analyze the
modeling results.
Various
program modes are used for this purpose:
The
"Cross-Section Plot Parameters" mode allowed to explore the
parameters of the model by creating cross-sections of a three-dimensional
object.
The
"Domain Plot Parameters" mode was used to study variables at the
boundary of the object partition area. The "Arrow Plot" mode is for
visualization of a vector microwave field.
"Slice"
mode - to display the task parameters in the selected plane using a color
scale.
These
steps represent an optimal modeling process that can be easily adapted
depending on the introduction of additional boundary conditions or parameters.
The
implementation of spatial modeling of a coaxial cylindrical tube simulating a
mercury-argon discharge is shown in Figure 1, following the above-described
algorithm.
Fig. 1. An example of modeling a
cylindrical radiator in COMSOL Multiphysics
COMSOL
Multiphysics provides the capability to visualize the mesh in a graphical window,
allowing users to add, delete, change the sizes and shapes of nodes and
elements, and adjust the mesh density in necessary areas. This allows for
incrementally increasing the number of mesh points in regions where the
electric field intensity changes the most. Using successive iterations to
improve mesh accuracy in areas with high electric field intensity changes is an
effective strategy to achieve more accurate results and meet accuracy criteria
in these regions.
For
the calculations, a cluster node with 10 CPU cores and 32 GB of RAM was
deployed. Since the CPU cores are consistently loaded at approximately 100%
throughout the entire calculation time, and memory usage remains low (not
exceeding 30%), it indicates that the CPU handles the majority of the
computations. In this configuration, the use of graphics accelerators (GPUs) is
not required and does not significantly impact the performance of calculations
and visualization.
However,
if there is a future need for tasks that can be efficiently parallelized using
GPUs, considering adding GPUs to the current configuration is worth
considering. GPUs can be beneficial for certain types of computational tasks,
such as deep learning neural networks or scientific calculations, where
numerous parallel computations can be efficiently performed using CUDA and
similar graphical libraries.
As a
result of the calculations, 3D visualization data of numerical simulation of a
microwave discharge in a mercury-argon low-temperature plasma were obtained.
Figures
2 and 3 show the radial and spatial distributions of the concentrations of
excited mercury atoms. The radial distribution of resonant atoms displays their
concentration depending on the radius and vertical coordinate of the plane. The
spatial distribution of concentration shows the distribution of concentration
throughout the entire volume of the model.
Both
distributions were obtained using the Slice mode in the COMSOL Multiphysics
program, which allowed visualizing selected slices or planes inside the model
for more detailed data analysis.
|
|
Fig. 2. Radial distributions
of concentrations of excited mercury atoms.
|
Fig. 3. Spatial distribution of
concentration in the central plane
𝑧
=
𝐿
/2
In
Figure 2, one can observe the processes associated with photons falling into
the area behind the reflecting obstacle as a result of reabsorption processes.
The use of local cross sections inside the object under study made it possible
to reveal its internal structure and features of parameters in
three-dimensional visualization. The local sections here were planes that
intersect the object at certain points, which contributed to a more detailed
study of the internal components of the object. The result of visualization of
the electron concentration in the discharge is shown in Figure 3, where
ce
=
ne
/
nc. Here
ne
electron
concentration,
nc
= 7·1010
cm-3
-
peak concentration.
To more vividly
illustrate the influence of the non-uniformity of absorbing atoms (in this case,
neutrals) on the distribution of emitting (in this case, resonant) particles,
let's analyze the Green's functions. These functions allow us to find the
solution to the transport equation in the form:
.
|
(22)
|
The dependences for homogeneous and inhomogeneous plasma obtained using
MATLAB are shown in Figure 4.

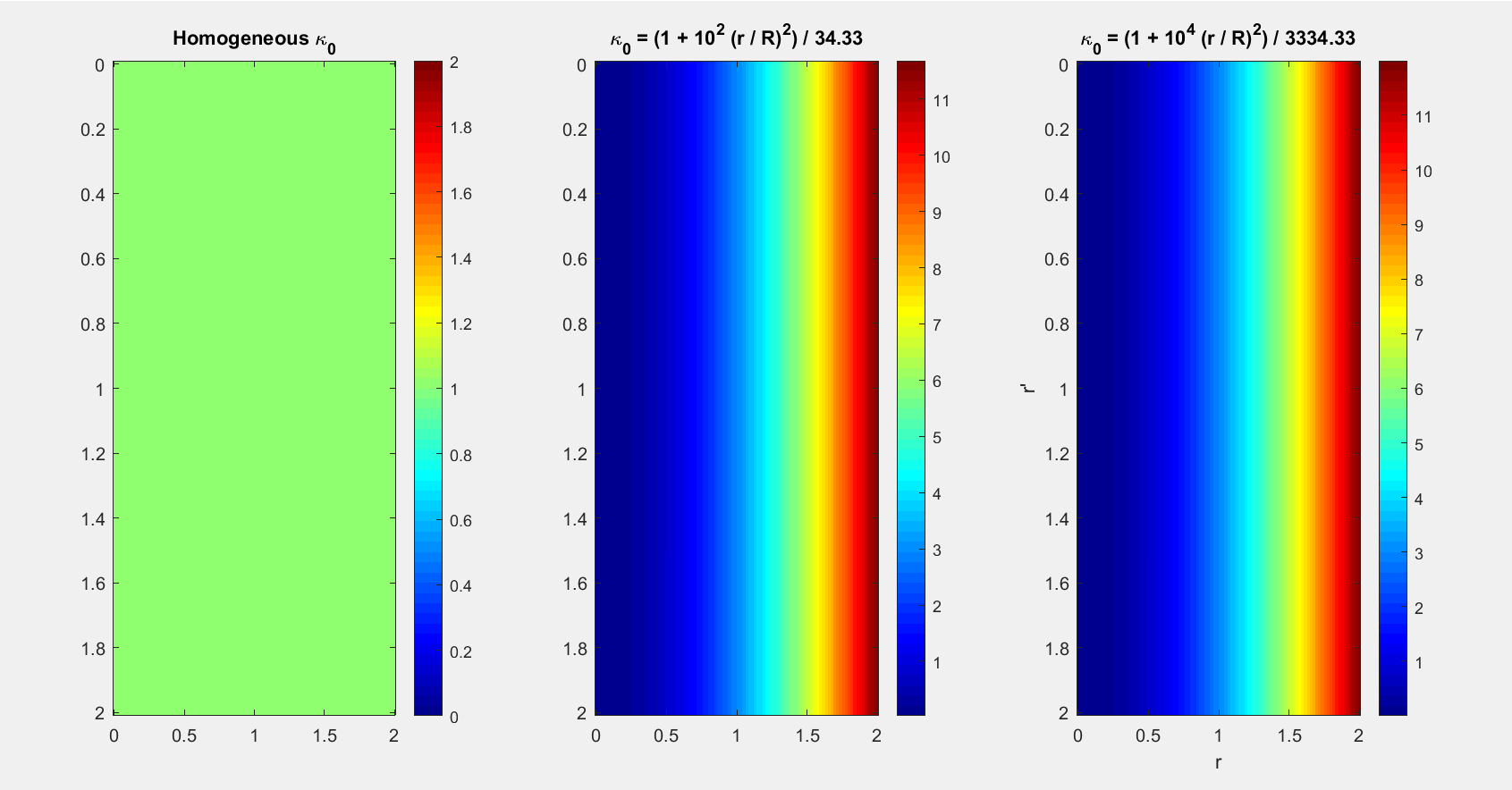

Fig. 4.
Green's functions of the radiation transfer
operator for homogeneous (1) and inhomogeneous absorption at
𝜅0(𝑟)
= 102
(𝑟
/
𝑅)2
/33.34 (2) &
𝜅0
(𝑟)
= 104
(𝑟
/
𝑅)2
/3334.33 (3).
In particular, it
is easy to prove that in an optically homogeneous plasma, in which the contour
function of the spectral line
𝑃
(ν)
does not depend on the coordinate, the symmetry condition
is satisfied.
These functions
allow for a more detailed exploration of the spectral characteristics of
radiation and its spatial distribution.
Now, let's assess
the change in gas temperature along the discharge cross-section. To do this, we
will consider the heat conduction equation in a steady-state, taking into
account that elastic collisions with argon and mercury atoms have a significant
impact on the heating process of gas atoms and the establishment of the radial
temperature profile
T:
,
|
(23)
|
where
coefficient of thermal
conductivity of a mixture of gases,
the power transmitted to argon and mercury atoms by
electrons per unit volume of plasma. The boundary conditions for (23) are
written as follows:
,
|
(24)
|
and
&
:
,
|
(25)
|
.
|
(26)
|
Since
the process of forming the radial distribution of gas temperature is caused by
elastic collisions of electrons with mercury and argon atoms, the Maxwell
function can be taken as the electron velocity distribution function (EVDF)
:
.
|
(27)
|
As
it is convenient here to take the Bessel distribution with
zero on the wall of the bulb:
.
Figure
5 shows the calculated gas temperature distributions for three pressures (0.1,
0.5 and 1 Torr).

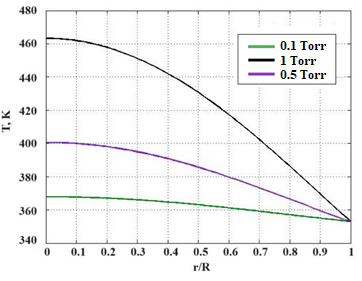

Fig.
5.
Radial
temperature distributions in a mercury-argon discharge
To
determine the distribution of the electric field in a discharge, various
experimental methods are commonly used in practice, such as microwave
spectroscopy [14] or the use of electrostatic probes [15]. However, these
methods require expensive equipment and high-precision measuring instruments.
This problem has been addressed by combining the use of the Comsol Multiphysics
software and a specialized algorithm developed in Matlab.

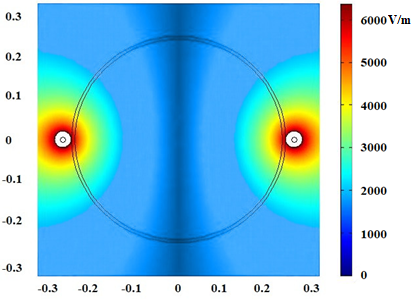

Fig. 6. Spatial distribution of the
electric field intensity modulus.
From Figure 6, it
can be seen that the electric field intensity reaches its maximum at the tube
walls and then rapidly decreases as it propagates through the plasma
cross-section. At the same time, the maximum volume power density is observed
slightly closer to the center of the tube due to the low electron concentration
at the walls. When changing the collision frequency in the plasma due to
variations in dielectric permittivity, only minor changes are observed in the
distribution of the electric field. The electric field periodically oscillates
along the axial direction, but in the radial direction, it remains close to a
uniform distribution. This is important for analyzing the behavior of the
parameter S11 at different plasma frequencies. S11 represents the reflection
coefficient of the microwave wave from the device input and is determined as
the ratio of the complex amplitude of the reflected wave to the complex
amplitude of the incident wave (see Figure 7).

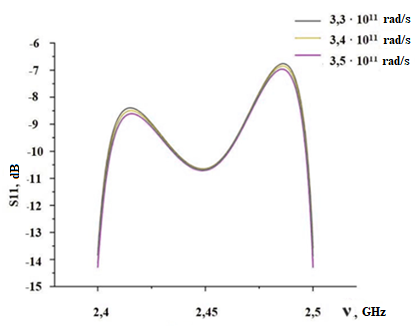

Fig. 7.
Distribution of S11 at different plasma frequencies
If the reflection coefficient (S11) is
below -10 dB, as shown in Figure 7, it indicates a low level of reflected
power, which is a measure of efficiency. When the reflected power remains
consistently low and hardly changes with varying plasma frequencies, it
suggests that the considered structure is adapted to work with different
radiation sources. Thus, maintaining a low value of S11 regardless of the
plasma frequency is an important condition for the effective operation of this
device.
Figure 8 presents the dependence of the
reflection coefficient S11 on the parameter Wh, which represents the
width of all resonator slits, at a frequency of 2.45 GHz. At different values
of slit width, the microwave system reaches resonance at the operating frequency,
and accordingly, S11 increases with increasing values of Wh
. When Wh
is equal to 17 mm, S11 exceeds -10 dB, indicating that acceptable S11 values
are achieved only with slit widths ranging from 9 to 16 mm. These slits
facilitate the coupling of microwave energy as they restrict the discharge
current and transfer microwave energy from the source along all the slits. The
geometric arrangement of the slits also affects the amount of output optical
radiation energy. Based on the above, the optimal value of the parameter Wh
was chosen to be 16 mm. In this case, S11 is -10.13 dB, and the absorption
efficiency reaches 92%.

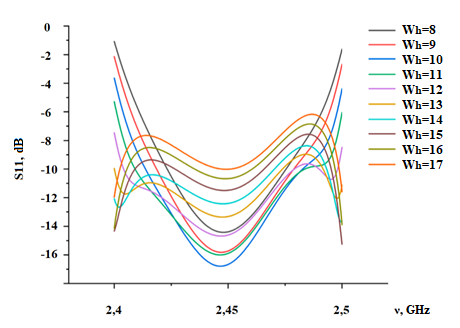

Fig. 8. Comparison of S11
values when changing parameter Wh.
As a
result, visualization of the obtained simulation data allowed adjustments in
the design of the optical radiation source considered in the work, which led to
an increase in the efficiency of the system by 8% compared to [16]. The drawing
of the developed radiator model is shown in Figure 9.
Fig. 9. Drawing of an electrodeless
microwave optical radiation source. 1 cylindrical optical radiation source; 2
coaxial path; 3 central conductor of the path; 4 outer conductor of the
path with transverse microwave emitting slots; 5 - magnetron output device; 6
microwave transparent cover; 7 removable microwave screen; 8 plug.
According to
Figure 9, the cylindrical resonator consists of a quartz tube with a length of
200 mm, an inner diameter of 8 mm, and an outer diameter of 12 mm. Inside the
tube, there is argon at a pressure of pAr
= 0.75 Torr and mercury at
pHg
≈ 0.05 Torr. The resonator includes a quartz tube that
passes through its axis of symmetry. It's worth noting that the external part
of this tube, extending beyond the resonator, has the same length. Around the
upper and lower metal plates of the resonator, there is a cylinder of larger
diameter that encircles the quartz tube.
The TEM wave
source is represented by a magnetron operating at a frequency of 2.45 GHz and
is positioned on top of the waveguide in such a way that its lower
cross-section is located on the upper plate of the cylindrical resonator.
Additionally, the central coaxial electrode is introduced into the resonant
cavity, with its end positioned in the middle between the upper and lower plates
of the resonator. The quartz tuning rod is in a horizontal plane and is
introduced into the resonator through the lateral wall.
Thus, the main
parameters of the developed source are presented in Table 2.
Table 2 Source
parameters used in modeling
Parameter
|
Physical
meaning
|
Value
|
Wh
|
Width of all slots
|
16 mm
|
Φ
|
The central angle of all
metal grooves
|
315◦
|
D
|
Outer diameter of the
inner conductor of the coaxial radiator
|
8 mm
|
d
|
Inner diameter of the
outer conductor of the coaxial radiator
|
12 mm
|
L
|
Total length of the
coaxial radiator
|
200 mm
|
11
|
The distance from the
center of the first slot to the short circuit surface
|
15 mm
|
l2
|
The distance between
adjacent metal centers with slots
|
18 mm
|
๐
Ar
|
Argon operating pressure
|
0,75 Torr
|
pHg
|
Mercury
operat
ing pressure
|
0,05 Torr
|
Pinput
|
Input power
|
687 W
|
ν
|
Microwave frequency
|
2,45 GHz
|
A
photo of the source in working condition is shown in Figure 10.
Fig.10.
Photo of a gas-discharge
optical radiation source in working condition
Therefore, the development of software-hardware
complexes aimed at data visualization and improving information representation
in the context of modeling low-temperature gas discharge plasma and related
physical processes remains a highly important and relevant aspect in this
research field. Software solutions and specialized tools designed for this
direction play a crucial role in aiding the understanding and improvement of
various aspects of gas discharge phenomena.
Addressing the issues of creating specialized
distributed environments for simulating gas discharge opens up prospects for
more accurate and reliable numerical calculations. This, in turn, can have
practical applications in the development of new technologies, such as gas
discharge optical radiation sources.
The use of computer graphics for data visualization
allows researchers to delve more deeply into the modeling and analysis of
results. It enables the identification of not only general patterns but also
details of the internal structure and parameter distribution within the
discharge medium.
The visualization results of the mercury-argon plasma
model in the coaxial microwave discharge presented in this work make a
significant contribution to the understanding of this physical phenomenon. Local
sections of the computational domain allowed for a more detailed investigation
of the internal aspects of the plasma, which can be valuable in the development
of new devices and optical radiation sources. Based on the modeling conducted
in this work, the design of a coaxial gas discharge optical radiation source
has been developed.
1.
Gadzhiev M.H., Emirov
R.M., Muslimov A.E., Ismailov M.G., Kanevsky V.M. Formation of superhard
coatings during treatment of titanium films with low-temperature nitrogen
plasma in an open atmosphere / Letters to the Journal of Technical Physics.
2021. Vol. 47, No. 9. pp. 44-47.
2.
Ermolaeva S.A., Petrov
O.F., Miller G.G., Shaginyan I.A., Naroditsky B.S., Sysolyatina E.V., Mukhachev
A.Ya., Morfill G.E., Fortov V.E., Grigoriev A.I., Ginzburg A.L. Prospects the
use of low-temperature gas plasma as an antimicrobial agent / Bulletin of the
Russian Academy of Medical Sciences. 2011. No. 10. pp. 15-21.
3.
Lazukin A.V., Ermakov
A.M., Afanasyeva V.A. Development of a low-temperature gas plasma generator for
medical use and the prospect of its use as an effective sterilizer and
activator of wound healing in field and stationary conditions in the medical
service of the Russian Army / Izvestiya Institute of Engineering Physics.
2021. น 3(61). Pp. 91-93.
4.
Maslennikov O.P.,
Milman I.E., Safiullin A.E. , Bondarev A.E., Nizametdinov Sh.U., Pilyugin V.V.
Development of a system of interactive visual analysis of multidimensional data
/ Scientific visualization. 2014. No. 4. pp. 30-49.
5.
Bondarev A.E.,
Galaktionov V.A. Analysis of multidimensional data in multiparametric
optimization problems using visualization methods / Scientific Visualization.
Vol.4, No. 2, pp.1-13, 2012
6.
Zheleznov I.I., Popov
O.A. Investigation of the radiative and spectral characteristics of UV
radiation sources based on coaxial microwave discharges in low-pressure mercury
vapor // Vestnik of the MPEI. 2023. No. 2. pp. 137-143.
7.
Kalyazin Yu.F., Kokinov
A.M., Malkov M.A.. Mathematical model for calculating the characteristics of a
low-pressure mercury-gas discharge // "Lighting Engineering", 2003,
No. 2, pp. 2-5.
8.
Radzig A.A., Smirnov
B.M. Parameters of atoms and atomic ions, handbook // Moscow: Energoatomizdat,
1986.
9.
Rokhlin G.N. Discharge
light sources // M. Energoatomizdat. 1991. 720c.
10.
R. Reed, J. Prausnitz,
T. Sherwood. Properties of gases and liquids // L.: Khimiya, 1982, 592s.
11.
Maimistov A.I., Lyashko
E.I. Modified Drude-Lorentz model, allowing to take into account the
topological characteristics of the medium // Optics and spectroscopy. 2019.
Vol. 127. No. 11. pp. 804-810.
12.
Lebedev Yu.A., Yusupova
E.V. The effect of a constant field on the near-surface plasma of a highly
inhomogeneous microwave discharge. Plasma physics. 2012. Vol. 38. No. 8. pp.
677-693.
13.
COMSOL 3.5a
http://www.comsol.com
14.
Moustafaev, J. Project
Scope Management: A Practical Guide to Requirements for Engineering, Product,
Construction, IT and Enterprise Projects (1st ed.). Auerbach Publications. (2014).
https://doi.org/10.1201/b17797
15.
Demidov V.I., Kolokolov
N.B., Kudryavtsev A.A. Probe methods of low-temperature plasma research. M.
Energoatomizdat. 1996.
16.
Zheleznov I. I., Popov
O. A. Electrodeless source of UV radiation based on low pressure microwave
mercury discharge // Light & Engineering. 2023. Vol. 31, No. 3. P. 36-42.
