Citation: Pavel Vasev, Sergey Porshnev, Majid Forghani, Dmitry Manakov, Mikhail Bakhterev, Ilya Starodubtsev. An Experience of Using Cinemascience Format for 3D Scientific Visualization (2021). Scientific Visualization 13.4: 127 - 143, DOI: 10.26583/sv.13.4.10
To visualize any new entity, a visualization algorithm should be designed and programmed. Investigating approaches for programming new scientific visualizations, we come with the following technique: utilize CinemaScience format to describe 3D scenes. CinemaScience is developed for storing and visualizing supercomputer and physical modelling results, and differs with simplicity both for human and machine. It has a set of interesting features, for example it allows to specify dynamics in views dependent on parameters. However, the technique currently known applications are 2D graphics, and in this paper we extend it for 3D case. The main feature of the approach is treating of Cinema artifacts as visual objects of explicit type. We successfully used the suggested approach in various visualization tasks, examples are presented in the paper. We developed the open-source web application that implements the suggested approach. It is open-source and its main features are also described in the paper.
Keywords: scientific visualization, declarative visualization, 3d visualization, cinemascience.
Scientific visualization is a valuable
part of
the
modeling pipeline,
that
allows
researchers
perceiving
computation
results. Sometimes existing visualization methods are
insufficient, especially
if a novel research is performed. In that case, a new visualization should be
created.
To
construct a new visualization, a developer has to perform various steps
[1],
including:
1.
Design a view, which implies specification of visual objects,
their attributes, their placement; scene dynamics, if any; and user
interaction.
2.
Design a mapping between investigated entities (processes,
objects, phenomenons) and the view.
The designing of a
visualization is a very creative process.
However,
its
implementation is very time-consuming. Visualization systems suggest a solution
for that problem in the form of visual languages, e.g. GUI, for implementing
visualizations. In addition, such systems offer scripting and/or API for the
same purpose. Also, specialized languages are developed.
As an example of
using GUI for visualization implementation we point out
Kepler.gl.
This is a specialized
geospatial visualization system. It provides visual language that allows
importing data, constructing a view as a combination of basic views, and
connecting structural parts of imported data with the view’s inputs.
Another example, a
set of systems like ParaView, Visit, 3dMax, and Blender, provide both visual
language (in the form of GUI with menus, buttons, and other graphical elements)
and scripting. Besides, platforms like Unity, Unreal, Roblox,
Xclu.dev,and
Viewzavr(which is based on ideas of our team), belong to this
group.
There are systems
that use special models for visualization programming. For example
KNIME platform(uses data flow
diagrams for defining scientific visualization pipelines) and
SciVi platform(uses ontologies for
declaring visual objects and semantic filters of data, see
[2]).
Moreover, there exist
specialized programming languages as Vega, A-Frame, and frameworks like Plotly,
which allow creating visualizations primarily by scripting.
Finally, various 3D
graphical formats like OBJ, STL, VRML, GLTF, so on have been developed with
application for describing static scenes or scenes with limited dynamics.
Our contribution.
We introduce
a method of constructing 3D visualizations of some class.
It allows to easily describe a set of 3D visual objects and configure a kind of
scene dynamics and user interaction. The approach uses the CinemaScience format
with extra semantics. As a result, with relatively small efforts an interactive
3D visualizations might be achieved.
CinemaScience is a modern format
developed to store massive data sets. In this format, data is stored in a
directory called the Cinema database. This directory should contain an index
information file named data.csv in the CSV text format. This file contains a
table with columns for parameters and columns for data artifacts. Artifacts can
be images, grids, CSV files; i.e., any type of data that can be written to
disk. Thus this table defines a mapping between parameters and artifacts. The
interpretation of these mapping is free and determined by the scope of an
application which uses the format
[3],
[4].
Here is an example of a data.csv file (spaces between values are
not necessary):
alfa,
beta,
FILE_image
0,
0,
0,
1,
1,
0,
This file describes a
dataset which consist of two parameters,
alfa
and
beta, and a one
artifact. The semantics of this
definition may be different; for example, the application may allow users to
select ranges of parameters and show images that correspond to the selected
subset.
We
specialize CinemaScience for programming 3D visualizations by the following.
Artifacts
may be 3D visual objects. Thus a list of artifacts in a data.csv file specifies
a list of visual objects. All these objects are displayed in a common 3D space.
The type of particular visual object is determined by artifact name, in second
underscores-surrounded word. For example,
”FILE_points_atoms”
artifact name specifies
“points”
object
type.
The list of supported
types is considered extensible. Our practice required us to implement points,
lines (segments), triangles, quads, spheres, vrml (for VRML files), obj (for
OBJ files), vtkpoints (for VTK files), gltf (for GLTF files). Currently, the
type strictly determines not only the visual object look and behavior, but also
the data format of its input files.
In figure
1,
images for the influenza virus
hemagglutinin are presented. These are generated by 3D scene computed by our
team
[5]
from the data
obtained from
[6].

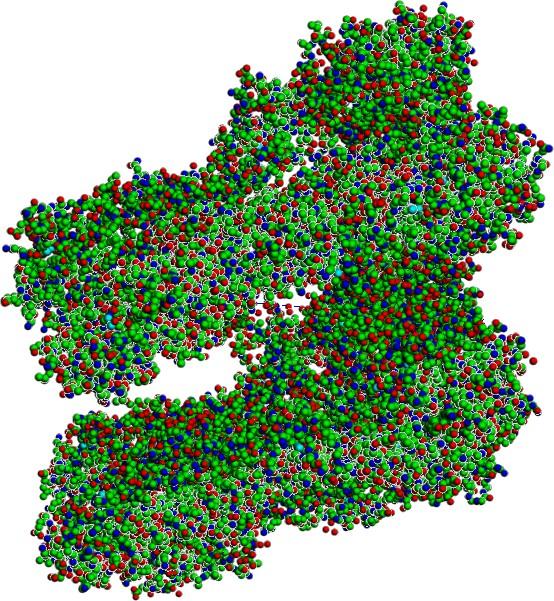

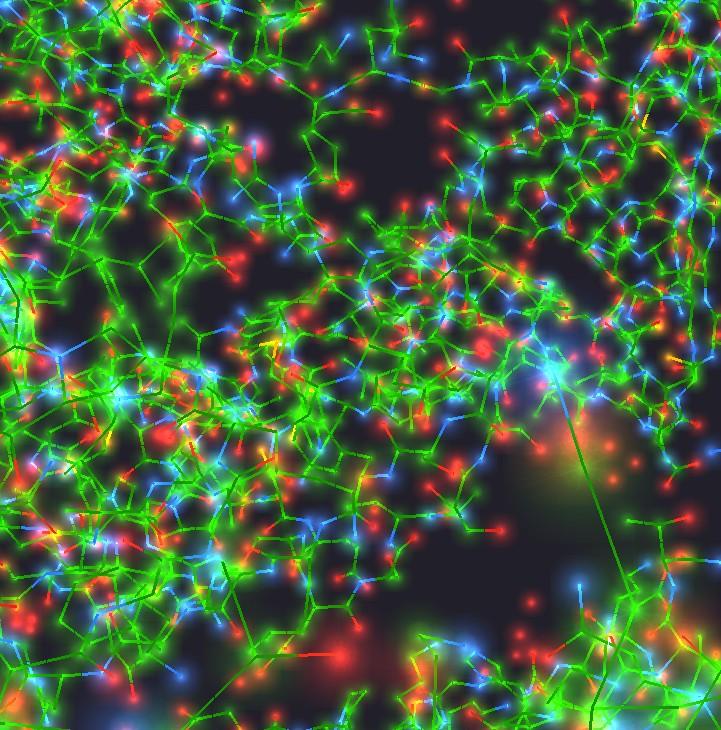

Figure 1:
Influenza virus
hemagglutinin 3D scene. The visualization task is to show specific atoms and
their connections, which is used for modeling the viral evolution. All
positions and colors are precomputed and saved in files. Atoms and their
connections are depicted with points and lines. The view configuration of the
scene is provided in CinemaScience format using the approach discussed in the
paper. Camera position and rendering settings can interactively be configured
by a user. On the left image, an overall picture is shown. On the right image a
camera is zoomed inside.
The visualization
program for this scene is the following ”code” placed in a data.csv file:
T,
FILE_points_atoms,
FILE_lines_connections
0,
w-coords.csv,
w-lines.csv
1,
w-coords-t1.csv,
w-lines.csv
2,
w-coords-t2.csv,
w-lines.csv
Here, one parameter (T) and two artifacts (FILE_points_atoms,
FILE_lines_connections) are defined.
The parameter
T
represents the time. However, it is indifferent on the
CinemaScience level because it operates parameter names just as identifiers.
But the interpretation of artifact names is different.
For the first
artifact,
FILE_points_atoms, the
points
type is specified (by its name); that means loading and
visualizing 3D points, coordinates, and colors for which are specified in
artifact file. In the current scene it is used to depict atoms. For the second
artifact, the
lines
type is specified; it is used in the scene to depict connections
between atoms.
For each parameter
column, a graphical control is generated by the program (slider for numeric
parameter and combobox for string parameter). A user manipulates these controls
and thus specifies the combination of parameter values. This determines the
current line in a data.csv file and thus a set of input files corresponding to
visual objects.
In the scene above,
there is the parameter
T. A user is able to select a value of
T
using slider graphical control
and observe visual change in the scene. For example, by selecting
T=1
the file
w-coords-t1.csv
is displayed, whereas
for T=2 the file
w-coords-t2.csv
is displayed, both together with
w-lines.csv.
Let us consider
a
requirement to
draw
point cloud, e.g. a set of points in 3D space.
Additionally, let this point cloud changes according to some parameter
theta
(it may have the meaning of time
or any other meaning). Let the following dynamics in a scene be required: when
a user selects
theta
value, a point cloud corresponding to that value should be
displayed.
The
solution using the suggested approach is as follows:
1.
Put
coordinates of points in a series of files, each file corresponding to some
particular
theta
value. An example list of such files is shown in
the Table
1a.
2.
Each file should contain points coordinates in CSV format. An
example content of such file is shown in the Table
1b.
Each data line in it represents
some point of the point cloud.
3.
Create
a Cinema database file
data.csv
with following
content, Table
1c.
Table 1: The solution of the stated
visualization task.
pts_1.csv
X,
Y,
Z
theta,
FILE_points_p
pts_2.csv
0,
0,
0
0.1,
pts_1.csv
pts_3.csv
0,
0,
1
0.2,
pts_2.csv
…
pts_10000.csv
2,
1,
…
0.15
…
1000,
…
pts_10000.csv
(a) List of data
files
(b) Example data file content
(c) Content of
data.csv file
Thus
we defined:
1.
A list of data files, each containing coordinates of some point
cloud instance (in
pts_*.csv
files). Each
one is allowed to have its own amount of points.
2.
A
list of visual objects in a scene (artifact
FILE_points_p)
and their types (points).
3.
A list of parameters in a scene (theta).
4.
A relation between parameter values and input files for visual
objects.
This information is
sufficient
for
the required drawing.
Currently, our approach has a builtin algorithm that implements the required
dynamics of a scene, as described in section 2.3. Parameter
theta
will be shown as graphical
element. When a user will change value of that parameter, a related file with
point cloud will be loaded by visual object and presented on a screen.
In N. N. Krasovskii
Institute of Mathematics and Mechanics, V. S. Patsko’s working group performs
long-term research on Dubins car model
[7], [8].
This model is widely used to
describe various motions: an airplane in a horizontal plane, a car, etc.
The approach
suggested in this paper (of using CinemaScience for 3D scenes) was practically
born in response to visualization required by that research. An example
resulting image is presented in Figure
2.

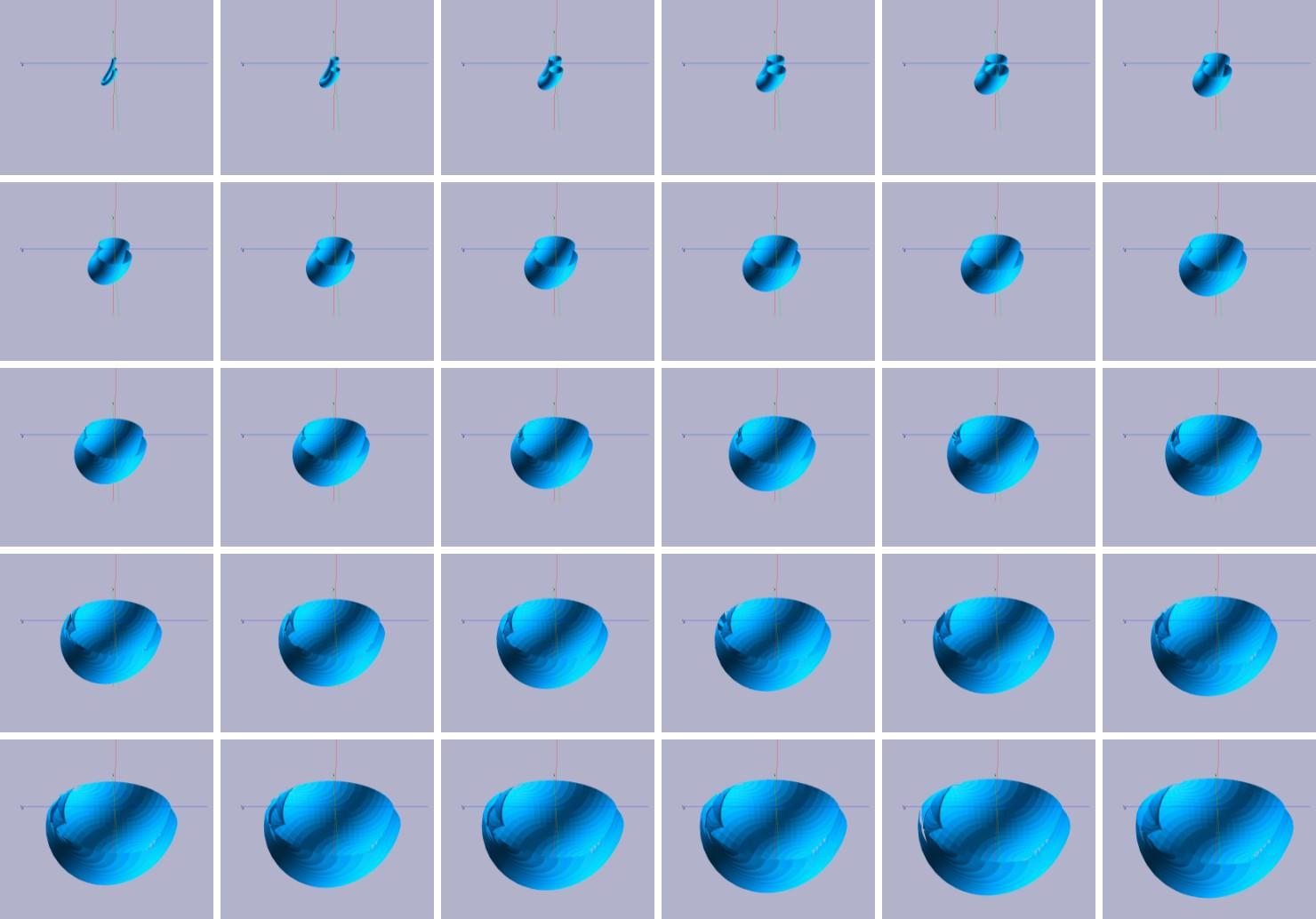

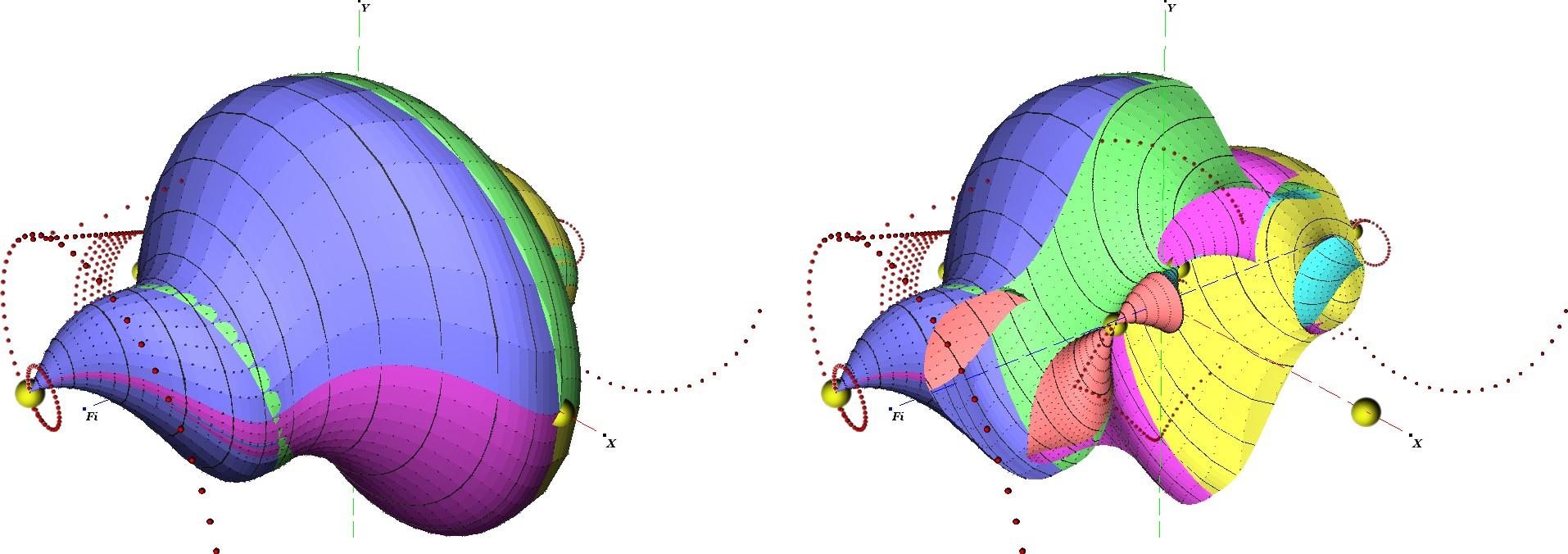

Figure 2:
A reachable set of
Dubins car at instant. The set is represented by its boundary and shown as a
colored surface. A user might specify current instant T and the appropriate set
is loaded and displayed. In addition, some extreme motions of interest are
shown by red dots. Yellow dots represent points of that extreme motions which
correspond to the current instant T. The right image represents the same
reachable set with clip X filter applied. Details of this study are covered in
[9].
For
this figure, a scene data.csv file has the following content:
T,
FILE_vrml_rset,
FILE_treki_all,
FILE_treki_currentT
1.00,
Symm-20.vrml,
treki.csv,
pts_1.00.treki.csv
1.05,
Symm-21.vrml,
treki.csv,
pts_1.05.treki.csv
1.10,
Symm-22.vrml,
treki.csv,
…
pts_1.10.treki.csv
4.00,
Symm-80.vrml,
treki.csv,
pts_4.00.treki.csv
The
file contains the
parameter
T
that
denotes time instant and three visual objects. The first
one represents the reachable set surface; it is of type
vrml
which corresponds to VRML file
format. The latter two of type
treki, and this type was created especially for the current task.
It was necessary to
show a set of points which denotes some extreme motions, e.g., tracks,
interesting to a mathematician. Additionally, it was necessary to filter them,
e.g. to show only particular tracks. For that purpose, we used
points
data type implementation and
extended it to load
an
additional column named
N
from
the
input CSV file. A
custom GUI control, which allows specifying values of interesting N, was added,
and data filtering was implemented as a built-in ability of
treki
type. Thus the stated necessity
was achieved.
The visualization
presented in this section required us to develop a lot of visual effects
(filters), applied at the scope of visualization software
(see
[9]).
This visualization is available
online at
https://viewlang.ru/dubins
page and on Video 1.
Video 1: An example of achieved animation of a growing reachable set of Dubins car.
In N. N. Krasovskii
Institute of Mathematics and Mechanics, the problem of the propagation of wave
fronts
Ô
in three-dimensional space is investigated by Dynamic systems
department. The case of a spherical vectogram of velocities of a unit radius
centered at the origin is considered. As the initial set, we consider a parametrically
given curve
Ã:
(1)
The
visualization task here is to show sections of growing wave fronts, see Figure
3.
Figure
3:
The
figure shows 30 sections of wave fronts by the yOz plane (more precisely, the
parts of the fronts located in the half-space x < = 0). The step along the
propagation radius of the wave fronts
Ô
was chosen
h=0.2. The basis for constructing the approximations of the fronts by triangles
was formed by the algorithms proposed in the article
[10].
The surfaces
Ô
have kinks caused by the
presence of a singular set at those points at which waves come from 2 or more
elements of the curve
Ã.
To
visualize this, the data.csv file of following content was created:
n,
FILE_triangles_surf
1,
surface/1.txt
2,
surface/2.txt
3,
surface/3.txt
…
30,
surface/30.txt
That is, we declared
one parameter
n
and one visual object of type
triangles
(FILE_triangles_surf).
The files in subdirectory
surface
(1.txt ... 30.txt) represent sections of wave fronts and have the following form of
content:
X,
Y,
Z,
X2,
Y2,
Z2,
X3,
Y3,
Z3
-1.858,
-0.0137,
0.8582,
-1.8535,
-0.0425,
0.8554,
-1.8332,
-0.0432,
0.8793
-1.858,
-0.0137,
0.8582,
-1.8332,
-0.0432,
…
0.8793,
-1.8376,
-0.0139,
0.8821
These files define
coordinates for triangles that form the surface of given wave front. With
data.csv
they provide enough
information for creating visualization.
Then a
mathematicia
n that
run
s
visualization is able to
choose value of parameter
n
and see section of corresponding wave front.
In this study, the spreading of a
highly viscous incompressible fluid was considered. The Navier-Stokes flow
equation was considered in the form
[11]:
(2)
where
𝜌,
𝑣,
𝜇,
𝑝,
𝑔
is a volumetric mass density, velocity vector, dynamic viscosity,
pressure and gravitational acceleration respectively. It is also assumed that
the viscosity is not a constant but is a function
(3)
where
𝜇𝑖(0)
is an initial viscosity
(constant for all fluids);
𝑙𝑖𝑓𝑒𝑇𝑖𝑚𝑒
𝑖
is the lifetime of a particle after leaving the volcano;
𝑣𝑖𝑠𝑐𝑜𝑆𝑡𝑒𝑝
is the constant responsible for the rate of change in viscosity.
This form of viscosity allows an approximate description of the processes of
change in viscosity associated with the formation of crystals in lava.
Numerical
calculations were carried out using Smoothed particle hydrodynamics (SPH)
methods. More details can be found, for example, in
[12,
13,
14].

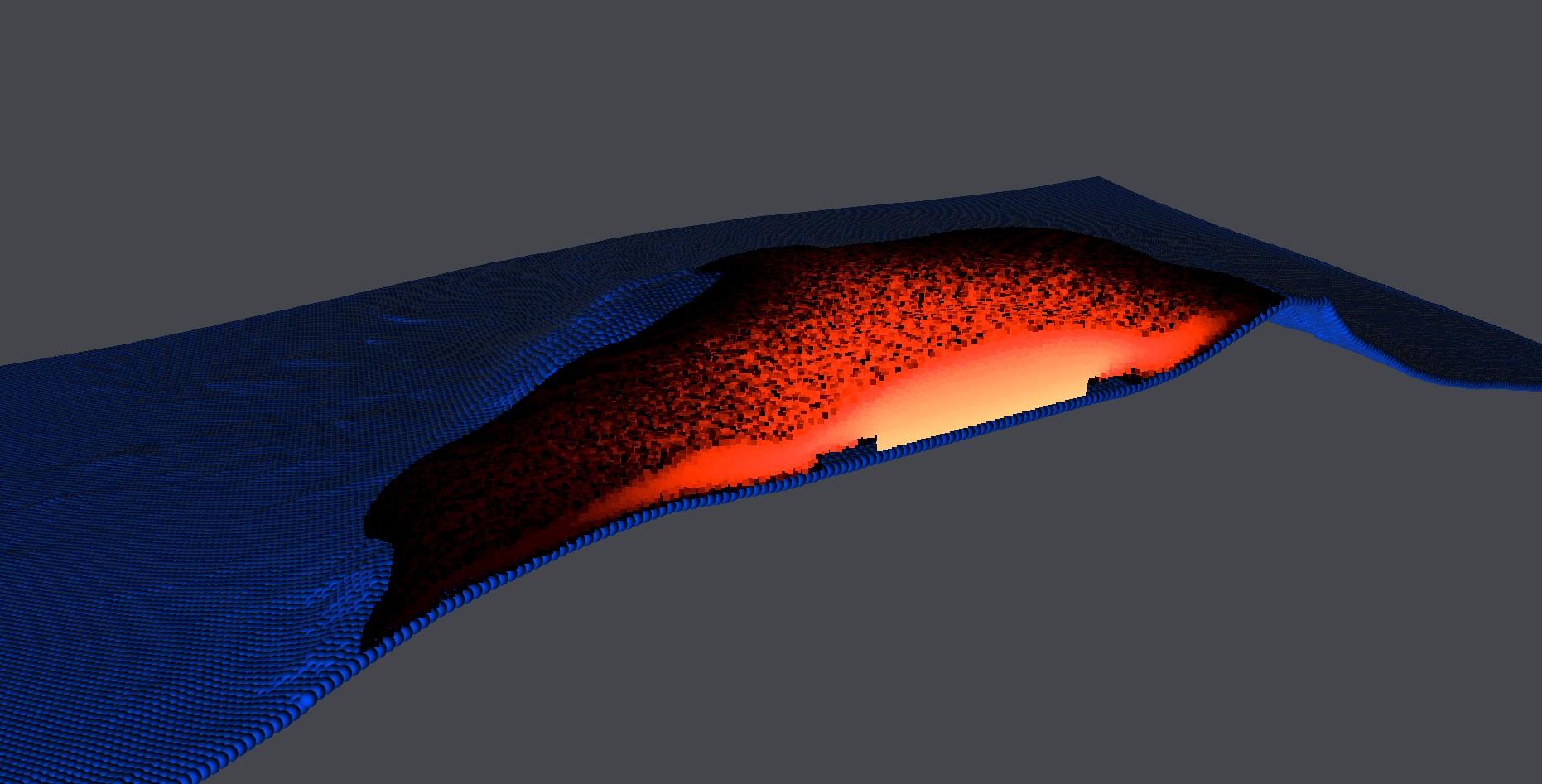

Figure
4shows the results of spreading a
viscous fluid along a slope. Also, in Figure
4the surface of the slope is shown
in the form of particles. This is employed to understand the method of approximating
the boundary conditions
[15].
For a numerical experiment, a volcano surface with a
crater was randomly generated in the
World Machine
package.
Figure
4:
The result of numerical simulation of the
spreading of a viscous fluid along a slope. On the cut, the color indicates the
viscosity of liquid particles, from yellow (low viscosity, 105
𝑃
𝑎
⋅
𝑠)
to black (high viscosity, 3
∗
107
𝑃
𝑎
⋅
𝑠)

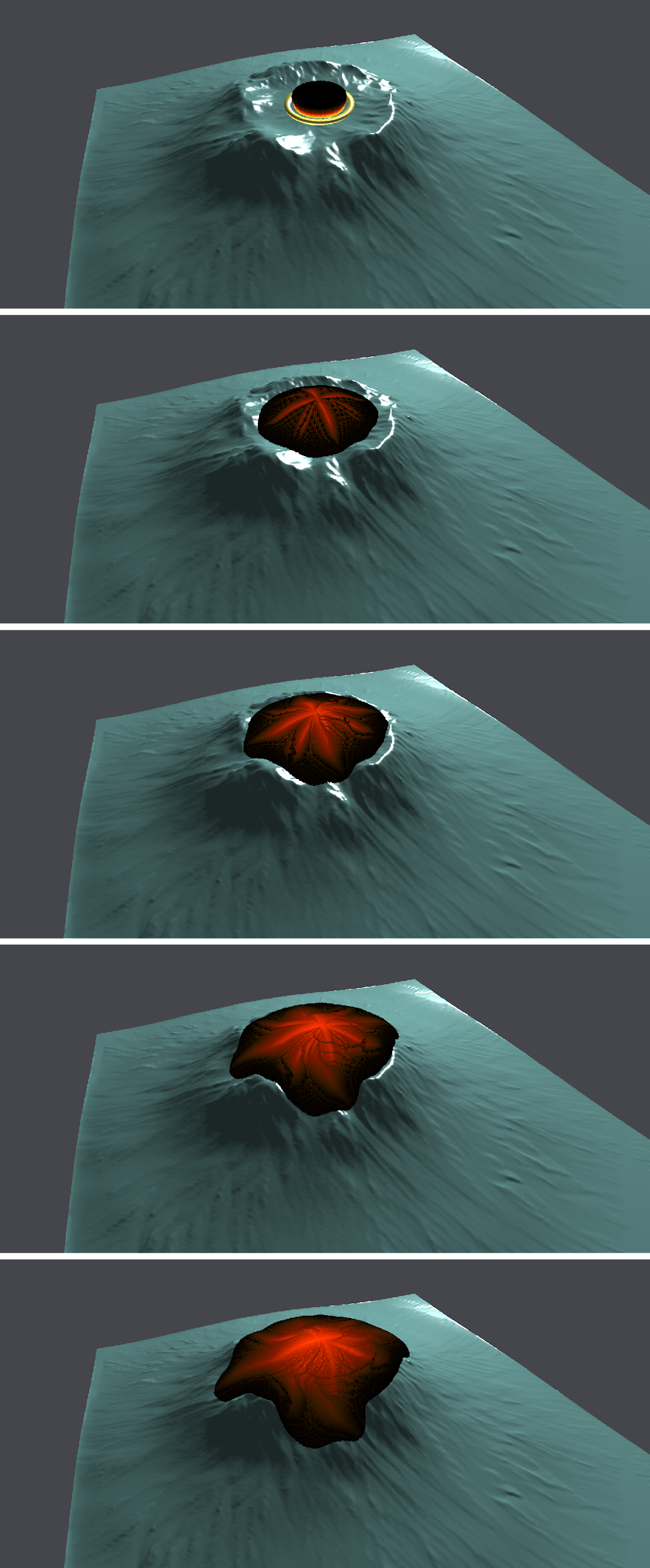

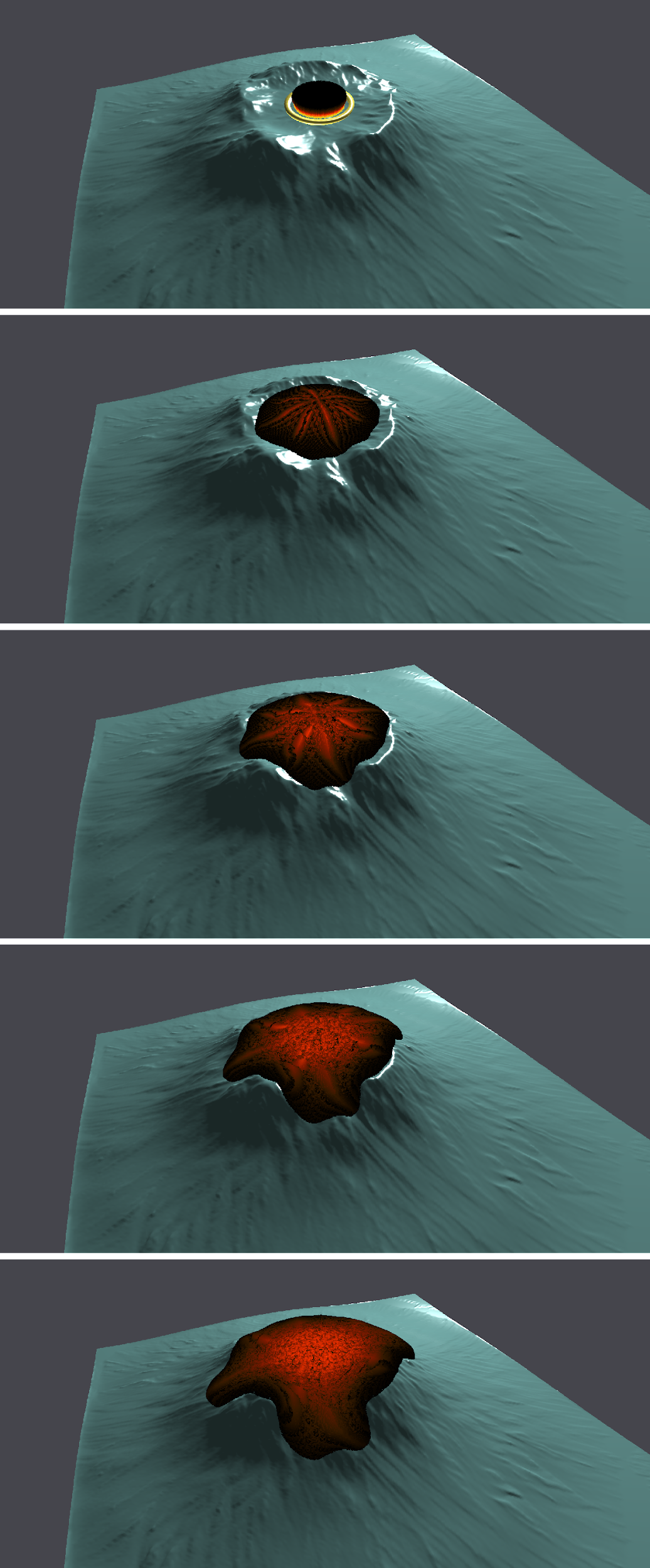

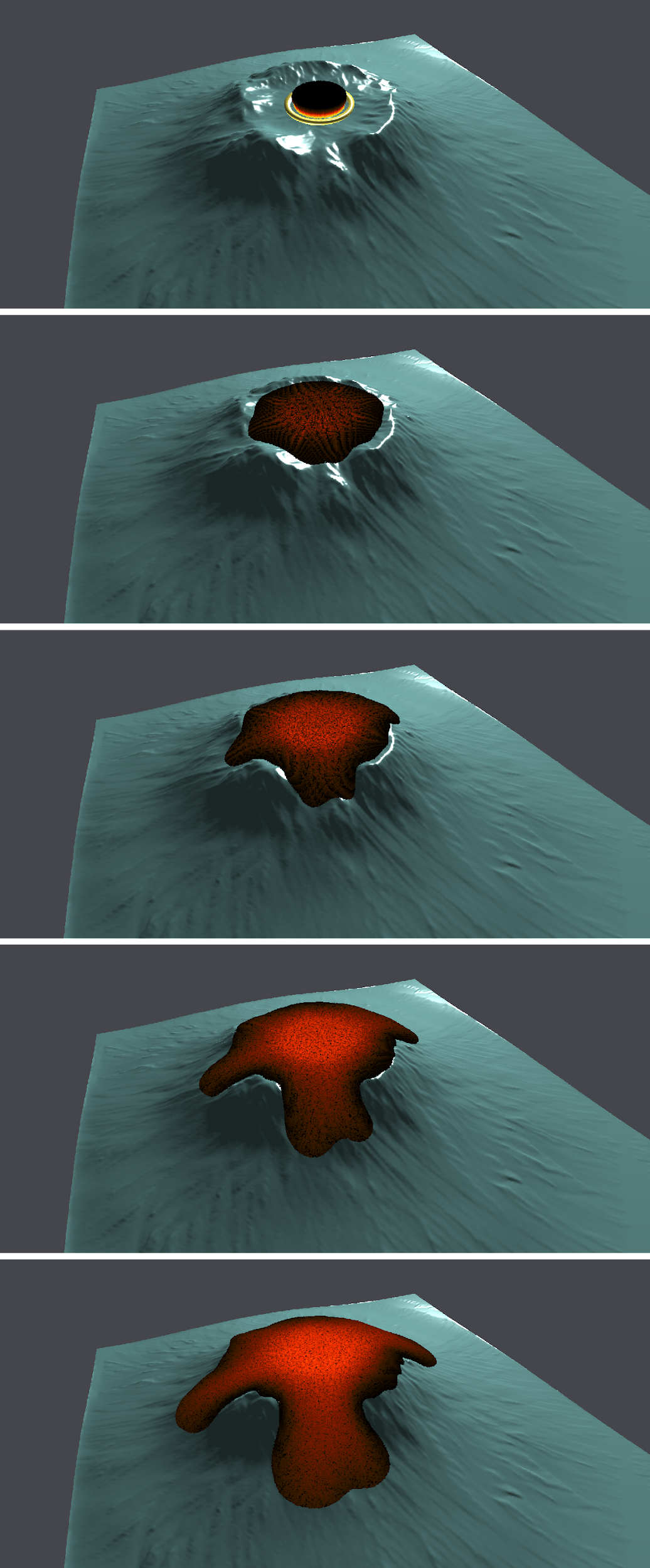

Figure
5shows the dynamics of spreading of
a viscous fluid under various conditions of viscosity change.
(a) 𝑣𝑖𝑠𝑐𝑜𝑆𝑡𝑒𝑝 = 0
(b) 𝑣𝑖𝑠𝑐𝑜𝑆𝑡𝑒𝑝 = 200
(c) 𝑣𝑖𝑠𝑐𝑜𝑆𝑡𝑒𝑝 = 1000
(d) 𝑣𝑖𝑠𝑐𝑜𝑆𝑡𝑒𝑝 = 2000
Figure 5:
Dynamics of spreading of a viscous fluid along a
slope at different rates of viscosity change.
(a)
- there is no change
in viscosity, it corresponds to spreading of a viscous liquid with constant
viscosity.
(b)
- changes in viscosity are equal to half of the initial
viscosity.
(c)
- changes in viscosity per conditional second are equal
to the initial viscosity.
(d)
- changes in viscosity per conditional
second are twice then the initial viscosity.

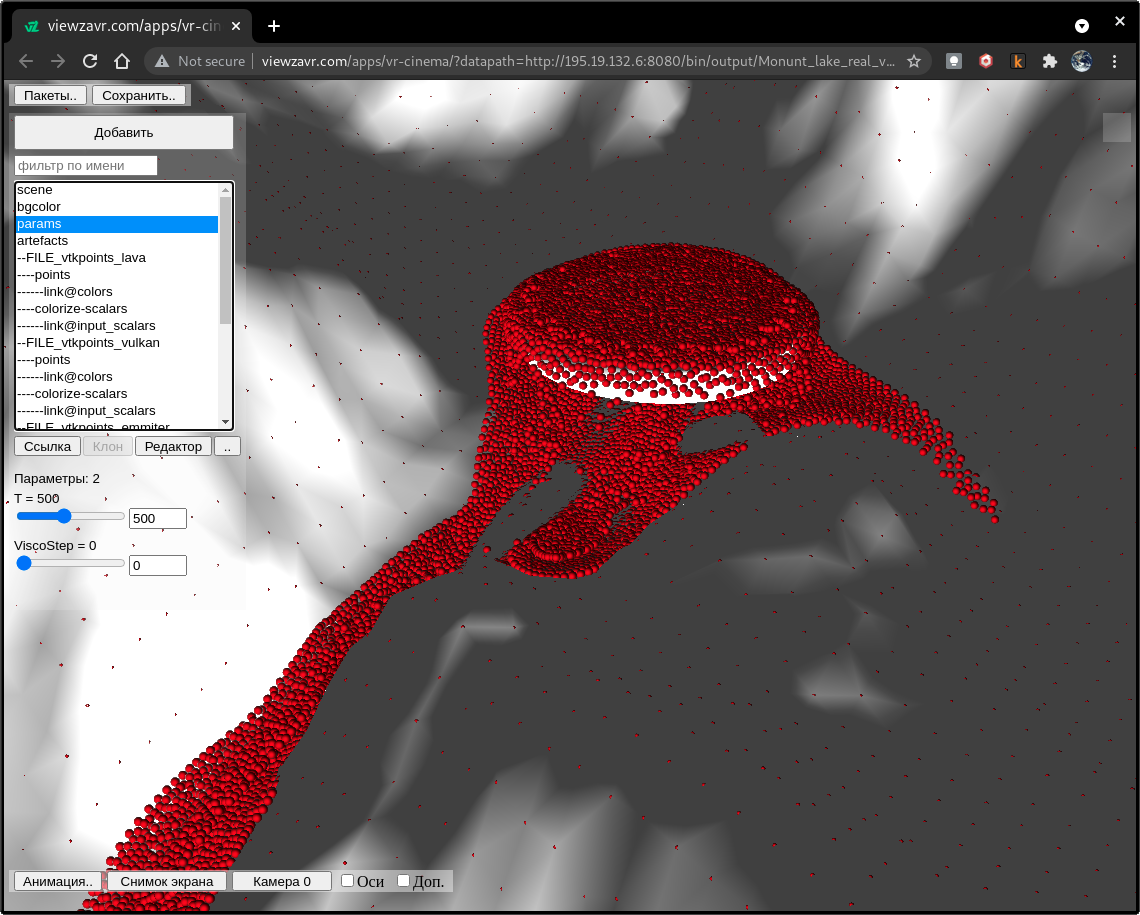

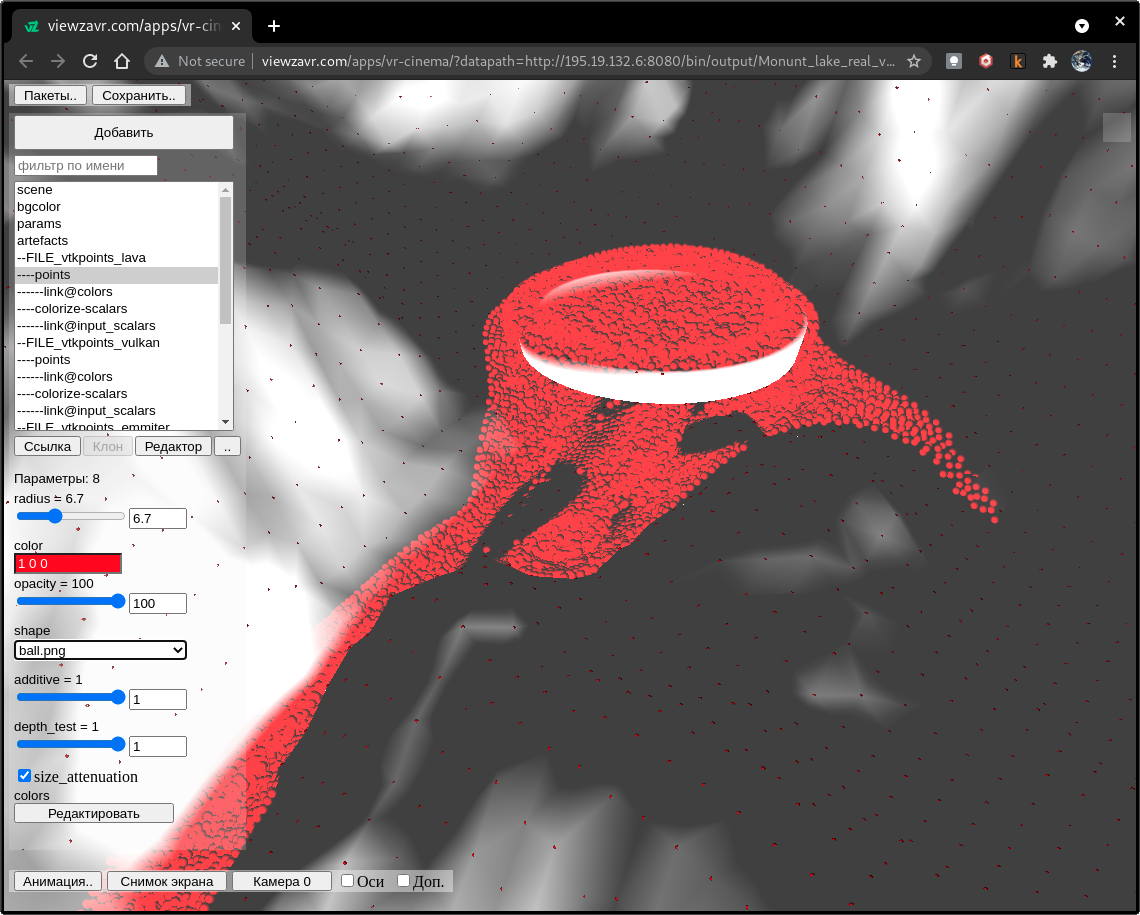

This visualization
was achieved using Cinema database data.csv file of the following content:
T,
4,
ViscoStep,
0,
FILE_vtkpoints_lava,
0/ParticleData_4.vtk,
FILE_obj_vulkan,
vulk.obj,
FILE_obj_emmiter
emit.obj
5,
0,
0/ParticleData_5.vtk,
vulk.obj,
emit.obj
…
4,
1,
200/ParticleData_4.vtk,
vulk.obj,
emit.obj
5,
1,
200/ParticleData_5.vtk,
vulk.obj,
emit.obj
…
4,
2,
1000/ParticleData_4.vtk,
vulk.obj,
emit.obj
…
252,
3,
2000/ParticleData_252.vtk,
vulk.obj,
emit.obj
Let’s denote
interesting parts in contrast to the example presented in the previous section:
1.
There are two parameters defined,
T
and
ViscoStep.
While the first one is a time, the second one is the computational parameter
representing viscosity changes. Graphical controls will be displayed in GUI for
both parameters. Their values, selected by a user, will determine current input
files for visual objects. Thus a user might move his focus among
T
or
among
ViscoStep. This gives a researcher the opportunity to view results
of numerical simulation with different parameters at the same modeling time.
2.
There
are three visual objects defined,
FILE_vtkpoints_lava,
FILE_obj_vulkan
and
FILE_obj_emitter. The first one have type ”vtkpoints”, and the
latter two have type ”obj”.
3.
The vtkpoints type corresponds to VTK file format whereas the
loader of that type was implemented especially for the visualization task being
described and now made publicly available. The obj type corresponds to the OBJ
file format. It was implemented earlier in another project.
The
total size of data files (e.g. all vtk and obj files) of the scene presented in
Figure 5 is about 4.3 Gb. Because it is only a subset of files corresponding to
current parameters values are required at any given moment, we successfully
performed visualization of this and similar scenes on
a
laptop
with average
performance characteristics.
We see that the
presented approach of using CinemaScience for 3D scenes is just a way to
program; it is a programming language with semantics built for the description
of relations between entities in a dynamic visual scene.
This semantics
reflects the following. A Cinema database defines a list of parameters and
separately their associated values, a list of artifacts, and a relation between
parameters values and artifacts. The specified relation is further interpreted
by some algorithm built into visualization software. In our approach, as stated
in section 2.3, it is about choosing
a
vector of artifact values. There might be
other algorithms. For example,
the
CinemaScience authors use,
apart
from
the presented one, an algorithm based on
multiple artifact values specified by parameter range restrictions using
parallel coordinates
[16].
Also, as demonstrated
in
[17],
this relation might be considered in a wider sense as a
relation of parameter values with particular attributes of artifacts. For
example it is possible to specify those attributes by columns like
FILE_obj_vulkan.rotateY
where
attribute name
rotateY
is encoded after a dot.
In
[18]
it is stated that the
expressiveness of a programming language is based on three elements:
1.
Primitive expressions;
2.
Means
of combination;
3.
Means of abstraction.
One of the
important
questions
in this research
is how
far the suggested approach is able to move towards expressiveness according to
that statement. In the current case, the primitive expressions are artifacts
(and probably their relations with parameters). Then, they might be combined by
listing them in a Cinema database. And finally, a Cinema database,
theoretically, might be used itself as an artifact in other Cinema databases,
which resembles some form of abstraction. E.g. one may use them by denoting in
a common-like
FILE_somecinemadb_item.
This is the subject for future research.
The modern
development of high-performance computing opens up a number of new
possibilities for solving mathematical modeling problems, including large-scale
parametric research and optimization analysis problems solving
[19].
Firstly, one can consider these
problems from the point of view of multi-criteria optimization for the solution
of which, along with the lexicographic method or the weighted sum method, an
interactive approach one can apply. Secondly, visual analytics solutions
provide technology that combines the strengths of human and electronic data
processing
[20].
Thus,
it is convenient and justified to use the
interactive visualization
in
high-performance computing
area, including
application for
optimization
analysis problems
solving.
In the
considered in this work case of
the
use
of
visual filtering (filtering alternatives based on their
visual images) in
[21],
the main focus is
on
justifying the applying and considering the advantages of controlling the
parameters of both the visual program and the parallel program. To continue, it
aims at the formalization of this approach, which from the point of view of
programming one may call as visual abstract parameters. These are a
special case of abstract data types, the function range of which is a dynamic
visual image. Abstracting parameters are considered as the subset
implementation of data abstraction models (generalizations that allow
abstracting from the source and ontology of data during visual analysis)
[22].
Unlike
the research in
work
[23],
where parametric analysis is
used
for
solving
a combination of
visualization and multi-criteria optimization
problems, we do not create
new views that depend on a parameter, but consider visualization as a process
that one can control through parameters.
We
draw a parallel between visualization and linguistics,
and say
that we are not
creating words but we are creating phrases.
We
can
introduce
an
abstraction of the visualization metaphor
(continuous map from source domain into target domain). We abstract from the
semantics of the sign
and
consider only the syntax, whereas the pragmatics in this
case is generalization or formalization.
Thus, we have defined
the task of abstracting parameters for the solution of which we have applied
the extension of the CinemaScience format.
We
assume
it is beneficial to
turn the development of a new specialized visualization system from a complex
project (that includes many routine technical tasks) into a process of
adaptation, usage and expansion of the capabilities of the visualization
systems constructor. It is done for example in
[24].
The authors have developed a
series of visualization constructors. Their creation is not an end in itself.
The goal is the optimal (in terms of time, cognitive effort) implementation of
specialized visualization systems for visual analysis of applied problems.
With
the development of specialized visualization systems, we
are movign
from theory to
practice. The theoretical research of visualization was also performed in the
computer visualization laboratory of V. L. Averbukh, see
[25].
Let us briefly dwell on visual
analytics, the advantages of using parameters and dynamic visualization.
Visual analytics
solutions provide technology that combines the strengths of human and
electronic data processing. Visualization becomes the medium of a
semi-automated analytical process, where humans and machines cooperate using
their respective distinct capabilities for the most effective results. The goal
of visual analytics is to make our way of processing data and information
transparent for an analytic discourse
[20].
Therefore, visual analytics is
the science of analytical reasoning simplified by interactive visual
interfaces.
Let us answer the
question, what can be given in practical terms by reasoning about abstracting
parameters.
The a
dvantages of using parameters in the development of
specialized visualization systems are:
1.
Approach can be
be used
for steering of high-performance computing in-situ visualization (e.g. for
on-line visualization) through passing and control of parameters.
2.
The CinemaScience format structure is suitable for out-of-core
algorithms implementation, such as using k-tree for multi-view visualization.
3.
A continuous map (e.g. visualization) might be defined through a
small parameters change (operational semantics)
[26],
in particular - an animation.
4.
A
dynamic visualization
can
be implemented.
We emphasize that
dynamic visualization
should
be treated as
not a set of words (signs) but a
whole
phrase. We can
consider it as any change of a visual image, but we must give a strict
definition in terms of information theory.
For example, if the
information does not change, a person achieves
a
sleep effect. It means
that a person loses ”trust” not only
in
the information being perceived but also
in
the information source.
Therefore, the rate
of change of information should be considered, or mutual information should be
considered. The change of information is a process; thus, we must consider data
filtering, like any other visualization, as a process. Two options are
possible: a human-computer interactive process and an animation.
We develop a
visualization tool named VR-Cinema that implements the stated approach. The
tool
is
implemented as a web application and
executes
in a web browser.
It is based on
Viewzavrframework,
which uses WebGL for 3D graphics with the help of ThreeJS library. For demonstration
purpose, the tool is presented online at
https://viewzavr.com/apps/vr-cinemapage. Source
codes are available at
https://github.com/viewzavr/vr-cinemarepository. The overall current look of
the tool is presented on Figure 6.
Figure 6:
The VR-Cinema tool.
Scene from “Fluid flow“ example is loaded. Both images organized as follows.
First, a list of objects in the application environment is listed (a list box at the top-left).
A user can select the current object and adjust it’s parameters (a
set of GUI controls at the left-middle). Left image – a user defines values of
Cinema parameters. Right image – a user interactively selects points visual object and performs visual tuning, setting
it’s “additive” attribute to 1, which leads to additive mixing of points color
over other objects.
The entry point of
the
application is
index.html file. After startup,
a
Cinema database
is loaded
by URL specified in datapathquery parameter.
The URL can
also be
specified manually by a user.
The
application determines which Cinema database should be
visualized
,
loads data.csvfile content and parses it. Parameters and artefacts are
determined. Also additional artifact attributes are determined, see “Other
features” section below.
Based on
a
list of detected Cinema
parameters,
a
graphical
user interface (GUI) is generated. For each Cinema parameter, there are three
cases:
1.
The type of parameter is string.
2.
The type of parameter is numeric.
3.
The type of parameter is numeric and interpolation is enabled.
According to
the
parameter’s case, an
appropriate GUI type is selected.
For each artifact in
Cinema database it’s corresponding visual object type is determined (see “3D
artifacts” section above which explain this). An object of that type is created
in
an
application
environment. The object internally creates structures for ThreeJS library,
required for object operation. The object provides
a
message handler to setup
a path to
the
input file which this object should visualize.
The
object receives
a
message with
a
new input file path, fetches the file content, parses it,
and setups attributes of ThreeJS/WebGL structures from the file content.
As stated above, the
GUI generated for parameters is used for selecting one value for each
parameter. When user selects parameter values, a vector consisting of parameter
values for all Cinema parameters is achieved. Application determines
a
line in a Cinema
database with values nearest to selected vector, and thus determines paths of
input files for visual objects. As objects are already created and placed in
the environment,
the
application sends for each of them a message with
a
new input file path.
That implements the algorithm of application operation.
During our practice like in Examples
section, we detect the list of visual object types required for solving
incoming visualization tasks. Following visual object types are currently
implemented:
The practical application has demonstrated
that
supplying coordinates
for visual objects is
insufficient. For
a
user
the possibility for
fine-tun
ing of
visual objects
is
essential.
For
example,
to specify
a
triangle’s surface
colors and shininess, point’s radius and sprite image, rotation of
a
model from GLTF file. On
one hand, these parameters might be stored in input files of visual objects on
per-primitive basis (e.g. per-point, per-triangle,
etc.).
On the other
hand, it is
comfortable to perform tuning of these parameters visually, in GUI, together
for all primitives of
a
visual object.
Thus application
provides GUI for tuning parameters of visual objects. The list of such
parameters for tuning
particular
visual object is determined in the scope of the object.
Values of tuning
parameters, together with camera settings (position and target), and current
selected values of Cinema parameters, forms a state of the visualization
program. This state is repeatedly get stored to
the
web page address, in
its hash part, in a serialized JSON form. The JSON format was selected because
it nicely serializes/deserializes to string. This technique allows to (re)load
web page and receive
the
same program state and a view as before.
Beside that, when
working in local server mode, the program’s state is repeatedly saved to
settings file, also in JSON format. This
is
explained in details in
section below.
The presented
approach, named visual tuning, has benefits
and drawbacks.
The benefit is higher
user
performance
and comfort, because operating visually in GUI is faster than
regenerating cinema database. The drawback is program state: it is out of the
scope of Cinema approach.
However keeping such
state in software-specific format allows
providing
additional
features, not covered by CinemaScience standard. This
has a
positive effect:
visualization software and CinemaScience 3D extension are able to evolve
independently.
While web-based
approach used for VR-Cinema application has a lot of advantages, it also has
some restrictions.
For example, web applications have restricted access to file system of user’s
computer. This complicates one popular visualization scenario when files to be
visualized are located locally, on
the
user’s computer.
To solve this
complication, we developed a tool for running local file server with ease. It
only requires one-time installation of NodeJS framework on a user’s machine.
Then, to perform a visualization, user have to run following command in command
line:
npx vr-cinema
This command
instantly starts visualization of Cinema database from
the
current directory.
Internally it starts
a
local web server, and opens
a
web browser with VR-Cinema application and
with url pointed to the created server.
We used
npx
ecosystem
for providing access to the tool. Actually, when
npx vr-cinema
command
is issued, the
npx
loads the package named
vr-cinema
from
npm.org
internet database and passes control to it. Then it performs as described.
This allows us to upgrade the tool easily, because
npx
checks and
downloads new versions of the tool to user’s machine automatically.
The tool might be
used not only for running things locally. For example, it might be used for
serving files from remote systems, for example supercomputers. In this
scenario, files from high-performance computations become easily available for
instant visualization.
We also implemented
a
rescan feature in the
tool. It tracks data.csvfile repeatedly and if it sees the file change,
it notifies VR-Cinema application and the latter reloads
the
currently opened Cinema
database. This allows
visualising the
results as they get computed. The notification is
performed using WebSockets technology.
Additionally, a
rescan-follow feature was implemented. After VR-Cinema reloads
data.csv
by
rescan feature, it automatically setups it’s first parameter to the maximum
value from
data.csv. This allows for visualization to ”follow” running
computation. However this feature is not a common case, and currently might be
turned on and off by
the
user manually.
For some scenes it was found useful to
compute interpolated input data for visual objects. This allows
the
smoothing
of the transitions between
visual
object for synthetic parameter values that are not listed in data.csvbut
are between those values. Currently the following algorithm is used.
1.
If interpolation mode is turned on, allow to specify parameter
values not just from data.csv but any values from min..max range of
corresponding columns.
2.
Find two lines
line1
and
line2
in
data.csv
of
minimal distance between vector of line’s parameters values and vector of
values specified in GUI by a user. Consider these distances as
d1
and
d2.
3.
The weight
w
from range 0..1 for interpolation is
determined by equation
𝑤 = 𝑑1 / ( 𝑑1 + 𝑑2 )
(4)
4.
For each visual object, send a message with weight
w
and a
pair of corresponding input files extracted from
line1
and
line2.
As seen in step 4,
interpolation is performed
in the
scope
of
a
visual object. Currently, for all objects that load input
data from CSV files, we perform whole-file per-value linear interpolation (for
numeric values; string values are taken from first file). This suits well for
objects with same amount of vertices.
We implemented
a
special visual object of
type cinema. It’s input data file is a path to data.csv of some other
Cinema database that has to be included in
a
current scene. It was found useful to propagate parameters
from child database to parent database. Thus a user is able to manage all
parameters from all child databases in one GUI of
the
root database. This is
a
step
towards abstraction, as explained in Reflection section.
We
take advantage
of managing
additional artifact attributes, e.g. attributes of visual objects, right in
Cinema databases. A column named FILE_artifact->ATTR means that
values in that column specify values for attribute ATTR of visual object FILE_artifact.
For example, FILE_gltf_obj1->ROTATEX will specify rotation around X
axis of visual object FILE_gltf_obj1. The feature is under development
and
is
connected
to
Visual
tuning feature (see section above).
It is obvious that
just showing visual objects, even with dynamics based on parameters, is not
enough for successful visualization. Often filtering, transformation, and other
effects on visual information are required.
We are working on a
model of visual effects. Visual effect is meant to be applied to one or more
visual objects. This might be for example shader-level effects like clipping,
coloring, coordinates modification. The main problem here is a robust [visual]
language for building such effects and managing matrix of their appliance to
visual objects. One of approaches
to
GUI modeling
that
we consider
in this work,
is visual editing of building blocks of effects, in
the
form of nodes and
connections between them, like in
[27].
We see as very useful
the feature of adding new types of visual objects. Currently, to add
a
new visual object, one
have to place it in
the
source code tree of
VR-Cinema project. There should be
a
more flexible way, for example
by
adding new types of
visual objects in Cinema database scope or research project scope.
We emphasize the
following advantages of
the
proposed
approach for 3D
scenes construction. Firstly, the CinemaScience format is extra simple to write. This
allows a developer not to be overwhelmed by details like in other 3D formats.
Secondly,
this format is extra simple to read. That is, a format reader and a player
algorithm may be easily implemented both as a standalone application or as a
plugin to existing scientific visualization software.
Our preliminary
results show that the approach is robust and relatively versatile. It is
suitable for some classes
of scientific visualization tasks, especially related to
visualization of results of computational modeling.
However, there is a
nuance. The approach allows to define a set of visual objects and simple
dynamics of a scene. Additional view settings like windows, clippings, transfer
functions, and advanced
user
interactions
are out of the scope of the approach.
It is supposed that a
user configures these aspects using the graphical interface of a visualization
software. It then may be saved as project settings and reused in scenes of the
same kind.
We develop software
that implements the described approach as a web application using WebGL and
WebXR technologies. It is available at
https://github.com/viewzavr/vr-cinemapage.
We thank reviewers of the paper for their constructive feedback.
We thank experts of the journal "Scientific Visualization" for preparation of the paper for publication.
We also thank the mathematicians of the N.N.Krasovsky Institute for the pleasure of jointly solving
the presented visualization tasks.
[1]
V. Averbukh, Towards the
conceptions of visualization language and visualization metaphor, in:
Proceedings of IEEE Symposia on Human Centric Computing Languages and
Environments: September 5-7, Stresa, Italy, 2001, pp. 390–398. doi:
10.1109/HCC.2001.995296.
[2]
K. Ryabinin, S. Chuprina, Adaptive
scientific visualization system for desktop computers and mobile devices,
Procedia Computer Science 18 (2013) 722–731. doi:
10.1016/j.procs.2013.05.236, 2013
International Conference on Computational Science.
[4]
J. Ahrens, S. Jourdain, P. O’Leary, J.
Patchett, D. H. Rogers, M. Petersen, An image-based approach to extreme scale
in situ visualization and analysis, in: SC ’14: Proceedings of the
International Conference for High Performance Computing, Networking, Storage
and Analysis, 2014, pp. 424–434. doi:
10.1109/SC.2014.40
[5]
V. Averbukh, I. Mikhailov, M.
Forghani, P. Vasev, 3d visualization to analyze multidimensional biological and
medical data, in: International conference in honor of the 90th Birthday of
Constantin Corduneanu, Ekaterinburg, Russia, Springer, 2018, pp. 241–251. doi:
10.1007/978-3-030-42176-2_24.
[6]
R. Xu, D. C. Ekiert, J. C. Krause, R.
Hai, J. E. Crowe, I. A. Wilson, Structural basis of preexisting immunity to the
2009 h1n1 pandemic influenza virus, Science 328 (2010) 357–360. doi:
10.1126/science.1186430
[7]
V. Patsko, S. Pyatko, A. Fedotov,
Three-dimensional reachability set for a nonlinear control system, In Journal
of Computer and Systems Sciences International 42 (2003) 320–328.
[8]
V. Patsko, A. Fedotov,
Three-dimensional reachable set at instant for the Dubins car: Properties of
extremal motions, 2020, pp. 1033–1049. URL:
http://sector3.imm.uran.ru/stat/IACAS2020_ThL2T2-03.pdf, 60th Israel Annual Conference on Aerospace Sciences,
IACAS 2020.
[9]
P. Vasev, V. Patsko, A. Fedotov,
Visualization of three-dimensional reachable set for the Dubins car, in:
Proceedings of the 15th International Conference on Computer Graphics,
Visualization, Computer Vision and Image Processing, 2021, pp. 119–123. URL:
http://sector3.imm.uran.ru/confers/MCCSIS2021/index_eng.html
[10]
A. A. Uspenskii, P. D. Lebedev, On the
structure of the singular set of solutions in one class of 3d time-optimal
control problems, Vestnik Udmurtskogo Universiteta. Matematika. Mekhanika.
Kompyuternye Nauki 31 (2021) 471–486. doi:
10.35634/vm210309
[11]
Y. V. Starodubtseva, I. S.
Starodubtsev, A. T. Ismail-Zadeh, I. A. Tsepelev, O. E. Melnik, A. I. Korotkii,
A method for magma viscosity assessment by lava dome morphology, Journal of
Volcanology and Seismology 15 (2021) 159–168. doi:
10.1134/S0742046321030064
[12]
D. Koschier, J. Bender, B. Solenthaler, M. Teschner, Smoothed
Particle Hydrodynamics Techniques for the Physics Based Simulation of Fluids
and Solids, in: W. Jakob, E. Puppo (Eds.), Eurographics 2019 - Tutorials, The
Eurographics Association, 2019. doi:
10.2312/egt.20191035.
[13]
D. J. Price, Smoothed particle
hydrodynamics and magnetohydrodynamics, Journal of Computational Physics 231
(2012) 759–794. doi:
10.1016/j.jcp.2010.12.011, special Issue: Computational Plasma Physics.
[14]
P. Randles, L. Libersky, Smoothed
particle hydrodynamics: Some recent improvements and applications, Computer
Methods in Applied Mechanics and Engineering 139 (1996) 375–408. doi:
10.1016/S0045-7825(96)01090-0
[15]
N. Akinci, M. Ihmsen, G. Akinci, B.
Solenthaler, M. Teschner, Versatile rigid-fluid coupling for incompressible
sph, ACM Trans. Graph. 31 (2012). doi:
10.1145/2185520.2185558
[16]
D. Orban, et al,
Cinema:Bandit
:
a visualization application for beamline science demonstrated on XFEL shock
physics experiments, Journal of Synchrotron Radiation 27 (2020) 1–10. doi:
10.1107/S1600577519014322
[18]
H. Abelson, G. J. Sussman, with Julie
Sussman, Structure and Interpretation of Computer Programs, 2nd editon ed., MIT
Press/McGraw-Hill, Cambridge, 1996.
[19]
A. E. Bondarev, On visualization
problems in a generalized computational experiment, volume 11, 2019, pp.
156–162. doi:
10.26583/sv.11.2.12.
[20]
D. Keim, G. Andrienko, J.-D. Fekete,
C. Görg, J. Kohlhammer, G. Melançon, Visual Analytics: Definition,
Process, and Challenges, Springer Berlin Heidelberg, Berlin, Heidelberg, 2008,
pp. 154–175. doi:
10.1007/978-3-540-70956-5_7.
[21]
A. Zakharova, D. Korostelyov, O.
Fedonin, Visualization algorithms for multi-criteria alternatives filtering,
Scientific Visualization 11 (2019). doi:
10.26583/sv.11.4.06
[22]
D. Manakov, Data abstraction models:
Sampling (parallel coordinates), filtering, clustering, Scientific
Visualization 11 (2019). doi:
10.26583/sv.11.1.11
[23]
I. K. Romanova, Comparative analysis
and modifications of visualization methods in parametric studies of control
systems, Science and Education. Bauman Moscow State Technical University.
Electronic Journal 1 (2017) 50–76.
[24]
P. Vasev, S. Kumkov, E. Shmakov,
Extensible scientific visualization system, Scientific Visualization (in
Russian) 4 (2012) 64–77. URL:
http://sv-journal.org/2012-2/05.php.
[25]
V. L. Averbukh, Semiotic analysis of
computer visualization, in: A. L.-V. Azcarate (Ed.), Interdisciplinary
Approaches to Semiotics, IntechOpen, Rijeka, 2017. doi:
10.5772/67729.
[26]
D. Manakov, V. Averbukh, P. Vasev,
Visual text as truth subset of the universal space, Scientific Visualization
(in Russian) 8 (2016) 38–49. URL:
https://sv-journal.org/2016-4/04.php.
[27]
D. S. Vyatkin, Visualization of grid data using nodes editor, Ural
Federal University / Qualification work for a master’s degree (in Russian)
(2021). URL:
http://www.cv.imm.uran.ru/e/3241774.
