Any
visualization system implies the presence of a person for whom it is ultimately
intended. Naturally, such presence is necessary for the process of development
and testing of the visualization system. However, as it has been shown in 2020,
this turned out to be not always feasible.
In the critical
situations of the worldwide pandemic of the COVID-19 virus, access to offices
in R&D centers has been significantly limited. Thus, the issue of organization
of remote work of researchers has become acute. In this situation a natural
need is remote and secure access via the Internet to the local network of the
institute, to its servers and workstations, for example, using VPN (Virtual
Private Network). But often there is a need for access and remote control of
instruments and objects of research, as well as visual observation of their
behavior in the absence of direct access of researchers.
The work [1]
describes the development of a visualization system for displays of the cockpit
of a civil aircraft. In the modern cockpit indicators are almost completely
replaced by graphic displays (Fig. 1). However, the peculiarities of this
visualization system are the use of special equipment with low power
consumption and work under a Real-Time OS (RTOS). The development of the system
must ultimately take place on the target platform.
Fig.1.
The Boeing 737-800 cockpit (Courtesy of
Cory W. Watts
).
Therefore, in
the situations of quarantine and restricted access of the development group to
the equipment, there was an urgent need to organize remote secure access to the
target platform, remote control of it and the ability to see the results of its
work. This required the creation of a special installation (stand) consisting
of a target platform, a computer for control and operating of the stand and a
system for capturing and transmitting images of the pilot's display. An
important aspect of this task was the requirement to create this stand as
quickly as possible and with minimal additional financing. It was therefore
assumed to use, if possible, publicly available software products, i.e. it is desirable
to avoid creating own specialized software. At the same time, the acceptable
level of security for remote access and control of the stand via the Internet
had to be provided. We also considered the possibility of using this solution
in the future for other developments using that use the remote working option.
The task described
above is quite actual. A number of works are devoted to providing remote access
and control of target equipment in which various solutions are proposed for
their specific conditions.
The MIT iLab
project developed a distributed a service infrastructure and software toolkit
to support a scalable community of online laboratory experiments [2]. The
overall architecture of iLab provides a framework for developing and deploying
remote labs using a three-level model based on web services consisting of lab
clients, service broker auxiliary software and lab servers. Some of the further
works on the creation of remote learning laboratories are based on this
development.
The paper [3]
describes the experience of creating an online laboratory system with the
priority of modular and generalized solutions. The developed system provides a
unified user interface for accessing, managing and controlling a remote
experiment. A practical case of remote laboratories sharing is described in
[4]. The required functionality for user management, access, experimentation
and resource sharing is provided by the developed Remote Lab Management System
(RLMS) WebLab-Deusto. The paper [5] describes the creation and implementation
of commercial products, tools and services for online laboratory development.
It also describes real-world experience with online labs from both a
technological and educational point of view. An attempt to classify existing
online laboratories serving for practical training of the technical specialists
was made in [6].
Two online
laboratories for scientific and educational purposes were created at the Bauman
Moscow State Technical University. A laser laboratory for remote access [7] is
a software and hardware complex based on the technology of virtual devices
which allows combination of visualization of a real physical experiment with
the convenience and safety of remote control of the research course. The Internet
laboratory "Robotics" [8] developed in the Dmitrov branch of the
Bauman University allows you to practice control of the robots of the
International Space Station. It provides the ability to conduct complex remote
laboratory workshops on real complex robotic equipment using network access
technologies.
The Higher
School of Economics (University) has developed and created a system for remote
access to the equipment of the Educational Laboratory for Computer Aided Design
(CAD) Systems [9]. The original specialized software allows remote control of
target boards.
The remote
access stands for development and research of adaptive and intelligent control
systems for suppressing elastic vibrations were created at the St. Petersburg
State Electrotechnical University "LETI" named after V.I. Ulianov
(Lenin) [10].
Existing
solutions described here do not meet our needs for three main reasons. Firstly,
they serve highly specialized purposes, i.e. they are unique, customized
specifically for the solution of this specific task. Most of the systems are
for educational purposes only. Secondly, they often involve the use of
additional rather expensive software and / or hardware. Third, some systems do
not provide access to target equipment but use virtual instruments and sensors.
It is also clear that there is no overall systematic approach for providing
remote access and control of target equipment.
As it was
described in details in [1], the development of onboard software should take
into account the specifics of the equipment. Aircraft onboard systems use
reliable processors with relatively low power consumption and performance which
are also resistant to temperature extremes. We worked with the NXP i.MX 6 SoC
family of processors [11] when developing the stand. But our experience can be
applied to other hardware. We call it “target platform” in the paper.
An important
feature of the target platforms of the stand is the need to load test examples
into them, running under control of the developed specialized RTOS of the
on-board computer [12]. For obvious reasons the RTOS does not support any
remote access and does not allow control over the Internet.
At the same
time, in addition to loading such a specialized RTOS on the target platform, it
becomes necessary to load the Linux operating system because its environment
that is quite familiar and convenient for development and research. Developers
need to be able to directly debug a software product on target platform taking
into account the hardware specifics. The use of a compiler, debugger, profiler
and other programming tools that are common in the Linux environment greatly
simplifies development.
When the
developer has direct physical access to the target platform such a task looks
quite trivial. The user just needs to set the appropriate boot source for a
particular OS (for example, insert a CCD memory card containing the OS) and
turn on the power button of the target device. However, the task becomes much
more complicated in conditions of remote access, without physical access to
equipment.

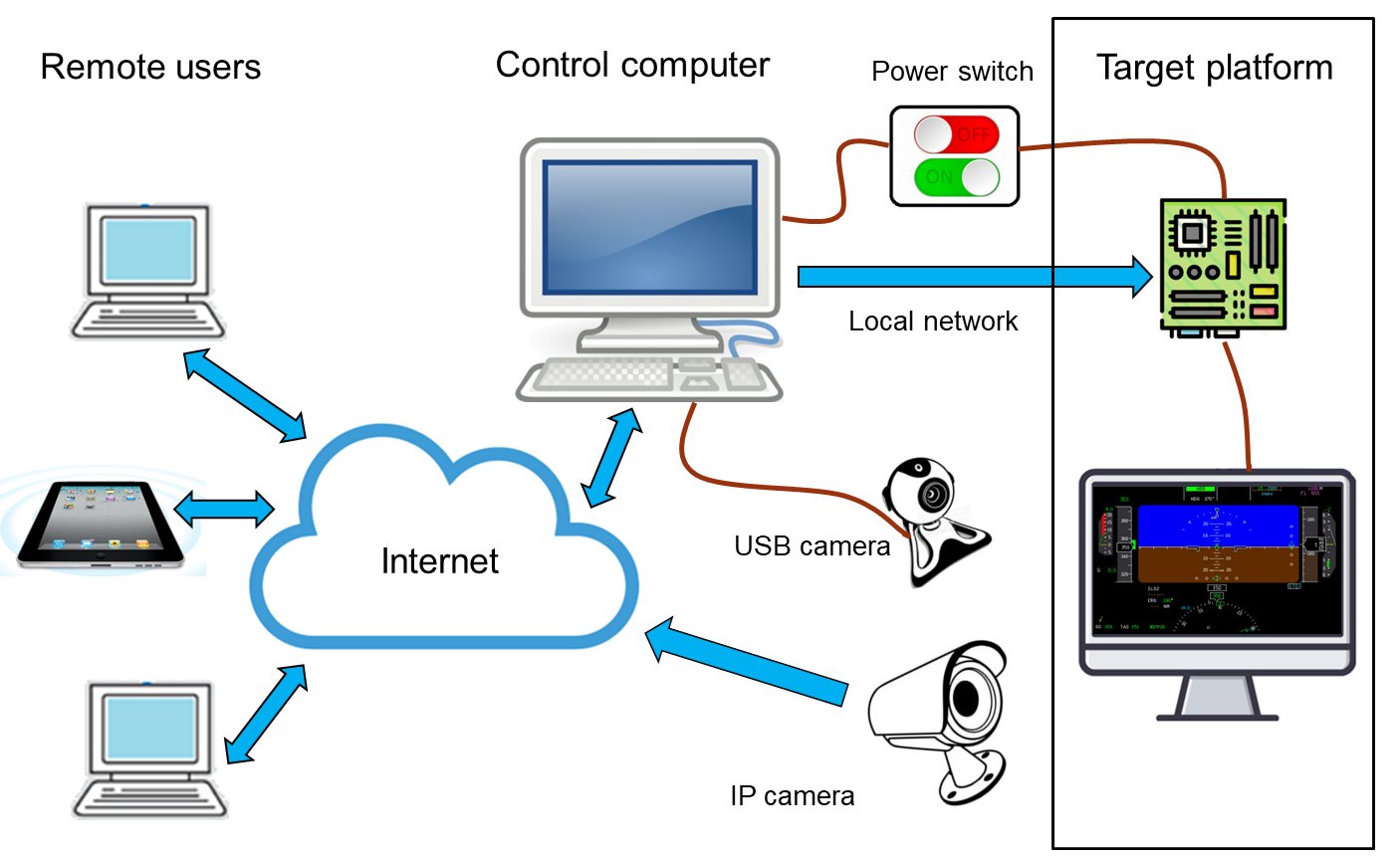

Fig.
2. The general scheme of the developed stand.
The development
of a visualization system implies monitoring and observing the result on a display
screen physically. It is not enough to parse the instruction set or analyze the
image being sent to the GPU. Therefore, it is also necessary to provide visual
observation of the results of graphic output on the display screen as well as
controlling the picture using the keyboard or mouse.
All this leads
to the need to use additional equipment. The auxiliary control computer
provides developers with remote permanent access to the stand from home via the
Internet and control of the target platform equipment, up to power off. Cameras
placed in front of the monitor and aimed at it provide feedback. The general
scheme of the developed stand is shown in Fig. 2.
What general
criteria and requirements should a remote control workstation meet, i.e. what are
the requirements to a control computer and its additional equipment, to software?
(1)
Additional equipment should not be expensive and
/ or difficult to purchase (highly specialized). It allows to minimize
additional expenses in the face of unexpected restrictions due to the COVID-19
pandemic.
(2)
The control computer should provide
uninterrupted remote client access to the developers' control of the target platform
hardware over the Internet.
(3)
Providing developers with access to the control
of the target platform using a control computer (clients) should not lead to
the need to purchase additional highly specialized hardware or software for all
participants in the development. Developers should have possibility to connect
from ordinary home computers.
(4)
The client part of the access software must
provide access to the control computer from different operating systems (MS
Windows, Linux, MacOS) depending on what is already installed and used on the
client's home computer or laptop. This will allow developers to use their
computers in their familiar environment (versatility) including using home
computers for their own purposes.
(5)
The access of clients (developers) to the control
computer via the Internet must ensure a sufficiently high level of security,
i.e. it must use an encrypted channel that cannot be intercepted by third
parties.
(6)
Simultaneous access of multiple clients
(developers) to the control computer for collaboration should be provided
(distributed development).
Typically, the
chipset of the target on-board computer is not some highly specialized and
expensive equipment made exclusively for aircraft. In most cases manufacturers
produce a similar chipset for quite household applications at an affordable
price. For example, they are intended for home use as an economical and
temperature-resistant video surveillance system, for creating a smart home
control system for home equipment such as a mini web server, home theater,
media server or household router. The use of such systems in everyday life is
due to the extremely low power consumption of the chipset as well as high
resistance to external influences and low cost.
Thus, developers
of on-board computer systems can initially gain access to the target platform
even when the prototype of the on-board system has not yet been created, but is
at the stage of exploring its possibilities and applicability in aviation.

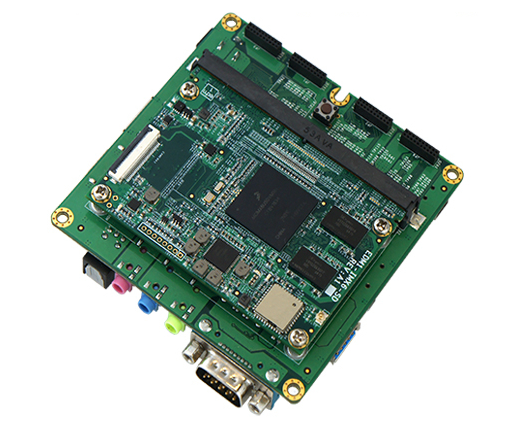

Fig.
3. The target platform in the form of a household microcomputer based on NXP
i.MX 6 chipsets.
Typically, such
a chipset comes in the form of a ready-made microcomputer with the ability to
connect to a network, an external monitor, USB keyboard and mouse (Fig. 3). At
the same time, manufacturers provide such a microcomputer with support for
memory cards with the ability to boot the OS from a card. However, in most
cases this OS is a relatively outdated version of Linux, with an old kernel and
with proprietary chip manufacturer drivers (no open source). It is also often
not possible to install additional packages required by developers, such as a
compiler, debugger, or profiler.
Therefore, we
had to create a scheme for booting the target platform OS over the network
using the TFTP (Trivial File Transfer Protocol) from a console application on a
control computer with the option of choosing our specially created version of
the Linux OS. The control computer and the target platform must be connected to
the same local network. The target platform communicates with the control
computer console through a serial connection. Thus, it is possible to select from
the console application of the control computer the OS to be loaded without the
need to physically replace the memory card in the target platform. This is
necessary for organizing remote access. The U-Boot [13] software product was
used as the OS loader on the memory card (Fig. 4).
Fig.
4. Console application window with the ability to select the OS to boot to the
target platform using the U-Boot software product.
In addition to
being able to select the OS to boot into the target platform it is needed to
have the ability to force the power on and off of the target platform from the control
computer. Firstly, not every loaded OS contains software for rebooting the
system. Secondly, software developers can make mistakes that lead to the
complete inaccessibility of the target platform by software due to, for
example, a loop or an emergency stop.
The USB device
MP709 / RODOS-3 [14] (Fig. 5) manufactured by the Olymp company was chosen to
provide a possibility of turning the power of the target platform on and off.
This device connected to the USB port of the control computer allows software
to obtain a power switch for controlling the power of the target platform. In
other words it is possible to turn the power on and off programmatically
without the need for direct physical access of the developer to the pushbutton
switch of the target platform.

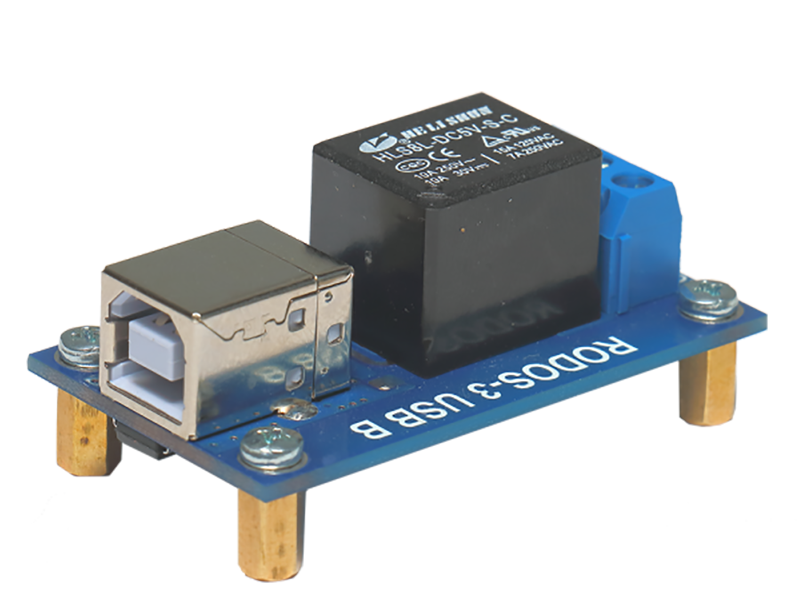

Fig.
5. USB relay / switch RODOS-3.
Thus, a scheme
was created for full control of the target platform from the control computer
without the need for the physical presence of the developer.
Consequently, it
remains to resolve the issue of providing remote access to the control computer.
It was necessary
to select an operating system for the control computer of the stand with the
possibility of remote access to it by developers. Our initial tests using MS
Windows as the OS for the control computer showed that this OS is not a
convenient and an acceptable option for all developers. It does not satisfy
all the requirements for the control computer listed above. The main reason is
the lack of the possibility of simultaneous remote access of developers to the control
computer via the Internet. The MS Windows Professional version supports remote
desktop access via RDP (Remote Desktop Protocol) but only for one user and
without the possibility of simultaneous access by several developers at once.
Server versions of MS Windows support the simultaneous access of several
clients to the desktop but they are quite an expensive solution due to the cost
of the OS itself. In addition, the use of server versions of MS Windows imposes
significant requirements to the hardware configuration of the control computer
which leads to a significant increase in the costs of a stand.
The use of
alternative software tools instead of the standard RDP protocol for MS Windows,
for example, the well-known TeamViewer, also did not satisfy all the
requirements for remote access to the control computer. It required significant
additional costs to acquire licenses to use these software tools including for
all participants in the development.
Therefore, Linux
was chosen as the operating system for the stand control computer. It is a free
solution, provides ample opportunities for remote management and support, and
does not impose costly requirements on the hardware configuration of the computer.
In addition, the Linux environment allows the installation of a huge number of
additional software packages including everything necessary for the operation
and management of the stand. This includes, for example, a TFTP server, a
console application for interacting with the target platform, Python. Linux OS
provides a flexible solution using all the necessary software tools on one
personal computer without the need for additional hardware. At the same time
this computer can simultaneously perform other additional functions that are
not related to the operation of the stand itself, such as a web server, a print
server, a file server, etc.
Linux OS
provides remote access via the Internet to your desktop in various ways,
allowing you to choose the most optimal solution for stand management. In
addition, any version of Linux provides remote computer administration via the
secure SSH (Secure Shell) protocol. This makes it possible to timely update the
installed software products and eliminate vulnerabilities and errors found in
the system, even without access to the computer's graphical interface. Linux
also provides transmission and reception of files using an
interception-protected protocol SCP (Secure Copy). At the same time, SSH / SCP
clients are available for all common platforms providing the ability to
administer even from the screen of a mobile smartphone.
One can install
an RDP server for remote access to the graphical interface of the desktop and
its windowed applications in Linux. Its usage is similar to the option with MS
Windows. The Linux environment also supports the X11 protocol, i.e. remote
launch of graphical applications over the network with output to the client
computer screen when the X-Server program is running on this computer.
However, our
tests have shown that these solutions do not provide the required level of
security, Internet speed and usability. For example, the X11 protocol is open
and unprotected from data interception. Then it becomes necessary to organize
an additional secure channel, for example, a reverse SSH tunnel, in order to
provide the necessary level of security. This would require significant effort
on the part of everyone involved in the development to further customize their
home computers. At the same time, the speed of displaying the graphical
interface running on the application server on the client's screen is extremely
low.
Finally we opted
for the Virtual Network Computing (VNC) system [15] operating over the RFB
(Remote FrameBuffer) protocol. This system provides sufficiently high-quality
and high-speed remote access to the desktop of the control computer. At the
same time, the VNC system is platform-independent, i.e. developers can access
the toolbox from their home computers running Linux, MS Windows or MacOS
without having to change their usual development environment. In addition,
multiple clients (VNC viewer) can simultaneously connect to one VNC server.
This satisfies the requirement for simultaneous remote access of several
developers at once.
VNC and the RFB
protocol do not use traffic encryption by default. So the question arises about
ensuring the security of access to the stand and excluding the possibility of
data interception. At the same time, it was highly desirable to eliminate the
need to configure an encrypted tunnel by all users. Fortunately, it turns out
that many VNC software developers are extending the standard RFB protocol to
include their own encryption of the VNC server link. For example, a software
implementation of VNC called TigerVNC [16] uses the OpenSSL cryptographic
library [17] to securely encrypt connections, and the VNC session is encrypted
including authentication and data transfer. Also, TigerVNC (VNC viewer) clients
are available for all major platforms: for Linux, MS Windows, MacOS.
Thus, this
choice fully meets all the criteria and requirements for a remote control
workstation, i.e. for a control computer.
Fig.
6. Desktop of the control computer from the developer's client notebook via the
TigerVNC viewer program. Windows with a view of the monitor of the target
platform and the program execution protocol are open. Power on / off is
implemented in the form of icons at the top left.
At the same time
the additional efforts and time spent by all participants in the development
are minimized and limited only to the installation of the VNC client program.
The desktop view of the control computer of the stand from the developer's
client machine via the TigerVNC viewer program is shown in Fig. 6. on the
desktop, there is a window with a view of the target platform monitor obtained
using a USB camera and the program execution protocol window. Power on and off
are implemented as icons at the top left.
To organize visual
observation of the target platform output, i.e. its display on the monitor
screen, we used a completely natural solution, namely, observation with the
help of cameras. Two types of cameras were used for this purpose: an IP camera
with independent access via the Internet and a USB camera connected directly to
the USB port of the control computer. The use of the first option (IP-camera)
allows visual observation of the operation of the target platform on many
different devices, even on the screen of a mobile smartphone, not only on the
developer's home computer (Fig. 7). The image received from the USB camera is
displayed on the remote desktop of the control computer (Fig. 6) and is
available using the UVC (USB Video Class) system.

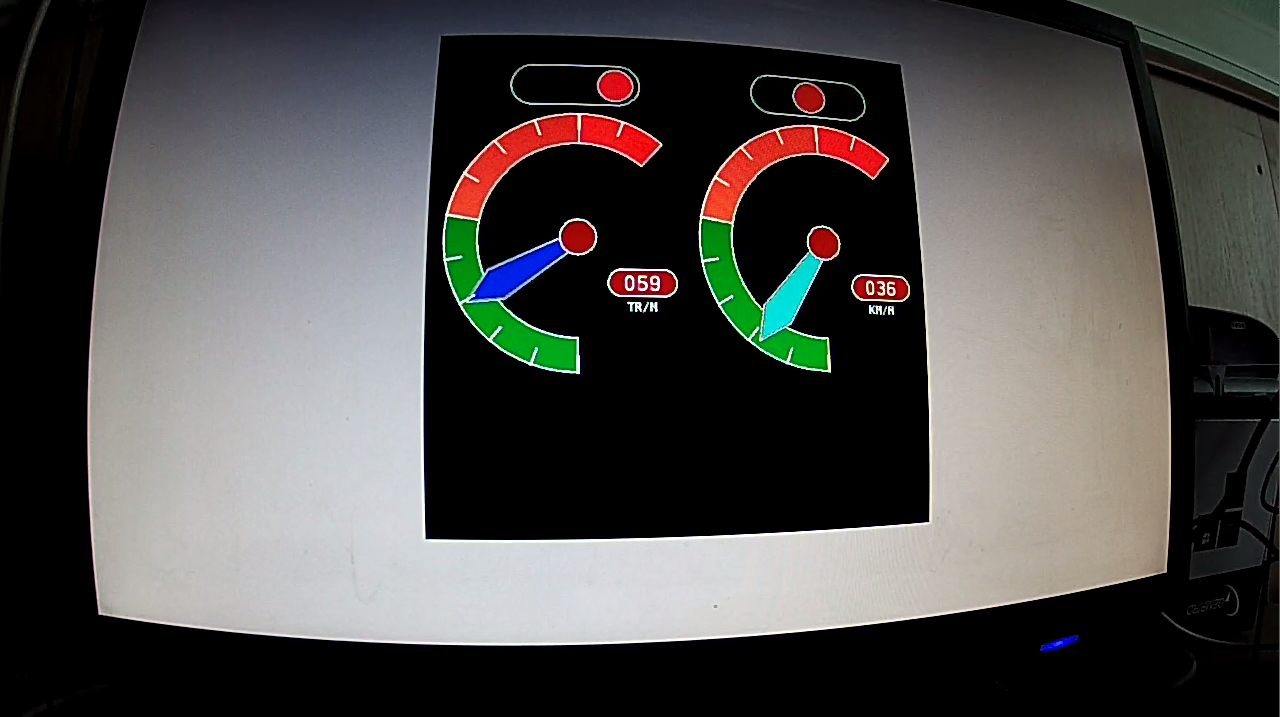

Fig.
7. Visual observation of the results of the test program running on the target
platform using an IP camera.
Also, these
methods allow you to record the results of visual observation in the form of a
video file for further playback and demonstration to all participants in the
development.
The stands for remote development of a
visualization system for civil aircraft cockpit displays have been created and
are successfully used around the clock at the Keldysh Institute of Applied
Mathematics RAS. The development process is not interrupted even in the face of
restricting workers' access to target platform equipment due to the worldwide
pandemic.
The developed stand scheme is not highly
specialized and can also be used for the development of other visualization
systems that require remote access and control of equipment, providing the
required level of safety and speed, as well as visual assessment of the
results.
[1] Safety critical visualization of the flight
instruments and the environment for pilot cockpit. Scientific Visualization,
2021, 13(1),
pp. 124 - 137, DOI: 10.26583/sv.13.1.09
[2] J. L. Hardison, K. DeLong, P. H. Bailey
and V. J. Harward, "Deploying interactive remote labs using the iLab
Shared Architecture," 2008, 38th Annual Frontiers in Education Conference,
2008, pp. S2A-1-S2A-6 DOI: 10.1109/FIE.2008.4720536.
[3] Matej Rabek, Katarina Zakova,
"Scalable Remote Experiment Manager", IFAC-PapersOnLine, vol. 53, p.
17246, 2020.
[4] Martin Kalúz, Pablo Orduña,
Javier García-Zubia, Miroslav Fikar, L'uboŜ Ĉirka,
"Sharing Control Laboratories by Remote Laboratory Management System
WebLab-Deusto", IFAC Proceedings Volumes, vol. 46, p. 345, 2013.
[5] Ridha Ennetta, Ibrahim Nasri, Soufiene
Bouall?gue, Thrasyvoulos Tsiatsos, Cyber-Physical Laboratories in Engineering
and Science Education, p. 343, 2018.
[6] Pablo Orduña, Luis
Rodriguez-Gil, Javier Garcia-Zubia, Olga Dziabenko, Ignacio Angulo, Unai
Hernandez, Esteban Azcuenaga, "Classifying online laboratories: Reality
simulation user perception and potential overlaps", Remote Engineering and
Virtual Instrumentation (REV) 2016 13th International Conference, pp. 224-230,
2016.
[7] Laser lab with remote access. The Bauman
University
http://bibl.laser.nsc.ru/download/laser-inform/472all-1.pdf
[8] Internet-lab "Robototechnics". http://fms.bmstu.ru/
[9] Remote access to the CAD lab.
https://miem.hse.ru/edu/ce/cadsystem/remote_access
[10] The remote access stands. https://etu.ru/assets/files/nauka/razrabotki/Avtomatiz-Stendi-udal-dost.pdf
[11] i.MX 6 Series Applications Processors.
https://www.nxp.com/products/processors-and-microcontrollers/arm-processors/i-mx-applications-processors/i-mx-6-processors:IMX6X_SERIES
Last accessed 05 Mar 2021
[12]
B. Kh.
Barladian, L. Z. Shapiro, K. A. Mallachiev, A. V. Khoroshilov, Yu. A.
Solodelov, A. G. Voloboy, V. A. Galaktionov, I. V. Koverninskii. Visualization
Component for the Aircraft Real-Time Operating System JetOS // Programming and
Computer Software, 2020, 46(3), p. 167-175. DOI: 10.1134/S0361768820030020
[13] Das U-Boot -- the Universal Boot
Loader
https://www.denx.de/wiki/U-Boot/WebHome
[14] MP709 - USB relay
https://olimp-z.ru/mp709
[15] Virtual Network Computing
https://ru.wikipedia.org/wiki/Virtual_Network_Computing
[16] TigerVNC: Free, Lightweight, Fast and
Reliable Remote Control / Remote Desktop Software https://tigervnc.org/
[17] OpenSSL. Cryptography and SSL/TLS
Toolkit https://openssl.org
