1. Introduction

A linear congruence Kr(u, v) is called a two-parameter set of lines intersecting predetermined intersecting straight lines u, v (congruence directrices).Directrices can be real different (hyperbolic linear congruence, HLC), real coincident (parabolic linear congruence, PLC), or imaginary complex conjugate (elliptic linear congruence, ELC).

One of the methods for constructing linear surfaces is to extract them from the linear congruence by immersing a guiding curve line in the congruence body. For example, if a surface is distinguished from Kr(u, v) by specifying a second-order guiding curve τ, we obtain a fourth-order algebraic linear surface with guides u, v, τ [1].

A constructive way of separating a surface from an HLC with the directrices u, v consists in  constructing a one-parameter set of rectilinear generators of the required surface passing through the points of the guiding curve τ and intersecting the real lines u, v.

This problem is solved by the well-known methods of descriptive geometry [1]. It should be noted that a metric condition can be used instead of a guide curve. For example, a linear surface can be separated from the HLC by the requiring a constant length of the generatrix (see Section 7).

To extract a surface from a PLC, an auxiliary linear quadric Ô is introduced into consideration and a PLC is defined as a set of straight lines intersecting two infinitely close (in the limit coinciding) intersecting generators u, v of the quadric Ô. This allows the PLC to be identified as a family of straight lines tangent to a linear quadric at the points of one of its rectilinear generators [3].Through an arbitrarily specified point of the guiding curve τ immersed in the PLC, there is the only line p tangent to the quadric Ô and intersecting its generator u=v. The construction of the straight line p is performed by the well-known methods of descriptive geometry [1]. The one-parameter set of straight lines p forms the desired linear surface extracted from the PLC.

If it is required to extract a surface from ELC, then the problem is reduced to constructing a set of real straight lines (forming the required surface), each of which intersects a pair of imaginary complex conjugate straight lines u~v (ELC directrices) when passing through one of the points of the guiding curve τ. The methods of classical descriptive geometry are inapplicable in this case, since they involve the execution of graphic constructions with the participation of imaginary points and imaginary lines.

Graphic constructions with the participation of imaginary elements were considered both in the works of the authors of the 19th century [2] and in modern studies [3-6], but they didn’t pose or solve the problem of constructing a real straight line incident to a predetermined point in space and intersecting with two predetermined imaginary conjugate crossing lines (ELC directrices). For example, in [3, p. 74], an algorithm for constructing a straight line intersecting with the imaginary ELC directrices is indicated, but the incidence requirement for this point is not taken into account.

Scientific novelty. The article proposes a projective-graphical algorithm for constructing a real line that satisfies both the condition of incidence at a predetermined  point, and the condition of intersection with predetermined imaginary ELC directrices. For the constructive implementation of the proposed algorithm, computer visualization tools [7] are used for imaginary elements in conjunction with a software module [8-10], which allows drawing curves of the second order incident to any predetermined set of both real and imaginary points and tangents [11].

The relevance of the work is due to the fact that imaginary algebraic elements (imaginary points, imaginary lines, imaginary algebraic lines and surfaces) are an integral attribute of any actions with algebraic varieties. The participation of imaginary elements in geometric algorithms is just as necessary and natural as the participation of complex numbers in algebraic transformations. As a result, the problem of the exact constructive implementation of graphical algorithms containing actions with imaginary algebraic figures is urgent.

Practical significance. The proposed algorithm for extracting a linear surface from a linear congruence with imaginary directrices makes it possible to design architectural forms, floors, and shells that differ from traditional surfaces based on real axes, which expands the area of application of linear structures in architectural and construction design. In what follows, the directrices u, v will be called the axes of congruence.

2. Formulation of the problem

A linear congruence can be specified in several different ways, in particular, by its own axes u, v (Ìethod 1) or by four pairwise crossing lines a, b, c, d belonging to the congruence (Ìethod 2).

Both methods are geometrically equivalent: if 4 lines a, b, c, d belonging to a congruence are given, then its axes u, v can be found.

Let’s consider an algorithm for constructing the u, v axes of the congruence Kr(a, b, c, d) given in the second method. Let us introduce the linear quadric Ô, which  is completely defined by three of the given straight lines, for example, the straight lines a, b, c. The quadric Ô = Ô₁ + Ô₂ consists of the semi-quadric Ô₁ containing the straight lines a, b, c, and of the conjugate semi-quadric Ô₂ (Fig. 1).

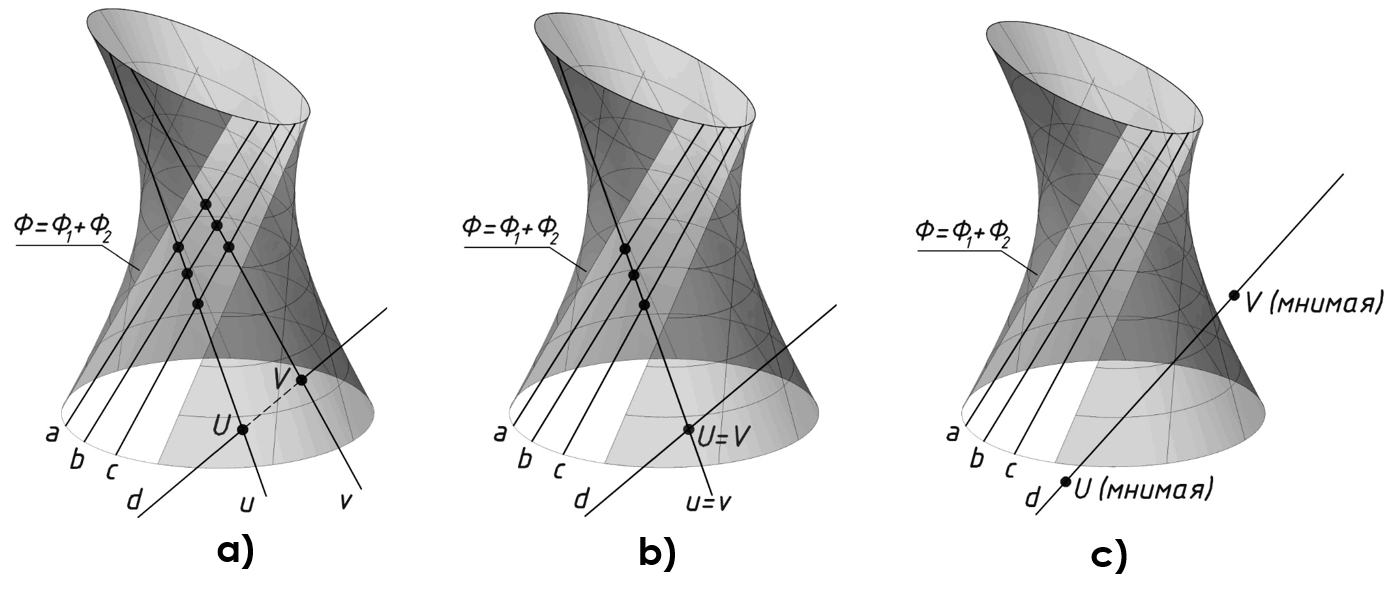

Fig. 1. Constructing the axes of the congruence Kr(a, b, c, d): (a) HLC; (b) PLC; (c) ELC



Let the straight line d intersect the quadric Ô at the points U, V. Then the straight lines u, v of the semi-quadric Φ₂ passing through the points U, V are the congruence axes [3].

If the straight line d intersects Ô at the real points U, V, then the u and v axes are real lines, and the congruence Kr(a, b, c, d) is hyperbolic (Fig. 1, a). If the points U, V coincide (the straight line d touches the quadric φ), then we obtain a PLC with infinitely close (coinciding in the limit) crossed axes u=v (Fig. 1, b). If the straight line d intersects with Ô, at real points U, V and then the u and v axes are real lines, and the congruence Kr(a, b, c, d) is hyperbolic (Fig. 1, a). If the points U, V coincide (the straight line d touches the quadric φ), then we obtain a PLC with infinitely close (coinciding in the limit) crossing axes u = v (Fig. 1, b). If the straight line d does not intersect with the quadric Ô, then the points U, V and the generating u, v of the semi-quadrics Ô2 passing through them are imaginary (Fig. 1, c).In the latter case, we obtain an elliptical linear congruence (ELC), to which the known surface extraction methods suitable for GLC and PLC are not directly applicable.

Hence the problem follows: to develop a graphical algorithm for constructing and visualizing a linear surface, separated from the ELC by immersing a guiding curve τ into it.

Only rectilinear generator t of the sought surface included in this ELC passes through any given point of T of the curve τ. Therefore, the problem of extracting the surface from the ELC is reduced to compiling an algorithm for constructing a straight line passing through a given point T and intersecting a pair of imaginary complex conjugate striaght lines u~v (ELC directrix), and to the subsequent repeated application of this algorithm to a series of points T_i of the guide curve τ, where i is the number of generators of the constructed surface required for accurate visualization.

3. Extracting a straight line passing through a given point from an ELC

Let a linear congruence be given by four pairwise intersecting straight lines a, b, c, d. It is required to extract from the congruence Kr(a, b, c, d) a straight line passing through the given predetermined point T in the three-dimensional space.

We find the u and v axes of the congruence, that are transversals of the straight lines a, b, c, d using the method described in Section 2. If these transversals are real different (HLC) or real coincident (PLC), then the solution known from descriptive geometry is reduced to the constructing of a straight line passing through a given point T and intersecting the found axes [1].

If the transversals u and v are imaginary, then they cannot be represented explicitly. In this case, the problem is reduced to the constructing a real straight line passing through T and intersects the imaginary lines u, v. The following algorithm is proposed to construct such a straight line:

Step 1. We introduce into consideration auxiliary linear quadrics φ₁ (a, b, c) and φ₂ (a, b, d), which are completely defined by triples of generators (a, b, c) and (a, b, d), respectively. The imaginary straight lines u, v (the ELC axes), being transversals of the given straight lines a, b, c, d, intersect with both triples of generators, therefore, the imaginary straight lines u, v belong to both quadrics.

Step 2. Through the point T indicated in the problem statement, draw an arbitrary plane Σ and draw conical sections f₁ = φ₁ ∩ Σ, f₂ = φ₂ ∩ Σ (Fig. 2, a). The construction of continuously drawn conics f₁, f₂ is performed using the special software [8]. The conics f₁, f₂ passing through the groups of points A, B, C and A, B, D, intersect each other at real points A, B and at imaginary conjugate points U~V (here_{A, B, C, D} are the intersection points lines a, b, c, d with the plane Σ).

Step 3. The imaginary straight lines u, v belong to the quadrics φ₁, φ₂; therefore, the imaginary points of intersection of these straight lines with the plane Σ coincide with the imaginary points U~V of the intersection of the conic sections f₁, f₂.

Intersecting at real points A, B and at imaginary conjugate points U~V, the conics f₁, f₂ establish on the line l=UV the same elliptic involution σ with imaginary double points U, V. The imaginary points U~V are depicted by the marker l{O, L}, consisting of the center O of the involution σ and the Laguerre point L, from which the involution σ is projected by the orthogonal pencil of lines (Fig. 2, b). The real straight line l passing through the imaginary conjugate points U~V is the homology axis connecting the conics f₁, f₂.

The construction of marker l{O, L}, conventionally representing the imaginary points U~V, is carried out in a known way [11, 12]. The graphic representation of imaginary points U~V in the form of a marker l{O, L} allows using these points along with real points in subsequent constructive constructions.

Step 4. Let’s introduce into consideration an auxiliary linear quadric φ₃ (a, b, t), where t is the required straight line. The generators a, b, t of this quadric, according to the condition of the problem , intersect with the imaginary axes u, v of the elliptic congruence Kr(a, b, c, d), therefore, the axes u, v are included in the composition of in the quadric φ₃. In the section of this quadric by the plane Σ, we obtain the conic f₃ passing through the real points A, B, T and through the imaginary conjugate points U~V, given in the drawing by the marker l{O, L} (Fig. 2,b). A projective computer algorithm [11], compiled according to [13, p. 147], is used to draw the conic f3,

Step 5. The continuously drawn conic f₃ and the rectilinear generators a, b intersecting it at points A, B uniquely determine the quadric φ₃ (a, b, t), which allows finding the desired straight line t from the conditions of its incidence to the point T and belonging to the family a, b, ... -forming quadrics φ₃ (Fig. 2, d). The problem has been solved.

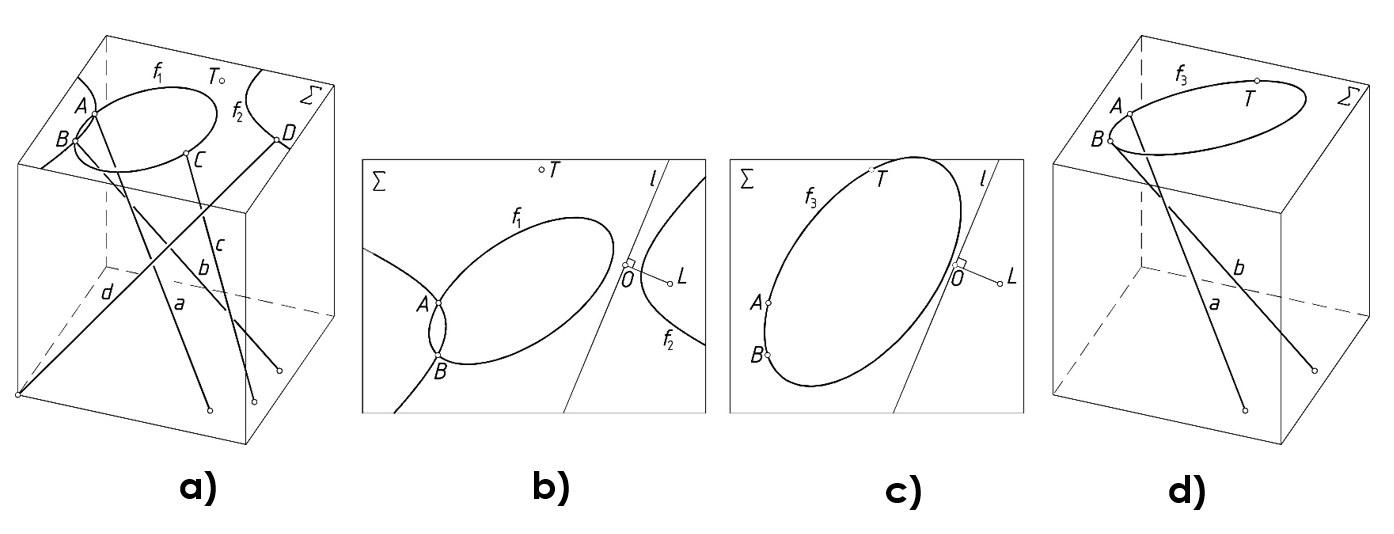

Fig. 2. Allocation of a straight  line incident to the point T from the ELK: a- initial data; b- construction of marker { l,OL} of imaginary points U~V; c - construction of a conic passing through imaginary points U ~ V; r is determinant of a quadric containing the desired straight line.

4. Extracting a surface from ELK

Theorem 1. If an algebraic linear surface Θ of the order k +2 is given by a guiding curve e^k of the order k and two intersecting rectilinear guides u, v (real or imaginary conjugates) intersecting the plane of the curve e^k at points U, V (real or imaginary conjugates), then the line UV (always real) is the axis of the pencil of planes intersecting the surface Θ along algebraic curves of the order k.

Proof. The line UV intersects the guiding curve e^k at two points (real or imaginary conjugate), and also intersects the rectilinear guides u, v, therefore, UV is two coincident generators of the surface Θ. The linear surface Θ is an algebraic surface of the order k +2, in the section of which by an arbitrary plane passing through UV, we obtain a curve that splits into the double line UV and a curve of the order k. The theorem is proved.

The visualization of the ruled surface Θ, extracted from the ELC Kr(a, b, c, d) by immersing a guiding curve into it, is visualized on the basis of Theorem 1 and multiple repetition of Algorithm 1 ... 5 described in Section 3.

Example. Let it be required to form a fourth-order linear algebraic surface Θ, “stretched” on a space frame, given by a circle r lying in the plane Σ, and four intersecting straight lines a, b, c, d (Fig. 3, a). The condition of the problem is satisfied by the surface separated from the linear congruence Kr(a, b, c, d) by immersing the guiding circle r into it. In accordance with Algorithm 1 ... 5, the line quadrics φ₁ (a, b, c) and φ₂ (a, b, d) are introduced into consideration. Having drawn the auxiliary conical sections f₁ = φ₁ ∩ Σ, f₂ = φ₂ ∩ Σ, let’s note that they intersect only at two real points A,B , therefore, the u~v axes of the congruence Kr(a, b, c, d) are imaginary (the conics f₁, f₂ are not shown in Fig. 3 conventionally).

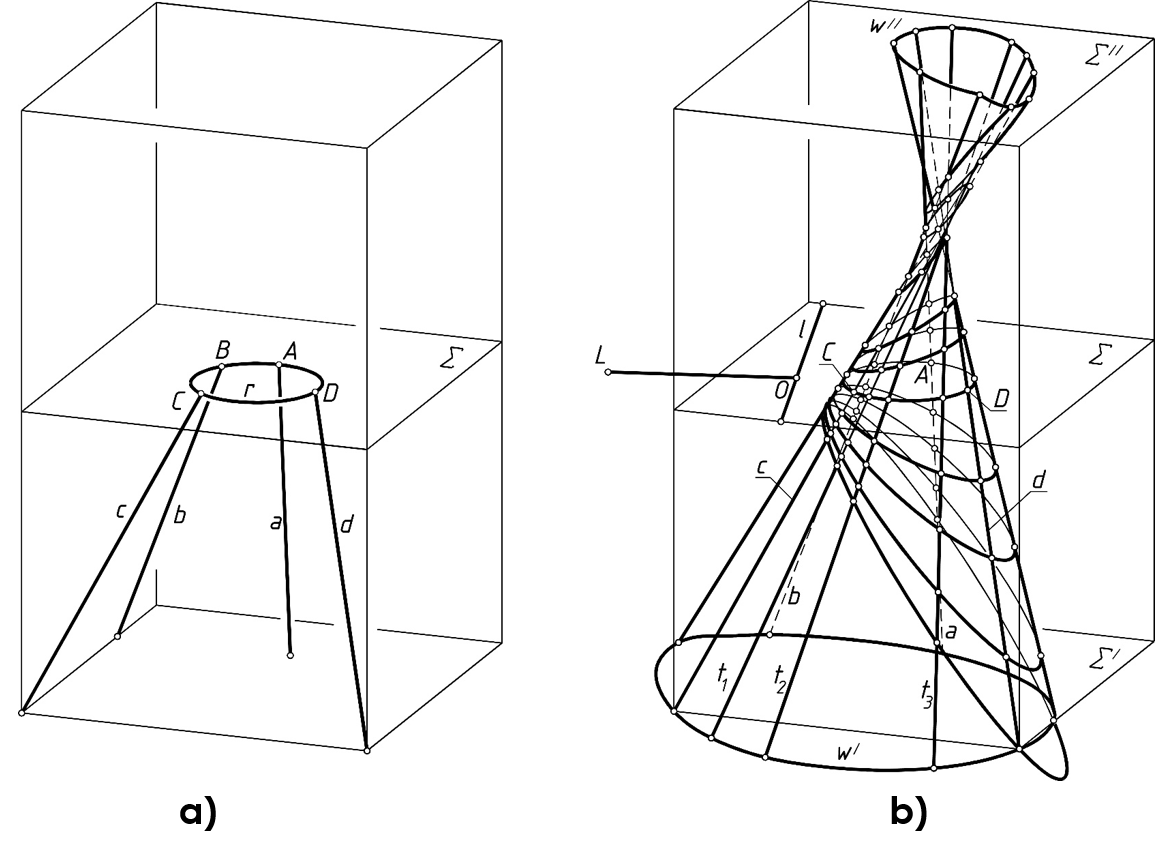

Fig. 3. Selection of the surface from an ELC: a- initial data; b- surface frame and marker {l,OL} of imaginary points of intersection of the ELC axes with the plane Σ



Find the marker l{O, L} of the imaginary points U~V of the intersection of the conics f₁ and f₂. At these points, the imaginary axes u, v of the congruence Kr(a, b, c, d) intersect the plane Σ (Fig. 3b). In accordance with Algorithm 1 ... 5, mark several points on the guide circle r and extract from Kr(a, b, c, d) several additional rectilinear generators t_i (i=1, 2, 3, ...) of the constructed surface Θ passing through points marked on r.

According to Theorem 1, the planes passing through the straight line l=UV intersect Θ in conical sections. A surface frame is obtained consisting of straight lines and curves of the second order (see Fig. 3, b).The planes Σ', Σ'' that do not pass through l intersect Θ along curves of the fourth order w', w''. A visualization of the surface is shown in Fig.4.

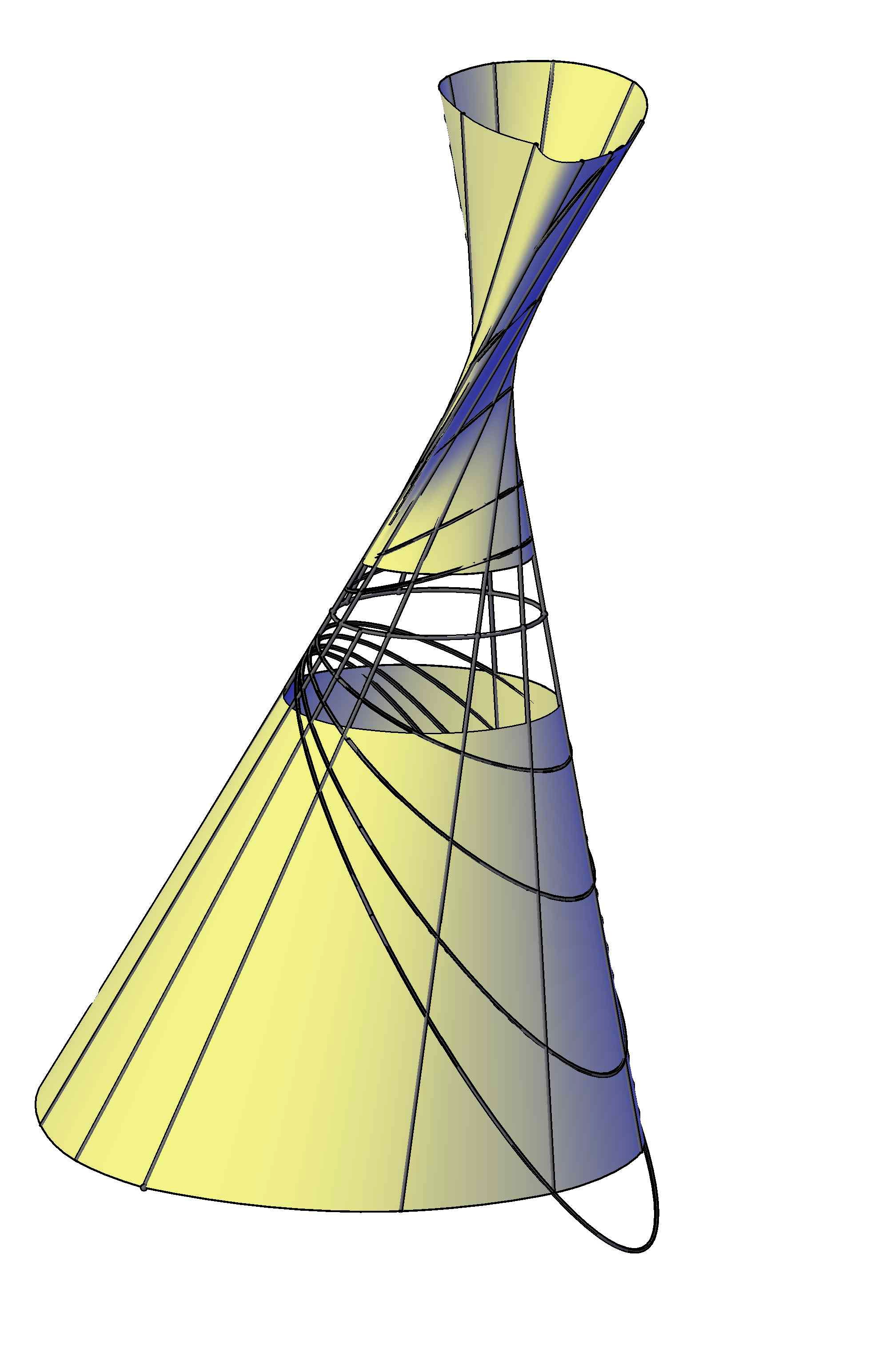

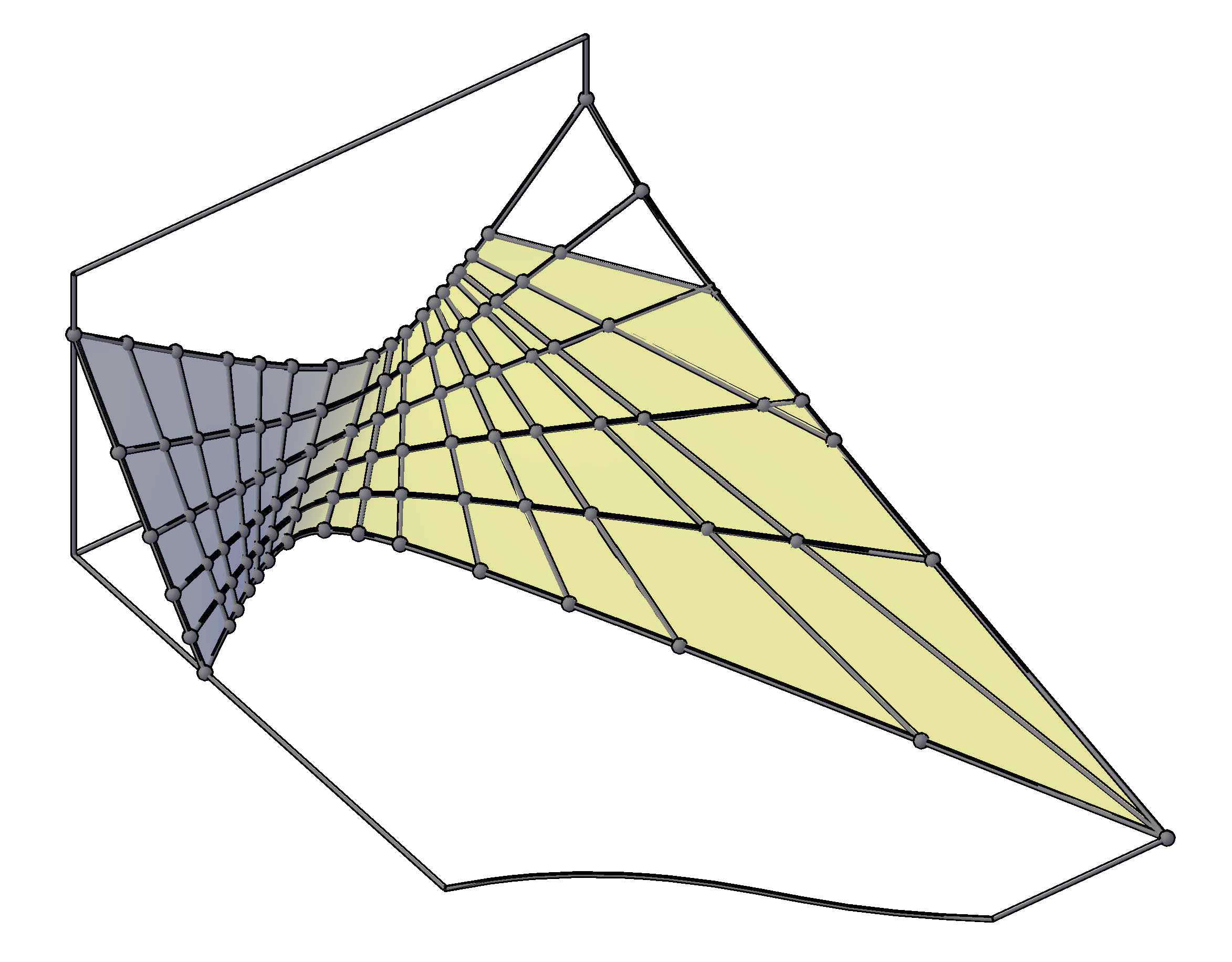

Fig. 4. Algebraic linear surface with imaginary axes (visualization)

5. Specifying the congruence Kr(a, b, c, d) using a collineation

The congruence Kr(a, b, c, d), given by the intersecting straight lines a, b, c, d, can be identically defined by the congruence Kr(Ï ↔ Ï') of straight lines connecting the corresponding points of the collinear fields Ï ↔ Ï' ( provided that in collineation Ï ↔ Ï' the line l = Ï ∩ Ï' corresponds to itself) [3, 14]. The u, v axes of the congruence Kr(Ï ↔ Ï') (real or imaginary) intersect the straight line l at the real or imaginary conjugate points U, V. Consider two versions of the transition from the congruence Kr(a, b, c, d) to the identical congruence Kr(Ï ↔ Ï'

5.1. Variant 1 (one of these straight line is self-consistent)

A linear congruence Kr(a, b, c, d) is given. Through one of the straight lines (for example, through d) we draw arbitrary planes Ï, Ï'. The straight lines a, b, c are cut out on planes Ï, Ï' points A, B, C and A', B ', C'. We define a collinear correspondence of the fields Ï ↔ Ï' by three pairs of points A~A', B~B', C~C' and a straight line d = Ï ∩ Ï', which we will assume to be self-consistent. In this case, the family of straight lines connecting the corresponding points of the fields Ï, Ï' is the linear congruence Kr(Ï ↔ Ï') [3].

Let us show that the congruences Kr(a, b, c, d) and Kr(Ï ↔ Ï') coincide. The collineation Ï ↔ Ï' induces on the straight line d a projectivity with double points U=U', V=V' (real or imaginary). The axes u, v (real or imaginary) of the congruence Kr(Ï ↔ Ï') pass through these points and intersect with the straight lines a, b, c, therefore, the straight lines u, v are transversals of the straight lines a, b, c, d, that is the axes of the congruence Kr(a, b, c, d). The coincidence of the congruences follows from the coincidence of the axes.

The proposed version of the transition from Kr(a, b, c, d) to Kr(Ï ↔ Ï') can be used to extract from the congruence Kr(a, b, c, d) the straight line t passing through a given point T. Let’s draw the plane Ï through the straight line d and point T. Draw another (arbitrary) plane Ï' through the straight line d. We mark the points of intersection A~A', B~B', C~C' of straight lines a, b, c with planes Ï, Ï'. In the collineation Ï(A, B, C) ↔ Ï'(A', B ', C') with the self-corresponding line d, we find the point T' corresponding to the point T. Through the points T~T' we draw the sought straight line t. The sought straight line is extracted from the congruence.

5.2. Variant 2 (general case)

A linear congruence Kr(a, b, c, d) is given. Let us introduce into consideration the line quadrics φ₁ (a, b, c) and φ₂ (a, b, d) and an arbitrary plane Ï intersecting them. We draw conical sections f₁ = φ₁ ∩ Ï, f₂ = φ₂ ∩ Ï, passing through the triples of points (A, B, C) and (A, B, D). Here A, B, C, D are the points of intersection of the straight lines a, b, c, d with the plane Ï.

The conics f₁, f₂ intersect at the points A, B and at two more points U, V (real or imaginary) through which the axes u and v (real or imaginary) of the congruence Kr(a, b, c, d) pass. We draw an arbitrary plane Ï' through the straight line l=UV (always real) and mark the points A', B ', C', D' of intersection of rays a, b, c, d with the plane Ï'. Let’s define the collinear correspondence of the fields Ï ↔ Ï' by three pairs of the corresponding points A~A', B~B', C~C' and the self-corresponding straight line l =Ï∩Ï'. The collineation Ï ↔ Ï' induces on l a projectivity with the double (self-corresponding) points U, V. The family of lines a, b, c,... connecting the corresponding collineation points Ï ↔ Ï' is the linear congruence Kr(Ï ↔ Ï'), and the semi-quadric φ₁ (a, b, c) containing three straight lines a, b, c of the congruence Kr(Ï ↔ Ï')), all consists of the straight lines of this congruence.

Let us show that the straight line d is included in the congruence Kr(Ï ↔ Ï'). Let’s suppose that the generators of the semi-quadrics φ₁ (a, b, c) and φ₂ (a, b, d) generate two different collineations. The double points U, V coincide in these collineations. In addition, two common straight lines a, b of the quadrics φ₁, φ₂ cut the same pairs of the corresponding points A~A', B~B' in the fields Ï, Ï'. Four pairs of corresponding elements of the two collineations coincide, which means that the collineations’ coincide. It follows from this that all generators of the semi-quadrics φ₁ (a, b, c) and φ₂ (a, b, d), and the straight line d, are included in the same congruence Kr( Ï ↔ Ï'). The coincidence of the four rays a, b, c, d of the congruences Kr(a, b, c, d) and Kr(Ï↔Ï ') implies the coincidence of the congruences themselves.

The proposed variant of the transition from Kr(a, b, c, d) to Kr( Ï ↔ Ï') can be used to extract a straight line t passing through a given point T from the congruence Kr(a, b, c, d). Draw through T an arbitrary plane Ï. Let’s mark the points A, B, C, D of the intersection of straight lines a, b, c, d with the plane Ï. Draw the sections f₁ (A, B, C)= φ₁ (a, b, c)∩ Ï, f₂ (A, B, D)= φ₂ (a, b, d)∩ Ï. Through the straight line l connecting the points U, V (real or imaginary) intersections of the conics f₁, f₂, draw an arbitrary plane Ï' and mark the points A', B ', C', D' where the straight lines a, b, c, d intersect with the plane Ï'. We obtain the collineation Ï(ABCD) ↔ Ï'(A'B'C'D') with double points U, V lying on the self-corresponding straight line l = Ï ∩ Ï'. We find the point T' corresponding to the point T in this collineation. The sought straight line t passes through the points T, T'.

6. Linear surface passing through two given conics

A linear congruence given by collinear fields allows solving the practically important problem of  constructing a linear surface passing through a pair of predetermined conic sections [14].

Theorem 2. If arbitrary conical sections r, r' with points A, A' are drawn in flat fields Ï, Ï', then there are only two variants of collineations Ï ↔ Ï' with a self-corresponding weakly invariant line l = Ï ∩ Ï', in which r↔r', A↔A'.

Proof. Draw the tangents t_A, t'_A to the given conics at the points A, A' (Fig. 5). From points 1=tA∩l, 1'=t'A∩l draw the tangents t_B, t'_B. Marking the points 2= AB∩l, 2'= A'B'∩l, draw from these points the tangents t_C, t_D, t'_C, t'_D to the conics r, r'. We get the quadrilaterals (t_A, t_B, t_C, t_D) and (t'_A, t'_B, t'_C, t'_D) with vertices (1, 2, P, Q, M, N) and (1', 2 ', P', Q ', M', N'), described near the conics r, r'. According to Brianchon's theorem, the lines AB, CD and A'B ', C'D' connecting the touching points, pass through the points 3= QP∩MN, 3'= Q'P'∩M'N' of the intersection of the diagonals of these quadrilaterals (see Fig. 5).The lines CD, AB and C'D', A'B', according to the theory of poles and polar, are incident to the points 1, 2 and 1', 2' , therefore, in the planes Ï and Ï' the complete quadrangles MNPQ and M'N' are obtained P'Q', carrying the harmonic groups of points on their sides [15].

Thus, the correspondence of the flat fields Ï, Ï', given by those indicated in Fig. 5 fours of tangents (t_A, t_B, t_C, t_D) and (t'_A, t'_B, t'_C, t'_D) or the fours of points (M, N, P, Q), (M', N', P', Q'), is a collineation (since straightness, incidence, and harmonism are preserved) that meets the conditions of the theorem. In this collineation the conics r, r' are mutually corresponding, and the straight line l =12 transforms into the straight line coinciding with it l' =1'2'. The pairs of the corresponding points 1~1', 2~2', … do not coincide, therefore l = l' is a weakly invariant straight line. Only two collineation variants are possible: (t_A, t_B, t_C, t_D) ↔ (t'_A, t'_B, t'_C, t'_D) èëè (t_A, t_B, t_C, t_D) ↔ (t'_A, t'_B, t'_D, t'_C). The theorem is proved.

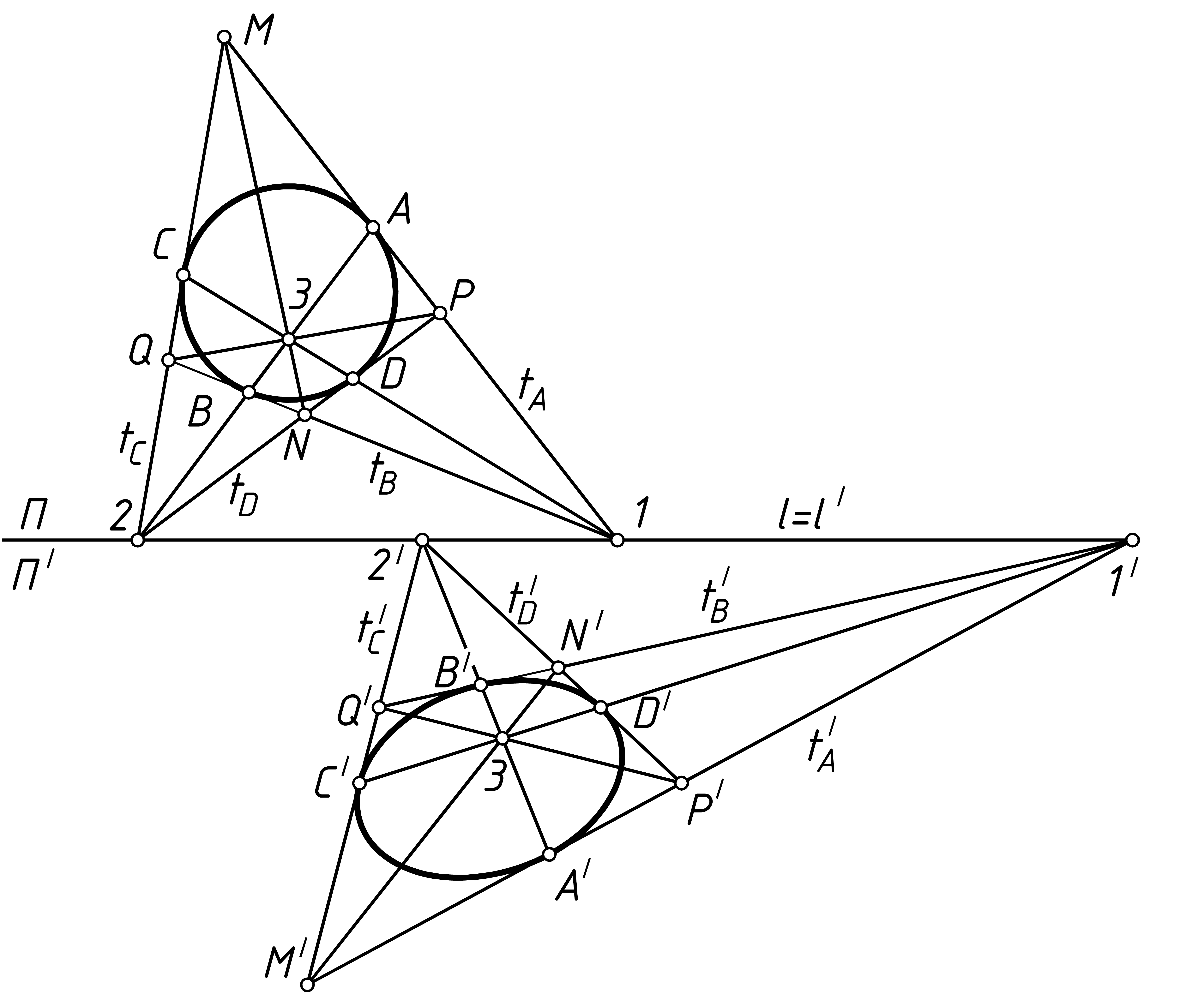

Fig. 5. For Proof of Theorem 2

6.1. Algorithm for constructing rectilinear generators.

On the basis of Theorem 2, the problem of constructing rectilinear generators of an algebraic surface of the fourth order passing through the conics r, r' and having a predetermined generator AA' is solved. Assuming that the collineation Ï ↔ Ï' is given by the drawn conics r, r' and a pair of corresponding points A↔A' on these conics, we obtain, according to Theorem 2, the congruence Kr( Ï ↔ Ï'). To extract the desired surface from it, it is necessary to point to several points Ti on one of the cones and find the corresponding in the collineation Ï ↔ Ï' points T_i', where i is the number of generators of the constructed surface required for accurate visualization.

Step 1 Draw the tangents t_A, t'_A to the conics r, r' at the points A, A'. From the points 1= t_A ∩ l, 1'= t'_A ∩ l draw the tangents t_B, t'_B. From points 1 = tA∩l, 1 '= t'A∩l draw the tangents tB, t'B. Marking the points 2= AB ∩ l, 2'= A'B' ∩ l, draw from these points the tangents t_C, t'_C (Fig. 6, b). According to Theorem 2, the collinear correspondence of the fields Ï ↔ Ï' (with the self-corresponding straight line l and the mutually corresponding conics r, r') is completely determined by four straight lines (t_A, t_B, t_C, AB) ↔ (t'_A, t'_B, t'_C, A'B'), at which the points C ↔ C' are mutually correspondent.

Note for Step 1. Another possible collineation variant is generated by the corresponding straight lines (t_A, t_B, t_C, AB) ↔ (t'_A, t'_B, t''_C, A'B'). In this case, the correspondence C ↔ C' is replaced by the correspondence C ↔ C'' (see Fig. 6, b).

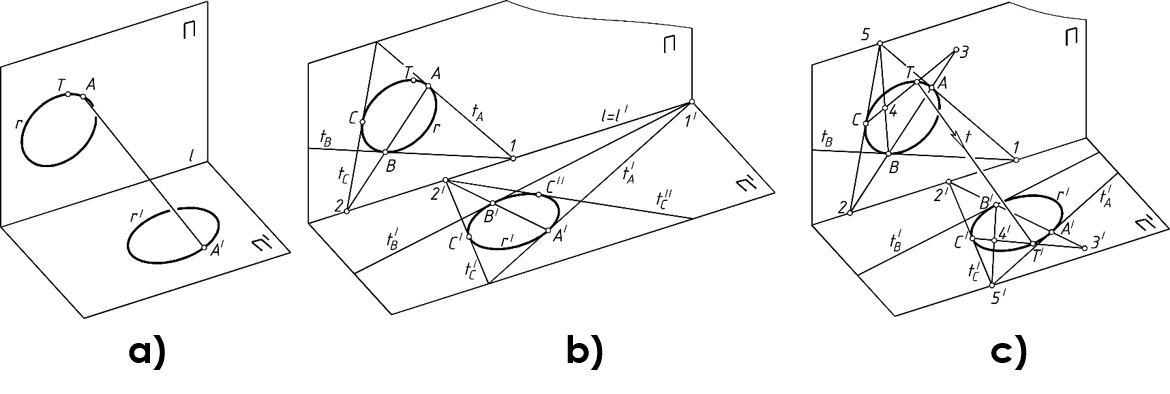

Fig. 6. Constructing a surface passing through two conics: a- initial data; b- collineation Ï - Ï' (two variants); c- extracting the generator t from the congruence
Kr(Ï ↔ Ï')



Step 2. Through point T an auxiliary straight line is drawn (for example, straight line TC) and point 3= TC ∩ AB is marked on it (Fig. 6, c). From the condition preservation of a complex relation (2 AB 3)=(2' A'B' 3') we find point 3'.

Step 3. On lines B5 and B'5' mark points 4 and 4'. From the condition of preserving the complex relation (CT 43) = (C'T' 4'3 ') we find the point T'. By direct verification on a computer model, we make sure that T' is incident to the conic r'. Connecting the points T and T', we obtain the generator t (see Fig. 6, c).

Multiple applications of the algorithm allow finding any number of rectilinear generators of the required surface. According to Theorem 1, the pencil of planes passing through l intersects this surface along curves of the second order.

6.2. Special case (planes Ï, Ï' are parallel)

If planes Ï, Ï' are parallel, then the straight line l becomes improper, and the projectivity degenerates into an affine correspondence of the point fields Ï ↔ Ï', since a simple relation and parallelism are preserved. For example, it is required to “pull” a linear surface onto a frame given by a rectilinear generatrix AA' and the conics r, r' lying in the parallel planes Ï (zx) and Ï'(z'x'). By indicating in the fields Ï, Ï' three pairs of corresponding tangents (t_A, t_B, t_C) ↔ (t'_A, t'_B, t'_C), we obtain the affinity Ï(r, A)↔ Ï'(r', A') (Fig. 7, a). The straight lines connecting the corresponding points of the affine fields Ï, Ï' form the body of the linear congruence Kr( Ï ↔ Ï').

Extracting from Kr(Ï ↔ Ï') several generators of the required surface and using Theorem 1, we obtain the skeleton of an algebraic surface of the fourth order, consisting of a family of rectilinear generators and curves of the second order lying in parallel planes (Fig. 7, b). The surface visualization is shown in Fig. 8.

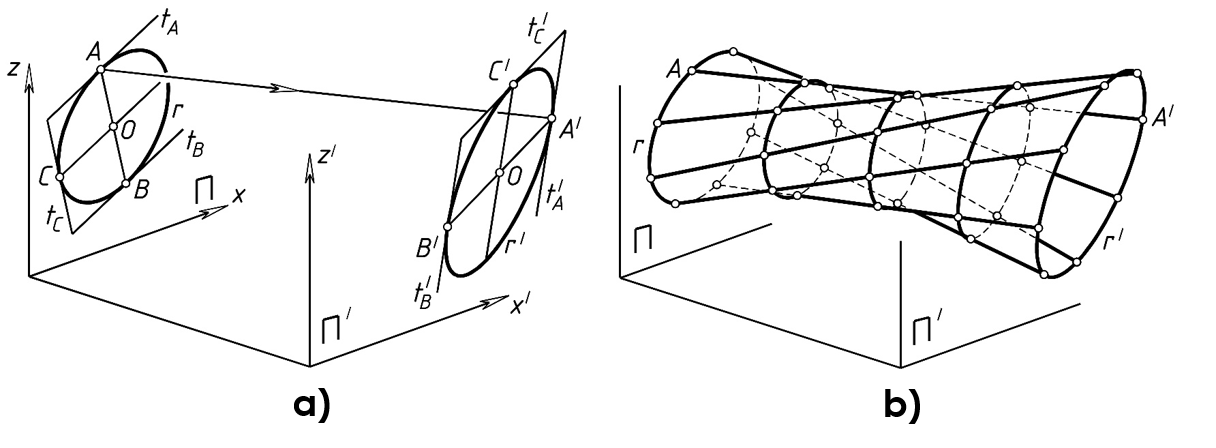

Fig. 7. Special case (affine collineation Ï ↔ Ï'): a – initial data; b – surface frame is formed by conics lying in parallel planes

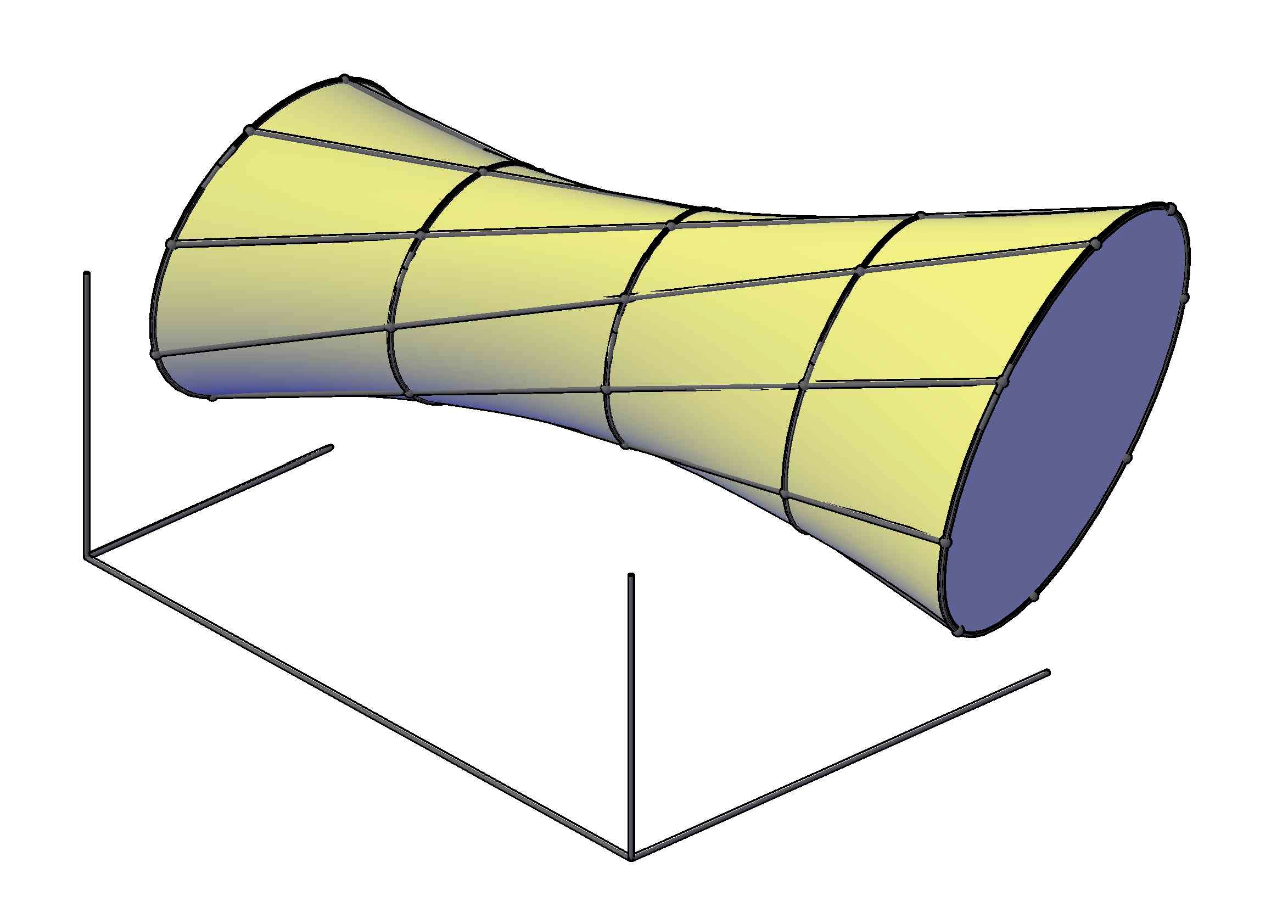

Fig. 8. Linear surface with imaginary axes (visualization)



Note to Section 6.2. If the conics r, r' are similar and similarly located, then the fourth-order algebraic surface degenerates into a linear quadric.

6.3. Examples

Example 1. Construct a fourth-order linear algebraic surface passing through the conics r, r' and having a predetermined generator AA' (Fig. 9).

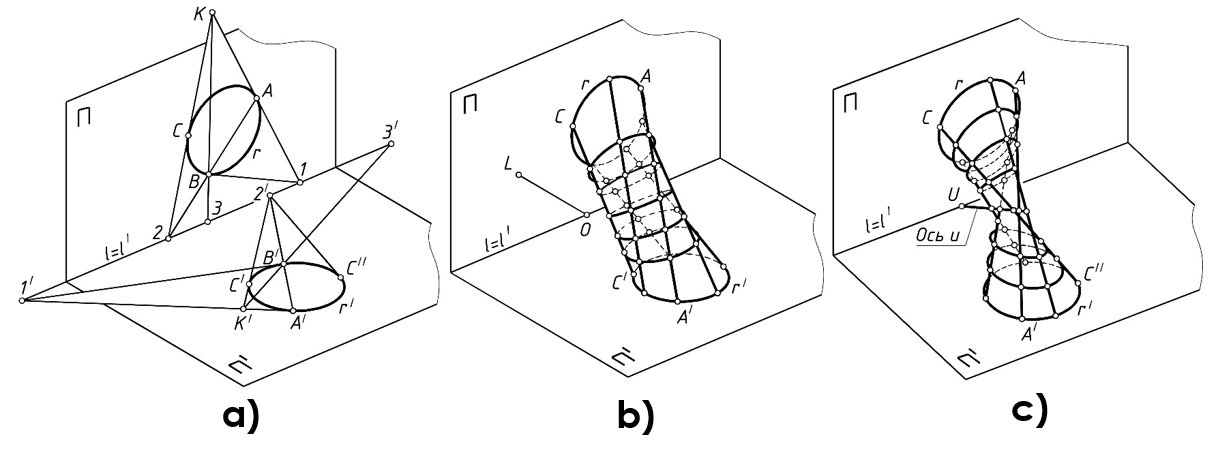

Fig. 9. For Example 1: a- initial data; b- surface frame with imaginary axes (the first collineation variant Ï ↔ Ï'); c- surface frame with real axes (the second collineation variant Ï ↔ Ï')



Draw the tangents to these conics and mark the points of tangency A ~ A', B ~ B', C ~ C' (or C ~ C''). According to Theorem 2, we obtain two variants of collineation: Ï (ABCK) ↔ Ï'(A'B'C'K') and Ï (ABCK) ↔ Ï'(A'B'C''K') (Fig. 9, a).

In accordance with the first option, triples of points l (1, 2, 3) l '(1', 2 ', 3') define projective point series on a common support l = l 'with imaginary double points U = U', V = V ', represented by the marker l {OL}.The imaginary u and v axes of the congruence Kr( Ï ↔ Ï') pass through these points (Fig. 9, b). Using the algorithm 1 ... 3 considered in Section 6.1, we find several rectilinear generators of the constructed surface. According to Theorem 1, the surface bears a family of conic sections, the planes of which pass through l (see Fig. 9, b).

Considering the second variant of collineation,we obtain a surface with real axes u, v is obtained, which also carries a family of curves of the second order (Fig. 9, c). The visualization of both surfaces is shown in Fig. 10.

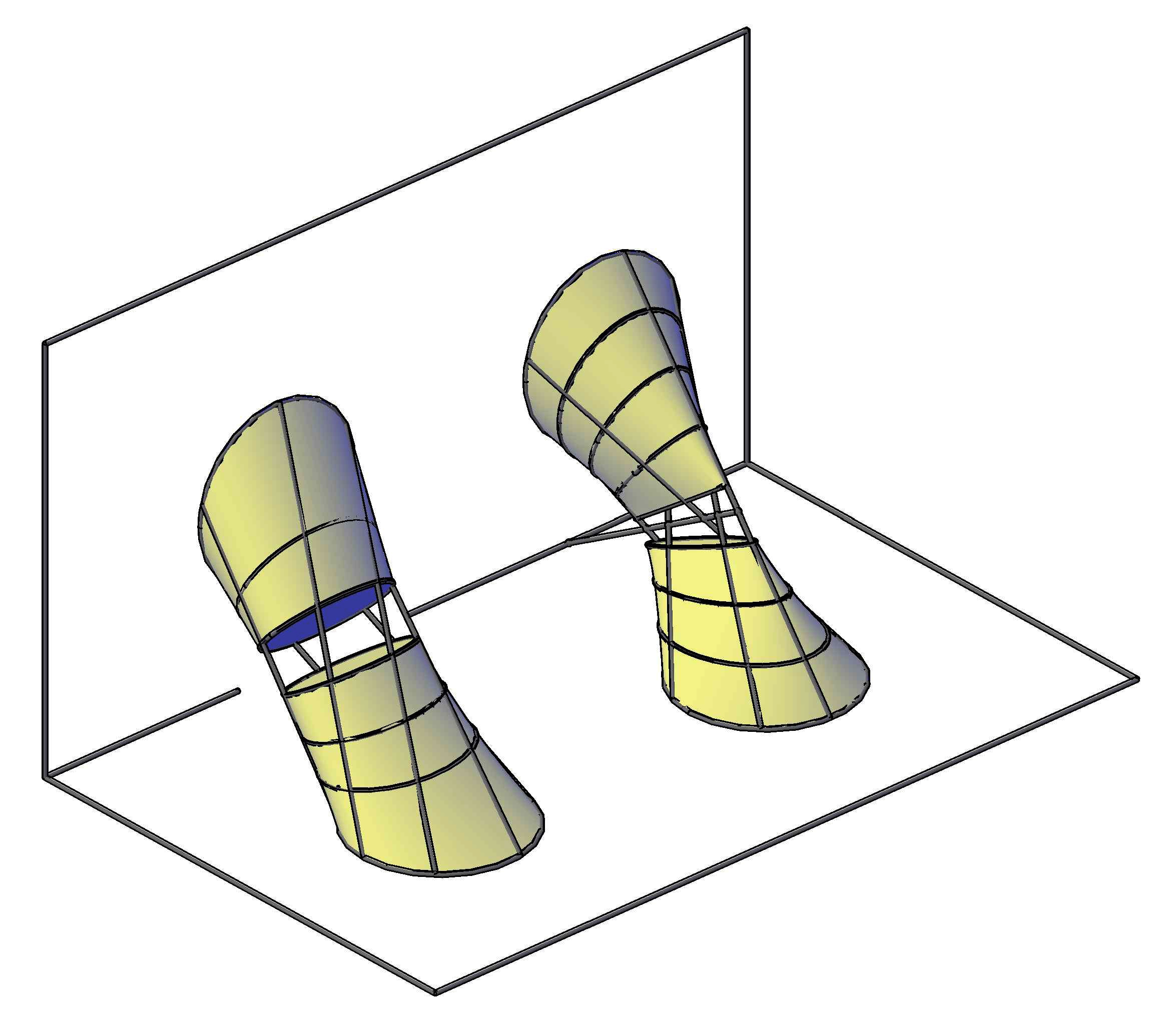

Fig. 10. Visualization (Example 1)



Example 2. Construct a fourth-order ruled algebraic surface passing through the hyperbolas g, g' and having a predetermined generator AA' (Fig. 11, a).We find several rectilinear generators of the constructed surface using Algorithm 1 ... 3 considered in Section 6.1. According to Theorem 1, the surface bears a family of conic sections (in this example, hyperbolas), the planes of which Ï₁ ... Ï₄ pass through l (Fig. 11, b). A visualization of the surface compartment is shown in Fig. 12.

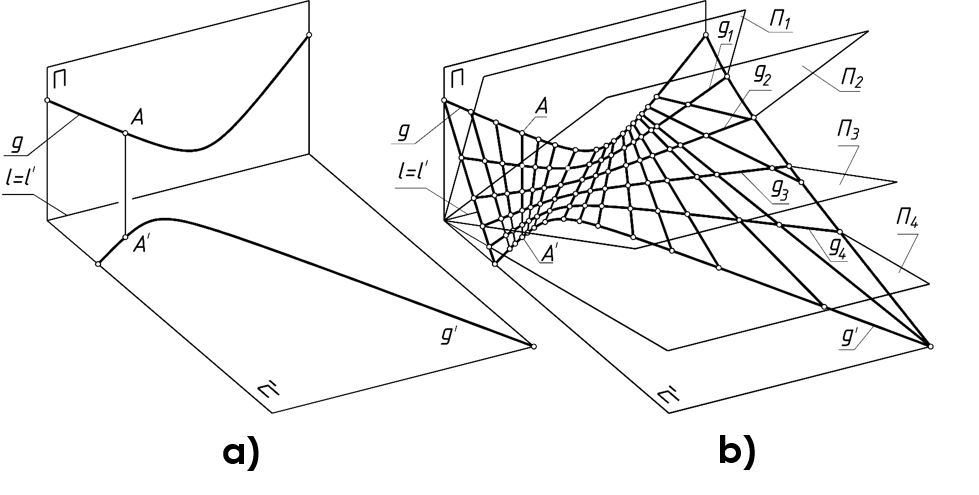

Fig. 11. For example 2: à - initial data; b- surface frame



Fig. 12. Visualization (Example 2)

7. Biaxial linear surface with generators of constant length

Let’s consider a linear surface Ω formed by the motion of a straight line a, fixed points M, N of which slide along intersecting straight lines m, n. We impose on the constructed surface the condition |MN|=const (constancy of the length of the generators). Let us show that the surface Ω can be separated from the GLK Kr(m, n) by immersing a guiding ellipse into it, the eccentricity of which is determined only by the value of the angle between the axes m, n of the congruence.

Theorem 3. If the ends of the segment MN of a fixed length Δ slide along straight lines m, n crossing at the angle α, then the points of the segment describe ellipses lying in planes parallel to the straight lines m, n, and the midpoint of the segment MN describes the middle (throat) ellipse e, the main axes δ₁, δ₂ of which are equal to δ₁ =tg(α/2)√( Δ₂ -d₂ ), δ₂ =ctg(α/2)√(Δ₂ - d₂), where d is the distance between the axes m, n (without proof).

Corollary 1. The ratio of the main axes δ₁/δ₂ = tan²(α/2) of the throat ellipse is determined only by the value of the angle α between the axes m, n.

Corollary 2. The ellipse with the ratio of the principal axes δ₁/δ₂ =tg²(α/2), located symmetrically with respect to the directing lines m, n, separates an algebraic linear surface of order 4 with generators MN of the constant length |MN|= Δ =√(d₂ + δ₁ δ₂) from the hyperbolic linear congruence Kr(m, n).

In particular, if α=π/2, then, according to Corollary 1, the throat ellipse degenerates into a circle. We get a double-symmetric linear surface with mutually perpendicular guides m, n, throat circle r and elliptical sections in planes parallel to the median plane (Fig. 13).

The technological advantage of such surfaces, which makes it possible to recommend them for use in architecture and construction, is that they are mounted from rectilinear beams or rods of the same standard size.

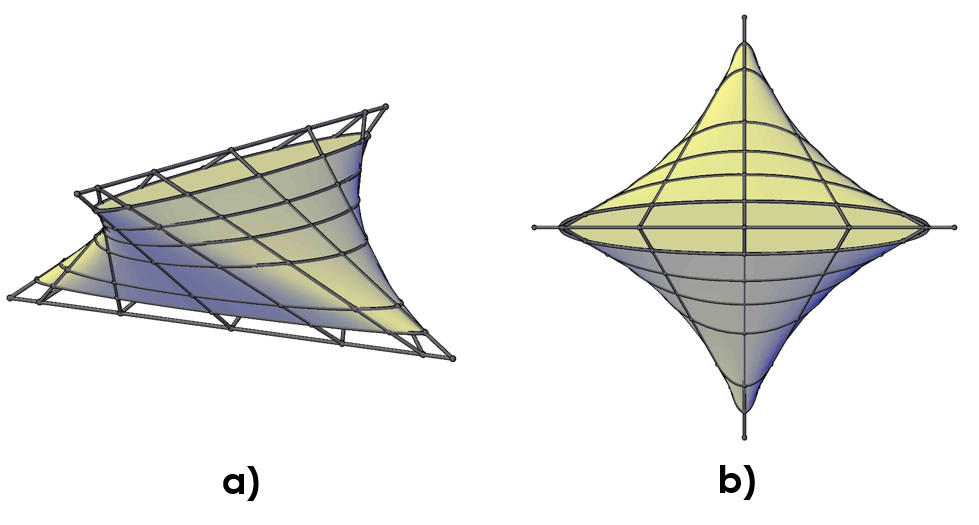

Fig. 13. Visualization of a surface with mutually perpendicular axes and generators of constant length: a- axonometry; b- plan view

8. Conclusion

It is proposed a computer projective-graphic algorithm for the construction and visualization of an algebraic linear surface of the fourth order separated from the ELC by immersing a guiding  conic into it. The surface is formed as a one-parameter set of straight lines intersecting two predetermined imaginary conjugate straight lines— ELC directrices (axes). The imaginary points of intersection of the imaginary axes of collineation with the real plane of the guiding conic are depicted with a special marker, which allows using imaginary points along with real ones when performing constructive constructions.

A theorem is proved on the existence of a pencil of planes intersecting a linear algebraic surface of order k +2 along algebraic curves of order k, which makes it possible to construct a skeleton of an algebraic surface of the fourth order from straight lines and curves of the second order.

The variants of transition from a congruence given by four intersecting lines to a congruence of straight lines connecting the corresponding points of collinear fields are considered. Linear congruence given by collinear fields allows solving the practically important problem of constructing a fourth-order linear algebraic surface passing through a pair of predetermined conic sections.

A biaxial linear surface with constant-length generators is considered. It is shown that this surface is distinguished from a linear congruence with real axes by immersing a guiding ellipse into it, the eccentricity of which is uniquely determined by the angle between the congruence axes. The technological advantage of such surfaces, which makes it possible to recommend them for use in architecture and construction, is that they are mounted from rectilinear beams or rods of the same standard size. This makes it possible to recommend them for use in architecture and construction.

The computer projective-graphic algorithms proposed in the work make it possible to design architectural forms, floors, and shells that differ from traditional surfaces based on real axes, which expands the field of application of linear structures in architectural and construction design.

The figures presented in the article were made using a software product [8], which allows performing geometrically accurate construction of second-order curves (SOC) incidental to predetermined points and tangents. The algorithms outlined in [11] allow using of the program [8] to construct CWPs incident to both real and imaginary line elements.
