ISSN 2079-3537


Scientific Visualization, 2020, volume 12, number 1, pages 132 - 139, DOI: 10.26583/sv.12.1.12

Stereoscopic construction of textual information in presentations of research results on an autostereoscopic monitor

Authors: S.V.  Andreev1,A, A.E. Bondarev2,A, N.A.  Bondareva3,A

Keldysh Institute of Applied Mathematics RAS

1 ORCID: 0000-0001-8029-1124,

2 ORCID: 0000-0003-3681-5212,

3 ORCID: 0000-0002-7586-903X,

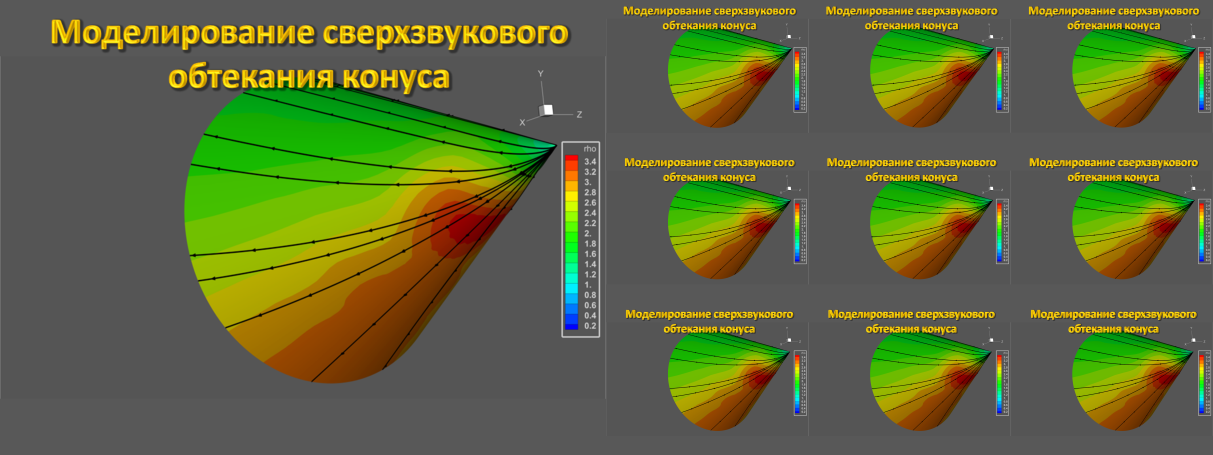

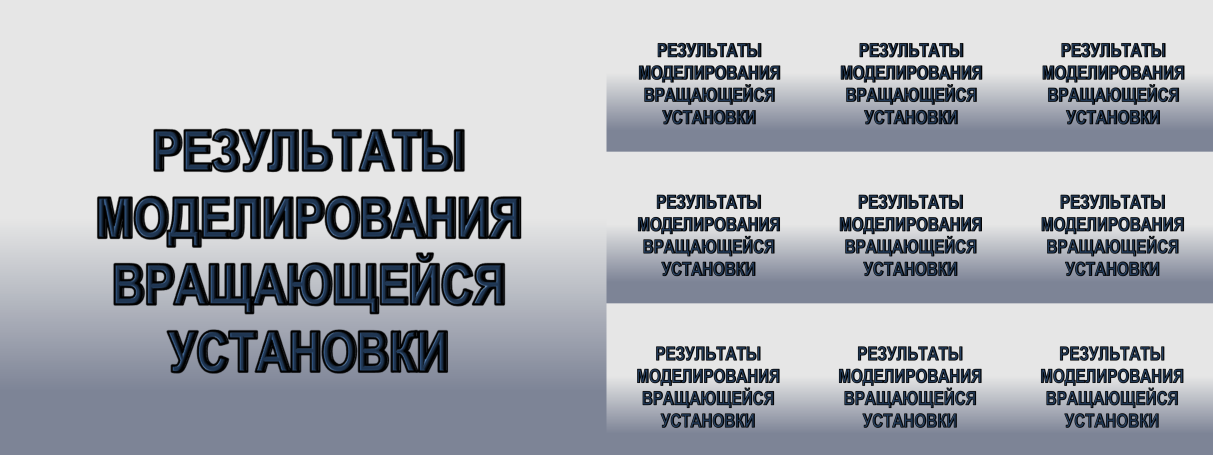

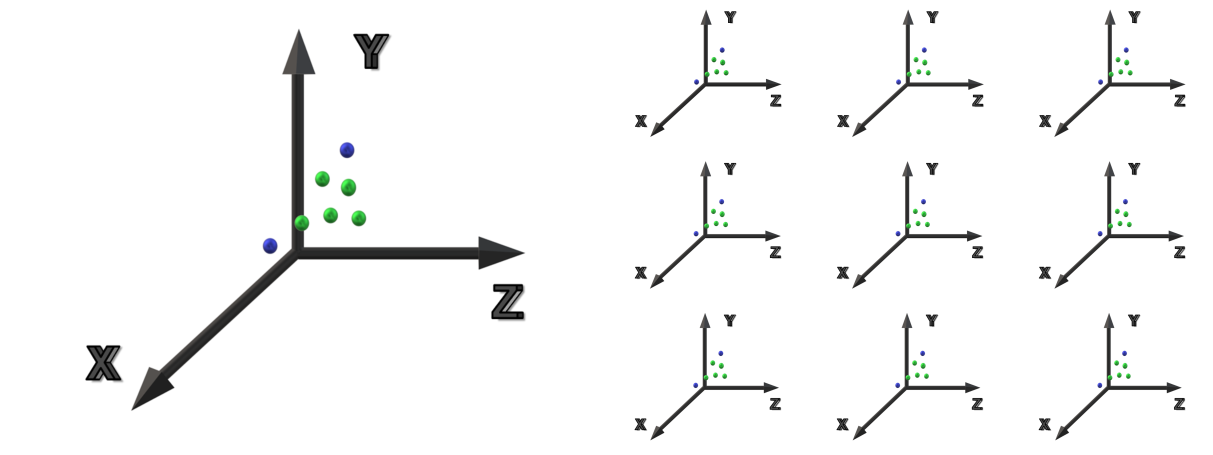

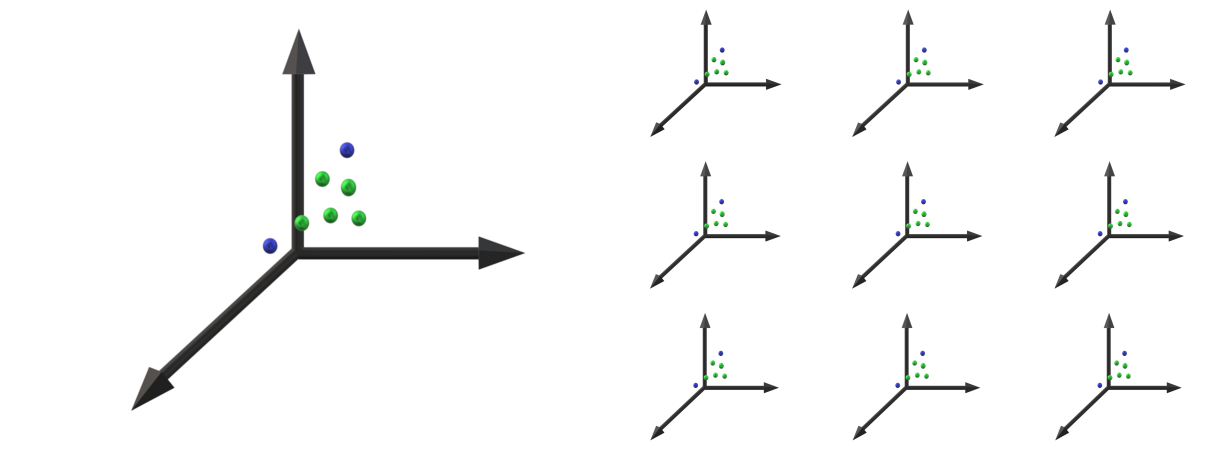

This work is devoted to the general problem of constructing stereo presentations of scientific research in stereo modes. The construction of texts and formulas is considered when creating stereo presentations representing the results of solving mathematical modeling problems. The construction of texts and formulas, which are an integral part of a scientific presentation, is considered as a structural subproblem when constructing a stereo presentation as a whole. In this paper, the construction of stereo images on an autostereoscopic monitor is considered. An autostereoscopic monitor allows you to watch stereo images without glasses, while ensuring the quality of the stereo image, which is not inferior to the quality of the stereo image presented using the classic 3D projection stereo system. The results of building text labels using a multi-view representation of the object are considered. Multi-view presentation is one of the ways to build stereo images on modern autostereoscopic systems. The problem of combining text labels and the main image on one stereo frame is considered.


Keywords: stereo image; textual information; autostereoscopic monitor; multi-view presentation; depth maps.
