1. Introduction

This study is conducted to gain a maximum classification accuracy of the image of letters and numbers. A high accuracy value is required for feature extraction stages to produce good image features . The method of feature extraction in this research is performed by using image matrix segmentation. The image s of numbers and letters used as training and testing dataset are obtained from the result of segmentation of vehicle lisence plates. This research which is included as a research in the field of Vehicle License Plate Recognition (VLPR) is aimed to recognize character images in recognizing the combination of letters and numbers stamped in vehicle lisence plates. VLCR research has been done a lot as it is significantly urgent and necessary to ease in identifying vehicle owners. There are three important discussions in recognizing vehicle license plates: License Plate Detection, Character Segmentation and Character Recognition [1][2]. Recognition of the features in each number and letter on the license plate is an important step in VLPR study since it influence s the thoroughness in producing maximum accuracy and the speed in processing overall recognition system [3].

This study focuses on the method of segmentation and feature extraction using matrix segmentation to produce a character features dataset of letters and numbers on lisence plates. Feature extraction highly depends on the results of image segmentation, and the feature dataset from feature extraction significantly influences the value of accuracy in recognizing images using classification algorithms. Accordingly, the better the image as the region of interest produced in segmentation process is , the easier the feature extraction process is to the image, and the produced feature dataset will increase the classification accuracy value. A precise feature extraction method in producing feature datasets is a fundamental part of classification since feature datasets produced from good feature extraction can maximize the accuracy of classification results [3][4].

Non-linear multi-class classification algorithm used in study is Support Vector Machine (SVM) with a Radial Based Function (RBF) kernel. The results of previous studies said that the classification accuracy value with SVM has a better success rate than the Artificial Neural Network (ANN) [5] and Backpropagation Neural Network (BNN) [6]. ANN algorithm is a combination of statistics and knowledge trees which have a higher computational complexity than SVM. The results of non-linear classification with BNN can not be consistent because there are differences in the results of the model of decision boundary margins between classes on each use of different feature test data, while the SVM can provide the same class decision limit model (global optima). In general, the use of Neural Networks in the classification will experience overfitting problems for large datasets. Non-linear SVM is chosen to maximize the value of classification accuracy by handling overfitting with soft margins . This is conducted by replacing each dot product of test feature with non-linear kernel function matrix. Consequently, it is necessary to determine the best kernel for available datasets in non-linear multi-class classification with SVM method . RBF kernel is used in similar studies because it is recommended to gain maximum non-linear classification results for a new dataset [7]-[11]. Classification using SVM for image features with high data dimensions can significantly improve classification accuracy [9][12]. The use of SVM in classification is advantageous as it does not involve all training vector dataset of image feature in forming hyperplane and margin as class separators ; only the contributing vector dataset of image feature ( support vector ) is used in the forming hyperplane and margin . SVM has shown a high accuracy value to classify lisence plates and other images in previous studies. In previous studies , the authors have optimized the use of multi-grade SVM in image recognition using Geometric Decorative Motifs [13]. Lihong Zheng and Xiangjian He from University of Technology Sydney have conducted a research on the use of Support Vector Machine method for character recognition of Australian vehicle license plates [14]. The purposes of their study is to compare two kernel methods, Linear Kernel and Radial Basis Kernel Function, while the multi-class method used in their study is “ One Against All ” method. Kumar and Subin conducted a study on vehicle lisence plates recognition using Support Vector Machine method [15], and the scope of the study is to detect the location of lisence plates , to segment the character of vehicle lisence plates and to test the accuracy of the method using multi-class SVM and RBF kernel.

Such efforts have been conducted i n the previous VLPR research to develop feature extraction to maximize the value of classification accuracy using multi-class SVM. Andrej and Nikola , in his license plate recognition study, increased the accuracy (83%) as a result of multiclass SVM classification with Compressive Sensing based feature extraction [16] . Compressive Sensing was used to minimize the use of sample data or training feature dataset. In addition, to improve the quality of feature dataset in Fet Xie , et al all [17], feature extraction is developed to produce features consisting of 3 characteristics: Vertical Traverse Density (VTD), Horizontal Traverse Density (HTD), and the distance from the left edge to the first white pixel. In other license plate detection studies [18] [19], classification using Multiclass SVM is conducted to increase the accuracy value by feature extraction using Histogram of Oriented Gradient (HOG). Feature dataset from the extract ed feature vector of each normalized candidate is used as training and testing dataset on Multiclass SVM classification with RBF kernel [20]. In other studies , feature dataset which is produced by Enhanced geometrical feature topological analysis (eGFTA) is used to improve the accuracy value of SVM classification result [21].

In increasing the accuracy value of multiclass SVM classification result, the authors in this study, create a feature extraction method in generating feature dataset by simplifying the determination of feature values . Moreover, image matrix segmentation is used to count total pixels per segment n ^th line m ^th column as feature vector value for each character of letter or number. The methods were as follow: 1. transformation of scanned image t o ROI Image ; 2. image enhancement to eliminate unnecessary noise in ROI image; 3. skeleton process for each image segmentation result; 4. finding the value of height and width in the image of letters/numbers which have under gone image skeletonization process; 5. finding the right matrix segmentation; 6. finding total pixels as a feature stored in each segment on the matrix. The method for producing letter and number feature values ​​carried out in this study has a simpler computational complexity than the methods used in previous studies. Feature extraction is generally carried out by statistical and spectral methods. In the statistical method in determining the parameter features performed based on the distribution of gray level frequency, the segmentation matrix is ​​used to determine the proximity between pixels as a function of orientation and spatial distance in digital images. In the Spectral method characteristic parameters are calculated by transforming the spatial domain image into a signal domain, in this method the matrix is ​​used to describe the transformation scheme [22]. The use of Matrix Based Feature Extraction Algorithms is applied to the principal component analysis (PCA) and linear discriminant analysis (LDA) methods, to form a matrix covariance of the matrix of the mean values ​​of images in looking for eigenvalues ​​[23]. Searching for eigenvalue requires more time for images with high resolution, for example, if images with a resolution of 256x256 will produce a vector with a dimension value of 65526, so with a large dimension, the calculation of covariance matrix in producing eigenvalues ​​will take longer. In this study, there is a process simplicity, because the segmentation matrix always uses a 5x5 size and produces a 25-dimensional vector as a feature, regardless of the magnitude of the image resolution. The use of matrix segmentation is based on a survey conducted by Mingqiang et. al. [24], in the survey, a comparative study was carried out on 40 techniques for extraction of shape-base features. The results of the survey have concluded that the ease of feature extraction processes with low computational complexity and more efficient processes, is using the Shape Matrix which is a Spatial Interrelation Feature method. The Shape Matrix is ​​described by the MxN matrix to represent the shape region of each image.

2. Research Method

The data used in this study are digital images obtained by scanning vehicle license plates in Indonesia (figure 1) with black background and white characters of letter s /number s . The image dataset consists of the vehicle license plate is 300 (three hundred) samples taken under random conditions and lighting on the research object s and the time of taking /scanning the image is between 10:00 to 15:00. License plate [ in Indonesia is regulated based on the Article 68 Paragraph 4 Law Number 22 year 2009 on Traffic and Public Transportation . The law explains that license plate number must meet the requirements of shape, size, material, color, and method of installation . However, it does not contain the standard rules for the use of font type . Thus, the character of letters and numbers on lisence plate may vary greatly. This diversity in fact creates its own complexity in generating feature dataset.



Fig. 1. Image Example of Scanned Lisence Plate



2.1 Binary Image and Region of Interest

This research focuses on how to do segmentation process of the scanned image, and how feature extraction method is applied to the segmented image with a variety of font types for each letter or number. Moreover, feature extraction results in a feature dataset for numbers 0-9 and letters A - Z which will be used for training and testing of non-linear multi-class SVM classification using RBF kernel and one against-all method. Finding Region of interest (ROI) from the scanned image s is conducted before the stages in segmentation process. The pseudo code to generate ROI can be described as follows:

The result of binarization and ROI is seen in Figure 2 and 3.





Fig. 3. Result of transformation of scanned images t o ROI Image



2.2 Image Enhancement

The next step prior to segmentation is to do image enhancement on ROI image to eliminate unnecessary noise . This study used matlab function: bwareaopen ( ). Denoising process aims to simplify segmentation process in separating letters and numbers on a lisence plate from its black background. This process can be seen in this following figure 4.





2.3 Segmentation Method

ROI images without noise will be come input of letters (A-Z) and numbers (1-9) using segmentation process. Segmentation method proposed in this study used this following algorithm:

1. Mark the connected pixels .

2. Conduct looping or repetation starting from 1 to the marked maximum pixel marked .

3. Find the appropriate pixel label, if it is found , insert it in the row and column matrix.

4. Save the image from min row to max row and min column to max column.

5. If it is not the end of the loop , skip to command 3, and if is the end of the loop , then the loop has finished.

The pseudo code of the algorithm can be seen in this following:

The results of the segmentation method above is in the form of image pieces of letters and numbers existing in ROI image . Moreover, the image resulted from the segmentation consisting of 4 numbers and 3 letters is as shown in Figure 5 below.





As the input is in the form of lisence plate images which vary in the type or shape of each letter and number, the method in this research used 5 variations for each image letter or figure from segmentation results and these will be used as training image input . Accordingly, the number of image in datasets is 180 images which were used in trained . This number of images comes from the number of lisence plate number images (0-9) x 5 = 50 images and lisence plate letter images (A - Z) x 5 = 130. Figure 6 shows the examples of training image datasets that will be extracted to produce training feature datasets :

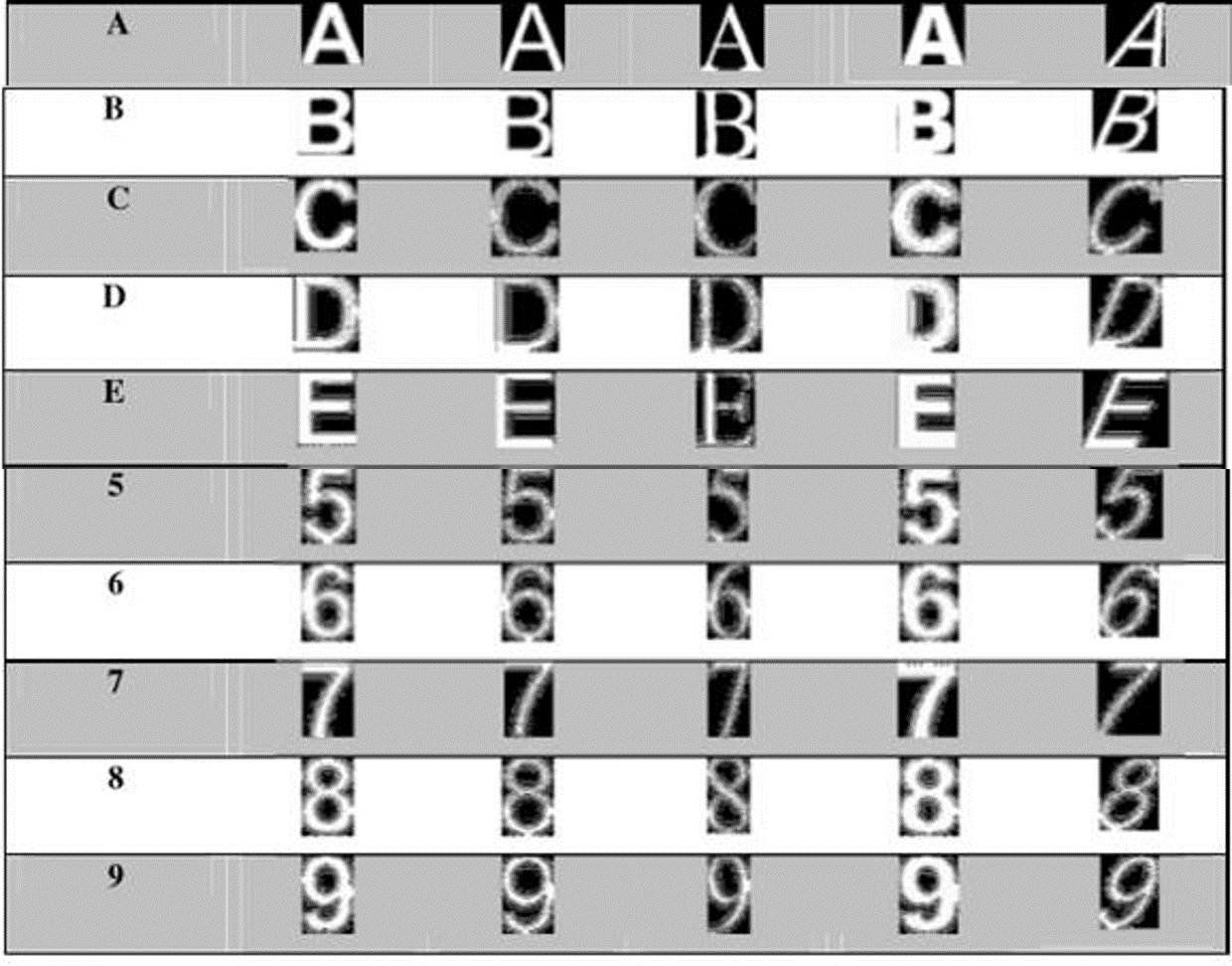

Fig. 6. Example of Training Image Dataset



2.4 Method of Extraction Feature

Feature extraction method used in this study is by using image matrix segmentation to find the features in each letter (A - Z) and number (0-9) that will be used as training and testing feature dataset in classification . The followings are the stages of feature extraction :

1. Finding the height and width value of each character which has been transformed in skeletonization process. In matlab, skeletonization process can use bwmorph () function. Skeleton process causes the letters or numbers become like a skeleton as seen in Figure 7. To simplify feature extraction process, skeleton image is standardized to 40 x 40 pixels.

2.



Fig. 7. Result of Skeletonization Process



The height and width of the letters or numbers on the image resulted from skeletonization process is then calculated. Furthermore, it is mapped into the matrix n x n based on the height and width of the image. Figure 8 shows an example of skeleton image which is mapped in to 5 x 5 matrix segmentation.

3. Counting total pixels per matrix segment as a feature. Thus, each image number or letter has n x n total features stored in the feature vector. In Figure 8, letter A image is mapped to a 5 x 5 matrix segmentation possessing 25 matrix segments of which each segment is counted by total number of pixels and total pixels in each segment shows its feature value. The examples of feature extraction result ed by counting total pixels of each matrix segment as feature values are shown in table 1.

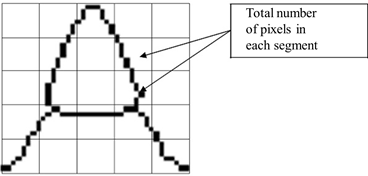

Fig. 8. 5x5 Image Matrix Segmentation



The following is the pseudo code calculation of total pixels per matrix segment on n x n matrix segmentation :

Table 1. Feature Vector from Feature extraction for 5 image types of letter A

Class	Feature Vector of Image 1	Feature Vector of Image 2	Feature Vector of Image 3	Feature Vector of Image 4	Feature Vector of Image 5
A	0	0	0	0	0
	0	0	0	0	0
	0.70	1.20	0.90	0.50	0
	0	0	0	0	0.30
	0	0	0	0	0.80
	0	0	0	0	0
	0.70	0.80	0.70	0.60	0
	0.40	1.10	0.90	0.50	1.00
	0.50	0.70	0	0.50	0.70
	0	0	0	0	0.80000
	0	0	0	0	0
	0.80	0.80	0.80	0.80	0.10
	0	0	0.20	0	0.70
	0.80	0.80	0.60	0.80	0
	0	0	0	0	0.80
	0.10	0.40	0.20	0	0
	1.00	0.90	1.10	1.20	0.80
	0.80	0.80	0.80	0.80	0.80
	1.10	1.00	1.00	1.10	0.80
	0.10	0.30	0	0	0.90
	0.80	0.90	1.30	0.90	0.90
	0	0	0.40	1.0	0.10
	0	0	0	0	0
	0	0	1.20	0.20	0
	0.90	0.80	0.80	0.70	0.60

3. Results and Analysis

Feature extraction testing is conducted in this study with value ranging from n=2 (4 features) to n=8 (64 features) for n x n matrix segmentation. The datasets with 300 images of vehicle lisence plate which are randomly divided into 200 images as training dataset and 100 images as test ing dataset. This test is to find the best n value , so n x n matrix can create the best feature vector to get maximum classification accuracy value . Segmentation matrix used in this study is 5 x 5 (n = 5) consisting of 25 segments . The number of each segment is calculated and total pixel of each segment means one feature value . Thus, each image has 25 features stored in the feature vector. The use n = 5 is based on the trial test with value from n = 2 to n = 8 in feature extraction method with image matrix segmentation . The trial shows the value of classification result decreases if the number of features declines on the feature vector <25 (n <5) and the number of features increases at feature vector >25 (n> 5). From the previous authors research [4], Wavelet decomposition levels analysis for feature extraction with SVM classification, it shows that the use of the number of features in feature vector obtained from wavelet decomposition influences the results of SVM classification . consequently, it is necessary to use the right level of decomposition. This case is similar in this study, where the number of features in the feature vector resulted from feature extraction using matrix segmentation affects the results of SVM classification . I n conclusion, it requires testing with some n values​, and the results of the trials (table 2) show that maximum accuracy value occur at n = 5.

Table 2. Effects of n Value on Accuracy  Value with SVM-RBF C = 15 and γ = 0.8.

N Value	Matrix segmentation	Number of segment/ feature	Over All Accuracy (AC)
2	2x2	4	0,58
3	3x3	9	0.64
4	4x4	16	0.83
5	5x5	25	0.92
6	6x6	36	0.79
7	7x7	49	0,70
8	8x8	64	0,62

Non-linear multi-class classification in this study consists of 36 classes consisting of 26 classes for the image of letter A-Z and 10 classes for numbers 0-9. Confusion matrix (AC = (TP + FP) / (TP + FP + TN + FN)) is used to calculate the accuracy value for measuring the success ratio of the classification result. The right value of RBF kernel parameter cost function / C and gamma / γ is required in the classification using non-linear multi-class SVM-RBF with the one-against-all method. The correct value of parameters C and γ can maximize the function of classification ( hyperplane ) and can adjust the equilibrium of margin distance (class +1 and -1) with the right hyperplane [9]. From feature dataset of 100 images resulted from feature extraction features with 5 x 5 (n = 5) matrix segmentation, classification is conducted with the highest accuracy value of 0.92 (90%) using parameter values C = 15 and γ = 0.8 as seen in table 3.

Table 3. Measurement of Accuracy Level

		True	False	True	False	Over All
SVM Parameter		Positive	Positive	Negative	Negative	Accuracy
		(TP)	(FP)	(TN)	(FN)	(AC)
	C = 0	0	93	7	0	0,07
γ = 0.4	C = 5	32	61	7	0	0,39
	C=10	32	61	7	0	0.39
	C = 15	35	58	7	0	0,42
	C = 20	34	59	7	0	0,41
γ = 0.6	C = 0	0	93	7	0	0,07
	C = 5	69	24	7	0	0,76
	C = 10	70	23	7	0	0,77
	C = 15	72	21	7	0	0,79
	C = 20	71	22	7	0	0,78
γ = 0.8	C = 0	0	93	7	0	0,07
	C = 5	81	12	7	0	0,88
	C = 10	82	11	7	0	0,89
	C = 15	85	8	7	0	0,92
	C = 20	81	12	7	0	0,88
γ = 1.0	C = 0	0	93	7	0	0,07
	C = 5	76	17	7	0	0,83
	C = 10	77	16	7	0	0,84
	C = 15	78	15	7	0	0,85
	C = 20	76	17	7	0	0,83
γ = 1.2	C = 0	0	93	7	0	0,07
	C = 5	72	21	7	0	0,79
	C = 10	74	19	7	0	0,81
	C = 15	74	19	7	0	0,81
	C = 20	73	20	7	0	0,8

Table 2 describes that C value from 0 to 15 causes the accuracy value increase, and C value more than 15 causes the accuracy value decrease. This is due to the fact that an increase in variance at C > 15 causes over fitting. Value of parameter γ > 0.8 increases the bias so that misclassification increases due to under fitting, and there is an increase of variance in value of parameter γ < 0.8 , thus there are more misclassification because of over fitting.

4. Conclusion

Testing and training feature dataset resulted from feature extraction method s with 5 x 5 (n = 5) image matrix segmentation is a feature dataset with the best n value for classification of letters and numbers images using non-linear multi-class SVM-RBF method with value of parameter C = 15 and γ = 0.8. Image segmentation method of vehicle lisence plate and feature extraction using image matrix segmentation in this study is very easy to apply, and is successfully applied for multi-class classification with a total of 36 classes, 26 classes for A - Z letter images and 10 classes for 0-9 number image s with 92% accuracy value. The feature dataset produced by feature extraction method in this study with more classification classes needs further research to test based on processing time and the result of classification accuracy value .

Matrix segmentation with n = 5 results in 25 features on each image feature vector. However, it still requires a trial to add feature value ​​to the features vector of letters and numbers images which are in the form of centroid values ​​and the value of letters’ height and width.
