1. Introduction

Image processing [1] is a scientific domain of research, which includes many mathematical applications such as filtering technique, classification of images, recognition [17], segmentation and restoration [21]. Among the aims of image processing is to improve the quality of images. It is used in many fields like medicine, chemistry. Image segmentation [20] is the most complicated task in image processing used implicitly in the majority of applications of image processing. Sometimes, it can be confused with classification. This operation allows to extract the objects and the components from the images in order to help humans to analyze the different regions of image and to extract the useful information from this image. It consists in distinguishing the pixels of the image, which have similar characteristics like color, texture, intensity into regions.

Many segmentation techniques exist in the literature [1,20,39]. Among these, we find thresholding and histogram techniques [38], that are the simplest methods of segmentation. Thresholding is based on indexing any similar region of image by a threshold, for example in binarization of images, we define two thresholds one for white color pixels and other for black color pixels. Furthermore, region approach [9] and edge approach [24] are two well known segmentation approaches. The first consists in dividing the image into homogeneous regions according to the similarity between the regions components, on the contrary, the second approach divides the image into regions according to discontinuity between the regions components. Many methods based on these approaches exist. In region approach we note region growing [9], merge and split [20]. For edge approach we have active contour [42], sobel and canny contours [15]. Some recent techniques combine region and edge approaches like mathematical morphology [4, 29,31] and watershed [6], these techniques provide better results than using region approach or edge approach only.

K-means [40] is also another segmentation method, based on clustering technique [56] that consists segmenting the image into regions by classifying the pixels of image in a suitable membership class satisfying some criteria such as distance between pixels, degrees of membership, number of neighbor pixels. The choice of a segmentation method depends on many selection criteria for example the nature of the image, dominant information, characteristics of objects to be extract.

In this work, we consider a hidden Markov model [32], to segment images this model is an unsupervised statistical method of segmentation [22], based on the clustering technique. It is used in many applications such as medical images [35], sonar images [10,11], satellite and teledetection images [30]. We distinguish three type of Markovian models: Fields of Markov, Markov Chains and Trees of Markov. Each Markov model has its own procedure to model the image before segmenting it.

Hidden Markov Fields(HMF) models [50] have the principle to decompose the image into blocks of pixel neighbor, each block must contain four or eight pixel neighbor at the least. Each block represents a set of click of different orders. This Markovian model gives good results of segmentation, but it requires an important execution time and execution unit(CPU) compared to other Markovian models [8,50]. Markov chain transforms the image 2D shape in 1D shape respecting that each two pixel neighbor in the image 2D must remain neighbor in the chain 1D. There exist many paths to transform the image 2D in chain 1D, like Hilbert Peano path[23],zigzaging, line by line path. The trees of Markov are a particular case of Markov chains, we can use quadtree representation [13], or bitree representation, or other tree representations to convert an image to tree shape. Additionally to these models, we found the recently models of Markov, which are a generalization of classical models[49], such as pairwise models [8,33], triplet models [50] and evidential models [28]. These models are used in the modeling problems that, the classical models are unrealizable to resolve them. Another representation of these models is a fuzzy version [7,14], this model is used to segment the fuzzy images.

The outline of this paper is as follows : Section 2 presents related works. Section 3 presents the standard hidden Markov chain HMC-IN, ICE and MPM algorithms. Section 4 explains our proposed approaches. Section 5 shows the conducted experiments and the obtained results. And finally, the last section gives a conclusion and addresses some open questions.

2. Related Works

Recently several techniques and researches have been carried out to segment images semantic and fast. Among these, it exist graph cut and Convolutional Neural Networks(CNN) these methods have been used to segment many different types of images like color, grey level, 2D, 3D, satellitefrom different dataset.  In [54] the authors have described a novel framework for efficient object extraction form N-D image data using s/t graph cut. The same author have proposed in [53] a new implementation of Max-Flow/ Min-Cut algorithm using by graph cut to segment, restore and stereo images, to evaluate the performance of this proposition, the new algorithm has been compared by others graph algorithms in term of running time, from the results this proposition minimizes energy faster than another algorithm. In [45] the author has proposed a new version of recently Generative Adversial Neural Network (GAN) to segment some multispectral satellite images. This version is called by conditional GAN. The same author has developed in another work [46] a new GAN network called HydroGAN, this model has used to labeling the hydrographic region in satellite imagery. The developed HydroGAN is capable to labeling the water objects in different seasons. In another work the authors [24] have proposed a new version of mobile architecture MobileNetV2 basing on inverted residuals and linear bottlenecks to segment images to detect objects. [16] have studied the high resolution representation of High Resolution Network (HRNet) by introducing a simple modification, the authors here have augmented the high resolution representation by aggregating the representations form all the parallel convolutions. This developed network is named HRNetV2, this network is applied to segment facial landmark detection. Another approach in [44] has proposed a new framework of deep convolutional encoder/decoder architecture for images segmentation named SegNet[34], here the authors have compared this new contribution with other existing architectures of Neural Network. Moreover, the authors of [43] have presented a new parsing task Unified Perceptual Parsing improving a multitasking network called UPENet with hierarchical structure, this new framework has been applied to segment some heterogeneous images.

3. Hidden Markov model in image segmentation

In this section, we present a classical Markovian model used to segment images, called Hidden Markov Chain with Independent Noise (HMC-IN). This model doesn’t take into account noisy observations, but it is too effective to segment denoised images. Moreover, we expose the procedure of the ICE estimator, and we explain the principle of estimating the resulted segmented image according to MPM algorithm.

3.1. HMC-IN segmentation principle

In Markovian segmentation, the image to be segmented is represented by two random variables  and ,  is the total number of pixels. We consider that  is the observations. And  is the result of an image segmentation. Where  is the set of membership classes and  is a number of membership classes, it’s initialized by the user. Generally, hidden Markov model estimates the hidden image  from the observations ,for that, Markovian model calculates the a posteriori probabilities of  knowing the observations  using Bayes theorem [5]:

(1)

Where :

    ·   is the probabilities of observations  conditionally to .

    ·   is the a priori probabilities of .

    ·   is a normalization constant .

HMC-IN assumes that the hidden process  is a Markov chain, it’s homogenous and stationary of order 1, its law is:

(2)

The process  has two parameters  the initial law ,  and the matrix of transition between classes  and   .

Also, HMC-IN assumes that the observations  are conditionally independent of , each observation  depends only on its hidden class of membership .

(3)



The parameters of observations  depend on the law of probability followed. In this work, we assume that our observations follow the gaussian law so, the process  is defined by a gaussian density  in each class :

(4)

with the mean , and the variance .

HMC-IN has two type of parameters  the parameters of the process  :  and the parameters of observations  : .

To obtain the resulting image , it should follow three phases: Initialization phase, Iterative estimation phase and Final decision phase. In the first phase, we initialize the initial configuration of  process using K-means algorithm or FCM algorithm [55] or another algorithm of segmentation based on the clustering technique. Also, we initialize the parameters of each process  and . In the second phase, we estimate the parameters of  and  iteratively until convergence using estimator iterative algorithms like EM(Expectation-Maximization) [3], ICE [48], SEM(Stochastic Expectation-Maximization) [51]. In the thrid phase, we estimate the final configuration of the segmented image  using Bayesian decision strategies as Viterbi algorithm [12] or MPM(Marginal Posteriori Mode) estimator. In the following paragraph, we briefly present Baum Welch algorithm, ICE and MPM algorithms.

3.2. Estimator algorithms

The ICE algorithm, introduced in [47], is an iterative method of estimation based on the Monte Carlo approximation method [27]. In each iteration, ICE simulates the hidden process  conditionally to the observations . This algorithm uses the deterministic strategy to calculate the parameters of the hidden process , and the stochastic strategy to estimate the parameters of observations .

After parameters initialization , ICE algorithm calculates the parameters of each process  for a number of iterations  until convergence. The parameters estimation can be stopped according to a chosen stopping criterion adapted to each case. In the particular situation, this criterion may be based, for example, on the convergence of one of the estimated parameters. ICE algorithm uses Baum Welch algorithm[26] to estimate the parameters.

Baum Welch algorithm proceeds as follows:

1- Calculating the Forward probabilities  using Forward algorithm:

Algorithm1: Forward algorithm

Initialization: (5)   Induction: (6)



 2- Calculating the Backward probabilities  following the steps of Backward algorithm:

Algorithm2: Backward algorithm

Initialization: (7)   Induction :    (8)



3-After calculating  and , Baum Welch estimates the joint a posteriori probabilities  and the Marginal a posteriori probabilities  from  and  using the following formulas:

(9)



(10)

The procedure of ICE algorithm is explained in the following algorithm:

Algorithm 3: ICE algorithm

For each iteration :  - Calculating the probabilities ,, and  using Baum Welch algorithm;   - Simulating the process  for one random simulation according to the a posteriori probabilities  calculated in the iteration ;  - Estimating the parameters  of hidden process  by the deterministic strategy: (11) (12) - Estimating the parameters  of observations  for each class  by the        stochastic strategy based on the simulated process : (13) (14) - Calculating the gaussian density  of observations using the equation (4);



After the convergence of the algorithm 2.2, HMC-IN estimates the final segmented image  using MPM estimator. This estimator calculates the marginal a posteriori probabilities  from the final obtained parameters, basing on Forward Backward algorithm. To find the membership class of each observation, MPM maximizes these probabilities, by the following equation:

(15)

The following schema describes the different steps to estimate parameters and image result of segmentation, that we have followed in this work:

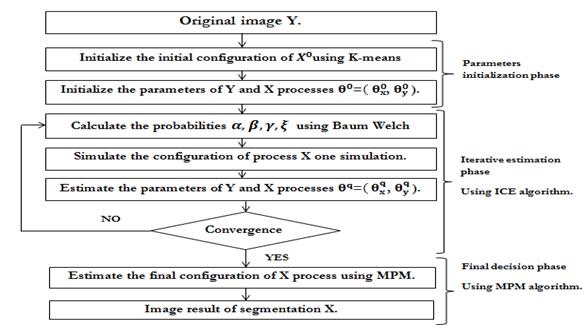

Fig.1. HMC-IN segmentation Phases

4. The proposed approaches

As cited above, hidden Markov chain is a robust model among Markovian models for image segmentation, but its drawbacks is in the high complexity of calculating parameters, especially when the size of a given image is very large. In fact, working in the real time with large size of images and large number of images in database makes the execution time of segmentation image task more and more slowly. So, we propose some improved HMC models for reducing time execution based on the technique of divide and conquer [36,37]. The main idea of these approaches is to divide the process of estimating and calculating HMC parameters into several sub-estimating processes resolved independently. Then, we combine all sub-optimal solutions to generate the global final solution. In the first one, we divide the observations  into  blocks of the same size, each block is treated independently of the others. In the second one, also we divide the observations into  blocks of the same size, but the treatment of a block depends on the previous results, the solution of each current block is obtained by use the solution of its previous block. This technique permits to reduce the complexity of calculus compared to the first approach. The following sub-sections explain the process of the proposed approaches.

4.1. The First Approach: Independent Estimation

As a traditional approach of division, the independent estimation approach divides the global data to be treated into blocks(sub-processes). Each sub-block is solved independently of the others, and then we combine the solutions of blocks in order to determine the global solution of the initial problem.

Let  is a set of blocks and  is a set of solutions of blocks, where :  is the global solution,  is the number of blocks, and  is the size of a block. The figure 2 shows the scenario of the independent approach.



Fig.2. Scenario of independent estimation approach



The observations  are divided into a set of equal sub-blocks. The number of blocks  is initialized by the width of image or the length of image or another divider of the observations size. To estimate the parameters of each block, we follow the same procedure as the standard HMC approach. Each block is treated like an independent HMC. Finally, we combine the final configurations of blocks to bluid the global final configuration of . The steps followed in the first approach are shown in the following algorithm:

Algorithm 4: Independent estimation approach steps

1- Initializing the hidden process  using K-means method;  2- Initializing the parameters of each process ;  3- Transforming the image  into Markov chain using line by line path method;  4- Dividing the obtained chain into  equals sub-blocks;  5- For each block, calculating the probabilities of Baum Welch, estimating the parameters and simulating the process  until convergence, estimating the final configuration; 6- Combining the final configurations of blocks and building the segmented image .



Algorithm 5 illustrates the different steps of the independent approach; we have just added a loop to the original algorithm of estimation, that allows executing all blocks independently.



Algorithm 5: Independent approach

Input : Out put : the global final configuration   Initialization :    () Initialization :    For each iteration : Calculating , , ,  using Baum Welch algorithm : Initialization:   (16)   Induction:  and   (17)   Initialization:   (18)   Induction :    (19)   (20)   (21)    Simulating the hidden process  for the current block  one simulation;  Calculating the parameters  by: (22)   (23)   Calculating the parameters  of observations  by : (24) (25)  For () For () Calculating the gaussian density  for all pixel belongs to current block using the equation4;     Estimating the final configuration of current sub-block  using MPM algorithm. combining the final configurations of sub-block  to build the final global segmented .



Remark:

1. Note that, the division of observations  into blocks is done after, transforming the observations  shape into vector (chain) using line by line path. Then, we have divide the vector  into  blocks of the same size.

2. Since each block is treated independently of the others, parallelism technique can be used to further alleviate the computations.

4.2 .The Second Approach : Dependent Estimation

 Contrary to the first approach, the second approach considers that the solution of each data block depends on the solution of its previous block. The solutions of blocks are combined to build the final solution of the global problem. The following figure illustrates the scenario of the dependent approach:



Fig.3. Scenario of dependent estimation approach



 In this approach, we start by dividing the image  into blocks(levels), each level contains one block. The calculus of probabilities of a block depends on the result of its previous block. After calculating the probabilities of all blocks, we recombine these probabilities to calculate the parameters of each HMC’s process, we repeat this calculus until the convergence of the ICE algorithm. Finally, we combine the obtained final parameters to estimate the final configuration of the global process  using MPM algorithm.

Algorithm 6 describes the steps followed by the second approach:

Algorithm 6: Dependent estimation approach steps

1- Initializing the hidden process  using K-means method;  2- Initializing the parameters of each process ; 3- Transforming the image  into Markov chain using line by line path method; 4- Dividing the obtained chain into  equals sub-blocks;  5- Calculating the probabilities of each current sub-block  from the probabilities of the previous sub-block . 6- Combining these probabilities, and, estimating the parameters of the HMC-IN, repeating these phases, until convergence;  7- Estimating the final global configuration of .



Considering that the execution time of the parameters estimation phase is the most costly, we have tried to make a modification in this phase. To do this, we have proposed an adapted process of estimation that consists in estimating the parameters , , ,  of each block, and at the same time simulating the process .

The procedure of estimation is illustrated in the following algorithm:

Algorithm 7: Dependent approach

Input : is the number blocks;  is the current block number ;  Initialization :   While () : If () : Initialization:   (26)   Induction:  and   (27)   Initialization:   (28)   Induction :    (29)   (30)   (31)   Simulating the hidden process  for the first block one simulation;  ; If (m>1)  Initialization:   (32)   Induction: and   (33)  Initialization:   (34)   Induction :   (35)   (36)   (37)   Simulating the hidden process  of the block  one simulation;



After calculating the probabilities , , ,  and simulating the sub-blocks of hidden process using the algorithm 7, we combine these probabilities to calculate the global parameters of HMC . We test the convergence of ICE algorithm, if it achieves the convergence, we take the final obtained parameters to estimate the final configuration of the global process  using MPM algorithm, else we recalculate the probabilities and the parameters until convergence. The procedure of the second approach is explained in figure 4:

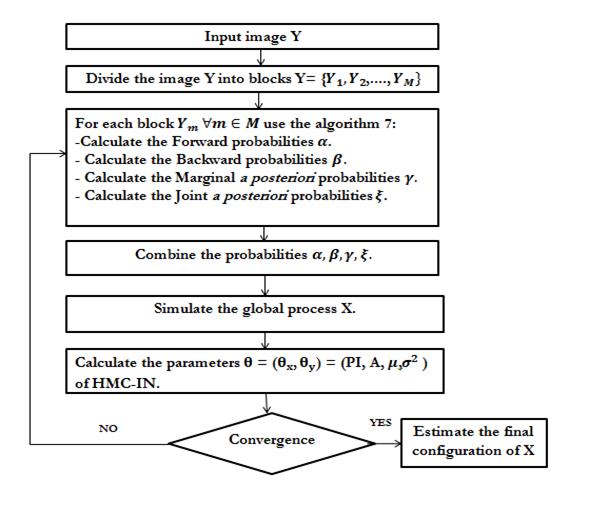

Fig.4. Dependent estimation process : Approach 2



We have proposed two variant methods of Approach 2 (Approach 2-1, Approach 2-2). The following subsections explain in detail the process of these variants.

 4.2.1. Approach 2-1

The approach 2-1 has the same procedure as approach 2, but it calculates just the probabilities , , ,  without simulating the process  of each block. Then, it combines these probabilities to simulate the global process  and to estimate the parameters  of the HMC. it repeats these procedures until ICE convergence. Finally, it estimates the global configuration of  process . The approach 2-1 proceeds as follows:

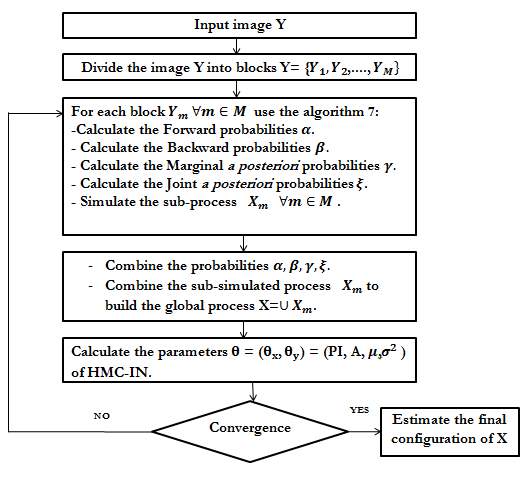

Fig.5. Dependent estimation process : Approach 2-1



 4.2.2. Approach 2-2

In the approach 2-2, we have used the algorithm 7 to calculate quickly the probabilities of Forward , and Backward  of each block. Then, we combine these probabilities to calculate the Marginal a posteriori probabilities  and the Joint a posteriori probabilities , to simulate the global process , and to calculate the parameters  of HMC. We repeat this calculus until ICE convergence. After that, we calculate the Forward and Backward  probabilities for the global process, and we estimate the final configuration of . The figure 6 shows the procedure of the approach 2-2.

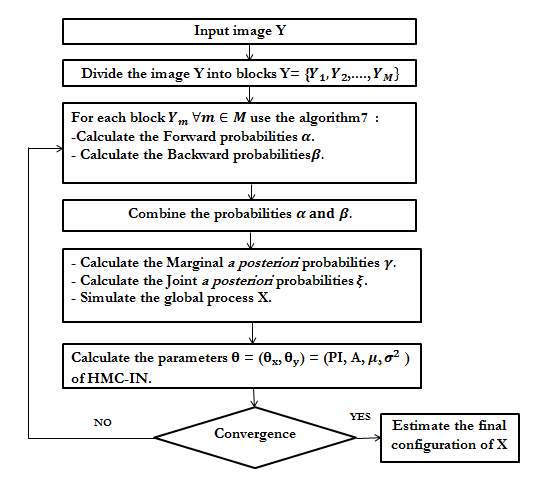

Fig.6. Dependent estimation process : Approach 2-2



Remark:

1. We note that the algorithm 7 can be applied with any estimator like SEM, MCEM(Monte Carlo Expectation-Maximization). These estimators have a similar estimation process than ICE. For EM algorithm, we can use the algorithm 7 without simulating the process  in each iteration.

2. The difference between these variant approches lies in the way that the BaumWelch probabilities are calculated and the simulation of the process , before or after combining.

5. Experimental Results

In this section, we evaluate the effectiveness of the proposed approaches compared to the standard approach(HMC without decomposition). The comparison is made in level of quality measures [52] such as PSNR (Peak Signal-to-Noise Ratio), SSIM (Structural Similarity Measure), error rate, execution time, and the number of iterations to reach convergence. We have realized six experiment image segmentations, in each experiment we have defined the number of classes , the number of blocks . For all experiments, we have followed this procedure to initialize the parameters of each process .

The initial configuration  of the process is estimated by K-means algorithm. The parameters  of the hidden process  are estimated using the following formulas:

(38)

(39)



 The initial mean  of the observed process  is calculated from the initial process  obtained by K-means using this formula:

(40)



 The variance  is calculated from the mean  using this formula:

(41)



 Note that for color image segmentation, we calculated the mean and variance of each color level Red, Green, Blue (RGB).

5.1. Experiments

We have segmented five images with different sizes and kinds. We have segmented, in experiment 1 a cervical medical image, in experiment 2 a color image of PASCAL VOC2010 dataset [25], in experiment 3 we have a color image of ADE 20k dataset available at [2], and in experiment 4 a normalized satellite image from ISPRS Potsdam dataset [41]. Table 1 indicates the size of images, the number of classes   and the number of blocks  resulting from the division. The choose of number of classes depends on the level color in image, that we consider each color is a class.

Table.1. Experiences characteristics of the experiments.

Experiments	Size of images	Number of classes	Number of blocks
1	344*344	4	344
2	500*324	4	1620
3	2000*1500	10	30000
4	6000*6000	6	360000



5.2.Visual Results

The following figures describe the different conducted experiments and the results of segmentation carried out by the proposed approaches.



Fig.7.Results of segmenting cervical medical image



(a) Original image Y	(b) Initial configuration X0
(c) Initial approach	(d) Approach 1
(e) Approach 2	(f) Approach 2-1
(g) Approach 2-2

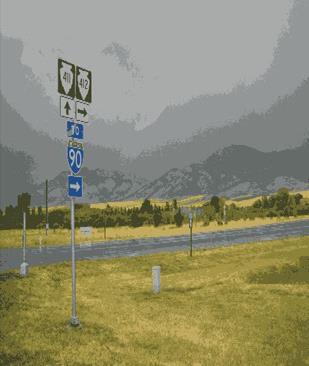

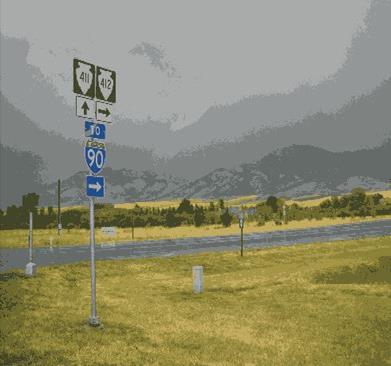

Fig.8. Results of segmenting color image



(a) Original image Y	(b) Initial configuration X0
(c) Initial approach	(d) Approach 1
(e) Approach 2	(f) Approach 2-1
(g) Approach 2-2

Fig.9. Results of segmenting color image



(a) Original image Y	(b) Initial configuration X0
(c) Initial approach	(d) Approach 1
(e) Approach 2	(f) Approach 2-1
(g) Approach 2-2

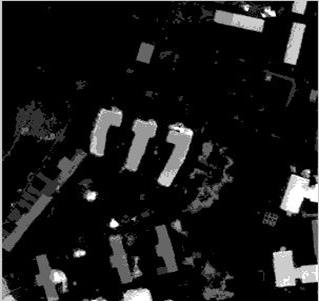

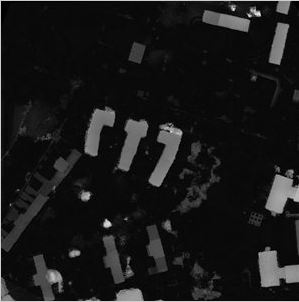

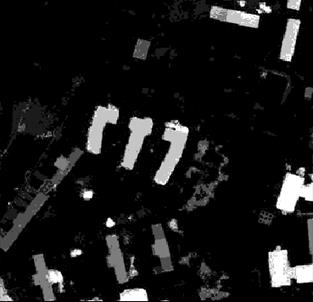

Fig.11.Results of segmenting satellite image



From these experiments, we observe that the quality of segmented images obtained by the original HMC approach are similar to those of the proposed approaches. As a first good conclusion, our approaches are competitors of the classical HMC approach in term of segmentation quality.

5.3. Quantitative Results

To confirm the visual obtained results, we have calculated some evaluated criteria. The comparaison is made in term of quality measures : PSNR index, SSIM index and Error Rate. The obtained results for each experiment are resumed in the following tables: Table2 represents the PSNR index, Table3 shows the index of similarity SSIM and Table 4 presents the error rate.

Table.2. PSNR index values.

Experiments	Initial Approach	Approach 1	Approach 2	Approach 2-1	Approach 2-2
1	29,6172	29,6172	29,6172	29,6172	29,6172
2	34,2024	34,2024	34,2024	34,2024	34,2024
3	35,7621	35,7621	35,7621	35,7621	35,7621
4	35,8622	35,8622	35,8622	35,8622	35,8622



Table.3. SSIM index values.

Experiments	Initial Approach	Approach 1	Approach 2	Approach 2-1	Approach 2-2
1	0,8196	0,8196	0,8196	0,8196	0,8196
2	0,8934	0,8934	0,8934	0,8934	0,8934
3	0,9145	0,9145	0,9145	0,9145	0,9145
4	0,9350	0,9350	0,9350	0,9350	0,9350



Table.4. Error rate values.

Experiments	Initial Approach	Approach 1	Approach 2	Approach 2-1	Approach 2-2
1	15,6690	15,6690	15,6690	15,6690	15,6690
2	26,9111	26,9111	26,9111	26,9111	26,9111
3	21,3230	21,3230	21,3230	21,3230	21,3230
4	23,7645	23,7645	23,7645	23,7645	23,7645



The indexes values (PNSR, SSIM and error rate) illustrated in the previous tables, demonstrate that for all the experiments, these parameters are almost identical, this confirms our remarks concerning the visual obtained results. We can explain; this by the fact that we used the same segmentation procedure, as well as the same estimators and initial parameters values for all approaches.

Additionally, we have calculated the execution time of the proposed approaches and we have compared it with the execution time of the HMC approach. The graphic in figure 12 represents the execution time per second of all approaches under each presented experiment.

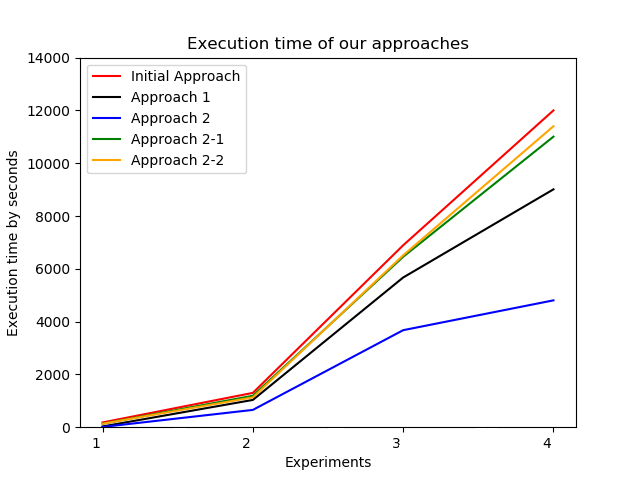

Fig.12. Execution time by approach per seconds



As a first observation, we note that the proposed approaches give better results than the initial approach; in fact, the execution time has decreased considerably. The dependent estimation approach (approach 2) is very efficient compared to the others, in fact, it reduces the execution time in the order of 70% compared to the HMC approach, 30% compared to the independent approach (approach 1), and about 50% compared to the variants of approach 2 (approach 2-1 and approach 2-2). Note that calculating the probabilities of Baum Welch and simulating the process X are the most costly phases in the estimation process. The execution time depends on many factors and experimental conditions such as memory space, execution unit (CPU), speed of microprocessors, the size of data, the number of membership classes, the type of images (grey, color), and the convergence of parameters estimators. From the obtained results and the evaluated parameters, we notice that the standard approach HMC provides better results of segmentation with many types of denoised images (medicals, colors, textured, satellites), but it requires an important time of execution, especially when the size of data is very large.

In this work, we have also studied the convergence rapidity of the proposed approaches. For that, we have compared the number of iterations needed to reach convergence of the dependent estimation approaches with the initial HMC approach. It is difficult to compute the number of iterations of the independent estimation approach, because each block converges independently of other and the number of resulted blocks can be very large. The following figure shows the number of iterations needed to reach convergence for each approach by experiment.

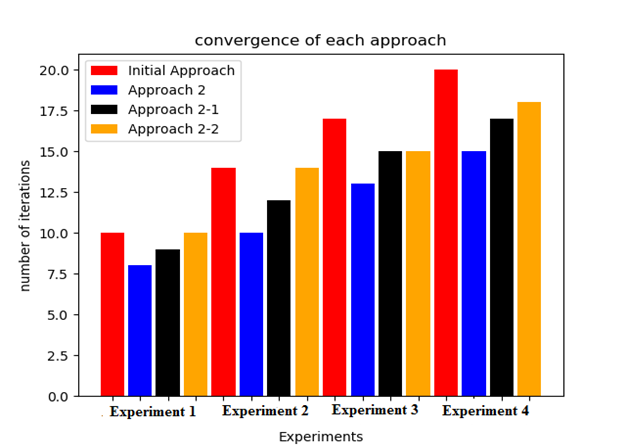

Fig.13. The number of iterations to achieve convergence by approach



From the figure13, approach 2 requires the fewest number of iterations compared to other approaches. This further confirms that this approach is the fastest.

Finally,we can conclude that, all proposed approaches reduce the execution time and the number of iterations needed for convergence, and they keep the quality of segmentation. Approach 2 gives the best results in terms of segmentation quality, execution time, and convergence.

6. Conclusion

For fast and reliable image segmentation, we have proposed, in this article, some approaches to estimate the parameters of the standard HMC-IN model. The first approach is an evident method of division, which consists of dividing the image into a set of sub-blocks (sub-images) with the same size, each sub-image is segmented independently of the others(independent approach). The second approach consists of dividing the image into a number of blocks, each block is executed using the results of its previous block(dependent approach). Approach 2 uses algorithm 7 to calculate the probabilities of Baum Welch, and to simulate the sub-processes of blocks. From approach 2, we have established two variants, the first variant(approach 2-1) uses algorithm 7 to estimate only the probabilities of Baum Welch of each block. And, the second variant(approach 2-2) uses it just to calculate the probabilities of Forward Backward of each block. To demonstrate the performance of the proposed approaches, we have compared them with the initial HMC approach. Visually, there is no difference between the segmented images obtained by all approaches. These results are confirmed by the parameters evaluated PSNR index, SSIM index and error rate, which are significantly identical for all experiments. However, the proposed approaches provide encouraging results by reducing the execution time and the number of iterations to achieve convergence. In conclusion, approach 2 is the best in terms of segmentation quality, execution time, and convergence. Our work comes up to be closed with some open questions that we address in future works, one of these queries is to use parallelism techniques in the independent estimation approach, since the blocks are executed independently. Another one is to apply the decomposition technique in the image segmentation process based on Pairwise Markov chains and Triplet Markov chains.

7. Acknowledgment

The authors acknowledge support of Institut Henri Poincaré (UMS 839 CNRS-Sorbonne University), LabEx CARMIN (ANR-10-LABX-59-01) and CIMPA.
