EEG is a non-invasive method to study brain
activity measuring the electrical potentials on the scalp skin. EEG requires a
headset with electrodes, a hardware amplifier, an analog-to-digital converter,
and special software tools to process the received digitized signals.
Traditionally, EEG relates to healthcare leveraging brain injury diagnostics,
as well as to neurophysiological research that targets the discovery of the
physiology behind human cognition. Currently, with the evolution of digital
signal processing, EEG techniques enter the area of human-computer interaction,
pushing the development of modern brain-computer interfaces (BCIs). As a result,
in the last decade, several hardware and software platforms have been developed
to conduct EEG-based research and analyze its results. However, the common
problem of the most popular solutions is low-level adaptability. This means one
should manually reprogram individual modules of existing platforms, or create
ad-hoc software (and sometimes even hardware) adapters to build an EEG data
acquisition pipeline for a particular experiment.
In the present work, we tackle this problem
by proposing a unified ontology-driven hardware and software systems, which
enable the representation of auditory and visual stimuli along with recording,
processing, and visual analysis of EEG data. This system relies on the SciVi
client-server visual analytics platform (https://scivi.tools)
developed in our previous work [1]. This platform consists of
an extensible set of plugins managed by means of a SciVi knowledge-driven
mechanism. In the knowledge base, ontological descriptions of the plugins are
stored. The built-in ontology reasoner traverses the SciVi ontologies to
automatically generate a graphical user interface and interoperation interface
for each plugin, as well as manages the invocation of the plugin’s executable
modules and distributes their working process across the available computing
resources in the network.
SciVi platform provides two levels of
adaptation to the particular data mining tasks. The first adaptation level is
available for the platform administrator, who extends the SciVi ontologies and
thereby adds new plugins implementing new data analytics methods. This is the
way SciVi is adapted to solving tasks in particular application domains. The
second adaptation level is available for the end users, who declare a particular

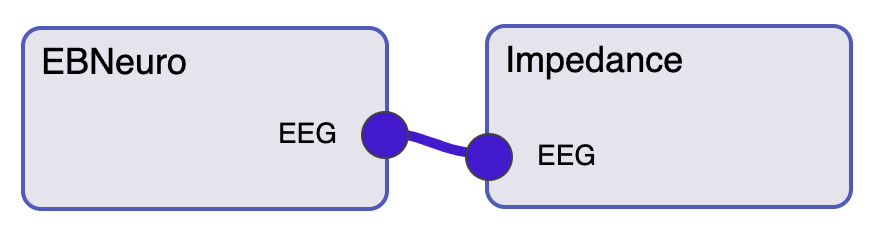

data mining pipeline using visual DFD-based programming language. Composing a
flow chart of available operators (each one corresponds to the particular SciVi
plugin) and data links, end users can implement particular data extraction,
transformation, and load (ETL) algorithms, as well as related data filtering
and visualization steps. In this way, SciVi is adapted to solving concrete data
analysis problems taking into account specifics of the application domain.
The present work is devoted to new capabilities
of the SciVi platform ensuring audio-visual stimuli representation in EEG-based
BCI experiments and visual analytics of their results.
The key contributions of the work reported
are the following:
1.
Introducing a new method for integrating stimuli
presentation platforms with experimental environments in a unified way by the
means of ontology engineering.
2.
Implementing the method proposed by creating a
particular pipeline for neurophysiological research within a digital humanities
framework.
3.
Presenting a new way to compose and control a
BCI experiments pipeline with the help of an ontological description of the
neural interface used.
Thanks to the comprehensive review of
current status, challenges, and possible solutions of EEG-based brain-computer
interface provided by M. Rashid et al. [2], here we present
only a short review of the most widely acknowledged and popular
free/open-source and commercial EEG-based BCI systems.
BioSig [3] (http://biosig.sourceforge.net/)
is one of the oldest MATLAB-based tools for building BCI-enabled
applications and conducting neuroscientific studies. It has a very wide set of
available data processing algorithms, but it only provides very basic
visualization methods via its SigViewer subproject (https://github.com/cbrnr/sigviewer)
and it is also designed for offline data analysis.
Another very distinguished platform for EEG
analysis is BCI2000 [4] (https://www.bci2000.org/).
It is a highly modular and robust cross-platform solution for
data collection, signal acquisition, and stimuli presentation in real-time. It supports
a wide range of EEG devices, has very good documentation, and a welcoming
community. However, it lacks modern signal processing and machine learning
algorithms and is designed more towards providing an “out-of-the-box”
experience for typical scenarios.
OpenVibe [5] (http://openvibe.inria.fr/)
is a relatively new tool for neuroscience experiments and is
geared towards non-programmers. It has a modular architecture and provides the
user with DFD-like diagrams to build the experiments pipeline. OpenVibe is very
user-friendly both in terms of user interface and documentation and supports a
wide range of hardware. But it also lacks sophisticated adaptive signal
processing and machine learning methods, and it is very hard to extend it due
to its complex architecture. It is written in C++; the two main platforms it
targets are Windows and GNU/Linux.
g.BSanalyze (https://www.gtec.at/product/gbsanalyze/),
just as BioSig, is also a MATLAB plugin that allows the user to
analyze recorded biosignal in a highly customizable and flexible interface,
featuring many advanced algorithms. It is a commercial solution though and is a
part of a complete “turnkey” solution for deploying a neuroscientific
laboratory. It is also an offline solution.
BCILAB [6] (https://github.com/sccn/BCILAB)
is also an Octave/MATLAB toolbox for conducting neuroscientific
studies. It has one of the largest collections of signal analyzing and
processing methods available, supports both online and offline modes, and can
easily be extended with plugins. But it has not been actively developed since
2017, and it has a very complex internal architecture, making it quite tough to
maintain on your own.
FieldTrip [7] (https://www.fieldtriptoolbox.org/)
is yet another MATLAB plugin aimed at MEG and EEG analysis. It is
very young and is being actively developed, has basic processing modules for
signal processing and visualization, but is still under heavy construction.
xBCI [8] (http://xbci.sourceforge.net/)
is also a tool for building BCI and conducting online
neuroexperiments. Like OpenVibe, it features a DFD-like GUI pipeline editor,
making it suitable for use by non-programmers, and employs an extensible
plugin-based architecture. Unfortunately, it has not been updated since 2008.
PyFF [9] (http://bbci.de/pyff/)
is a Feedback Framework written in Python. Its main purpose is to
simplify creating neurofeedback applications by utilizing a relatively simple
but still general-purpose programming language Python as its core scripting
engine. PyFF is very convenient and easy to use for IT specialists, but the
project was not updated for 6 years.
SNAP (https://github.com/sccn/SNAP)
is the Simulation and Neuroscience Application Platform based on
the Panda3d computer game engine and aims to bring complex human-computer
interaction into the field of neuroscience. It uses Python as a scripting
language and is easily extensible with custom plugins. Unfortunately, as of
2021, the platform has not been updated in 8 years and falls behind
significantly in terms of modern infrastructure.
E-Prime is a software platform “designed to
facilitate the conception of any experiment that uses a computer as an
interface between the subject and the experimenter” [10]. It follows the
paradigm of an integrated research environment, supporting the study from its
idea through design and conduct to the results processing steps, and features
many high-level tools, including a toolset for stimuli presentation. But its
course towards an “all-in-one” solution, proprietary nature, and the lack of
modularity poses a problem in case of the need for integration.
DMDX [11] is a tool for stimulus
presentation in linguistic experiments with the stress on very precise and
accurate timing of stimuli. It is very stable and mature and is widely popular,
but it is proprietary, closed-source, and lacks support for any platforms
besides desktop Windows. It also was not updated in recent years.
PsychoPy [12] is a free, open-source,
and cross-platform toolbox for conducting experiments in behavioral sciences.
It is very flexible, but nonetheless, the only extension method it supports is
Python scripting.
BOLDSync [13] is a stimulus
presentation framework designed specifically for neuroscience studies. It
employs client-server architecture and uses a VLC media player for stimulus
presentation. It is open-source, but it is based on MATLAB and not really
designed to be extensible, and primarily targets functional magnetic resonance
imaging studies.
ViSaGe (https://www.crsltd.com/tools-for-vision-science/visual-stimulation/visage/)
is a stimulus presentation solution that is quite unique from the
other tools in our list. It is an integrated hardware and software system for
stimuli presentation that allows precise control over the timing, color, and
luminance of the visual stimuli presentation. On the other hand, ViSaGe relies
on MATLAB to enable integration with third-party systems, quite pricey and by
design requires external hardware.
Psychtoolbox [14] is yet another
specimen from the family of MATLAB plugins. Its goal is to provide researchers
with a set of utility functions and tools to be used during stimulus
presentation. It is very mature and still ongoing, but its aim to be a MATLAB
plugin drastically affects its integrability.
In summary, there are a lot of popular,
mature, and robust tools for conducting neuroexperiments in general and
presenting various types of stimuli, but to the best of our knowledge, there
are none that can provide seamless and unified integration with other software
and hardware systems.
The authors of [2] mention that “a
general BCI standard is currently the main issue. Most of the studies on BCI
have used different evaluation metrics on their own as per their convenience
without any uniformity, which makes it difficult to choose the most efficient
method, especially for new researchers in this field.”
Our paper presents an original
ontology-driven solution to tackle this problem.
To get the meaningful data for further
analysis (involving both machine learning algorithms and visual analytics performed
by experts), stimuli representation should be accurately synchronized with the
EEG signal. Often, the presence/absence of a particular stimulus is encoded as
a high/low signal level in the special channel of EEG recording along with the
other channels, which represent brain activity. The rising edge of the signal
in this special channel should perfectly match the time the stimulus appears.
The falling edge should correspondingly match the time the stimulus disappears.
To achieve the needed time-scale accuracy,
special hardware solutions are involved, for example, photo-sensors mounted on
the monitor that shows the visual stimuli. These sensors emit electrical
impulses whenever a new stimulus is shown on the monitor, and the impulses are
recorded by an EEG device along with the signal from the headset. This kind of
registration system is however limited to unimodal stimuli (visual only). A
more flexible way is to emit electrical impulses directly by the computer that
presents stimuli.

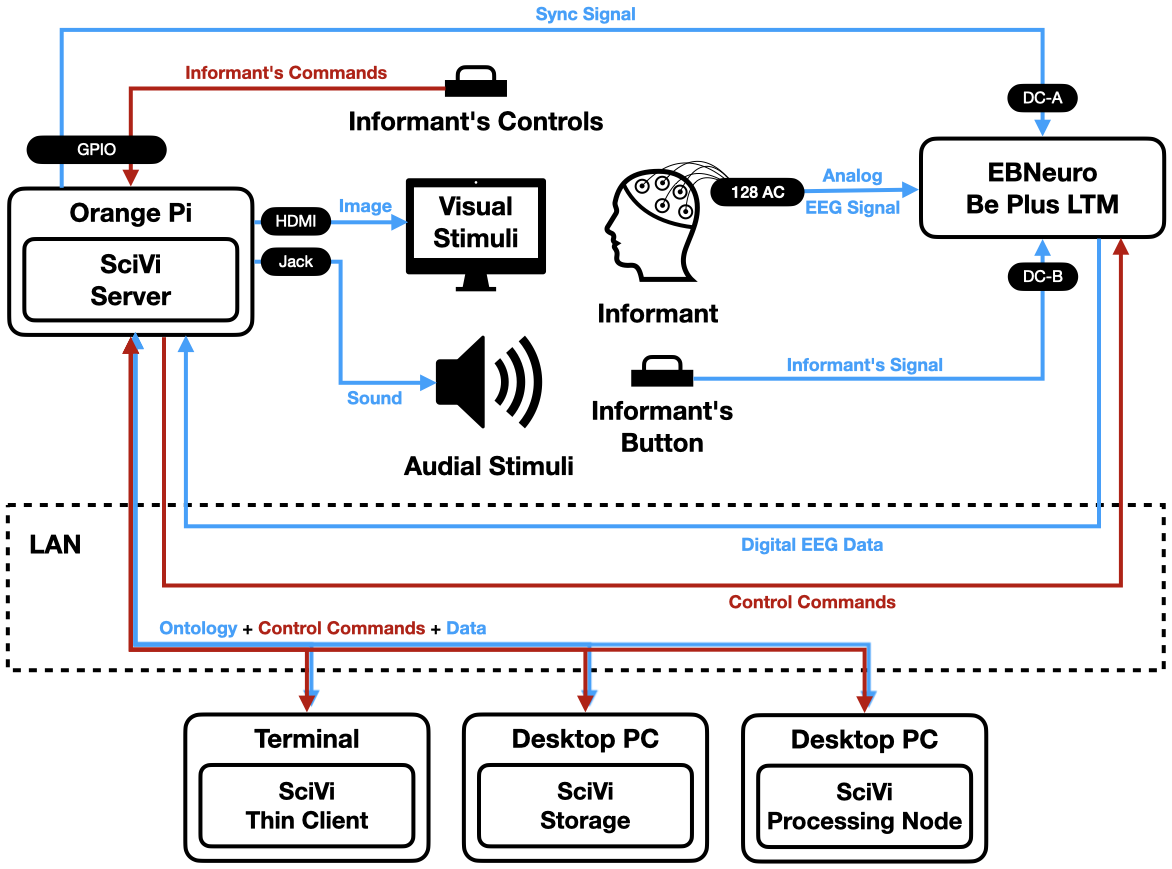

To minimize the output lag of the impulses
emitted we propose using a single-board microcomputer with general-purpose
input-output (GPIO) pins available. The most popular microcomputers are
Raspberry Pi and Orange Pi. In the present work, we adopted Orange Pi PC Plus
that has 28 different GPIO pins along with the power lines of 3.3 V and
5 V, as well as built-in Ethernet and WiFi adapters. It is based on the H3
Quad-Core Cortex-A7 CPU, has 1 GB DDR3 RAM and Mali-400 MP2 GPU supporting
OpenGLES 2.0. Although the overall performance of this computer is fairly low
(compared to desktop computers), it is enough to present different kinds of
stimuli, including text, images, animations, videos, and sound. Moreover, Orange
Pi can be transparently integrated with tangible user interfaces [15],
allowing to involve haptics modality.
The schema of the stimuli representation
pipeline proposed is shown in Fig. 1.
Fig. 1. Stimuli representation pipeline based
on the SciVi platform tools
As shown in this figure, SciVi Server
hosted on the Orange Pi PC Plus single-board microcomputer represents visual
(by the monitor connected via HDMI port) and auditory (by the speaker or
headphones connected via a mini-jack port) stimuli to the Informant. The SciVi
Server communicates with the SciVi Thin Client, SciVi Storage, and SciVi
Processing Nodes by sharing the necessary parts of ontologies and by exchanging
the control commands and data.
The electrical signal from the Informant’s
headset transmitted over up to 128 analog channels (128 AC) is being registered
by an EBNeuro Be Plus LTM device that contains an analog-to-digital converter,
an amplifier, and a communication module to stream the digitized signal over
the local area network (LAN). This signal is being received by the SciVi Server
that incorporates software logic of parsing EBNeuro network packages and
controlling the EBNeuro device state (for this, a self-written driver is used).
The SciVi Server acts as a proxy for the SciVi Storage, where the EEG data are
saved, and for the SciVi Processing Node, where the data are filtered, clustered
and classified. The experiment director accesses the SciVi Server via a
Terminal (arbitrary desktop computer, laptop, or mobile device) running the
SciVi Thin Client.
Whenever the stimulus appears, SciVi Server
uses Orange Pi GPIO pins to send a synchronization signal that is received via
a special DC-A input of the EBNeuro device and recorded along with EEG data.
If the experiment requires actions from the
informant, two control circuits are provided: Informant’s Button (the button
that emits square-shaped signal recorded by EBNeuro device through special DC-B
input) and Informant’s Controls (arbitrary Joystick-like controller connected
to the Orange Pi via GPIO pins). Informant’s Button may be used to store the
feedback from the informant. For example, an informant can indicate whether
he/she has imagined some situation that is studied in the particular
experiment. Informant’s Controls are used to give the informant potential control
over the stimuli presented, for example, to navigate between them. Currently,
pushbuttons are used, but in the future more specific hardware interfaces can
be adopted, including tangible ones [15].
SciVi Server, SciVi Storage, and SciVi
Processing Node are implemented in Python, having a lot of common code related
to network discovery and communication (that is mainly based on the WebSocket
protocol). SciVi Server relies on the Flask framework (https://flask.palletsprojects.com/)
to allow HTTP-based communication with Web clients. Server-side
plugins are mainly implemented in Python too, but some of them use native
libraries written in C++. SciVi Processing Node relies on SciPy (https://www.scipy.org/),
MNE (https://mne.tools/),
and scikit-learn (https://scikit-learn.org/)
libraries to perform machine-learning-based processing and
analysis of EEG data. SciVi Thin Client is written in JavaScript relying on
HTML5 and CSS3.
As mentioned above, ETL-, filtering-, and
visualization pipelines in SciVi are declared with the help of DFDs composed of
high-level operators. Each operator has its ontological description [1].

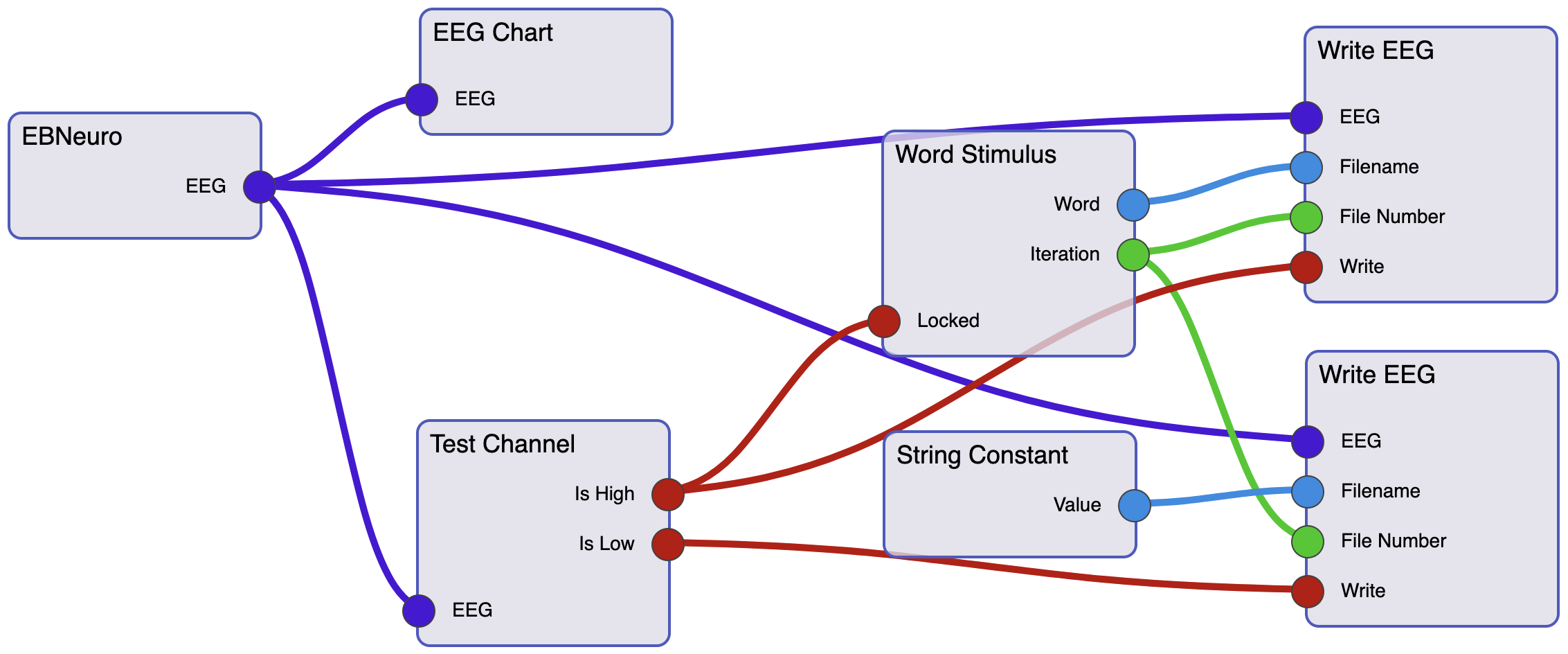

An example of the DFD declaring a presentation of words as a specific type of
visual stimuli is shown in Fig. 2.
Fig. 2. SciVi DFD declaring a presentation of
word stimuli
In this DFD, the “EBNeuro” operator is
responsible for communicating with the EBNeuro Be Plus LTM EEG device.
Implementation of this operator uses a self-written device driver running on
the server-side. It sends control commands to the EBNeuro device and receives
the EEG data stream.

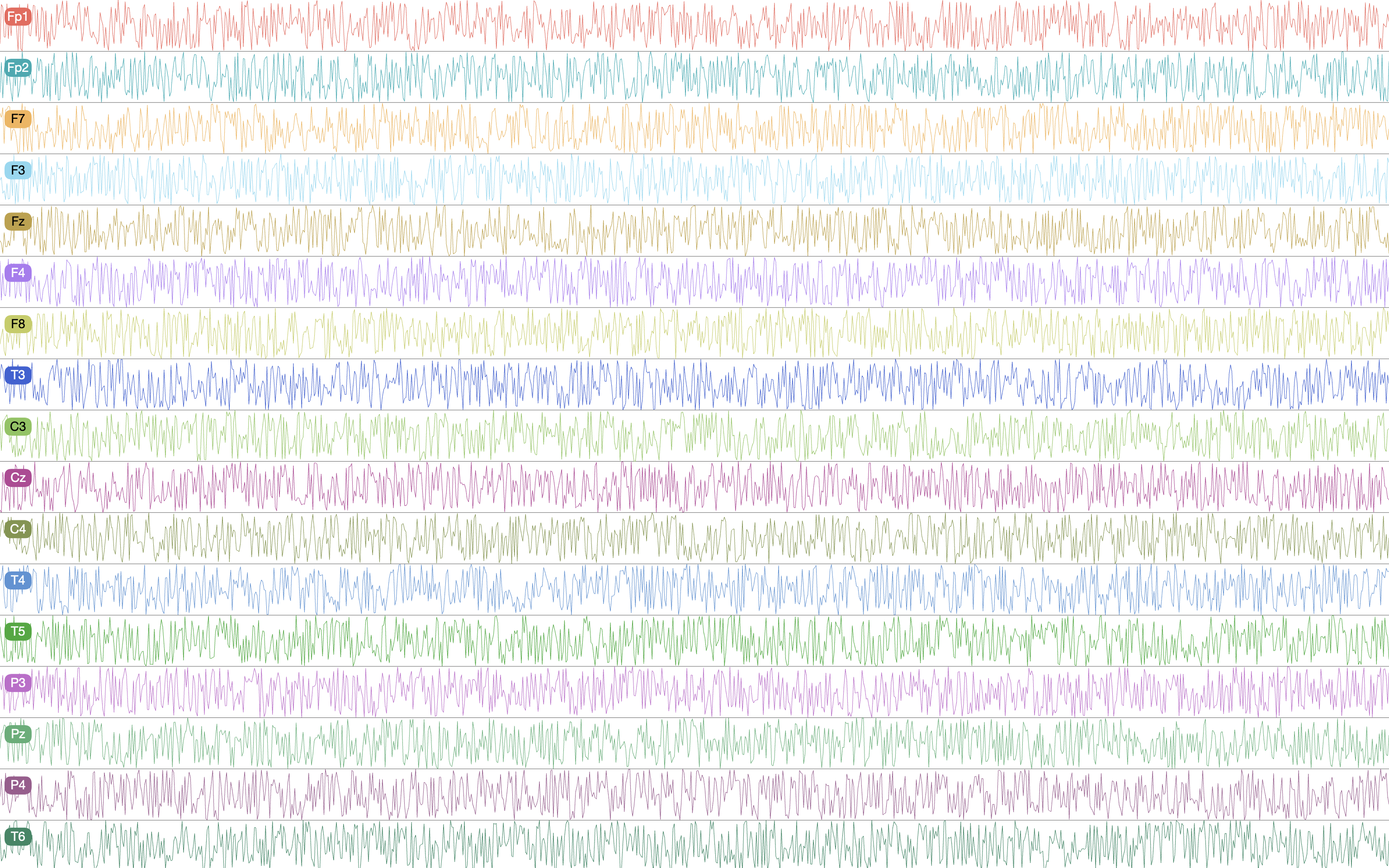

“EEG Chart” is a client-side visualization
tool that draws received EEG data stream as a line chart (see Section 5
for details). It is worth noting, that the data link from the “EBNeuro”
operator to the “EEG Chart” operator incorporates automatic data serialization
and marshalling on the SciVi Server, as well as data receiving and
deserialization on the SciVi Thin Client. The mechanisms of automatic
marshalling based on DFD make data transfer inside SciVi transparent for the
user: the user just declares the sequence of operators, which should be applied
to the data, and does not worry about where a particular operator is running
and how exactly it receives/transmits the data.
The “Word Stimulus” operator is responsible
for presenting the sequence of words on the screen. It has corresponding
settings, which allow to set up the list of words, the duration of showing
individual words, and the number of times (iterations) the list of words is
presented. Each word appears on screen, stays for a given time, then
disappears, and the screen stays black for a while; after that, the next word
appears. This process is repeated
n
⋅
m
times where
n
is a number of words and
m
is a number
of iterations requested. Simultaneous with the showing of each individual word,
the synchronization signal is generated using the Orange Pi GPIO pin, which is
connected to the DC-A input of the EBNeuro device. When the word is shown, the
level of the synchronization signal is set to high, otherwise, it is set to
low.
“Test Channel” operator reports whenever
the voltage level in the given channel (DC-A in our case) is high (above a
given threshold) or low (below a given threshold). This provides a feedback
loop from the EBNeuro EEG device: when the high level of a synchronization
signal appears along with the EEG data, it means, these data belong to the informant’s
reaction to the stimulus. To avoid switching to the next word before the
reaction to the previous one is fully recorded, the “Word Stimulus” operator is
locked by the synchronization signal.
“Write EEG” operator stores the EEG data to
the file of a standard EDF format. There are two instances of this operator in
the DFD. The upper one stores the informant’s reaction to each word in an
individual file. The data are buffered, whenever the “Write” input of the
operator receives “True”. When it is changed from “True” to “False” (which
means, the word is no longer presented), the file is written to the disk. The
name of the file is concatenated from the values of “File Number” and
“Filename” inputs of the “Write EEG” operator, prefixed with the informant’s
code that is set up via the operator’s settings. If the file with the generated
name already exists, the name is suffixed with the number.
The lower “Write EEG” operator stores the
EEG data of the informant when no stimulus is presented. Instead of the word,
“String Constant” is supplied as a filename, defining a common part for all the
names of corresponding files.
For presenting image-based and auditory
stimuli, the DFD looks the same, but the operator “Word Stimulus” is replaced
by the “Image Stimulus” and “Audio Stimulus” correspondingly. In case, a new
type of stimuli is needed, the required operator can be added to SciVi by
extending the SciVi ontology, without modifying the source code of the
platform.
In the current version of SciVi tools, both
visual and auditory stimuli are presented using the PyGame Python library (https://www.pygame.org/).
Right now, words (provided as a list), images (provided as PNG
and JPG files), and sounds (provided as WAV, MP3, and OGG files) can be
presented as stimuli, which covers all the preliminary experiments we have
carried out for now. However, the SciVi platform already contains appropriate
rendering tools to perform more complex scientific visualization on single-board
microcomputers like Orange Pi and Raspberry Pi [15], so they can
be used whenever needed.

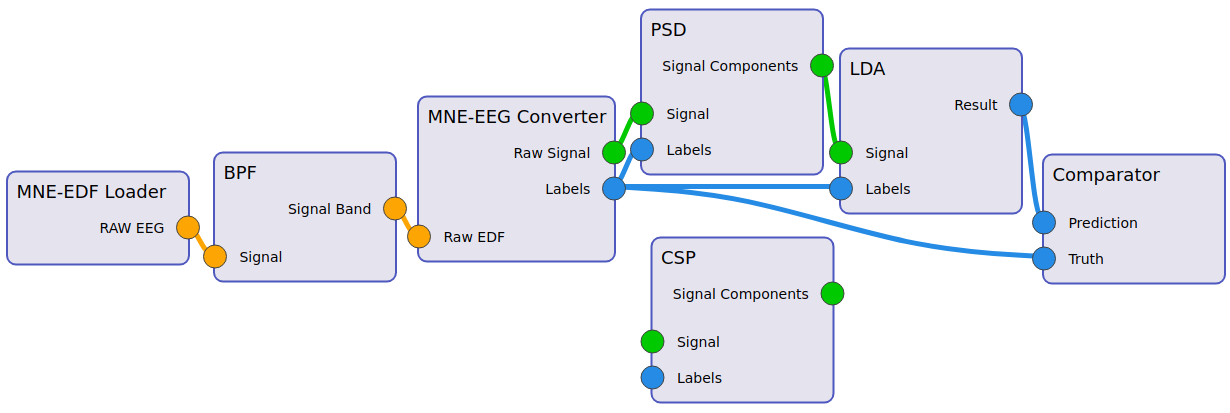

Besides declaring stimuli representation,
DFDs can be used to compose and process EEG data processing pipelines as well.
For this, corresponding operators are needed, which allow the experiment
director to set up required transformations for both real time obtained and
pre-recorded data. Lightweight processing operators can be executed on the
server- or client side, while the operators involving complex calculations are
automatically moved to the SciVi Processing Node (see Fig. 1) that is
hosted on the powerful PC.
We demonstrate a unified approach to
ontology-driven processing of audio-visual stimuli representation pipeline by
an example of experiments within the digital humanities project
“Conceptualization of Social Reality in Mass Communication: Cognitive
Information Modeling Using Machine Learning Methods, Visual Analytics and
Neurocognitive Technologies” (State Assignment No. FSNF-2020-0023, Research
Project of Perm State University, 2020–2022). At the current stage of our
research, we focus on finding the EEG patterns of the reaction to different
concepts (words and texts) displayed on the screen or played back with a speaker.
To organize the ontology-driven pipeline
processing mechanism, we build the BCI ontology upon the well-known
BCI-O [16]. BCI-O ontology describes generic scenarios of BCI-environment
interaction, as well as common properties of EEG-based BCIs. We propose using a
lightweight ontology, which model contains two sets: the thesaurus and the set
of basic relations. The thesaurus specifies BCI-related concepts, such as “EEG
device”, “EEG channel”, “EEG electrode”, etc. In order to reduce the complexity
of the ontology reasoner allowing to embed it to Edge devices as
firmware [17], we restricted the set of relation types of BCI-O by the
paradigmatic types only, such as “has”, “a_part_of”, “use”, “use_for”,

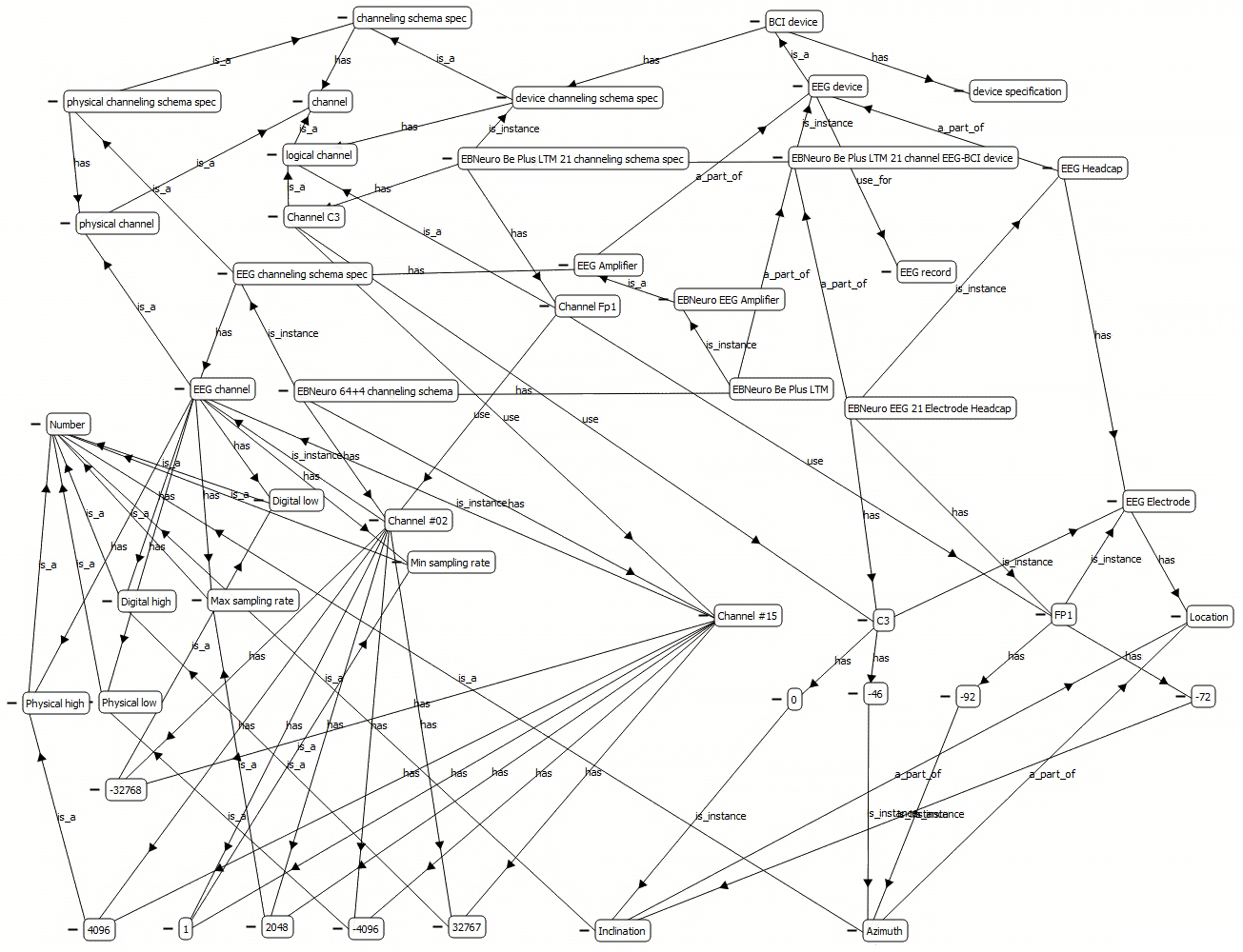

“is_instance”, and “is_a”. The fragment of the proposed ontology is shown in
Fig. 3.
Fig. 3. Fragment of enriched BCI-O ontology
We introduce physical parts of “EEG device”
concept: “EEG Amplifier” and “EEG Headcap” that has “EEG Electrodes”, as well
as split “channeling schema spec” into physical and logical layers, represented
by “physical channel” and “logical channel” concepts respectively. Physical
channels represent amplifier ADC inputs having their ADC properties, such as
minimum and maximum sampling rates, physical and digital limits, etc. Logical channels
tie physical channels to particular electrodes, which have their headcap
locations. Using these concepts, we describe our experimental equipment as
“EBNeuro Be Plus LTM 21 channel EEG-BCI device” (with a “EBNeuro Be Plus LTM 21
channeling schema spec” of logical channels) that consists of “EBNeuro Be Plus
LTM” amplifier (with a “EBNeuro 64+4 channeling schema” of physical channels)
and “EBNeuro EEG 21 Electrode Headcap” (with corresponding electrodes). This
description model ensures flexible mapping of EEG data processing algorithms
between different BCI hardware.
The main goal of the present work is to
create a flexible stimuli representation pipeline to conduct experiments
involving EEG. However, almost every EEG-based experiment requires a visual
inspection of the data being collected. The problem is that the EEG device is
very sensitive to electromagnetic noise of different nature, so, at least at
the beginning of the experiment, the impact of different noise factors should
be reduced as much as possible.

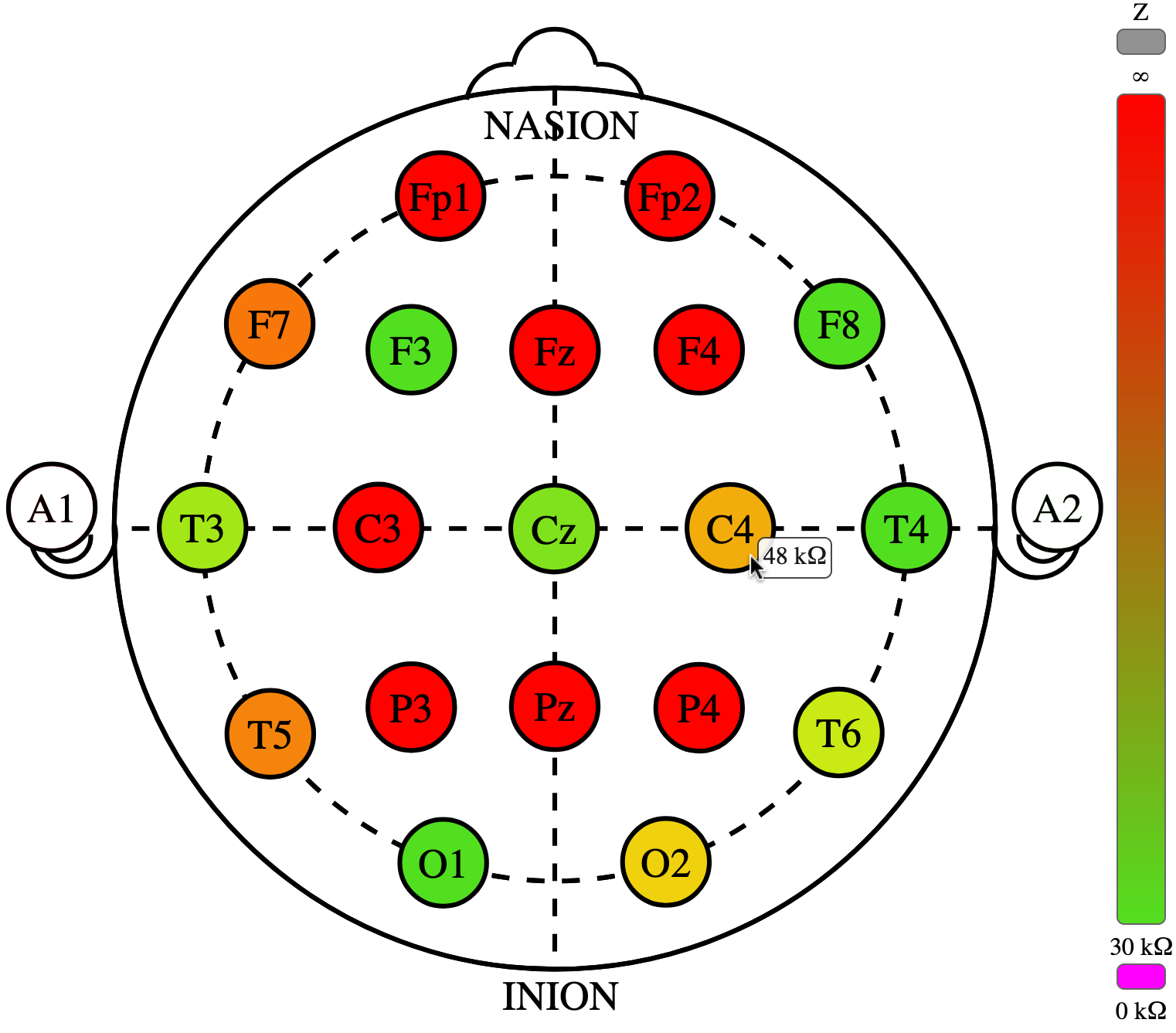

First of all, the contact of the headset
electrodes with the scalp skin of the informant should be good enough.
According to the advice of experts in neurophysiology, the impedance of
electrodes should be no more than 30 kOhm. To lower the impedance, special
conductive gel is used. But the amount of gel that should be applied cannot be
defined in advance, it should be picked up experimentally, because it depends
on the informant’s hair density, hairstyle, skull shape, etc. It must be noted,
that too much gel can short-circuit the neighbor electrodes spoiling the
signal. So, there should be a real time monitoring tool to check the impedances
of particular headset electrodes to see whether more gel should be applied.
The EBNeuro device has a special mode to
measure impedances and transmit them instead of regular potentials. To allow
the experiment director to monitor these data, we adopted an SVG image of a
standard international 10-20 electrode placement system. Each electrode is
painted by the red-to-green color scale according to its impedance. Hovering
the electrode pictogram by the mouse cursor opens a pop-up with an actual
impedance value. The corresponding DFD diagram is shown in Fig. 4 and the
visualization results in SciVi (for the 21-electrode headset) are shown in
Fig. 5.
Fig. 4. SciVi DFD declaring a visual
inspection of impedances
Fig. 5. Visualization of the impedances in
SciVi
Next, after the headset is ready, the EEG
signal should be inspected, whether it contains significant noise. For this, a
line chart of potentials and a histogram of frequencies should be visualized
for each EEG channel. We implemented a minimalist WebGL-based charting engine
that enables very fast visualization suitable for real time EEG signal
monitoring. This engine is available as an “EEG Chart” visualization operator
that is used in the DFD shown in Fig. 2. The result of signal rendering in
SciVi is shown in Fig. 6.
Fig. 6. Visualization of the EEG signal in
SciVi
Although the visualization methods
mentioned above are quite traditional, they are essential for conducting
EEG-based experiments, so they should be included in any corresponding data
processing pipeline. The SciVi visual analytics platform contains a lot of
visual analytics tools [1, 15] organized according to the principles
of cognitive graphics [18]. In the future, we plan to adopt them for
performing more complex visual analytics of EEG data. However, this requires
corresponding data processing mechanisms to be implemented (including the
machine-learning-based clustering, classification, etc.), which we are working
on.
This section is devoted to the validation
of the proposed pipeline of stimuli representation and EEG data recording by
solving the task of discriminating reactions to textual visual stimuli. The
experiment is as follows. The subject who signed informed consent for
participation is seated comfortably in front of a computer monitor with the headset
put on (see the photo in Fig. 7). At the starting phase of the experiment, a 30
seconds timeout with a blank screen is held to help the subject to get into the
right mood.
After that, the presentation of visual stimuli
begins.

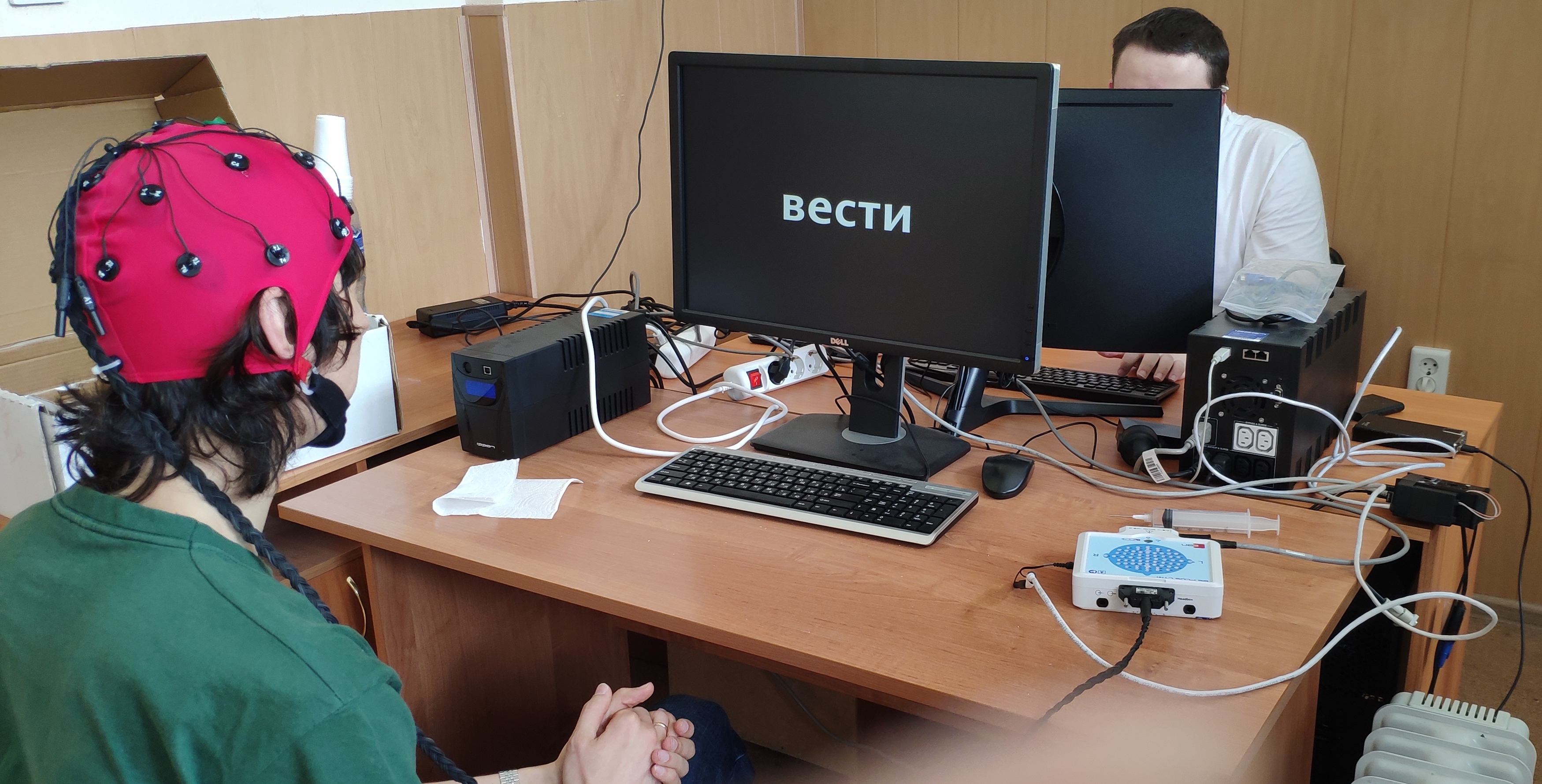

Fig. 7. Conducting the EEG-based experiment:
collecting the reactions to the word stimuli
In this experiment two major types of
textual stimuli are used: a selection of Russian verbs of different
transitivity and a meaningless placeholder stimuli (sequences of vertical bars
like '|||||||||'). They are presented to the subject in an alternating manner
with some blank intervals in between.
This experiment had two goals. First, it
was a pipeline test to validate the hardware setup and software solutions.
Second, it was a step towards discovering whether different linguistic features
of perceived words trigger specific brain activities.
The pipeline defined by the DFD shown in
Fig. 2 is used to present the words to the informant and record their
reactions. After the data are collected, machine-learning-based classification
is performed.
The DFD declaring classification pipeline is
shown in Fig. 8.
Fig. 8. SciVi DFD declaring the EEG
classification task
Our task here was to figure out whether it
is possible to discern a difference in brain activity between different groups
of visual stimuli. We attempted to differentiate between:
1.
Presence of visual stimuli (of any category) and
their absence.
2.
Presence of a meaningful stimulus and presence
of a placeholder.
3.
Presence of a transitive verb and presence of an
intransitive verb.
For each type of the classification task,
we employed a Linear Discriminant Analysis (LDA) [19] classifier together
with two different feature extraction methods: Common Spatial Patterns
(CSP) [20] and Power Spectral Density (PSD) [21]. All the recorded
data were split into train and test datasets according to the 70/30 rule. The
accuracy of the experiment results is presented in Fig. 9.

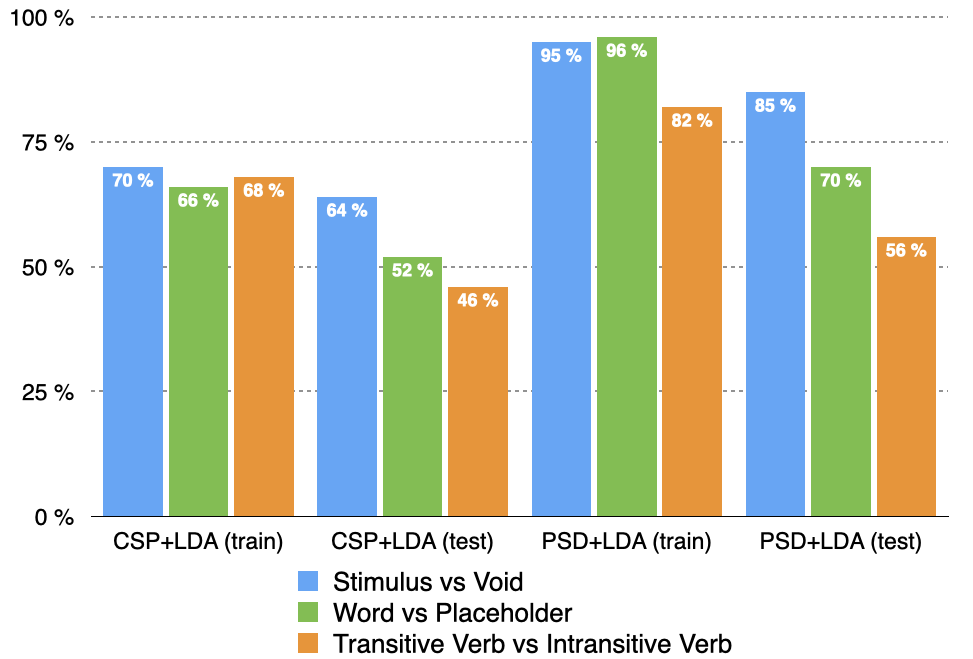

Fig. 9. Classification results for different
visual stimuli
The CSP patterns for each task are
presented in Fig. 10–12. CSP patterns highlight zones with maximal activity
difference between opposite stimuli in binary classification.

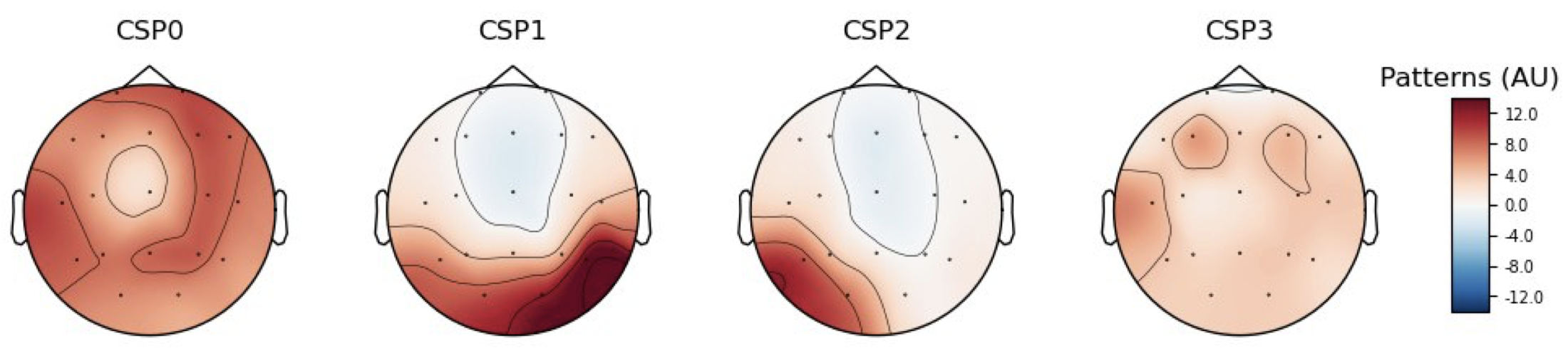

Fig. 10. CSP patterns for “Stimulus vs Void”
task

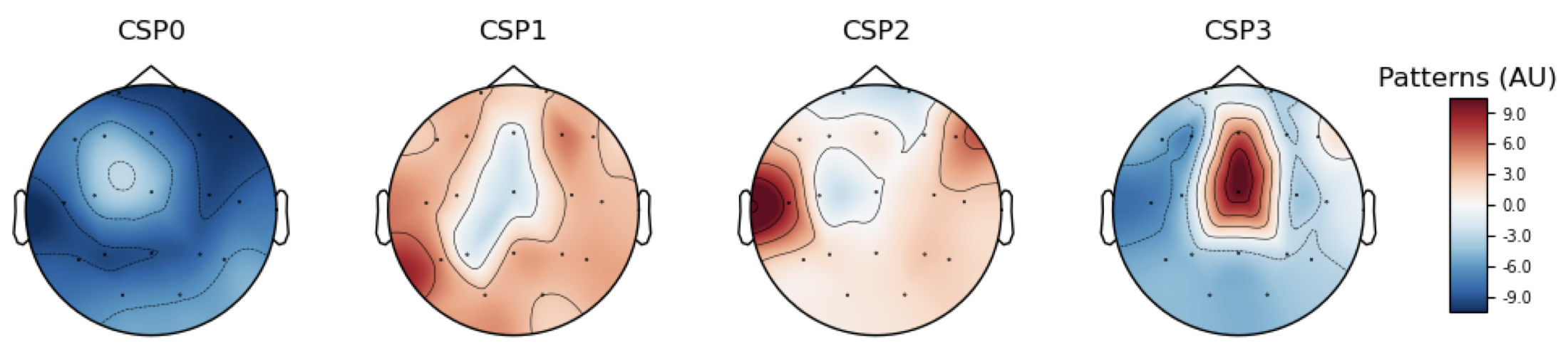

Fig. 11. CSP patterns for “Word vs
Placeholder” task

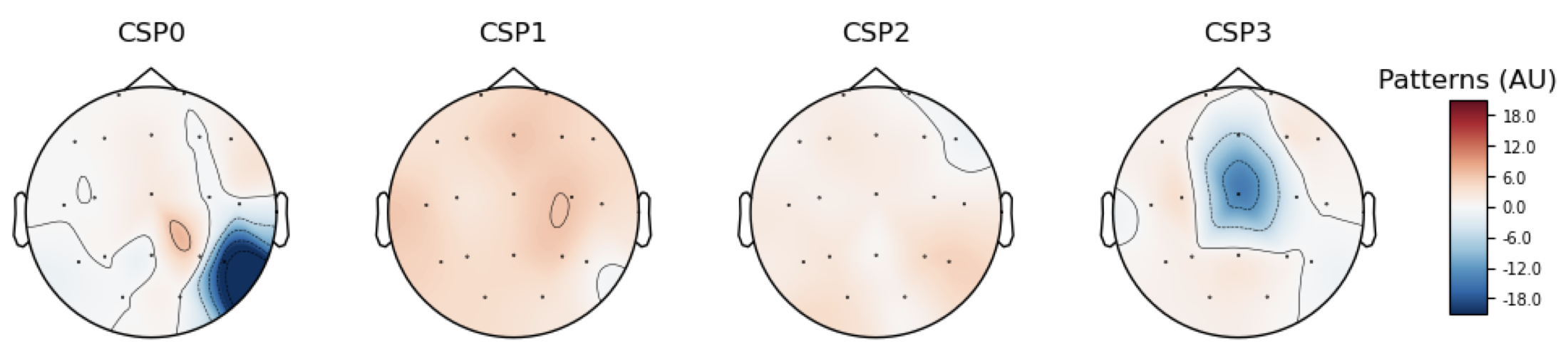

Fig. 12. CSP patterns for “Transitive Verb vs
Intransitive Verb” task
Fig. 10 clearly illustrates the visual
cortex activity importance for CSP-based class separation. This seems logical
taking into account that the task is to distinguish the presence and absence of
the visual stimulus. In Fig. 11, important activity is shifted towards the
frontal lobes. That can also be seen as an empirical justification of
correctness of the pipeline: reading the meaningful words causes frontal lobes
activation while perceiving the meaningless placeholder causes no frontal lobes
activity. Fig. 12, however, shows that CSP basically failed to find any
meaningful difference in the brain activity between two classes of recordings.
Given that both types of stimuli induce intellectual processing in the frontal
lobe, this is not surprising, and therefore conclusion can be made that the
feature extraction algorithm should be changed for that particular task.
The goals of the experiment are basically
achieved. First, the pipeline can be considered viable. Second, it can be
concluded, that the linguistic features of words can hardly be precisely
distinguished by simple discrimination algorithms, and more complex machine
learning methods are required.
In this paper, we propose new SciVi
capabilities for creating a flexible and configurable hardware-software
pipeline to represent auditory and visual stimuli in EEG-based experiments. The
core of this pipeline is the ontology-driven visual analytics platform SciVi
that allows declaring the data obtaining, transformation, storing, and
visualization steps through the high-level graphical programming language based
on DFDs. Two levels of configurability are implemented. First, the experiment
director can combine required data processing operators to suit the conditions
of a particular experiment. Second, the knowledge engineer can extend SciVi
with new operators describing them in the SciVi ontology, without modifying the
platform’s source code.
The distinctive feature of the proposed
toolset is the automatic distribution of data acquisition, storage, processing,
and visualization on different computing nodes in the network, which balances
the computation load and allows utilizing various hardware platforms joint with
different EEG devices and different stimuli controllers.
The proposed methods and tools created have
been used for EEG-based studying of the people’s reactions to the displayed
words, which have different linguistic features. While the toolchain created
proved its viability, it was also shown that it is necessary to continue
experiments using not only CSP/LDA and PSD/LDA, but also other machine learning
algorithms or boosting to deal with distinguishing the reactions to the words
with different linguistic features. So, more complex data processing methods
should be used for solving this problem.
The high-level graphical user interface of
SciVi allows the application domain specialists without advanced IT skills to
conduct EEG-based experiments involving complex data transformations, advanced
visualization, and visual analytics. Moreover, tools providing seamless
integration with third-party software and hardware EEG- and other monitoring
devices are under development.
Next, we plan to extract the most
significant mass-media concepts like “power”, “court”, “democracy”,
“opposition” etc. The aim of the future research is to compare the informants’
verbalized opinions about these concepts (collected by sociological surveys) and
physiological reactions of the same informants to these concepts (measured by
EEG). The hypothesis is that the verbalized reaction does not always match the
actual emotions caused by the stimulus, since the verbalized reactions can be
affected by stereotypes and other external factors.
Studies that aim to identify brain activity
on significant social and political concepts are most often carried out with
image-based stimuli [22]. At the same time, reactions to verbal concepts
attract the researchers’ interest too: “all sociopolitical concepts that have
been evaluated in the past are affectively charged, and that this affective
charge is automatically activated from long-term memory within milliseconds of
presentation of the political stimulus” [23]. In this regard, not only
political concepts are to be considered, but also any social concepts that are
significant for a person (for example, “honesty”, “family”, “money”, “future”,
etc.).
The reported study is supported by the
Ministry of Science and Higher Education of the Russian Federation, State
Assignment No. FSNF-2020-0023 (Research Project of Perm
State University, 2020–2022).
1.
Ryabinin, K., Belousov, K., Chuprina, S. Novel
Circular Graph Capabilities for Comprehensive Visual Analytics of
Interconnected Data in Digital Humanities // Scientific Visualization. – 2020.
– Vol. 12, No. 4. – PP. 56–70.
DOI: 10.26583/sv.12.4.06.
2.
Rashid, M., Sulaiman, N., P. P. Abdul Majeed,
A., Musa, R.M., Ab. Nasir, A.F., Bari, B.S., Khatun, S. Current Status,
Challenges, and Possible Solutions of EEG-Based Brain-Computer Interface: A
Comprehensive Review // Frontiers in Neurorobotics. – 2020. – Vol. 14.
DOI: 10.3389/fnbot.2020.00025.
3.
Schlögl, A., Brunner, C. BioSig: A Free and
Open Source Software Library for BCI Research // Computer. – 2008. – Vol. 41,
No. 10. – PP. 44–50.
DOI: 10.1109/MC.2008.407.
4.
Schalk, G., McFarland, D.J., Hinterberger, T.,
Birbaumer, N., Wolpaw, J.R. BCI2000: a General-Purpose Brain-Computer Interface
(BCI) System // IEEE Transactions on Biomedical Engineering. – 2004. – Vol. 51,
No. 6. – PP. 1034–1043.
DOI: 10.1109/TBME.2004.827072.
5.
Renard, Y., Lotte, F., Gibert, G., Congedo, M.,
Maby, E., Delannoy, V., Bertrand, O., Lécuyer, A. OpenViBE: An
Open-Source Software Platform to Design, Test, and Use Brain–Computer
Interfaces in Real and Virtual Environments // Presence. – 2010. – Vol. 19, No.
1. – PP. 35–53.
DOI: 10.1162/pres.19.1.35.
6.
Kothe, C.A., Makeig, S. BCILAB: a Platform for
Brain-Computer Interface Development // Journal of Neural Engineering. – 2013.
– Vol. 10, No. 5.
DOI: 10.1088/1741-2560/10/5/056014.
7.
Oostenveld, R., Fries, P., Maris, E.,
Schoffelen, J.-M. FieldTrip: Open Source Software for Advanced Analysis of MEG,
EEG, and Invasive Electrophysiological Data // Computational Intelligence and
Neuroscience. – 2010. – Vol. 2011.
DOI:
10.1155/2011/156869.
8.
Susila, I P., Kanoh, S., Miyamoto, K.,
Yoshinobu, T. xBCI: A Generic Platform for Development of an Online BCI System
// IEEJ Transactions on Electrical and Electronic Engineering. – 2010. – Vol.
5, No. 4. – PP. 467–473.
DOI: 10.1002/tee.20560.
9.
Venthur, B., Scholler, S., Williamson, J.,
Dähne, S., Treder, M., Kramarek, M., Müller, K.-R., Blankertz, B.
Pyff – A Pythonic Framework for Feedback Applications and Stimulus Presentation
in Neuroscience // Frontiers in Neuroscience. – 2010. – Vol. 4. – PP. 179.
DOI: 10.3389/fnins.2010.00179.
10.
Richard, L., Charbonneau, D. An introduction to E-Prime // Tutorials
in Quantitative Methods for Psychology. – 2009. – Vol. 5, No. 2. – PP. 68–76.
DOI: 10.20982/tqmp.05.2.p068.
11.
Forster, K.I., Forster, J.C. DMDX: A Windows Display Program with
Millisecond Accuracy // Behavior Research Methods, Instruments, & Computers.
– 2003. – Vol. 35, No. 1. – PP. 116–124.
DOI:
10.3758/BF03195503.
12.
Peirce, J.W. PsychoPy – Psychophysics software in Python // Journal
of Neuroscience Methods. – 2007. – Vol. 162, No. 1. – PP. 8–13.
DOI: 10.1016/j.jneumeth.2006.11.017.
13.
Joshi, J., Saharan, S., Mandal, P.K. BOLDSync: a MATLAB-Based
Toolbox for Synchronized Stimulus Presentation in Functional MRI. // Journal of
neuroscience methods. – 2014. – Vol. 223. – PP. 123–32.
DOI:
10.1016/j.jneumeth.2013.12.002.
14.
Brainard, D.H. The Psychophysics Toolbox // Spatial Vision. – 1997.
– Vol. 10, No. 4. – PP. 433–436.
DOI:
10.1163/156856897X00357.
15.
Ryabinin, K., Kolesnik, M. Automated Creation of Cyber-Physical
Museum Exhibits Using a Scientific Visualization System on a Chip //
Programming and Computer Software. – 2021. – Vol. 47, No. 3. – PP. 161–166.
DOI: 10.1134/S0361768821030099.
16.
José, S., Méndez, R. Modeling Actuations in BCI-O: A
Context-Based Integration of SOSA and IoT-O // Proceedings of the 8th
International Conference on the Internet of Things. – 2018. – PP. 1–6.
DOI: 10.1145/3277593.3277914.
17.
Ryabinin, K., Chuprina, S. Ontology-Driven Edge Computing // Lecture
Notes in Computer Science. – 2020. – Vol. 12143. – PP. 312–325.
DOI: 10.1007/978-3-030-50436-6_23.
18.
Nechaev, Yu.I., Degtyarev, A.B., Boukhanovsky, A.V. Cognitive
computer graphics for information interpretation in real time intelligence
systems // Computational Science – ICCS 2002. – 2002. – PP. 683–692.
DOI: 10.1007/3-540-46043-8_69.
19.
Fisher, R.A. The Use of Multiple Measurements in Taxonomic Problems
// Annals of Eugenics. – 1936. – Vol. 7, No. 2. – PP. 179–188.
DOI: 10.1111/j.1469-1809.1936.tb02137.x.
20.
Koles, Z.J., Lazar, M.S., Zhou, S.Z. Spatial Patterns Underlying
Population Differences in the Background EEG // Brain Topography. – 1990. –
Vol. 2.
No. 4. – PP. 275–284. DOI: 10.1007/BF01129656.
21.
Gramfort, A., Luessi, M., Larson, E., Engemann, D.A., Strohmeier,
D., Brodbeck, C., Goj, R., Jas, M., Brooks, T., Parkkonen, L.,
Hämäläinen, M.S. MEG and EEG Data Analysis with MNE-Python //
Frontiers in Neuroscience. – 2013. – Vol. 7, No. 267. – PP. 1–13.
DOI: 10.3389/fnins.2013.00267.
22.
Vecchiato, G., Toppi, J., Cincotti, F., Astolfi, L., De Vico
Fallani, F., Aloise, F., Mattia, D., Bocale, S., Vernucci, F., Babiloni, F.
Neuropolitics: EEG Spectral Maps Related to a Political Vote Based on the First
Impression of the Candidate’s Face // Annual International Conference of the
IEEE Engineering in Medicine and Biology. – 2010. – PP. 2902–2905.
DOI: 10.1109/IEMBS.2010.5626324.
23.
Morris J.P., Squires N.K. Activation of Political Attitudes: A
Psychophysiological Examination of the Hot Cognition Hypothesis // Political
Psychology. – 2003. – Vol. 24. – PP. 727–745.
DOI:
10.1046/j.1467-9221.2003.00349.x.
