Nowadays, such
an area of research as the use of stereo-animation technologies in various
areas of life, in particular, the possibility of using them in scientific
developments, is acquiring intensive development. The use of modern stereo devices
can significantly improve the visual component when using them to visualize the
results of numerical experiments.
A
three-dimensional representation of the process evolution over time helps to
verify the computational model and the algorithms used. It also provides the
observer with a full understanding of the phenomenon being modeled and
popularizes the research itself and its results for society, including for
decision-makers.
In contrast to a
two-dimensional flat image, three-dimensional stereo allows one to more
effectively explore and model objects with a developed spatial structure or
interpret photographs taken during an experiment from different angles at given
points in time and combined into animation.
With the
emergence of scientific interest in the field of stereotechnology, more and
more works began to appear on various aspects of this vast area of
research. Specific problems arising when using a computer system
to generate and visualize a composite multiscreen stereo frame, and methods for
solving such problems are described in sufficient detail in [1-3]. Initially,
most of the research in the field of stereo images related to the problems of constructing
virtual reality, simulators and simulators, as well as training systems.
However, later, the issue of creating presentation complexes became very
relevant, which, among other things, made it possible to demonstrate the
results of scientific research in stereoscopic mode. These works include papers
[3-10]. The paper [3] presents the results of displaying the Supernova
explosion in stereo mode. The paper [7] is devoted to the creation of a
computational technology for modeling the operation of a three-dimensional unit
of the blades of a power plant in a viscous compressible heat-conducting gas flow.
Currently, the tasks of constructing stereo images are considered in various
fields of research [3-9]. The problems of visual discomfort in virtual and
mixed reality systems are described in detail in [17].
Stereo imaging
is possible using a fairly wide range of different technologies: from classical
stereoscopy to depth maps. The choice of technology depends on the type of
stereo devices available, the intended field of application and the actual
objectives of the stereo imaging.
It should be
noted that when constructing a stereo image of scientific calculations results at
a certain moment, a rather relevant structural subproblem arises. The standard
presentation of a scientific report, as a rule, includes not only the
visualization of complex geometry or fields of physical quantities, but also
explanations, usually represented by text and formulas. If for geometries and
physical quantities the issues of constructing stereo presentations have been
sufficiently developed, then the problems of combining them with stereo images
of texts and formulas with sufficient expressiveness and the necessary stereo
effect are still open.
This work continues
the cycle of research works [1-3,7,11-14,15,18,19] carried out at Keldysh Institute
of Applied Mathematics of the Russian Academy of Sciences based on the existing
stereo devices.
The main type of
device for which the software system for creating stereo images described in
this work is intended is Dimenco DM654MAS autostereoscopic monitor. Autostereoscopic
monitors provide stereo images without the need to track the position of the
observer. Typically, such monitors allow to view stereo images, providing
several fixed segments in the space for observation. The viewer can move
between segments, getting the opportunity to view the demonstrated object in 3D
from different angles of view.
One of the
important tasks that become relevant with the spread of such stereo devices is
the combination of images and text information in one frame. Many objects, especially
those that represent the results of scientific research, require accompanying
information located directly in the same frame as the image. In many cases, the
object and the signature, in principle, cannot be separated into different
frames, since they constitute a single logical display of information. It is
this task that the Multi-view StereoMaker software complex, described in detail
in [18], is designed to help solve.
In the process
of research, analyzed in papers [12,13], where a step-by-step process of
developing such a technology based on multi-view presentation was considered,
the following technology for constructing a stereo frame was worked out, which
is performed manually by the user:
1) Rotation of
the object (the result of visualization of scientific calculations) along the Z
axis by a given degree and the subsequent saving of the frame with each
rotation;
2) Creation of 9
frames for each rotation: 1st frame - the leftmost position, 9 - the rightmost;
3) Adding the
necessary text (with volume and clarity) for each frame;
4) Consecutive
rotation of the text by the required fraction of a degree in each frame;
5) Stitching all
frames into a matrix of images in a certain sequence;
The sequential
execution of each of the actions of this seemingly simple algorithm, however,
when executed manually, requires great care and takes an inordinately long time
to perform essentially the same operations. Such an algorithm requires
automation to speed up the process at times.
For these
purposes, the Multi-view StereoMaker software package was developed. It allows
you to construct the necessary nine views for each of the objects in a complex
frame, and then combine them without violating the integrity of the final
stereo image, greatly facilitating the creation of full-fledged stereo images.
The first
version of the program was registered in 2020 [19]. At the moment, the research
continues to improve the capabilities of the program. This article describes
the second version of Multi-view StereoMaker and its new capabilities.
Multi-view
StereoMaker allows one to create a set of images - representations of the
rotation of three-dimensional objects on a given angular stereobase - and then
obtain a stereo image combined from these images.
The program is
designed to work with arbitrary 3D objects with specified parameters. Such
objects can be the results of scientific calculations and accompanying
information to them, such as accompanying inscriptions, formulas, additional
images. Multi-view StereoMaker implements interaction with the Tecplot software
package, as well as with the Blender software package for generating arbitrary
3D images.
The
main functions performed by the first version of the program: selection of the
stereo image generation algorithm for each object, the ability to preview the
generated images according to the specified parameters for each object, setting
the parameters for superimposing images on top of each other at the coordinates
specified by the user, as well as choosing the way to save the final result.
Among
the algorithms for generating stereo images, there is a category of
"custom images", where the user, respectively, can specify the
directory in which his images are located. When choosing the “Tecplot”
category, the user must specify a .plt file with the required model and set the
desired parameters. The last category - the Blender algorithm - assumes the
generation of a 3D object from the original image.
In the second
version of the program, the interface of which is shown in Figure 1, the choice
of possible algorithms for generating a stereo image is expanded, the ability
to interactively enter text from the screen with its subsequent transformation
into a 3d object is added. This allows the user to work faster and more
efficiently with the program and create the desired stereo images with
accompanying information.
Also, an
algorithm for automatic generation of the final result into an intermediate
format was implemented, which is necessary for further reformatting the result
into a specialized .d9v format, with which the autostereoscopic monitor
interacts. This will speed up the user work with stereo installation,
eliminating several iterations from the chain of format conversions.

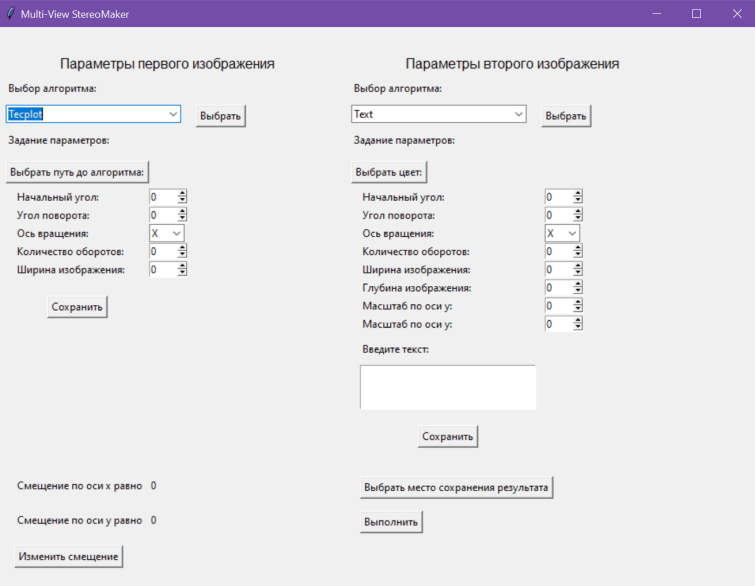

Fig.1.
Multi-view
StereoMaker 2.0 software package interface.
Multi-view
StereoMaker 2.0 consists of the following components, shown in the diagram
(Fig. 2). The user must enter the parameters using the provided graphical
interface (GUI). The graphical interface allows one to access the generated
images preview subsystem for each object. The parameters entered by the user
are passed to the preliminary data subsystem, which creates a directory system
for storing the results of the algorithms. Then the parameters are passed to
the algorithm generator. Then the finished result is processed and properly
formatted.

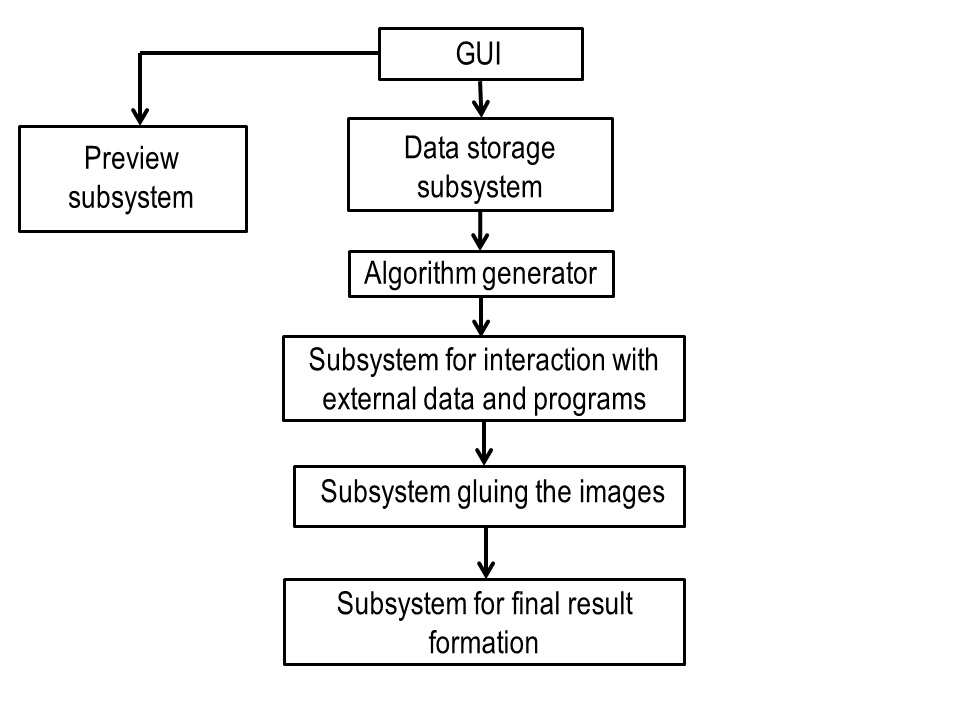

Fig.2.
Organization
scheme of the Multi-view StereoMaker software package.
The algorithm
generator generates the appropriate algorithms for the operation of external
programs (Tecplot, Blender), after which the obtained algorithms and parameters
are transferred to the subsystem for interaction with external programs and
data. Then the image fusion subsystem is called, which performs multiple
superposition of a number of images formed for two objects. The result of the
program's work is a directory containing algorithms for external programs
generated for a specific case, directories with generated images for objects
with user-specified parameters, and a directory with the final result.
The system was
tested on the real results of a generalized computational experiment on the
comparative assessment of the accuracy of three solvers (Fig. 3-5) of the open
software package OpenFOAM on the problem of supersonic flow around a cone at an
angle of attack [20].
The generalized
computational experiment allows carrying out parametric calculations based on
the synthesis of algorithms for solving problems of mathematical modeling,
parallel technologies and visual analytics. The main methods and approaches for
constructing a generalized computational experiment are described in detail in
[21, 22]. As a rule, the results of constructing such an experiment are
multidimensional data volumes. The ability to construct stereo images of the
results for target functionals is very important.

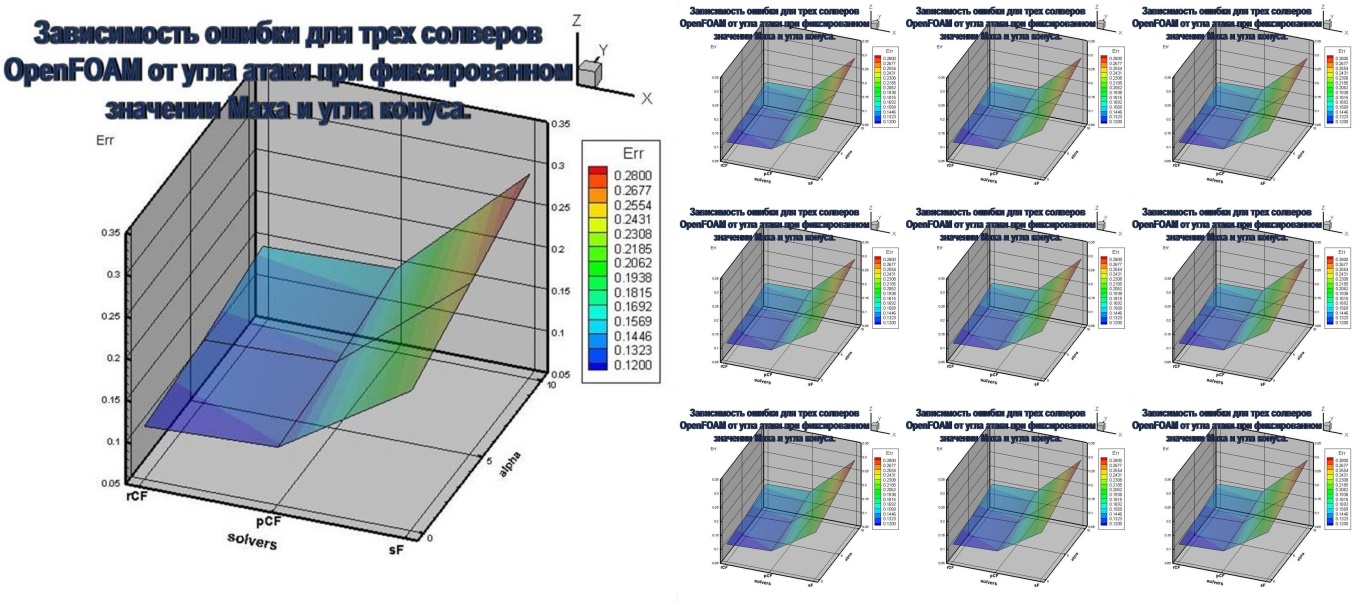

Fig.3.
Dependence
of the error for three OpenFOAM solvers on the angle of attack at a fixed Mach number
and cone angle.
Fig.4.
Dependence of the error for the sonicFOAM solver at a fixed value of the angle
of attack on the Mach number and the angle of the cone
Fig.5.
Dependence
of the error for three OpenFOAM solvers at a fixed value of the angle of attack
on the Mach number and the angle of the cone.
The Multi-view
StereoMaker project is incomplete. It is planned to further develop and improve
the program for combining several objects and interactively placing them in a
stereo frame with the simultaneous generation of nine views for each. Also,
additional options will be developed for the accounting of statistical data.
The article
presents the results of constructing a stereo image for an autostereoscopic
monitor by the method of multi-view representation using the second version of
the Multi-view StereoMaker 2.0 software package.
Additions have
been made to effectively improve the generation of stereo images with textual
accompaniment for creating stereo presentations. There was also a demonstration
of the program's work on specific real problems.
In the future,
it is planned to further develop custom functions, as well as to solve the
problem of interactively placing objects in one stereo frame with the
simultaneous generation of nine views for each.
[1]
Synthesis
of photorealistic three-dimensional images in modern presentation systems /
Andreev S.V.[et al] // Software&Systems 2007. ¹ 3. p. 37-40. [in
Russian].
[2]
Generation
of Stereo-Presentations in Photorealistic Rendering and Scientific
Visualization /Andreev S.V.[et al] // Keldysh Institute preprints, 2010. ¹ 61.
16 p. http://library.keldysh.ru/preprint.asp?id=2010-61[in Russian].
[3]
Andreev
S., Filina A. Using stereo presentations for visualization of scientific
calculations results / Scientific Visualization. 2012. v.4. ¹ 1. p.12-21
[4]
Hardware-software
complex of 3D presentations based on a virtual studio and virtual environment /
Vandanov V.G. [et al] // Proceedings of the 1-st international conference «3D
visualization of scientific, technical and social reality. Cluster technologies
of model-ing» Izhevsk. 2009. P.73-77. [in Russian].
[5]
Mezhenin
A.V., Tozik V.G. 3D Visualization using the stereo image effect // Proceedings
of the 2-nd international conference «3D visualization of scientific, technical
and social reality. Cluster technologies of modeling» Izhevsk. 2010. [in
Russian].
[6]
Mikhaylyuk
M.V., Huraskin I.A. Synthesis of stereo images for virtual reality systems
using an optical tracking system / Software&Systems 2006. ¹ 3. p. 10-14.
[in Russian].
[7]
Andreev
S.V. [et al] Modelling and visualisation of blade assembly with complicated
shape for power turbine / Scientific Visualization.
2015. v.7. ¹ 4.
p.1-12
[8]
Torgashev
M.A., P.Y. Timokhin. The technology of stereo video files’ synthesis for the
system of 3D real-time visualization. Software Products and Systems, 2012, ¹ 3,
pp. 74-80. [In Russian]
[9]
Mikhaylyuk
M.V., Maltsev A.V. Timokhin P.Yu. The methods of 3D stereo visualizationof data
obtainedin simulation of unstable oil displacement from porous media /
Proceedings of Scientific Research Institute for System Analysis RAS, 2018,
v.8, N 2, p. 125-129. [in Russian].
[10]
Visibility
Experiment and Evaluation of 3D Character Representation on Mobile Displays /
Hiromu Ishio [et al.] // C. Stephanidis (Ed.): Posters, Part II, HCII 2011,
CCIS 174, pp. 46–51, 2011.
[11]
Andreev
S.V., Bondareva N.A. Constructing a representation of textual information in
stereo presentations // Proceedings of the 28-th International Conference of
Computer Graphics and Vision GraphiCon-2018, Tomsk, Russia, 23-28 September
2018, p. 86-89. [in Russian].
[12]
S.V.Andreev,
A.E.Bondarev, V.A.Galaktionov, N.A.Bondareva (2018) The problems of stereo
animations construction on modern stereo devices. Scientific Visualization
10.4: 40 - 52, DOI: 10.26583/sv.10.4.04
[13]
S.V.
Andreev, N.A. Bondareva, E.Yu. Denisov. Stereo Presentations Problems of
Textual information on an Autostereoscopic Monitor (2019).
Scientific
Visualization 11.4: 90 - 101, DOI: 10.26583/sv.11.4.08
[14]
S.V.
Andreev, A.E. Bondarev, N.A. Bondareva. Stereo images of error surfaces in
problems of numerical methods verification (2020).
Íàó÷íàÿ
âèçóàëèçàöèÿ 12.2: 151 - 157, DOI: 10.26583/sv.12.2.12
[15]
Stereo animation "Modeling and visualization of the work of a power plant
having complex shape in the stereo animation mode". https://yadi.sk/i/3CcYhlMB3TCH4r
(Accessed 01.11.2020).
[16]
S.V.
Andreev, A.E. Bondarev, N.A. Bondareva. Stereoscopic construction of textual
information in presentations of research results on an autostereoscopic monitor
(2020).
Scientific
Visualization 12.1: 132 - 139, DOI: 10.26583/sv.12.1.12
[17]
A.D. Zhdanov,
D.D. Zhdanov, N.N. Bogdanov, I.S. Potemin,V.A. Galaktionov, and M.I. Sorokin.
Discomfort
of Visual Perception in Virtual and Mixed Reality Systems // Programming and
Computer Software, 2019, Vol. 45, No. 4, pp. 147–155.
DOI:
10.1134/S036176881904011X
[18]
S.V. Andreev, A.E. Bondarev, N.A. Bondareva, K.A. Donskoy , V.A.
Galaktionov. Automated construction of a stereo image for results of
mathematical modeling using the Multi-view StereoMaker software system (2020).
Scientific
Visualization 12.5: 165 - 173, DOI: 10.26583/sv.12.5.12
[19]
Certificate of state registration of a computer program No.
2020664486. The program for automatic construction of stereopresentation for an
autostereoscopic monitor using the Multi-view method "Multi-View
Stereomaker" / Bondarev A.E., Galaktionov V.A., Andreev S.V., Bondareva
N.A. ., Donskoy K.A. ; applicant and copyright holder Keldysh Institute of RAS
(RU). - 2020663564 app. 11/05/2020; publ. 13.11.20, Register of computer
programs.
[20]
Aleksey
Alekseev, Alexander Bondarev, Vladimir Galaktionov, Artem Kuvshinnikov, Lev
Shapiro. On Applying of Generalized Computational Experiment to Numerical
Methods Verification // CEUR Workshop Proceedings, V. 2744, 2020, p.
paper19-1 — paper19-12, DOI: 10.51130/graphicon-2020-2-3-19
[21]
Bondarev
A.E. On the Construction of the Generalized Numerical Experiment in Fluid
Dynamics // Mathematica Montisnigri, Vol. XLII, 2018, p. 52-64
[22]
A.E.
Bondarev. On visualization problems in a generalized computational experiment
(2019). Scientific Visualization 11.2: 156 - 162, DOI: 10.26583/sv.11.2.12
