VISUAL HAPTIC-ENABLED BIOMOLECULAR DOCKING SYSTEM DESIGN



O. SOURINA, X. HOU


Nanyang Technological University, Singapore
eosourina@ntu.edu.sg




Contents



Annotation

         Haptic-based interfaces are used to enhance study of molecular systems interactions. We developed a visual haptic-enabled system prototype for molecular docking that allows real-time interactive visualization of two molecular systems and molecules manipulation with force feedback. In our system, we implemented haptic interface to facilitate an exploration and analysis of molecular visualization and molecular docking. First, haptic device enables the user “to feel” van der Waals field with a probe. Second, the user could manipulate of two molecules and “feel” their interaction during the docking process in virtual experiment on the computer. In future, such techniques could help the user to understand molecular interactions and to evaluate the design of pharmaceutical drugs.

Keyworlds: haptics interface, molecular visualization, molecular docking, force feedback



1. Introduction

         Visual haptic-based biomolecular docking systems are used in research on molecular docking. The assembly of molecules in a three-dimensional space or molecular docking is used for rational drug design where a ligand docks onto a receptor. The computer-aided design systems allow a real-time interactive visualization and manipulation of molecules in virtual environment. These techniques help the user to understand molecular interactions. In recent years, besides the visualization techniques, there has been increasing interest in using haptic interfaces to facilitate an exploration and analysis of molecular docking. Haptic device enables the users to manipulate the molecules and feel their interaction during the docking process in virtual experiment on the computer. For life science related disciplines such as biology, physical chemistry, molecular medicine, biophysics, structural biology, bioinformatics, etc., the modern molecular visualization systems allow visualization and analysis of complex biological structures. Haptic-based visual biomolecular docking is a new area of research that allows developing interactive systems that could be used in rational drug design. Biomolecular docking is 3D assembling of molecular structures to predict the preferred complimentary molecular shapes when they are bound to each other to form a stable complex. In this paper, we describe a visual haptic-based biomolecular docking system that we developed for study of molecular structures and molecular systems interaction.

         Given the experimental difficulties in membrane protein structure determination, there is a pressing need for prediction methods. Prediction of membrane protein structure consists of two parts: one is topology, the other is helix-helix interaction. Prediction of location of transmembrane (TM) helices and topology has been in general successful. It is often possible to develop a limited set of topological models from the sequence. The total success of membrane protein structure prediction, however, will depend largely on the second challenge, which is to correctly pack topologically arranged helices [1]. In this respect, the fact that the main contribution to transmembrane interhelical packing is van der Waals interactions converts the problem into a docking one [2].

         We proposed and developed visual haptic-based molecular docking system to explore the conformational space of helix-helix interaction manually in the hope to find an optimal conformation with the minimum amount of time.  Docking the transmembrane helices is a difficult task for automatic conformational search algorithms when polytopic membrane protein structure is explored because of the exponential increase in conformations as the number of a-helices is increased. Given the difficulties in exploring the whole conformational space available in polytopic membrane proteins, our strategy for docking TM helical domains is to use a manual approach in a virtual reality environment. This manual approach greatly simplifies the searching task, as changes in helix register, tilt and rotational orientation of the helices around their long axis are accomplished by hand. Feedback will be provided as attraction or repulsion forces felt by the user, which will be generated after calculating bonding and nonbonding interactions.

         The paper is organized as follows. Review on molecular visualization and molecular docking is given in Section II. In Section III, the basic concepts of our approach are elaborated. In Section VI, the system prototype is described and molecular docking examples are shown. Conclusion and future work is given in Section V.



2. Related Works

2.1 Molecular Visualization

         Modern molecular visualization systems allow visualization and analysis of complex biological structures. There are popular molecular visualization systems such as RasMol [3], PyMol [4], JMol [5] that can be used for visualization of 3D molecular structures, animating molecules, exporting geometry, etc. The systems could be used both in education and research but they should be downloaded on the PC.

         There are web-based molecular visualization systems that could be accessed on the Web. Currently, the most popular web-based systems are WebMO [6], WebMol[7], FirstGlance [8], etc. The systems provide visualization, calculating and viewing of the molecular structures. In such systems, visualization results can be easily shared in the collaborative environment. Most of the modern visualization systems also allow visualization of electron density, electrostatic potential, Connolly and/or van der Waals surfaces and can be integrated with other visualization and analysis programs.

         Currently, there are systems that allow visualize the molecular docking process and the results as well. In work of Ray et al. [9], a fast and efficient algorithm was developed that calculates interaction between molecules and creates an interaction map. The algorithm has been implemented as a plug-in of Visual Molecular Dynamics (VMD) software [10]. VMD is a molecular visualization program for analyzing large biomolecular systems using 3D graphics.



2.2 Haptic-based Molecular Docking

        Visualization of molecular docking process is important for understanding molecular interaction.  Haptic-based technology allows enhance molecular visualization systems and molecular docking systems with force feedback in such way that the user could “feel” force field of molecule and molecular interaction. There are haptic-based systems that enable users to feel the electrostatic force between a probe molecule and the explored biomolecule. In [11], Nagata etc. designed a prototype of protein-lingand docking system allowing the user to 'touch' and sense the electrostatic potential field surrounding a protein molecule and to search for the appropriate docking position. In [12], a grid map was used to generate the electrostatic field data around the molecular structure of interest. The haptic forces at any position were calculated using tri-linear interpolation of the potential energy.  Lai-Yuen and Lee [13] developed computer-aided design system for molecular docking and nanoscale assembly. The authors use their own lab-built 5DOF haptic device. The paper discusses the docking of ligand to protein. During this docking process, the force feedback is calculated according to van der Waals forces. Stocks and Hayward developed a haptic system HaptiMol ISAS [14]. It allows users to interact with the biomolecular solvent accessible surface through the haptic device. A navigation cube is used to visualize the explored surface region, and the cube can be automatically scaled to fit the workspace of haptic device. The cube approach allows choosing the interaction areas of large molecules. In another approach for the rigid body molecular docking, proposed by Subasi and Basdogan [15], the user inserts a rigid ligand molecule into the cavities of a protein molecule to search for binding cavity. Similarly to the cube approach, an Active Haptic Workspace (AHW) was implemented for the efficient haptic-based exploration of large protein-protein docking in high resolution. In the system, the user could feel a tunneling effect as the ligand molecule is pulled towards the binding cavity. In [16], an interactive global docking (IGD) approach was presented. An immersive environment for docking interface with both visual and haptic rendering was implemented. In the project, the commercial Falcon haptic device from Novint Technologies Inc. was used to provide 3 degree of freedom force feedback. In the project of Interactive Molecular Dynamics (IMD) [17], a real-time feedback and manipulation based on the virtual reality system of SMD [18], was provided for dynamic simulations of biomolecules.

         Project CoRSAIRe [19], is an example of a multisensory virtual reality system. It was designed for a study of protein-protein docking. To create an immersive virtual environment, the visual, audio and haptic feedbacks were combined to enhance the process of exploration. The 6-DoF haptic feedback was provided by the Virtuous haptic interface of Haption Company and the forces calculation of both van der Waals interaction and electrostatic potentials were implemented.

         Most of the approaches to molecular docking assume that the molecules are rigid. For the flexible molecular docking, Daunay and Micaelli, etc. [20] developed a new six degrees of freedom molecular docking system which enables the feeling of torque force as well. This system provides haptic feedback for a flexible ligand-protein docking and achieves a stable manipulation based on wave variables. The system has limitations on the size of protein molecules. Persson et al. [21] have designed and evaluated that haptic system that could benefit the biomolecular education. In a protein-ligand docking, both force and torque feedbacks were provided for the manipulation of flexible ligand models. The dynamics of ligand is based on a real-time energy minimization process. In the paper, it was proved by experiments conducted with students that the haptic feedback has dramatically improved students understanding the ligands' interactions.

         Haptic-enable web-based molecular docking is a new research direction in molecular docking systems development. In [22], Davies et al developed a prototype Molecular Visualiser (MV) application based on Web3D standards with extension for support of the haptic interaction. MV provides the user with visualizations of molecular systems, potential energy surfaces, and wavepacket dynamics. These can be displayed in a web browser using VRML, or be delivered to a virtual environment in which haptic properties are assigned based on the molecular dynamics of the system. The use of MV for both research and teaching was discussed. The prototype uses PHANTOM device. The authors mainly focused on the visualization of the molecular models in the paper but do not study molecular docking problem. Liu and Sourin [23] proposed a functional approach for modeling the geometry of objects. The function-based objects were added in VRML. The users are able to define an implicitly defined function of any shape. Later, Wei et al [24-25] extended [23] by incorporating haptic based feature to the new FVRML nodes. A new density node was proposed for the haptic implementation. It allows explore an electrostatic force of molecule with the probe.

         In [26], we described our work on haptic-based visual molecular docking targeting research on helix-helix docking. In [27], we proposed e-learning scenario with our system. In this, paper we describe the system interface and further development of the prototype of biomolecular Docking System HMolDock (Haptic-based Molecular Docking).



3. Approach

         The key requirement in simulating of the ligand binding process is to have a good model of the interaction between ligand and receptor. The rough binding region can be decided visually by the user based on complimentary shapes. The surface and sphere models are implemented in the system. During binding, the ligand is moving in the potential field created by the receptor’s atoms, and the system is searching for a stable low potential configuration. While moving one of the molecules around binding site based on complimentary shapes, the potential energy at each position is calculated and compared, the minimum value of potential energy is recorded together with the position of the ligand molecule.

         The possible docking orientations between molecular systems are sampled with input from force calculations that is fed back to the user through the haptic device. The molecular systems are visualized with their van der Waals surfaces. The force feedback requires a high refresh rate (at least 1 kHz), therefore interaction energy calculations should be simplified. In future, the interactive forces could be calculated in advance and stored in a volumetric grid.

When only forces in rigid docking are required, we use the Lennard-Jones (L-J) potential as the main scoring function, as it has been found to be the most important in transmemebrane a-helix interaction [2].

The essential features are approximated quite well by a Lennard-Jones potential (also referred to as the L-J potential, 6-12 potential or, less commonly, 12-6 potential), which can be expressed as:

                                                                   (1)



where ε is the depth of the potential well, σ is the (finite) distance at which the inter-particle potential is zero and r is the distance between two particles. The  term describes repulsion, and the  term describes attraction. The LJ potential changes relatively to the distance between molecules.

The force function is the negative of the gradient of the above potential:

                                                      (2)



where ε is the depth of the potential well between hetero-atomic particle pairs, σ is the (finite) distance at which the inter-particle potential is zero and r is the distance between one particle in receptor and the other in ligand.

The interactions between two large molecules (assume M atoms in receptor and N atoms in ligand) are represented by the potential energy created between them. The LJ potential and force formulas are shown below:

                                                          (3)

                                                 (4)



where  and  are LJ parameters for particle i in receptor and j in ligand;  is the distance between the particle pair; is the distance unit vector.

         There are many different force field models that can be used to simulate proteins and other molecules implemented in AMBER [28], CHARMM [29], MM3 [30], MM4 [31] and MMFF94 [32]. If each force field is normally developed for a particular type of molecule, they rather well adapt to different structures in atomic types. The one we use and which is described below is called OPLS-aa [33] [34] [35]. It was parameterized for use in protein simulations, and also for small organic molecules, and has functional groups for all 20 common amino acids.

         For the homo-atomic pairs, there are published LJ parameters available (i.e. [36] for OPLS-aa). For the homo-atomic pairs, the interaction of hetero-atomic pairs, the effective values of σ and ε are calculated from those for the homo-atomic pairs. The way of calculation is called a mixing rule. OPLS-aa uses the same non-bonded functional forms as AMBER, and the Lennard-Jones terms between unlike atoms are computed using the mixing rule [37].

                                                                                        (5)

                                                                                         (6)

In future, for educational purposes, we would give the user a choice of forces simulating the behavior of molecular systems depending on the case of study.

         Molecular visualization is very important for the finding of complementary shapes. The presentation of molecular with smooth surface allows make docking process more intuitive. In molecular docking systems, three types of molecular surfaces are used: van der Waals, Solvent Accessible Surface (SAS), and Connolly surface.  In works [26-27], we described our approach and implementation of Solvent Accessible Surface (SAS) and Connolly surface. Here, we illustrate our system with van der Waals surface.



4. HMolDock System Interface

         We developed a prototype of biomolecular docking system HMolDock (Haptic-based Molecular Docking), using the haptic device PHANTOM 1.5/6DOF (6 degrees of freedom) [26-27]. The format of molecular structure file from the Protein Data Bank .pdb [38] is chosen as an input, although there are wide varieties of file formats based on standard Cartesian (x, y, z) atom coordinates (e.g., .mpl, .car, .pdb) for which conversion programs could be used. Atom coordinates are got from the input PDB files. Atom radius and the correspondent color are determined based on the atom type and its belonging residue which are extracted from PDB data. Two molecules or one molecule and the probe are visualized on the screen. The user can assign a haptic “mouse” to the probe or to one of the molecules and move the probe/molecule towards/around to another molecule. An interaction force is calculated at each position, and the resulting attraction/repulsion force is felt by the user through the haptic device. The force direction and its magnitude are visualized as a vector. Thus, a probe/molecule can be selected by the haptic mouse and moved around to let the user ‘feel’ change of the force.

         Let us describe the system interface. First, the user needs to select the molecules for molecular docking in pdb format. Then, two molecules and the haptic interface point are visualized on the screen. The coordinate grid is shown on the background of screen, and it could be used to improve the accuracy of the docking manipulation in 3D environment. After the molecules are loaded into the environment, the user can assign the haptic interface point to the probe or one of the molecules and move the probe/molecule towards/around to another molecule. Since the van der Waals force between molecules are calculated in real-time, the resulting attraction/repulsion force can be felt by the user through the haptic device simultaneously. The current magnitude value of force is showed on the right side of the screen. The force direction and its magnitude are visualized on the screen as the force vector represented by a red cylinder and a yellow arrow. The force vector is calculated and visualized in real-time. Thus, a molecule can be selected by the haptic “mouse”, and the changing of van der Waals force can be felt by the user when the molecule moves around another one.

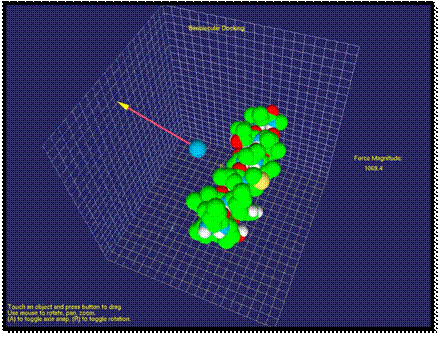

Fig. 1. Visualization of Van der Waals force as a vector between the probe and molecule



         In Figure 1, it is shown an application when the molecule force field is studied with the atom probe.  Here, the atom is affected by the repulsion force. By moving the probe around the molecule, the user can study the force field of the molecule.

         After a simple application of our method, we will demonstrate an application in molecular medicine with a more complex example. The example of interaction of aIIb integrin transmembrane helix and a designed antibody-like complementary peptide anti-aIIb is shown in Figures 2-4. It is especially pertinent to molecular medicine, where an important strategy is to achieve function regulation by modulation of protein-protein interactions [39]. In membrane proteins, a recent approach targets the transmembrane region with certain peptides. The rationale is that transmembrane mutations, for example in receptor tyrosine kinases, have been associated to many types of cancer and developmental deficiencies, which are explained by unregulated activation. Inactivation of the receptor is thus crucial for targeted treatment, and this can be achieved with synthetic a-helices that target the native a-helices of the receptor. When the two molecules are far apart, the van der Waals force is very weak. As shown on the right side of Figure 2, the calculated force is small and the user cannot feel the force feedback at this stage. When the two molecules approach each other, first, the van der Waals force is an attraction force that the user can feel through the haptic device. As shown in Figure 3, the direction and the magnitude of the force are visualized as well. Compared with previous stage, the force has apparently increased and the change of force feedback can be felt by the user.

         As two molecules get closer, the repulsion force between molecules can increase if the docking position does not correspond to minimum energy of the system. In Figure 4, the direction of the force changes to the opposite.  The user by “feeling” the force could understand that another docking position should be tried. Here, the length of the arrow increased as the repulsion force increased. The user could feel a strong repulsion force through haptic device at this stage.

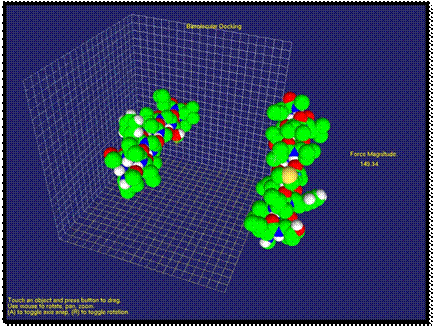

Fig. 2. Molecules are separated; the force is weak



Fig. 3. An attraction force of interaction is visualized.

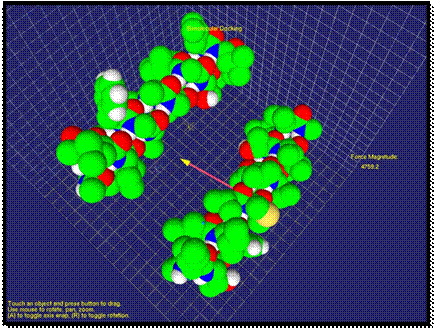

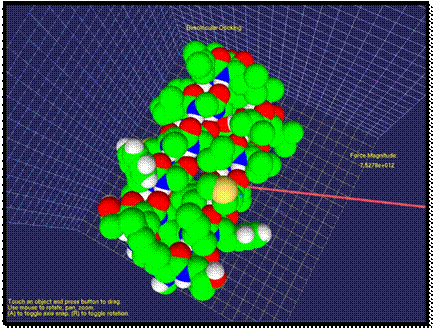

Fig. 4. Contact of two molecules is visualized. The repulsion force is shown.



5. Conclusion and Future Work

         In this paper, we introduced and described visual haptic-based biomolecular docking system HMolDock to study molecule interaction with the probe or/and with another molecule. In future, the system could be used for molecular docking in drug design. We are going to make further improvements on the visualization techniques and are planning to develop the docking navigation algorithms to make the docking more efficient and intuitive to the user. Our system is implemented as a standalone application that can be used individually on PC. The pdb files of molecules could be downloaded from Protein Bank website. We have two main directions in our study. First, we do research and development of molecular docking for drug design. We proposed a novel approach in helix-helix interaction research and rational design of peptides. We work on novel approach to search for helix-helix complementary pairs that will facilitate the search for membrane helical inhibitor in future. Novel models and algorithms specific to helix-helix docking will be proposed and developed. For now, drug-receptor or protein-protein interactions are the preferred subject of study, and specific features of helix-helix docking are less studied by researchers. Drug design with our system will be tested. Based on the preliminary study with our system, we believe that understanding of the reason certain mutations alter transmembrane interactions and cause disease can be improved with the proposed methods. We are going to do in silico experiments on biomolecular docking to study helix-helix interactions in rational drug design.

         Our second direction is development of visual haptic-based molecular docking system in collaborative virtual environments. As recently, haptics devices became more affordable, it would allow enhance the user experience with force feedback in e-learning systems for biomolecular educations. For now, the implementation of molecular docking in immersive virtual environment has limitations in number of atoms participating in force calculations and visual rendering. Therefore, research on the methods for fast visual and haptic rendering in immersive virtual environments should be carried out as well.



Acknowlegment

         This project is supported by MOE NTU grant RG10/06 “Visual and Force Feedback Simulation in Nanoengineering and Application to Docking of Transmembrane a- Helices”.
